Avoiding Costly Field Errors Starts with Rigorous Solar Mounting Factory QC
Have you ever had a major solar project delayed because mounting brackets didn't fit, or a pv structure failing prematurely.
How can solar EPCs and solar panel project developers de-risk their supply chain?
1. The Blueprint of Trust: Verifying the Solar Structural Design Report
Why it matters: The Solar panel bracket is a safety-critical component. An unverified solar mounting design is the single biggest risk to project integrity.
How HQ Mount Exemplifies This:We provide a full solar mounting technical design package as part of our service, with clear solar mounting system calculations for client and engineer review before production begins.
2. The Foundation of Longevity: Certifying Raw Material & Advanced Coating
|
Comparison Point |
The Quality Standard |
The Compromise/Substandard |
|
Core Steel: S350GD Grade |
Yield Strength:≥ 350 MPa (minimum).Ultimate Tensile Strength:~420 MPa. This is the baseline for certifiedS350GD. |
Material that fails to meet the minimum mechanical property standards of S350GD. Substituting a lower-grade steel (e.g., Q235) will compromise structural integrity under wind/snow loads. |
|
Corrosion Coating: ZAM vs. Standard Zinc |
Zinc-Aluminum-Magnesium (ZAM) Coating:With 1-3% Magnesium (Mg)content. The Mg enables"self-healing", protecting cut edges and scratches from rust spread. Industry data shows a ZAM coating of 275g/m² performs equivalently to an 85μm standard zinc coating. |
Standard Hot-Dip Galvanizing: Offers basic protection but lacks the self-healing property. A thin standard zinc coating (e.g.,< 65μm) has the poorest corrosion resistance. Performance degrades significantly if scratched. |
|
Coating Integrity |
Sufficient and Uniform Thickness: The actual coating thickness must match the structural design report. A target thickness of ≥ 80μm is often cited for durability. Independent tests have shown that insufficient coating thickness directly leads to the shortest service life. |
Insufficient or Inconsistent Thickness: Failure to apply a uniform and adequate coating layer is a common defect that leaves the steel vulnerable to accelerated corrosion, especially in coastal or high-humidity environments. |

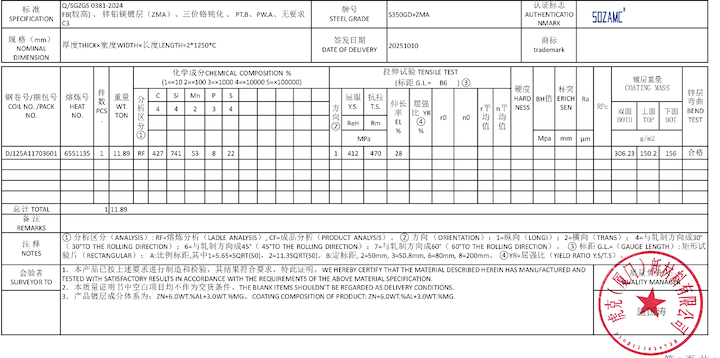

This is a MTC report from HQ Mount's recent delivery for steel solar mounting system
In this report the yield strength is 412Mpa, and the tensile strength is 470Mpa, the MG coating is 3.0WT.%, and the coating is 306.23
All the testing data are much more than the standard material request.
How HQ Mount Exemplifies This: We use premium steel with full traceability and specify high-grade ZAM275 coating with the optimal Mg content, backed by salt spray test reports exceeding 4,000 hours to red rust.

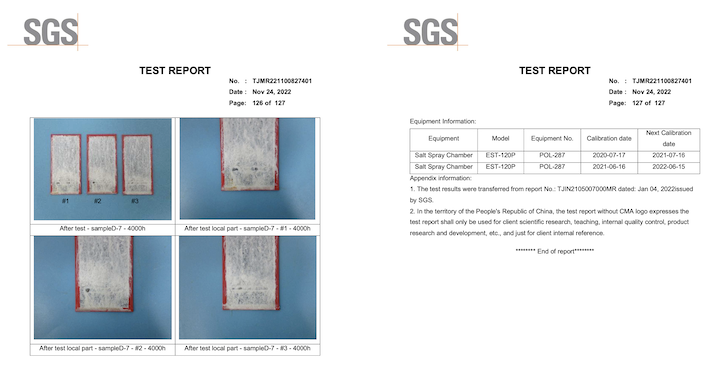

This is a salt spray testing for ZAM raw material from one of HQ Mount's recent delivery with 4000H by SGS.
3. The Precision for Installation: Checking Dimensional Accuracy & Compatibility
Why it matters: A minor error in hole alignment or bracket length, multiplied across thousands of pieces, leads to massive construction delays, forced rework, and skyrocketing costs.
What to inspect:
First Article Inspection (FAI): Before mass production, insist on a full FAI of a sample bracket. Measure every critical dimension.
Key Dimensions: Check hole diameters, hole centering, pitch distances between holes, and overall profile lengths against the approved drawings.
Inter-part Compatibility: Assemble solar bracket sample connections (e.g., bolt a bracket to a rail section) to ensure seamless fit without forced alignment.
Tooling: Inquire about the solar mounting manufacturer's use of precision CNC machinery and quality-controlled jigs, which are essential for batch consistency.
How HQ Mount Exemplifies This: Our CNC-controlled production and staged QC checks ensure dimensional tolerance is kept within ±1mm. We welcome and facilitate client-appointed inspector visits for FAI and pre-shipment checks.

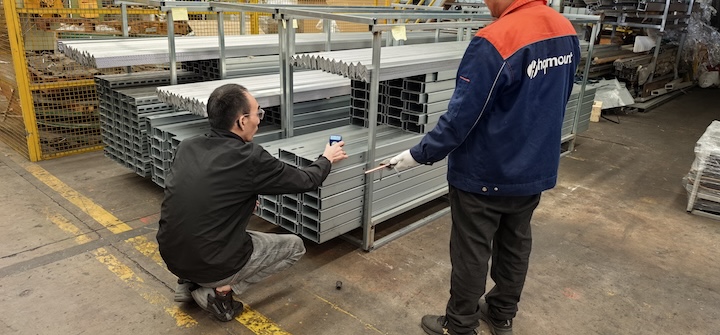

This is an appointed QC inspection from customer before final shipment.
4. The Guardian of Strength: Auditing Material Thickness & Fabrication
Why it matters: Substituting thinner steel is a common cost-cutting tactic that directly and dangerously compromises the safety factor of the entire structure.
What to inspect:

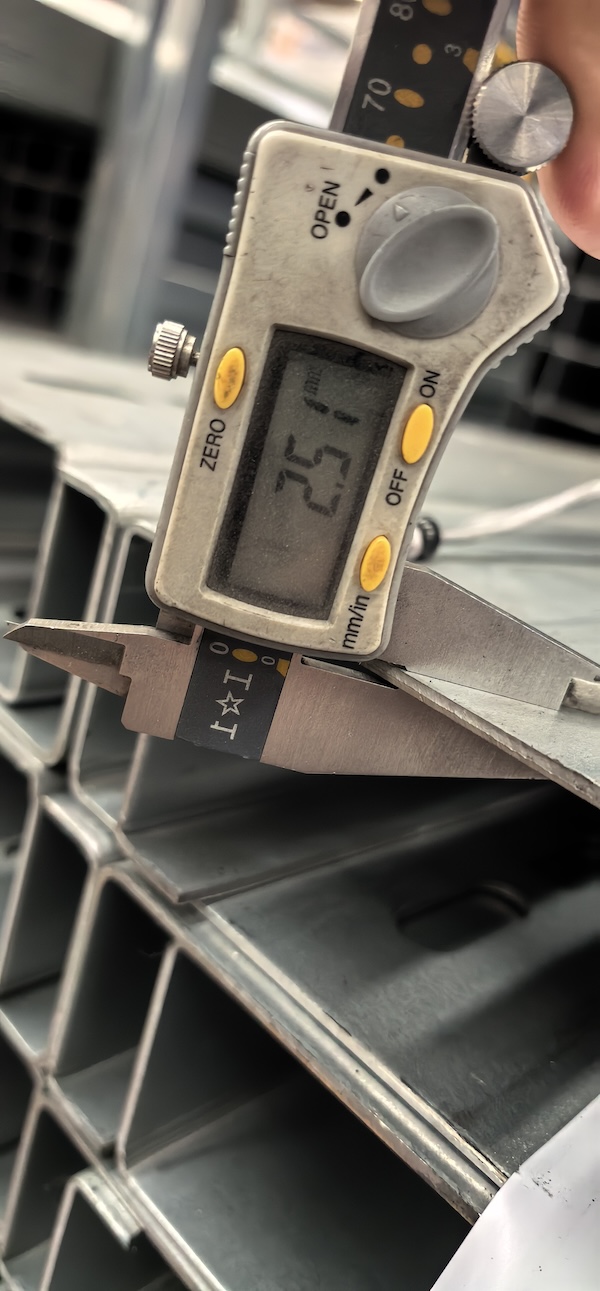

Randomly sample components and use the gauge to verify the actual material thickness matches the design specifications (e.g., 2.5mm steel must be 2.5mm, not 2.35mm).
Weld Quality: Inspect welds for consistency, full penetration, and lack of cracks or porosity. Poor welding creates critical stress points.
Straightness & Flatness: Check for any visible warping or bending from the fabrication process.
How HQ Mount Exemplifies This: We consider material substitution a breach of contract. Our in-process QC includes thickness checks, and final inspection to guarantee the strength outlined in the structural report is delivered.
Conclusion:
A reliable mounting bracket is the product of verified engineering, premium materials, precision manufacturing, and transparent auditing. These four inspection points is a framework for due diligence. HQ Mount as a leading solar mounting manufacturer would like to ensure your solar asset stands on a foundation of guaranteed reliability.
FAQ
Q1: Is a material certificate enough proof of quality?
A: No. The certificate proves what was bought, but you must physically inspect the actual solar pv brackets to verify the correct solar mounting steel thickness and coating were used.
Q2: What's the big deal if the bracket holes don't line up perfectly?
A: It causes massive delays. Solar mounting installers waste time drilling or forcing solar parts to fit, which can damage the coating and weaken the solar support structure.
Q3: For ZAM coating, what's the most important detail?
A: The Magnesium (Mg) content (around 3%). This is what gives the coating its "self-healing" power to protect scratches and edges for 25 years.
Q4: How do we know the bracket is as strong as the design says?
A:The approved design report is your blueprint. During inspection, you must check that the actual steel mounting bracket thickness matches the dimensions specified in that report.
Q5: Can we inspect the brackets at your factory?
A:Yes, we recommend it. We facilitate third-party inspections and provide full access to our production line and quality checks before shipping.
