Which solar bracket solution should I use for my trapezoidal solar roof?

In the previous artical we have covered how to choose the correct solar roof clamp for PV seaming roof.
Now, let’s talk about another common metal solar rooftop solution---Trapezoidal rooftop.

1, In a long time, solar L feet solution was the common solution worldwide. Some areas with better environment situation uses solar L feet + self tapping screw solution

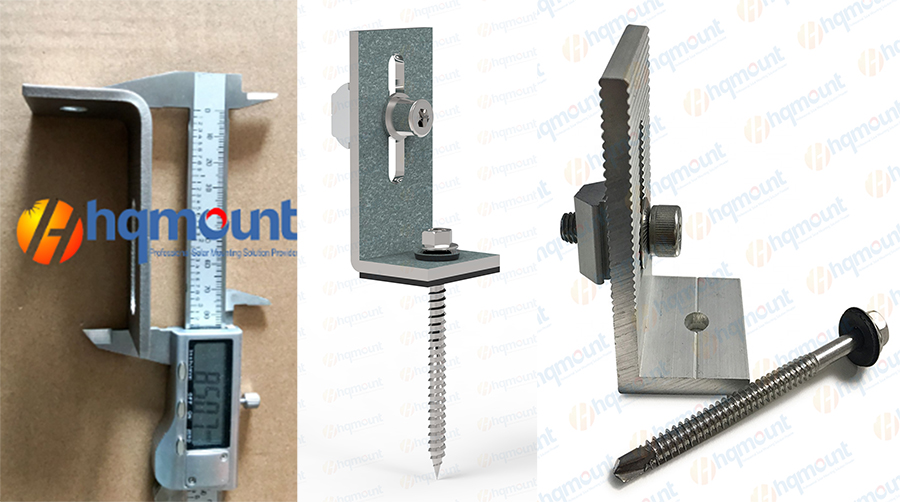

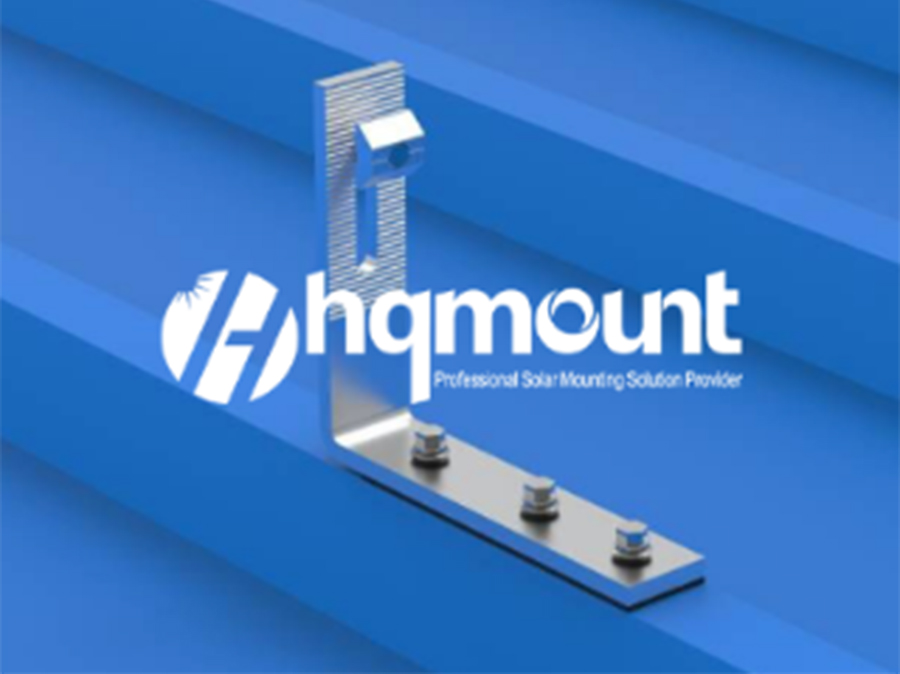

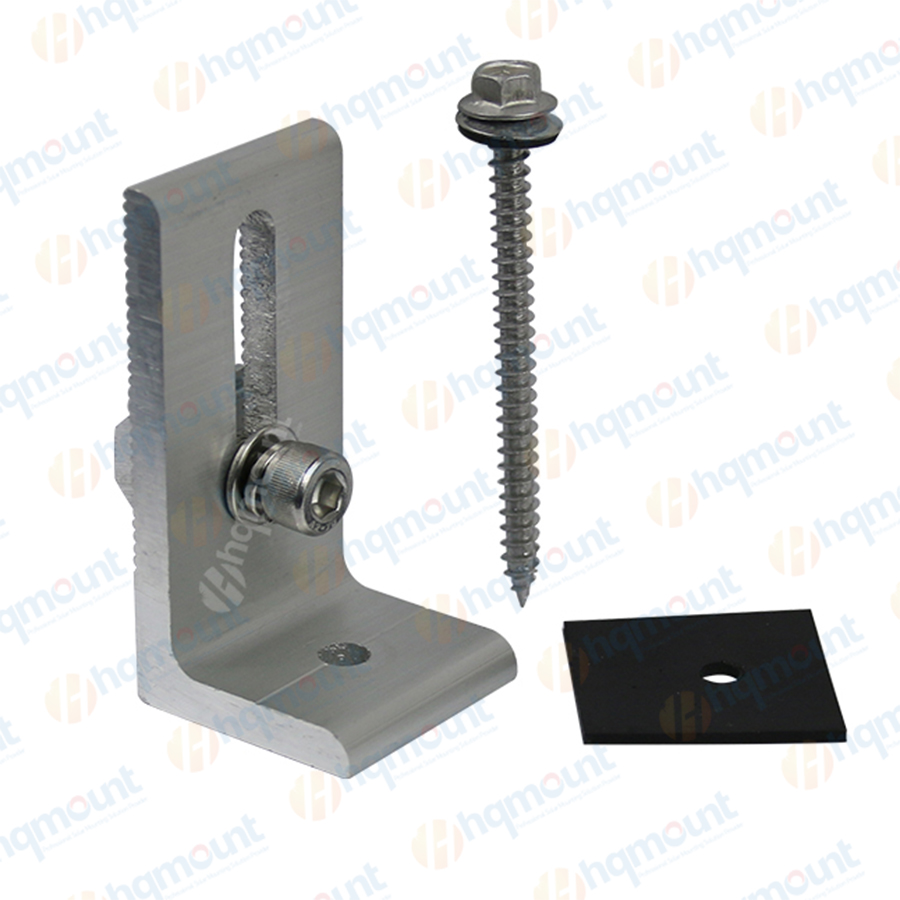

FIGURE 1 HQ MOUNT SOLAR L FEET BRACKET

While some with in a not so friendly situation choose solar L bracket + solar hanger bolt solution.

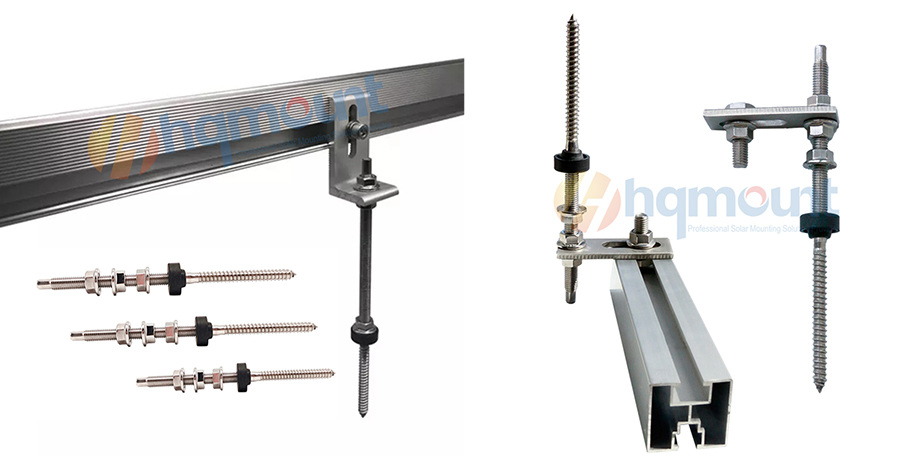

FIGURE 2 HQ MOUNT SOLAR HANGER BOLT KIT and SOLAR MOUNTING PLATE KIT

While people are using hanger bolt, due to the different fixing solar rail solutions, solar mounting adaptor are widely used as well.Solar stainless L feet, are one of the types that customers would choose.

FIGURE 3 HQ MOUNT STAINLESS SOLAR L HOOK,HQ MOUNT HOLLOW SOLAR L FEET,HQ MOUNT 85MM HEIGHT MOUNTING L FEET

The above solutions are using a long solar screw to fix the solar bracket into roof beam. While some other area will choose L feet, but to fix solar panel to roof sheet only, in this case, more solar screws will be used.

FIGURE 4 HQ MOUNT CUSTOMIZED SOLAR LONG L FEET

2.The solar short screw are mostly used for area with small wind speed, in a larger wind speed area, solar trapezoidal roof clamps are used.

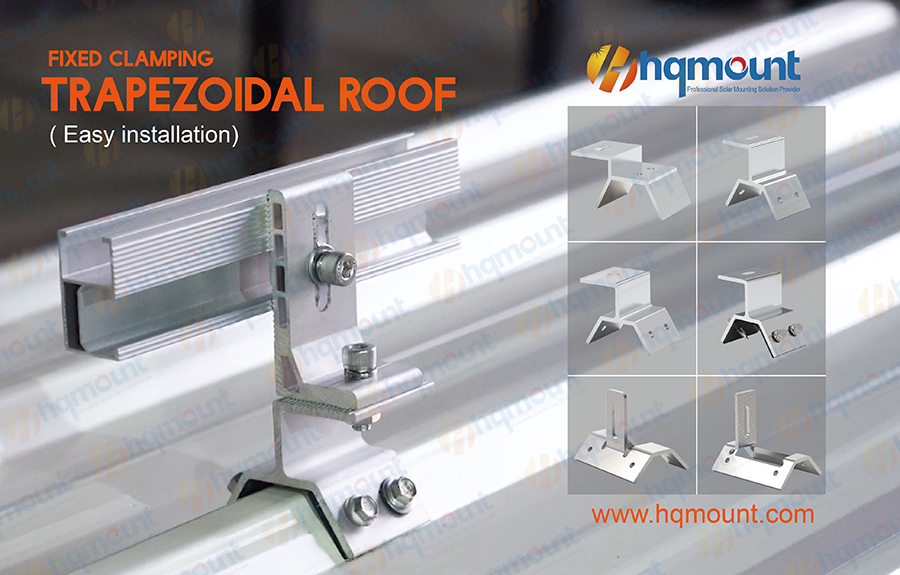

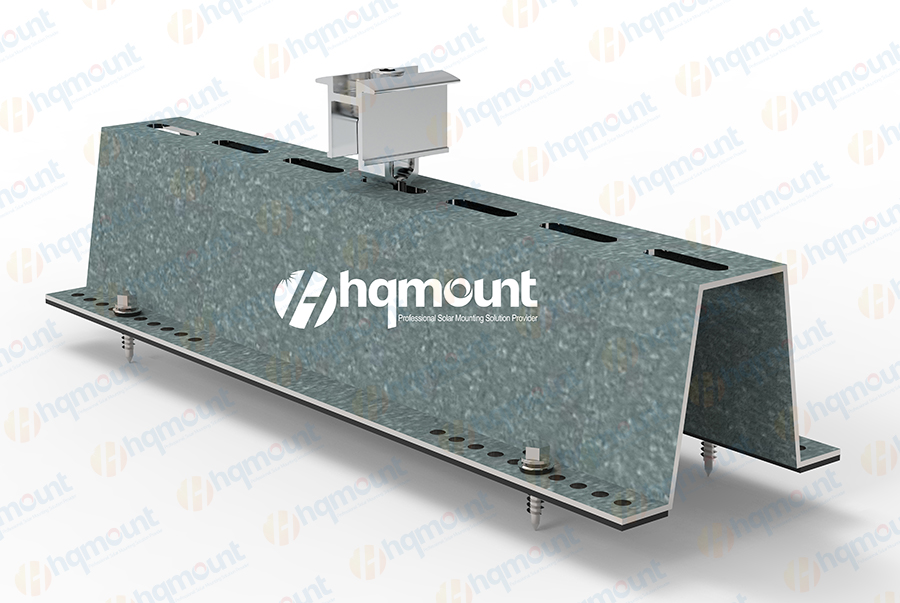

FIGURE 5 HQ MOUNT TRAPEZOILDAL ROOF CLAMP MOUNTING

But the solar roof clamp solution do have it’s limitation, one clamp only suite for one type of roof, this is when the universal solar roof clamps are stepping in.

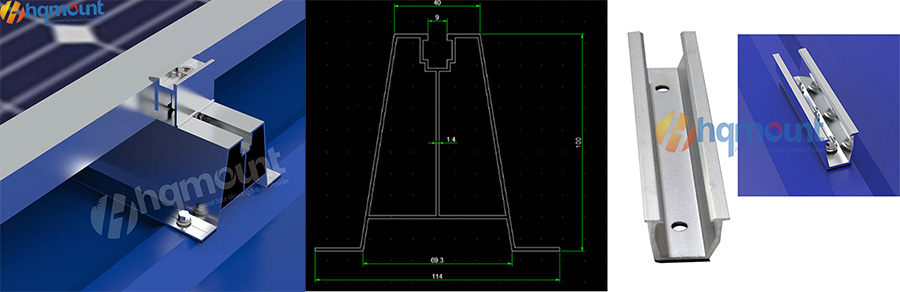

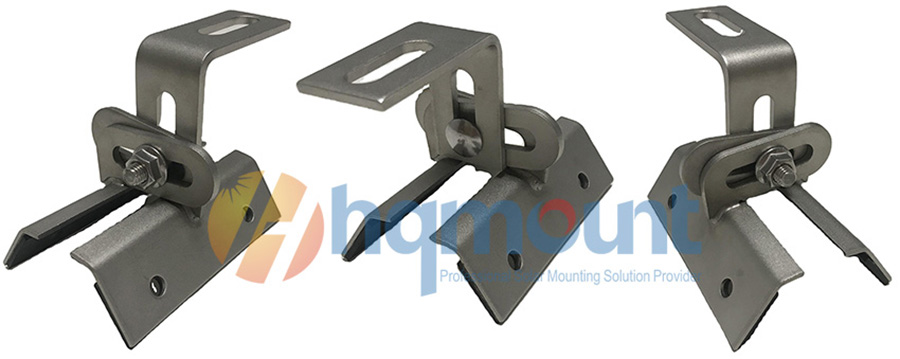

FIGURE 6 HQ MOUNT METAL ADJUSTABLE ROOF CLAMP

3.Same as the standing seam clamp development, for trapezoidal roof, people are also wandering, how can I cut off more costs?
So solar railess solutions with it’s advantage are becoming more and more population:

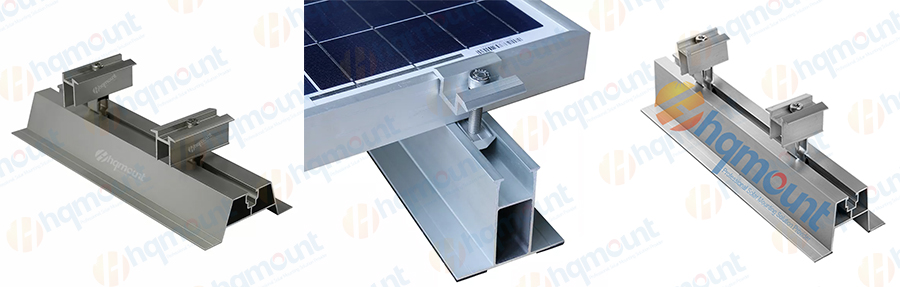

FIGURE 7 HQ MOUNT MINI RAIL U40,SHORT RAIL U67, SOLAR PANEL RAIL U55

In 2020, Poland release a new solar regulation that solar panel should be at least 70mm from the metal rooftop, so solar mini rail with 70mm has been designed.
Longi solar requested 100mm between solar panel and solar roof to cool the panels in summer.
4, In a better situation, solar railess solution can be used as well if they do not have the solar rail height requirements.

FIGURE 8 HQ MOUNT PV MOUNTING MINI RAIL U70,MANUFACTURE SOLAR MINI RAIL U100, SOLAR BRACKERT RAILESS U30.


5, To make the solar racking solution even more cost friendly, solar supporting solutions do use magnesium zinc aluminum alloy as well.

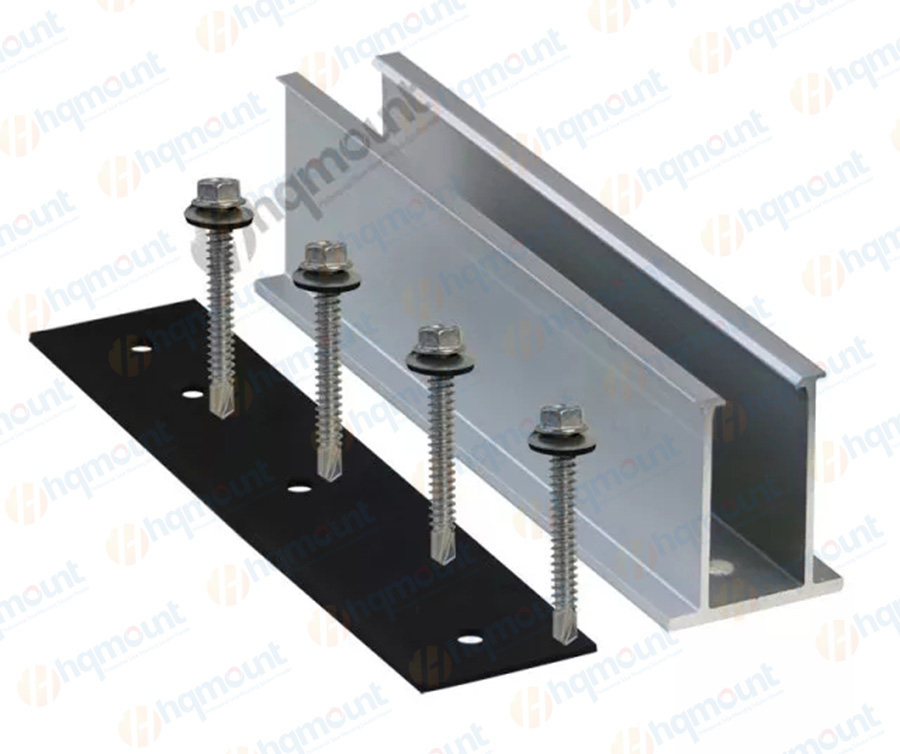

FIGURE 9 HQ MOUNT CHINE SOLAR MOUNTING U50


FIGURE 10 HQ MOUNT ZAM SOLAR MINI RAIL
All the above 5 solar metal bracket solutions are flat solutions, we will have another section to talk about the tilt angle solar bracket solution.
