Aluminium Rail For Solar Roof Mounting Structure System

Aluminium rail is used for solar roof mounting system with reduce waste design and change the position of connector to increase strength.

  • Item No.:

    HQ-S-W52
  • Payment:

    T/T, L/C
  • Product origin:

    Xiamen
  • Shipping port:

    Xiamen Port
  • Lead Time:

    15 days after deposit
  • Brand:

    HQ Mount
  • Model No.:

    HQ-S-W52
  • Certification:

    SGS, ISO9001
  • Material:

    Al-6005-T5
  • Lead time:

    15 days after
Inquiry now
Product Details

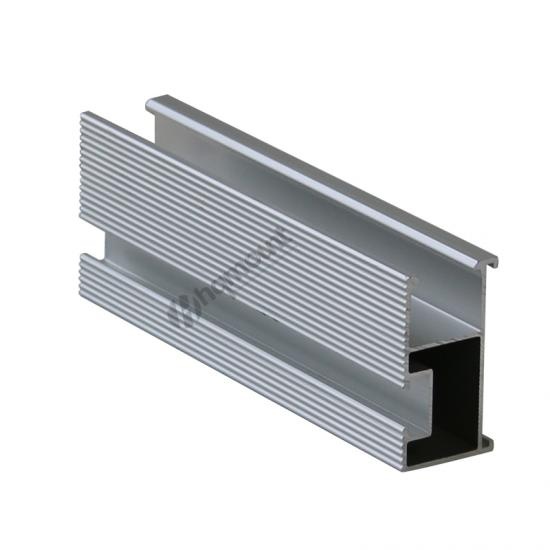

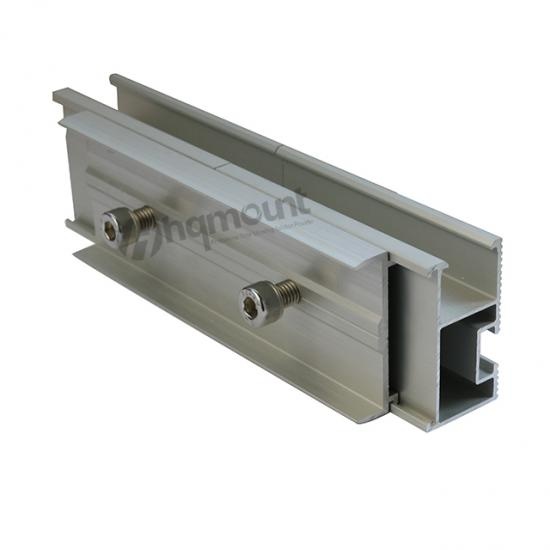

W52 Aluminium rail is high strength extrusion aluminium 6005-T5 material. The reduce waste design and change the position of connector to increase strength design can ensure the lower cost.  It fit on the roof site can be matched with L feet and a variety of Klip Lok.


Packaging&Delivery


Lead Selling Units:Multiple of

Package size per batch: 100X11X11 cm

Gross weight per batch:6.0 kg

Package Type:kraft paper cartons,8pcs/cartons, wooden pallet, container.

Lead Time :

Quantity(Meter)

1 - 10000000

>10000000

Est. Time(days)

10

To be negotiated




Product Description

HQ Solar panel mounting rails are suited for different solar panels. Less material but stronger.

Easy and quick to install, save your manpower and cost.

Features as below:

Quality: Anodizing layer ≥ 12 μm
Tensile Strength≥ 260N/MM2
Non-proportional elongation strength ≥ 240N/MM2
Elongation after break ≥8%
SGS, ISO approved

HQ Solar panel mounting rails

Product Name

Solar Panel Mounting Rails.

Material

Aluminium 6005-T5

Color

Sliver or customized

Standard

AS/NZS1170

Applicatio

Solar mounting system

Specification

1000m/2000m/3000m, can be customized

Wind speed

60m/s

Snow Load

1.4KN/m2

Warranty

12 year

Service life

25 years life time.


Packing


HQ Solar panel mounting railsHQ Solar panel mounting rails
