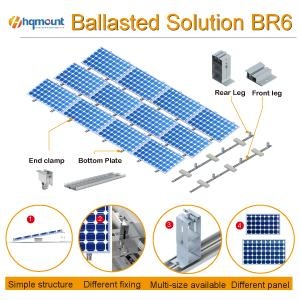

HQ Mount BR6 is made of aluminum and by that a very lightweight product. It is built under high-quality standards and designed for maximum durability and corrosion resistance in all ballasted flat roof. Easy to installation with the rapid clamp.
Features as below:
1. Flexible and simple installation
2. Light, sturdy material for a cost-efficient system
3. High pre-assembly
4.Height adjustable，suitable for a variety of panels
5. Maximum service life
6. New design, lightweight and strong aluminum structure.
7.It is easier to install with only rapid clamp.
8.Secures the array without damaging the flat roof
|
Material |
AL 6005-T5,(AL6061-T6,6063 available) |
|
Surface |
Anodized |
|
Panel Type |
Framed & Frameless |
|
Wind Load |
≤40m/s |
|
Snow Load |
1.4KN/m2 |
|
Panel Orientation |
Landscape/Portrait |
|
Color |
Natural or according your requirements |
|
Standards |
JIS C 8955 : 2017, AS/NZS 1170 |
|
Warranty |
12 years quality warranty, 25 years life span |

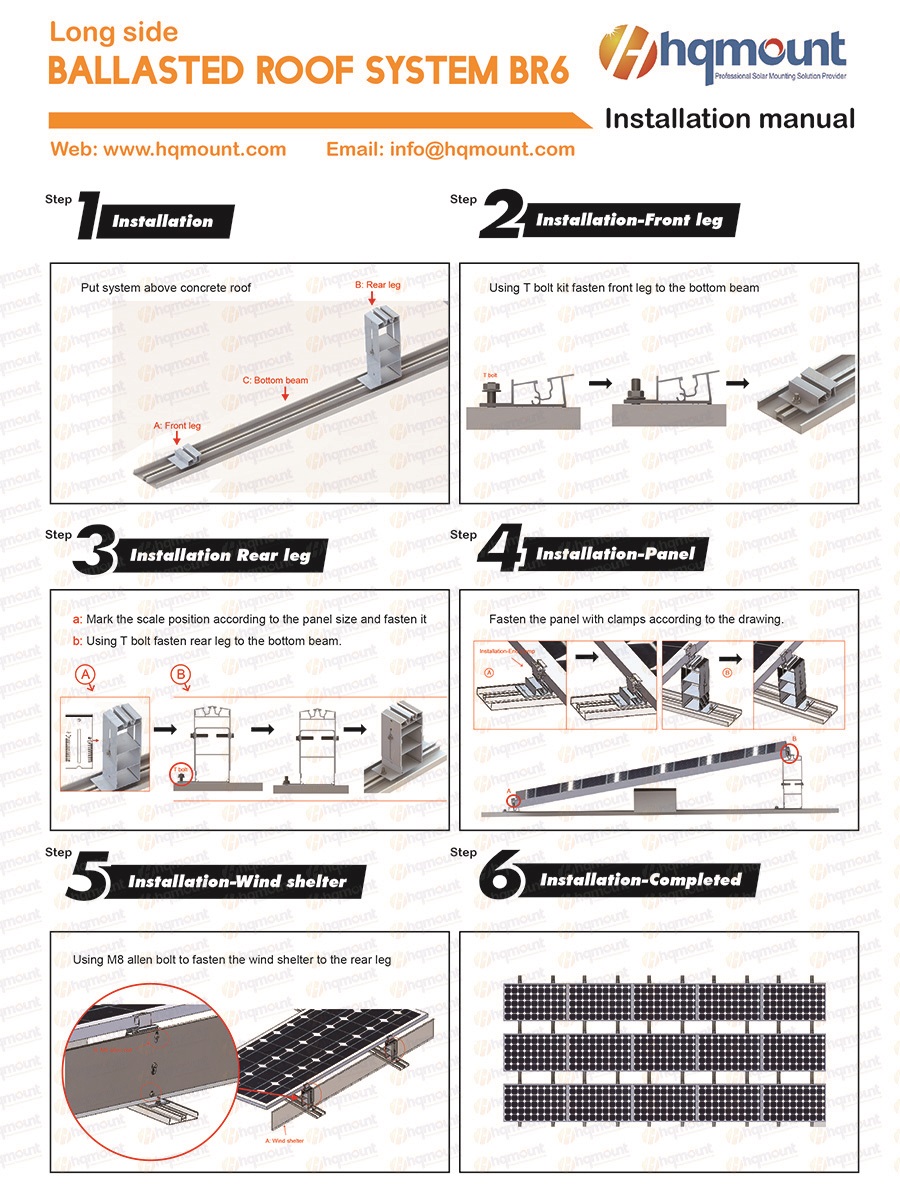

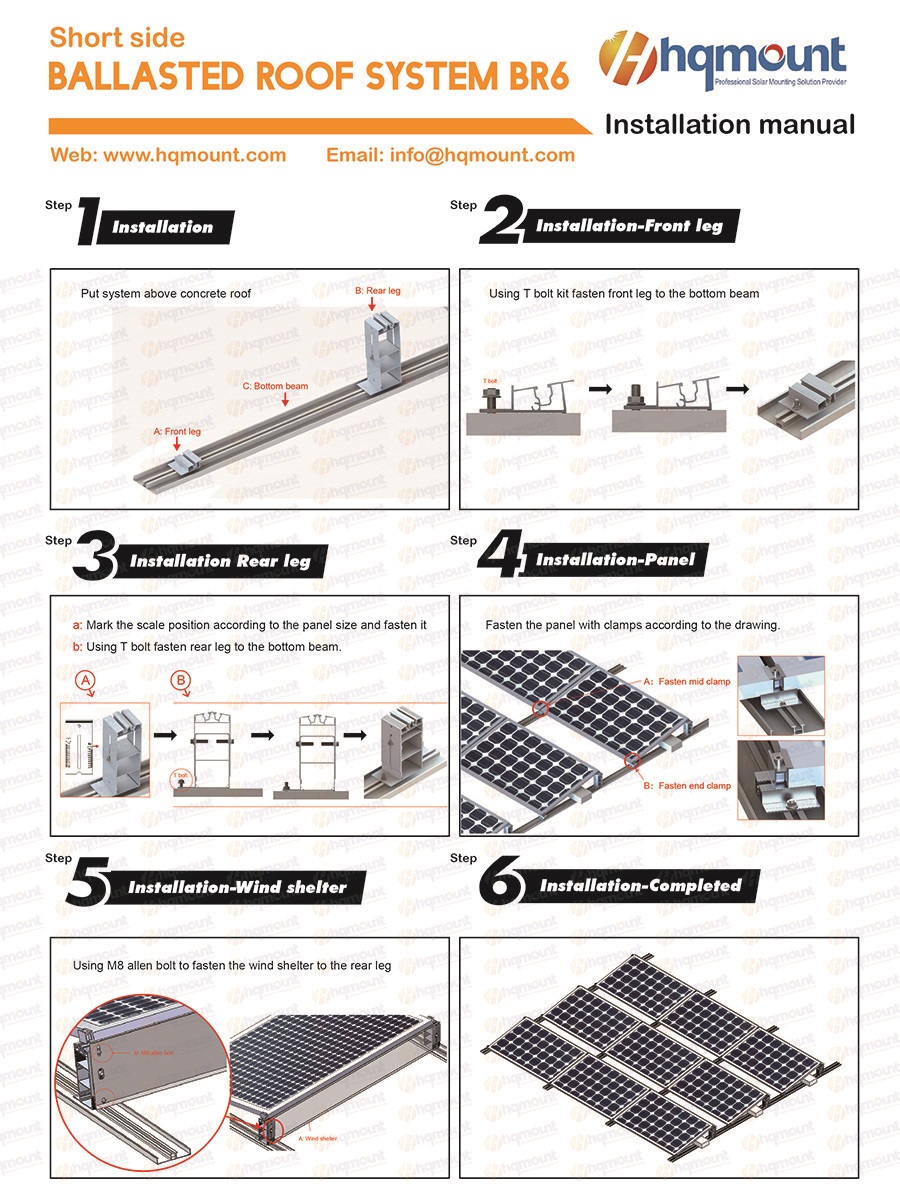

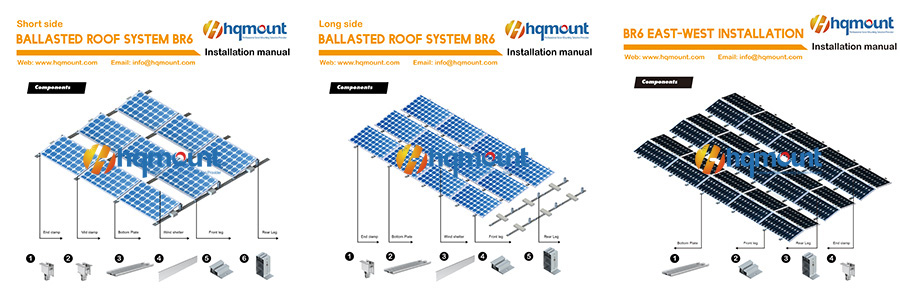

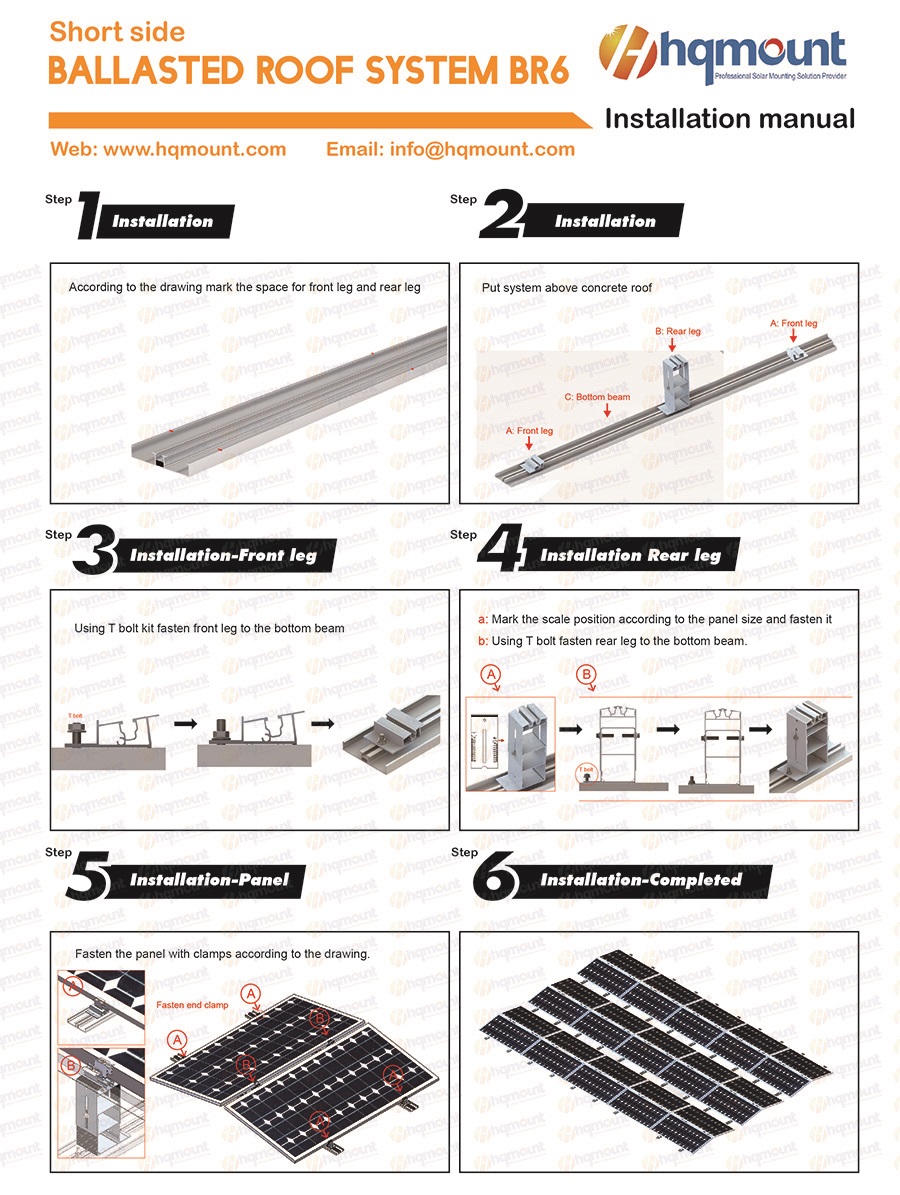

Installation Manual:
Packages:
