HQ-BR4

 /HQ mount no penetration easy install solar ballasted roof mounting systems ballasted mount flat roof solar mounting bracket

Ballasted Solar Mounting
Ballasted Solar Mounting Ballasted Solar Mounting Ballasted Solar Mounting Ballasted Solar Mounting Ballasted Solar Mounting

HQ mount no penetration easy install solar ballasted roof mounting systems ballasted mount flat roof solar mounting bracket

HQ Mount BR4 is lightweight, has good strength and excellent corrosion stability. It does not need to penetrate the roof layer, the new design protects the roof, is cost-effective and easy to install.


  • Item No.:

    HQ-BR4

  • Payment:

    T/T,Paypal,Western union,L/C

  • Product origin:

    Fujian

  • Color:

    natural or customized

  • Shipping port:

    Xiamen port

  • Lead Time:

    7-15 days

  • Brand:

    HQ MOUNT

  • Certification:

    ISO,SGS

  • Material:

    Steel &AL6005
Inquiry now
Product Details

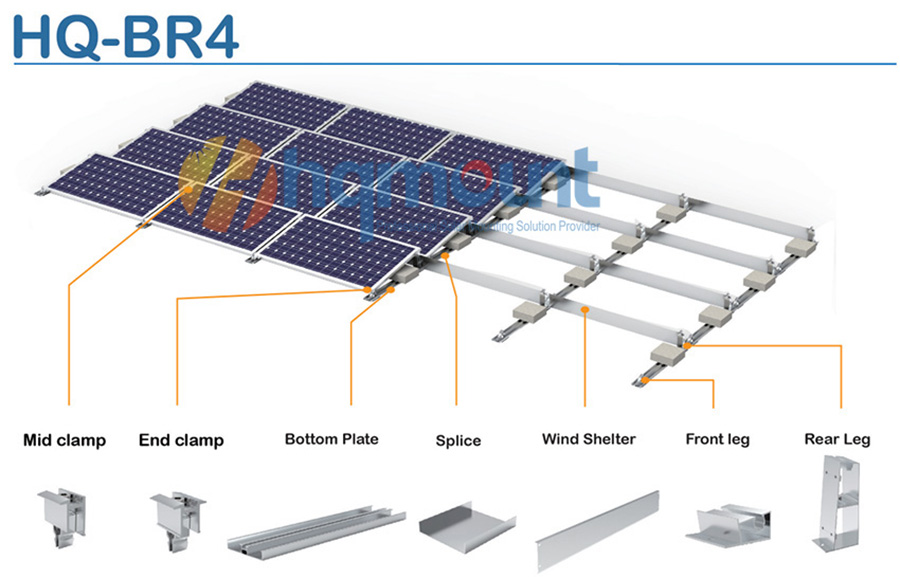

HQ Mount BR4 is made of aluminum and by that a very lightweight product. It is built under high-quality standards and designed for maximum durability and corrosion resistance in all ballasted flat roof. Easy to installation with the rapid clamp.

Features as below:

1. Flexible and simple installation

2. Light, sturdy material for a cost-efficient system

3. High pre-assembly

4. Maximum service life

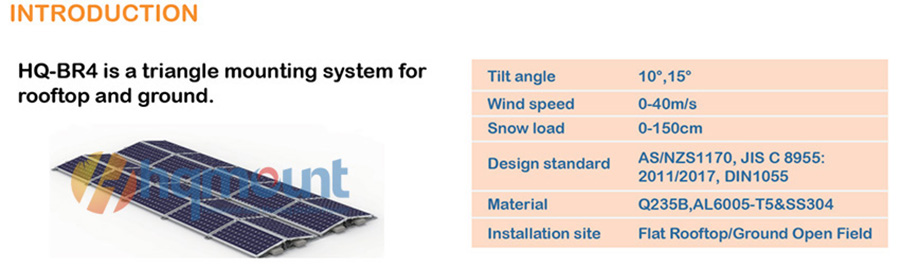

Material
 AL 6005-T5,(AL6061-T6,6063 available)
Surface
 Anodized
Panel Type
 Framed & Frameless
Wind Load
 ≤40m/s
Snow Load
 1.4KN/m2
Panel Orientation
 Landscape/Portrait
Color
 Natural or according your requirements
Standards
 JIS C 8955 : 2017, AS/NZS 1170
Warranty
 12 years quality warranty, 25 years life span

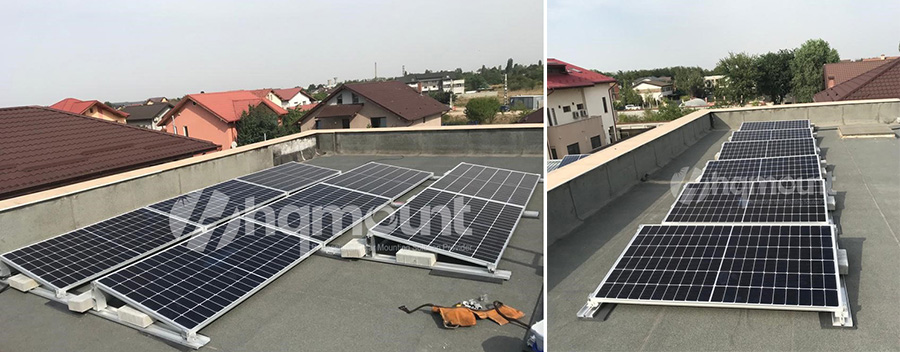

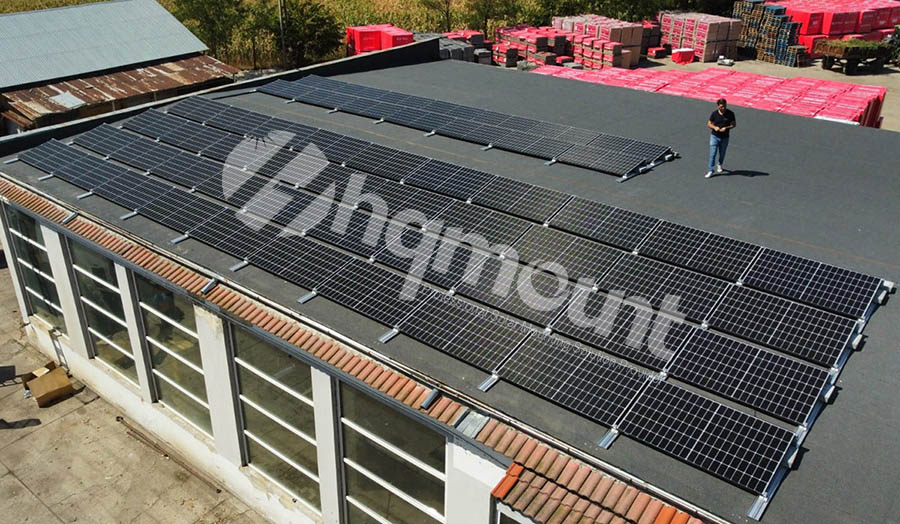

Project Case:




Packages:
