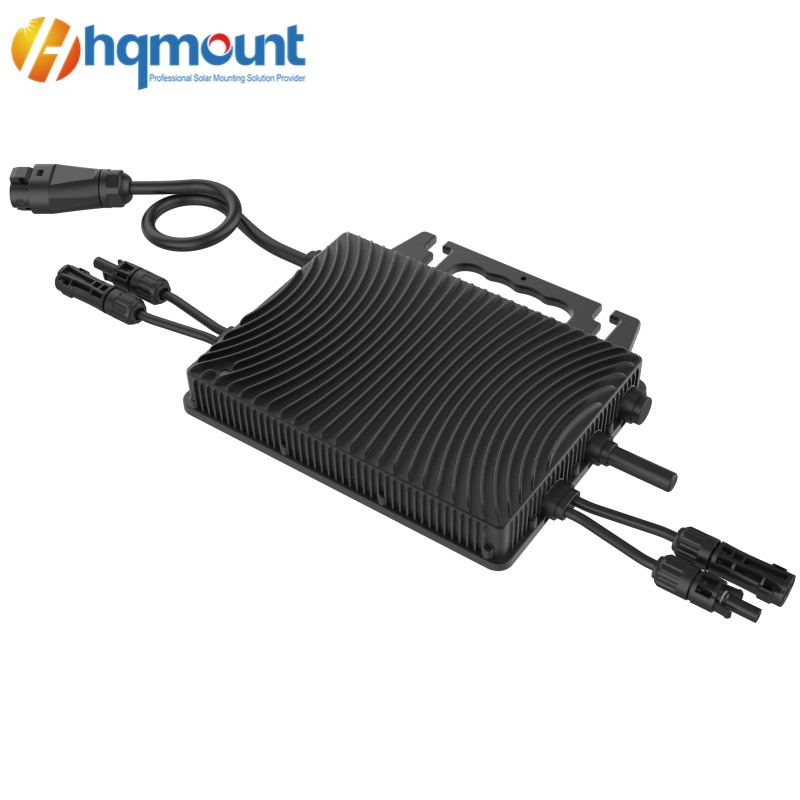

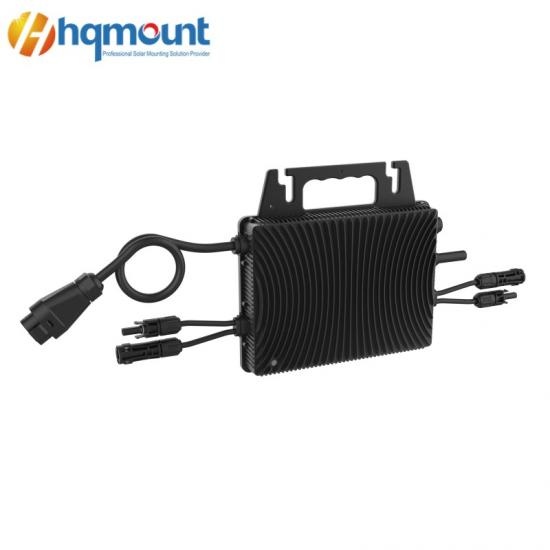

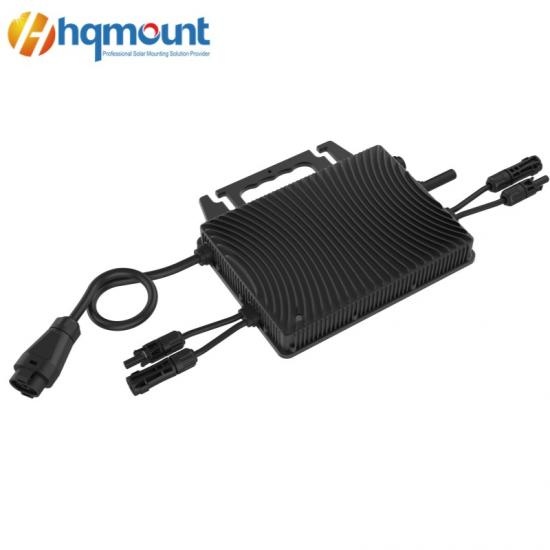

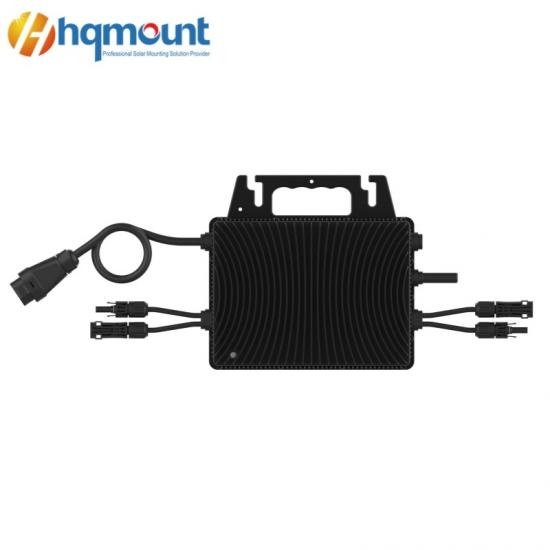

IP67 Waterproof PV Grid-tied Inverter Solar Micro Inverter 800W

Micro-inverter is a small-sized inverter that efficiently converts DC power from photovoltaic modules to AC power, featuring safety and convenience.
  • Item No.:

    HQ-1T2
  • Payment:

    T/T, PAYPAL, Western Union, L/C
  • Product origin:

    China,Fujian
  • Shipping port:

    Xiamen Port
  • Lead Time:

    7-15 DAYS, NORMALLY
  • Brand:

    HQ MOUNT
  • Certification:

    CE,SGS,TUV,ISO
Inquiry now
Product Details

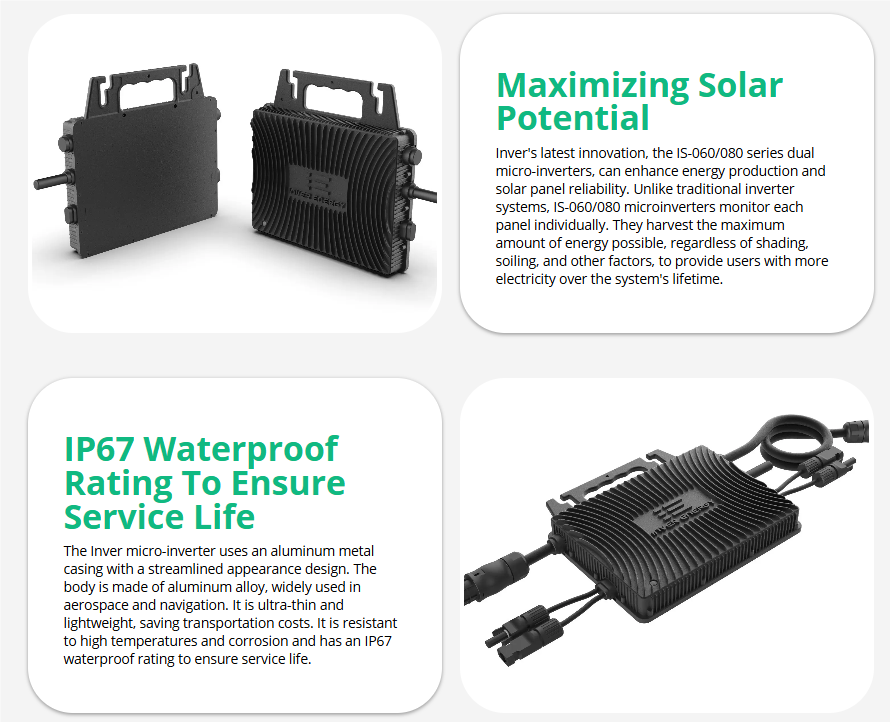

This system is composed of a group of microinverters that convert direct current (DC) into alternating current (AC) and feeds it into the public grid. The system is designed for the incorporation of one Microinverter for two photovoltaic modules. Each Microinverter works independently that guarantees the maximum power generation of each photovoltaic module. This setup enables user to control the production of a single photovoltaic module directly, consequently improving the flexibility and reliability of the system.

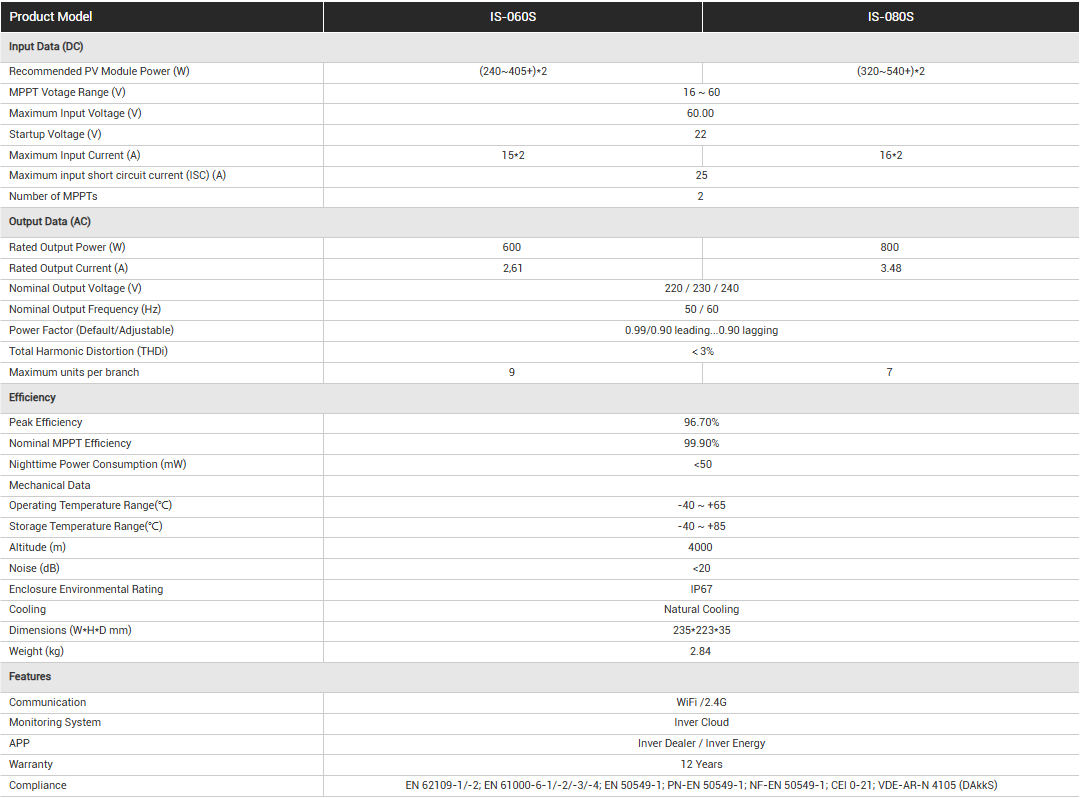

IS-060S/080S Features:

1.Safer with rapid shutdown compliance

2.Plug & Play, easy installation

3.2 MPPTs, 96.7%+ peak efficiency

4.WiFi integrated, direct communication with APP. Module level monitoring

5.IP67 protection, adapt to outdoor use

6.25 years design lifetime and 12 years warranty


7.Compliance:EN 62109-1/-2; EN 61000-6-1/-2/-3/-4; EN 50549-1; PN-EN 50549-1; NF-EN 50549-1; CEI 0-21; VDE-AR-N 4105 (DAkkS)




Feel free to contact us with any questions
