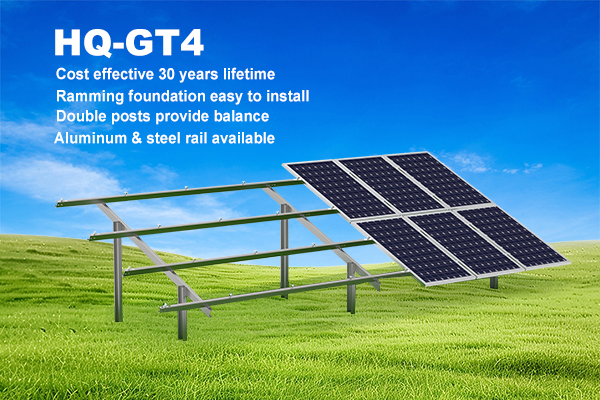

GT4 ZAM Steel Solar Ground Mounting System
— Designed for Commercial and Large Utility Scale PV Projects
GT4 Ground Mounting System Introduction Video：
Product Overview
The GT4 Ground Mounting System from HQ Mount is a cost-effective and easy-to-install steel racking solution designed for large-scale solar power plants, commercial solar farms, and agrivoltaic projects. Built from high-quality Zn-Al-Mg (Zinc-Aluminum-Magnesium) coated steel, it offers outstanding durability, corrosion resistance, and adaptability to various terrains and climates.
With HQ Mount’s monthly production capacity of 80 MW and over 7,000 tons of steel processed, GT4 is trusted for efficient deployment and consistent quality across projects of any size.
Key Features & Advantages
Anti-Corrosion & Durable
Zn-Al-Mg coated steel provides 3–10x better corrosion resistance than traditional galvanizing
Perfect for coastal, desert, and high-humidity environments
Height Adjustable & Flexible
Adjustable height design fits uneven or sloped terrain
Compatible with landscape or portrait solar modules
Supports multiple foundation types,Compatible with both ramming pile and concrete foundations. Adaptable to flat, uneven, or sloped terrain conditions

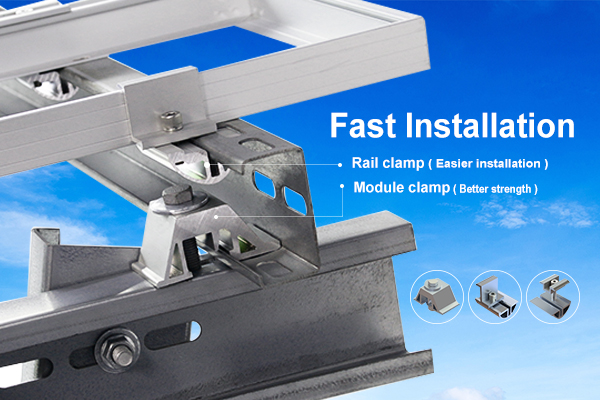

Fast & Easy Installation

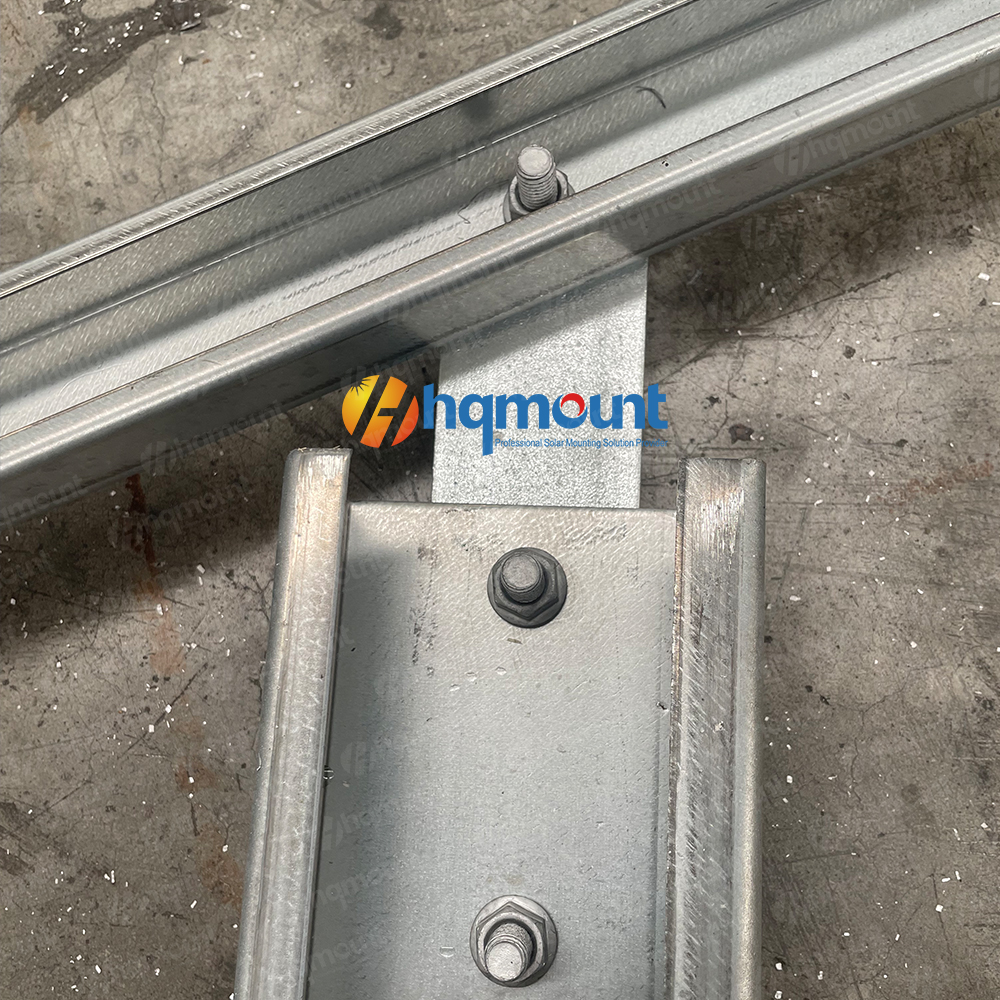

Pre-assembled clamps and rails for quick mounting

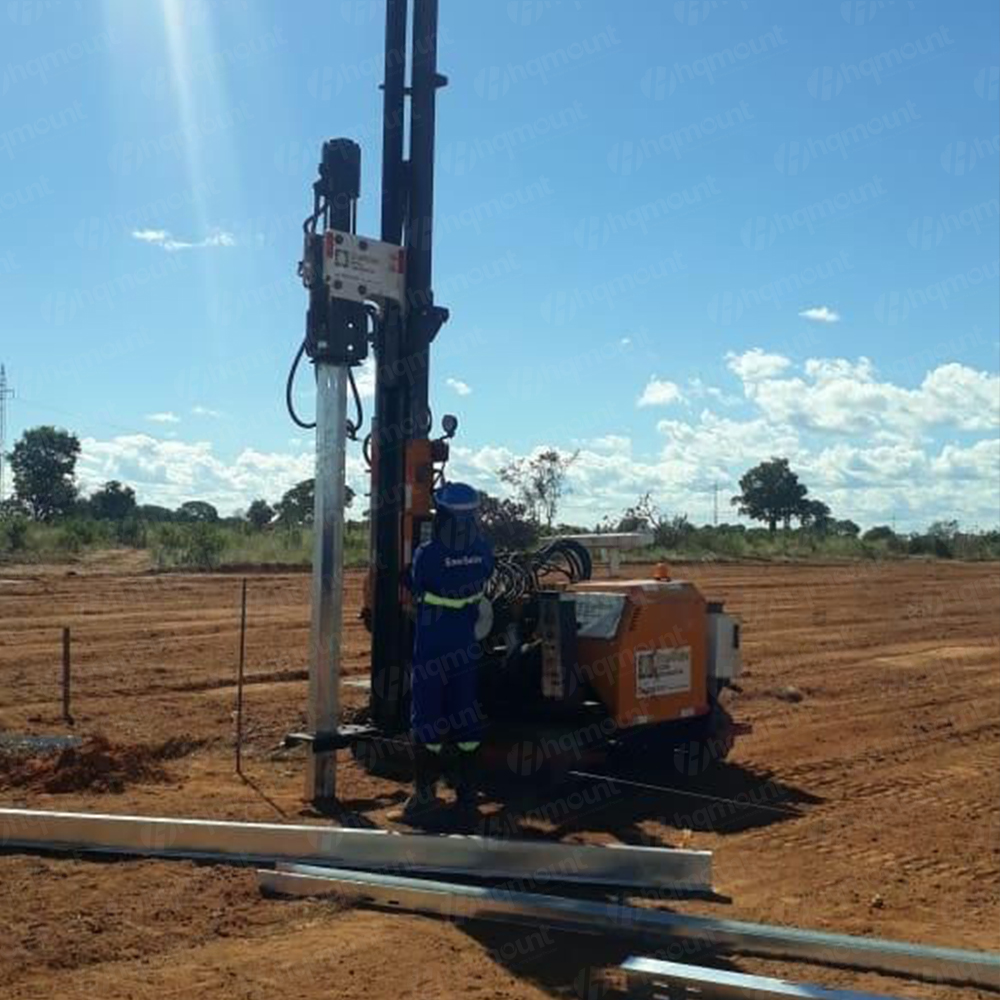

Ramming pile foundation reduces install time by up to 30%
Low labor costs and high stability
Smart Design Tool
In-house CAD-basedsoftware generates custom bracket designs and BOMs
Engineering support tailored to Eurocode standards
Fully customizable for project-specific wind, snow, and seismic loads
--Online Design:Search “HQ Mount” in your app store or Click here to access online
Scalable Production Capacity
Large-scale manufacturing ensures reliable supply for projects of any size
Supports global shipping with on-time delivery and optimized packaging

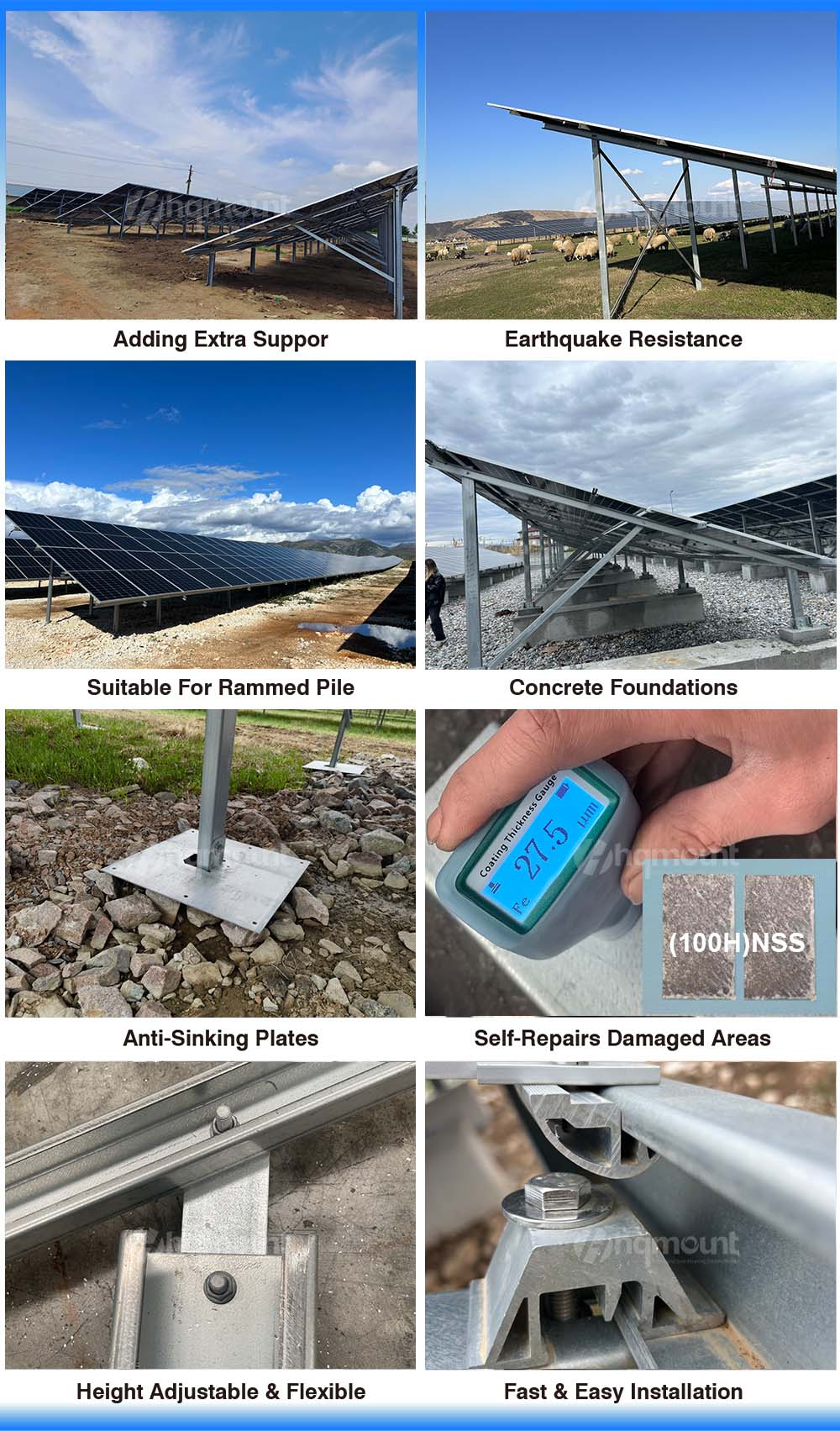

Flexible & Expandable Design
Dual-post structure allows for system expansion and reinforcement (e.g., diagonal bracing, wind resistance upgrades)
With modular design and adaptable components, it supports multiple structural layouts and foundations to meet different site conditions and application needs. (e.g., elevated for Fish Pond and agrivoltaic applications.)
Excellent Terrain Adaptability

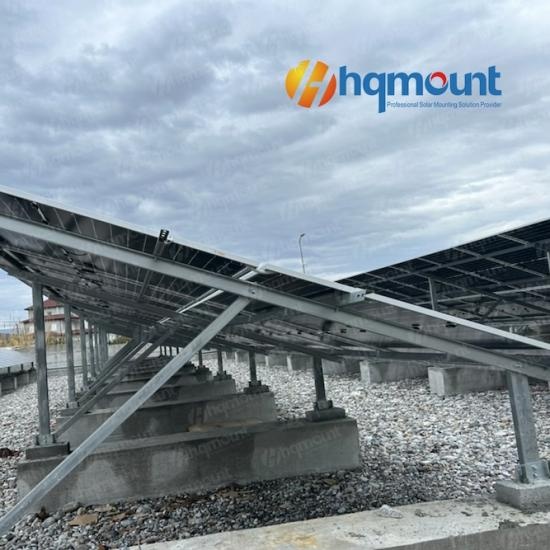

Suitable for rammed pile or concrete foundations
Optional anti-sinking plates available for snowy or soft ground conditions
Need a tailored solution for your site?Contact us now!
Technical Specifications
Main Material:Zn-Al-Mg coated steel (3% Mg)
Coating Thickness : ≥150g/m²
Rail Options : Steel / Optional aluminum

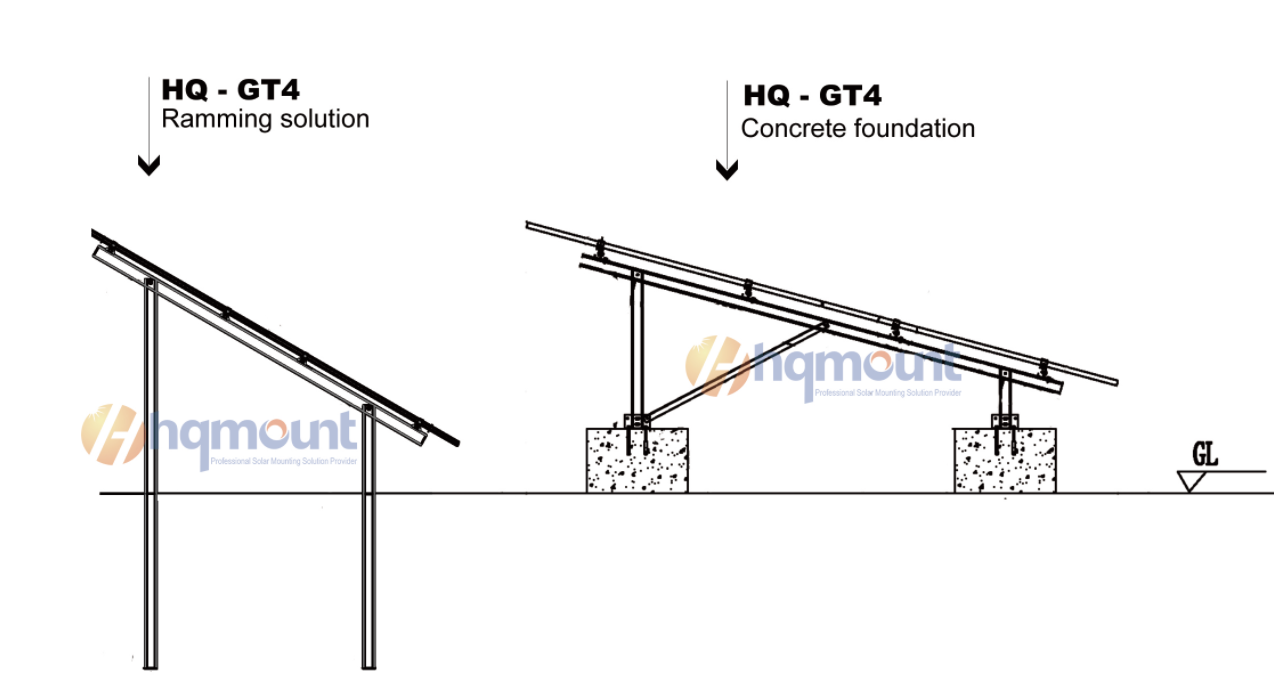

Foundation Type : Rammed pile / Concrete
Panel Orientation : Landscape / Portrait
Wind Load Up to 42 m/s
Snow Load Up to 1.5 kN/m²
Terrain Suitability : Flat / Sloped / Uneven
Warranty : 10–15 years
Service Life:≥25 years
Applications
Large Utility Scale Solar Power Plant Stations
Commercial & Industrial Solar Farms
Rural and Agricultural Projects
Harsh Environment Installations (Coastal, Snowy, Sandy)
GT4 Packaging & Delivery
GT4 Installation Video

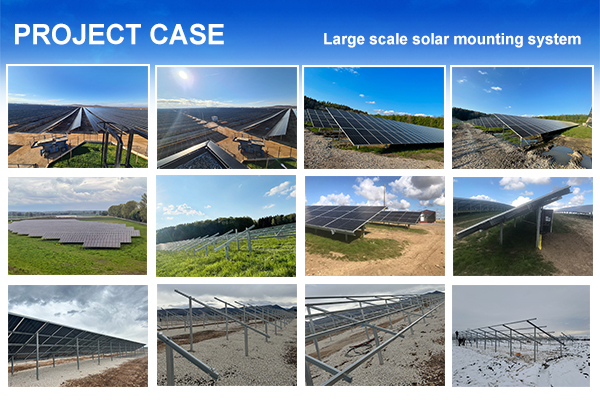

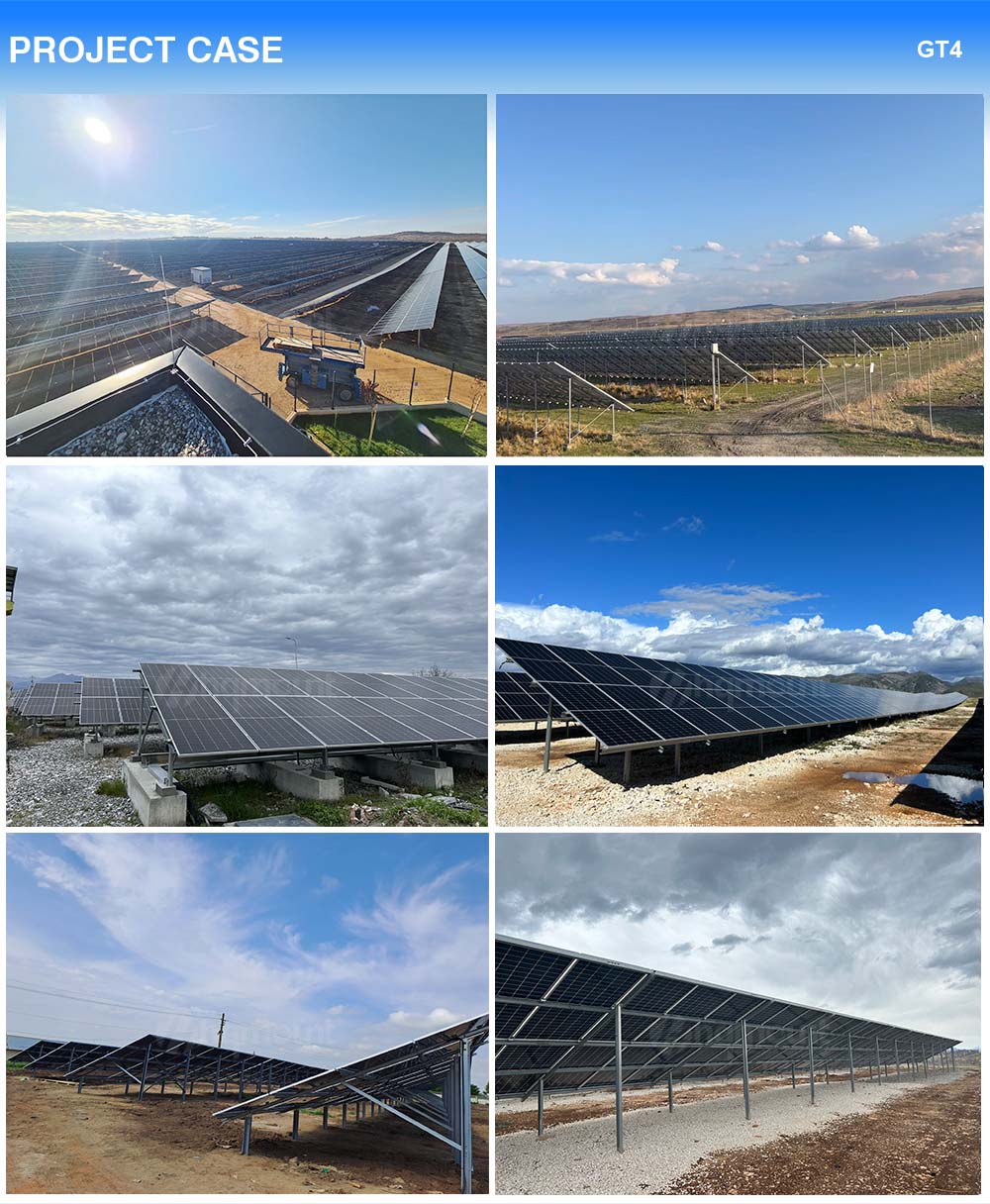

Project Case:
Certificates & Compliance
FAQ
Q1: What’s the difference between ramming pile and concrete foundation?
Ramming piles are driven directly into the ground for fast, low-cost installation, while concrete foundations use precast blocks for better stability on complex terrain. Foundation comparison guide, See detailed blog
Q2: How long does Zn-Al-Mg steel last?
The coating offers long-lasting protection, especially in corrosive environments. See detailed blog
Q3: Can this system be used on sloped or uneven land?
Yes. The height-adjustable structure allows flexible adaptation to terrain.
Q4: Do you provide technical drawings and layout plans?
Yes. Use our free design tool or contact us for engineer-reviewed CAD drawings.
Let us support your next solar project with a durable and efficient mounting system.
Contact us now to receive a custom layout, price quote, and shipping details!
