HQ-GT4 double post solar ground rack

/Solar Panel Hot-dip Galvanized Ground Solar Mounting Structure Good Quality Solar Ground Mounting System

Solar Panel Hot-dip Galvanized Ground Solar Mounting Structure Good Quality Solar Ground Mounting System

GT4 ground system classic, standard and simple ground mount structure, The steel-magnesium aluminium zinc material with super corrosion resistance, wear resistance, coating resistance and good welding performance, can adapt to a variety of harsh environment, which suitable for large ground station.

  • Item No.:

    HQ-GM-GT4
  • Payment:

    T/T, PAYPAL, Western Union, L/C
  • Product origin:

    China,Fujian
  • Color:

    Natural or Customzied
  • Shipping port:

    Xiamen Port
  • Brand:

    HQ MOUNT
  • Certification:

    CE
  • Material:

    Magnesium Al Zinc
  • Lead time:

    7-15 days
Inquiry now
Product Details

Double Pole ground bracket is applied for large commercial and utility PV system on non-sandy ground, suitable for both framed and frameless module module installation.


In double poleground system, open post can be pile into the ground 1-2 meters by pile machine quickly, then easily mounting the pre-assembled rack.


Simplify your installation and ensure the structure safe.


Advantages:

1. Unique post profile, saving material cost;

2. Simple installation, saving labour cost;

3. Horizontal and vertical rotation available;

4. Tilt in/off design, easy for installation;

5. High anti-corrosion, long warranty.

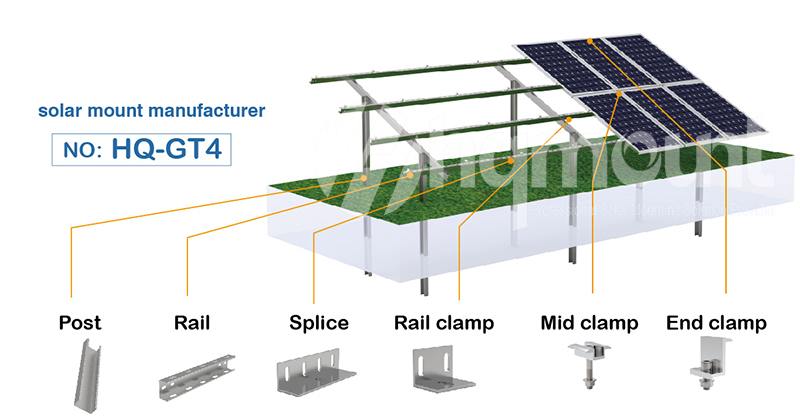

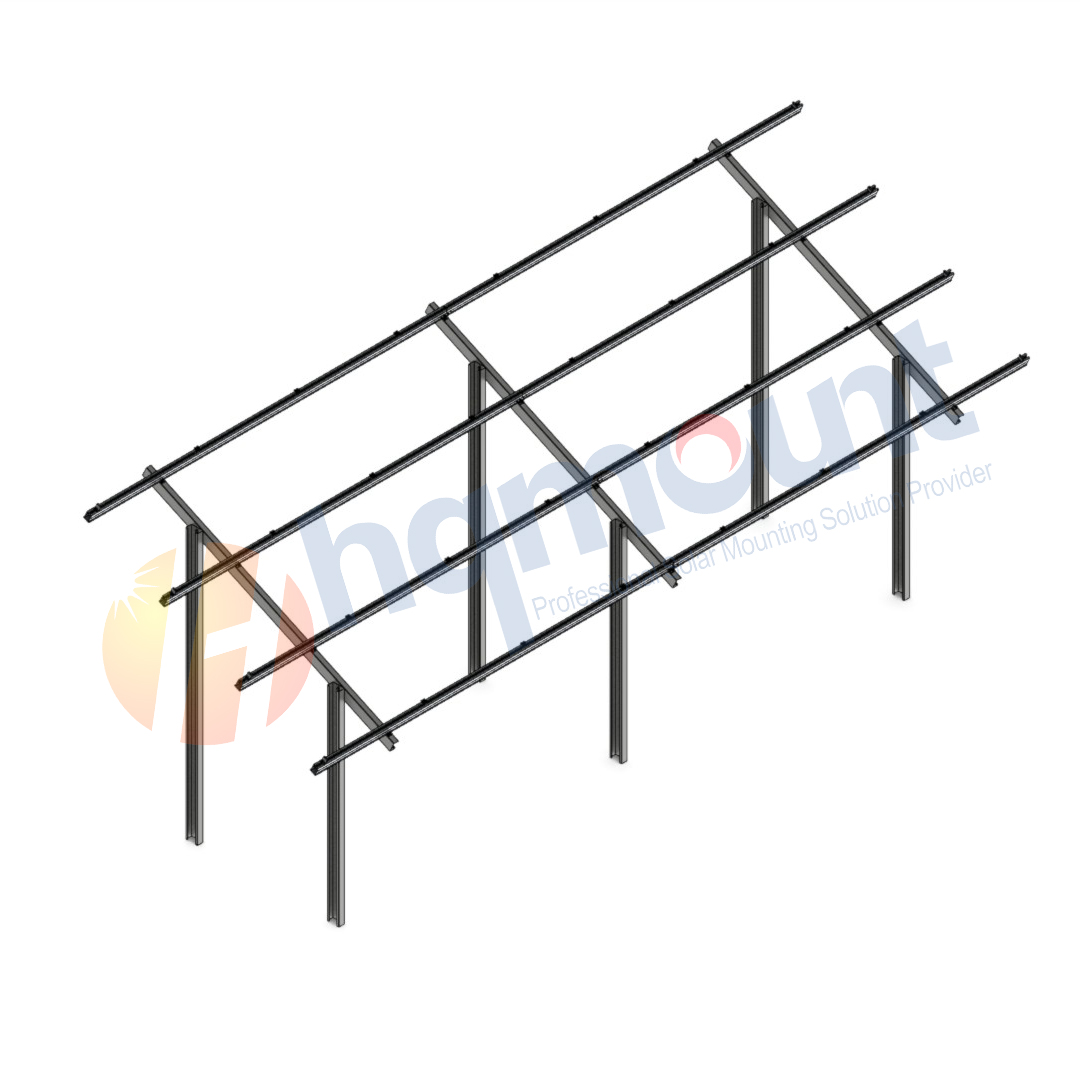

Double Pole Solar PV Ground Mount Bracket

Double Pole Solar PV Ground Mount Bracket

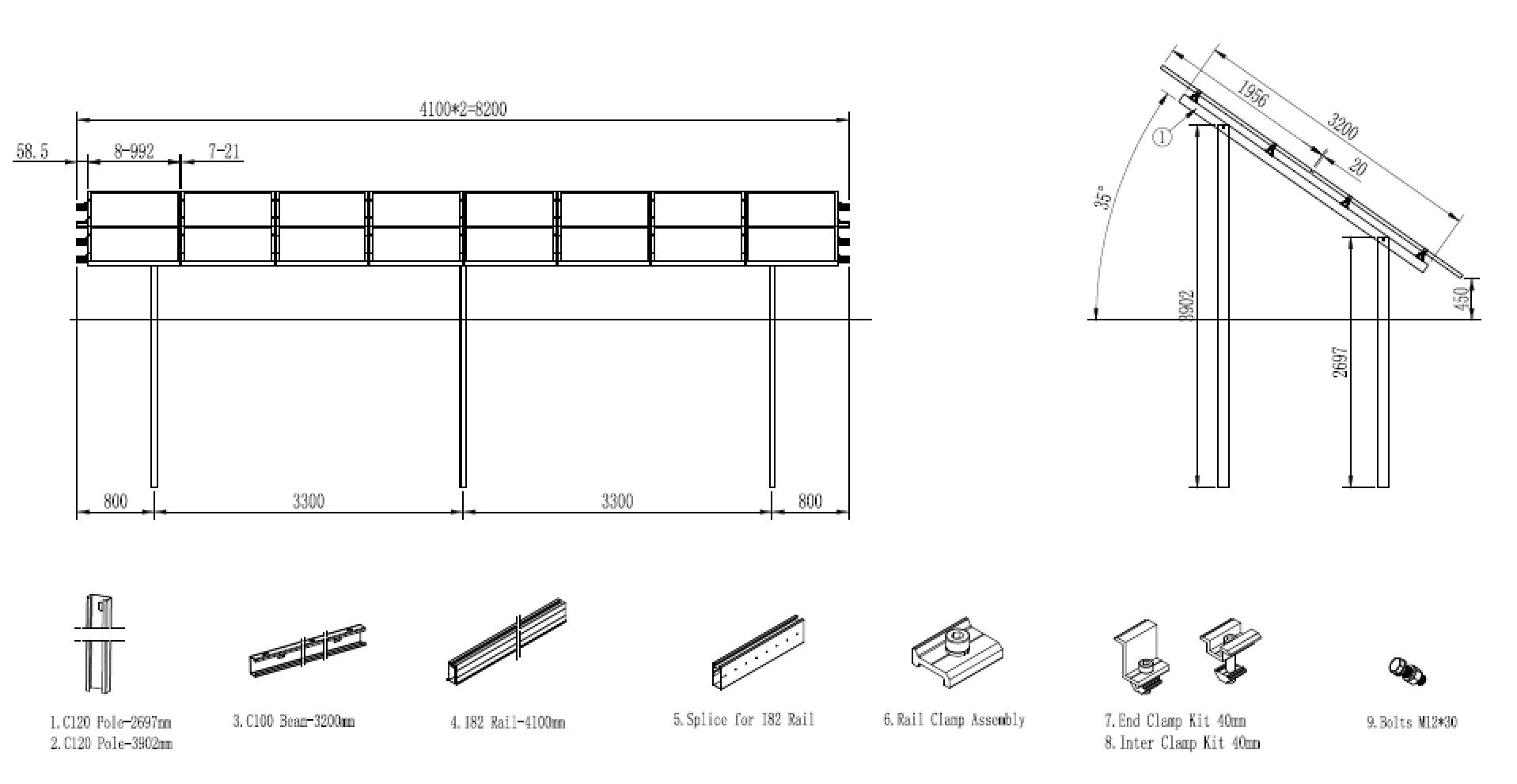

Overview:



Item 1 2 3 4 5 6 7 8 9
Description C120 Pole-2697mm C120 Pole-3902mm
C100 Beam-3200mm I82 Rail-4100mm Splice for I82 Rail Rail Clamp Assembly End Clamp Kit 40mm Inter Clamp Kit 40mm Bolts M12*30
Qty.(PCS) 3 3 3 8 4 24 8 28 6

Notice: Above dimension for reference only.

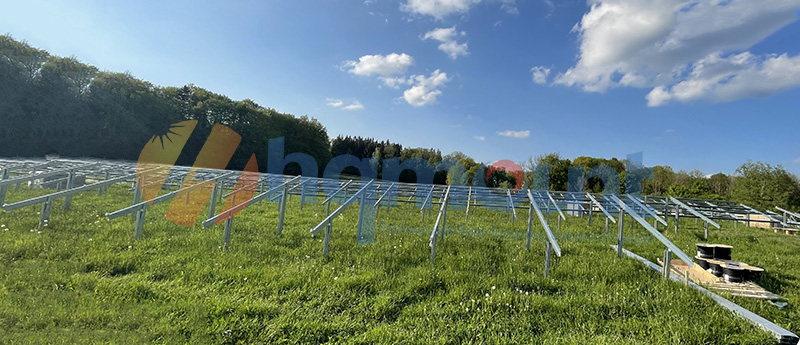

Project Case:

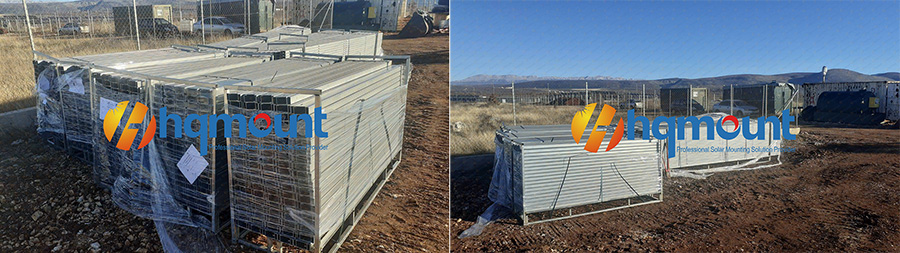

Packaging:
