Double Pole ground bracket is applied for large commercial and utility PV system on non-sandy ground, suitable for both framed and frameless module module installation.

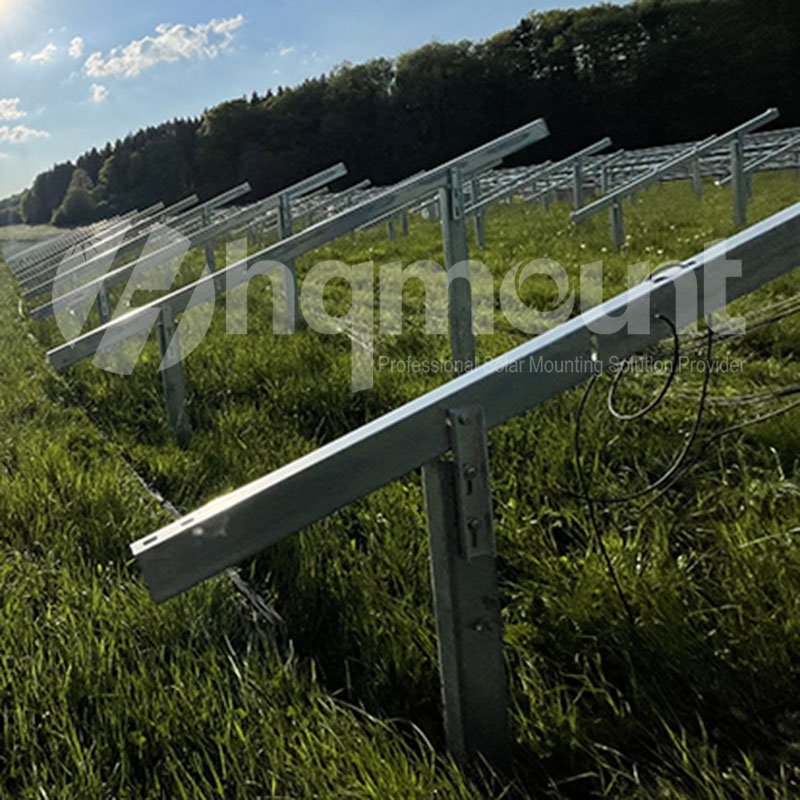

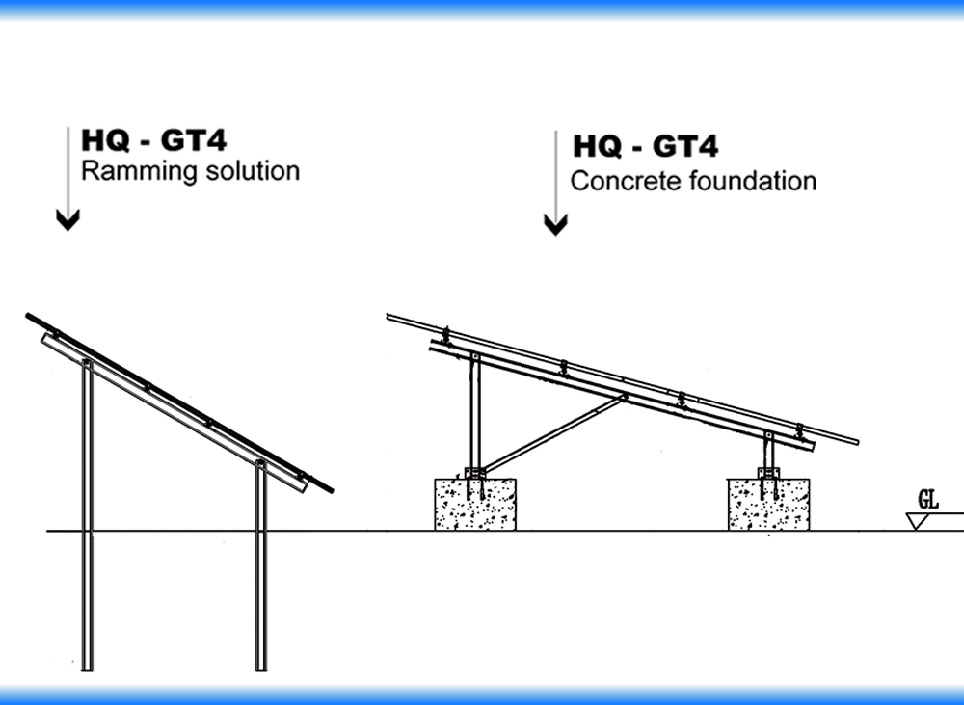

In double poleground system, open post can be pile into the ground 1-2 meters by pile machine quickly, then easily mounting the pre-assembled rack.
Simplify your installation and ensure the structure safe.

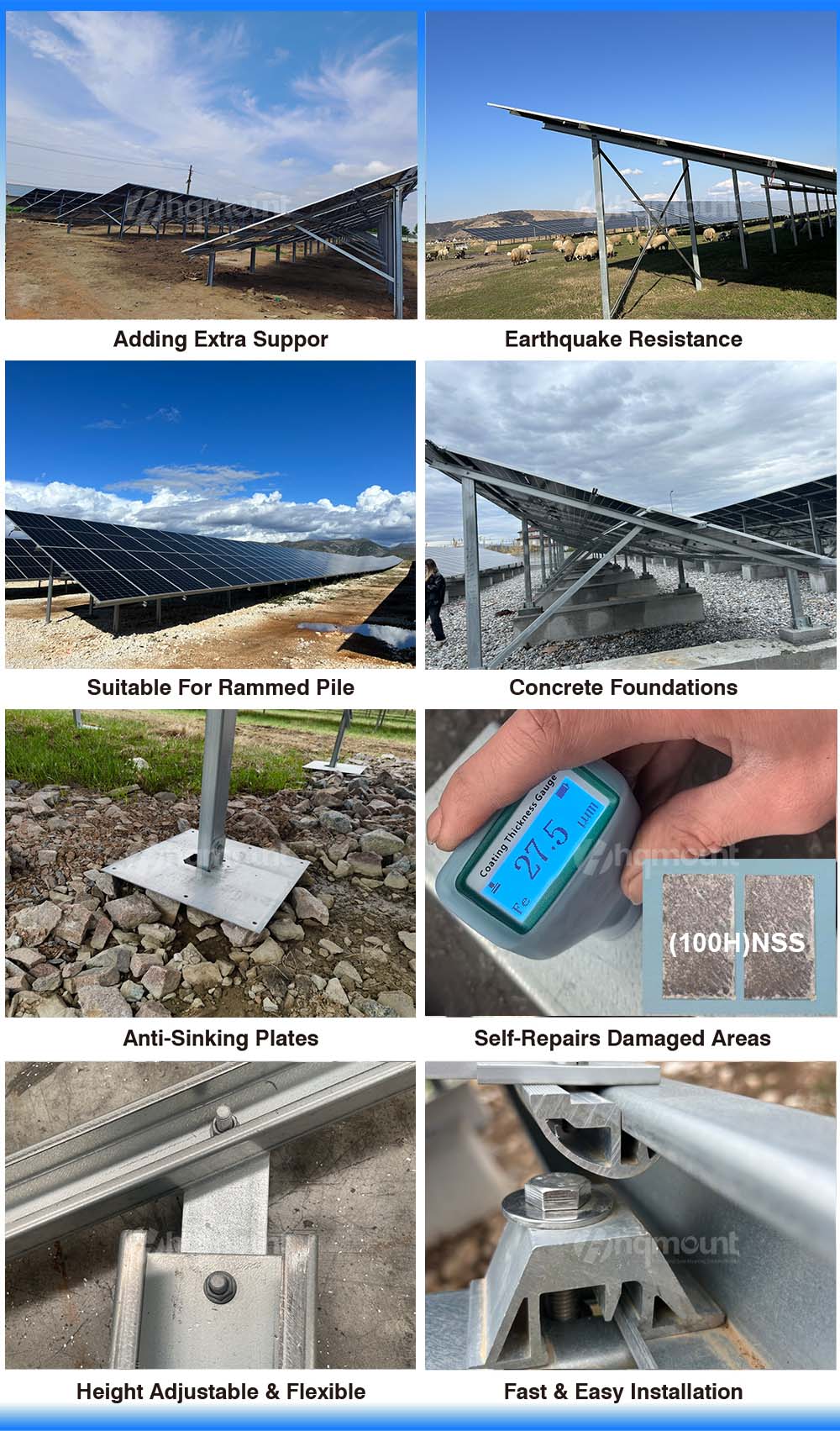

Advantages
1. Unique post profile, saving material cost;
2. Simple installation, saving labour cost;
3. Horizontal and vertical rotation available;
4. Tilt in/off design, easy for installation;
5. High anti-corrosion, long warranty.

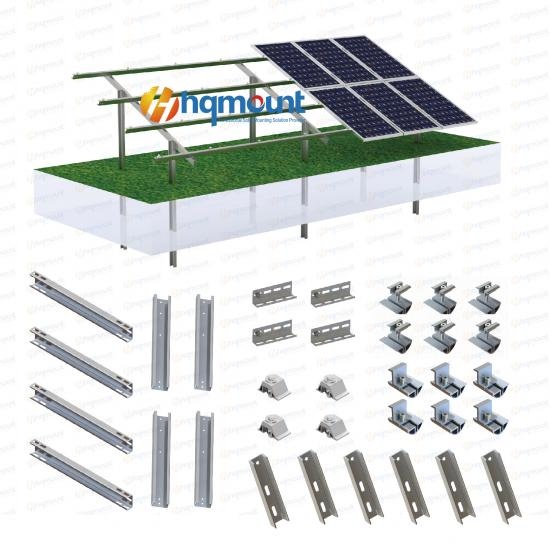

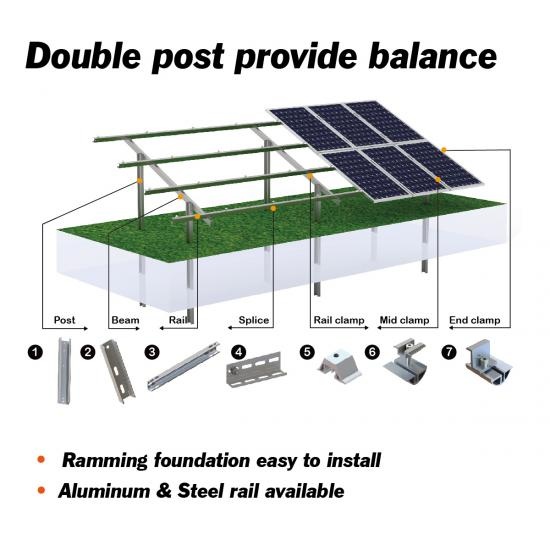

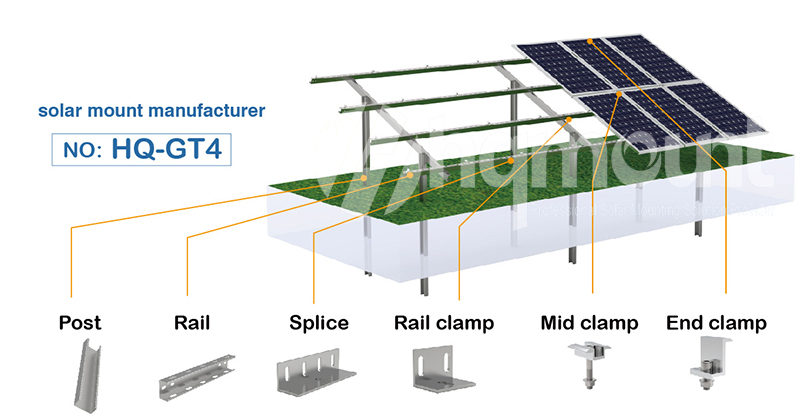

Overview
Item
1
2
3
4
5
6
7
8
9
Description
C120 Pole-2697mm
C120 Pole-3902mm
C100 Beam-3200mm
I82 Rail-4100mm
Splice for I82 Rail

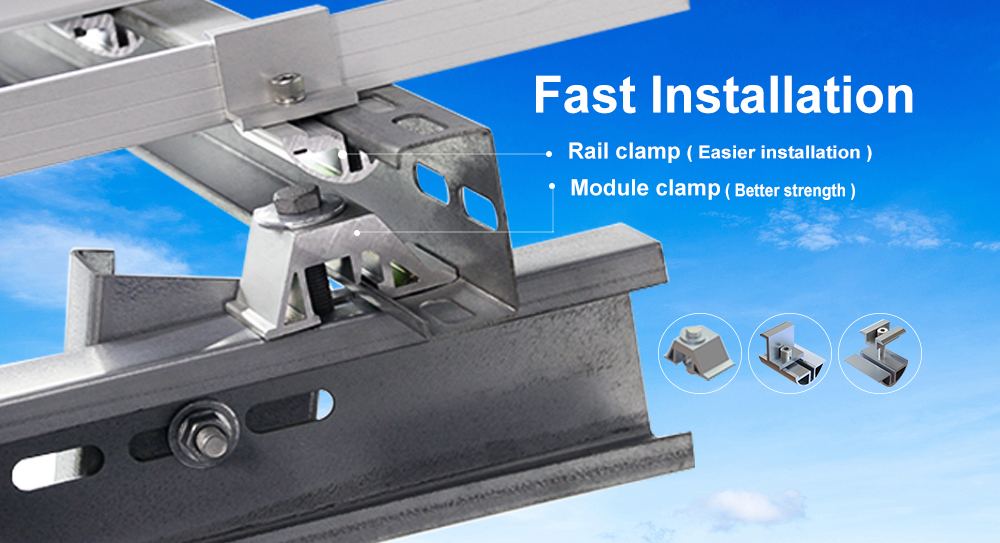

Rail Clamp Assembly
End Clamp Kit 40mm
Inter Clamp Kit 40mm
Bolts M12*30
Qty.(PCS)
3
3
3
8
4
24
8
28
6
Notice: Above dimension for reference only.

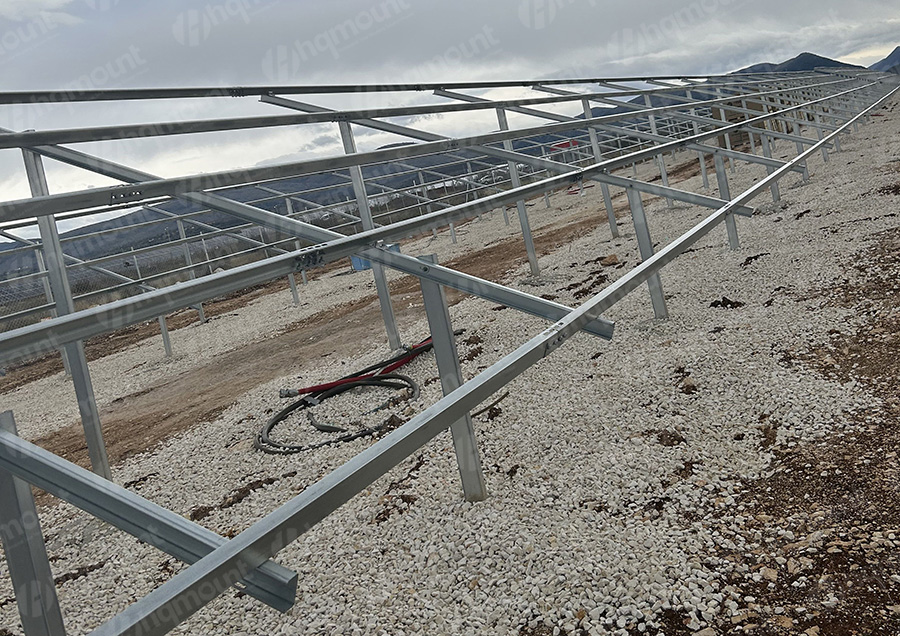

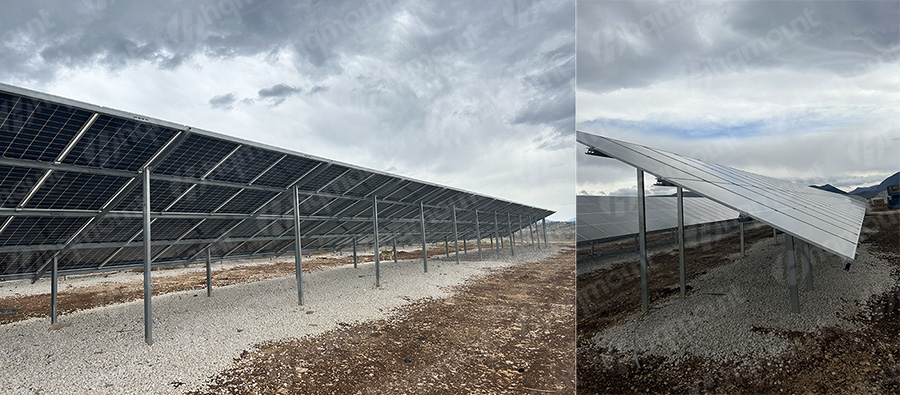

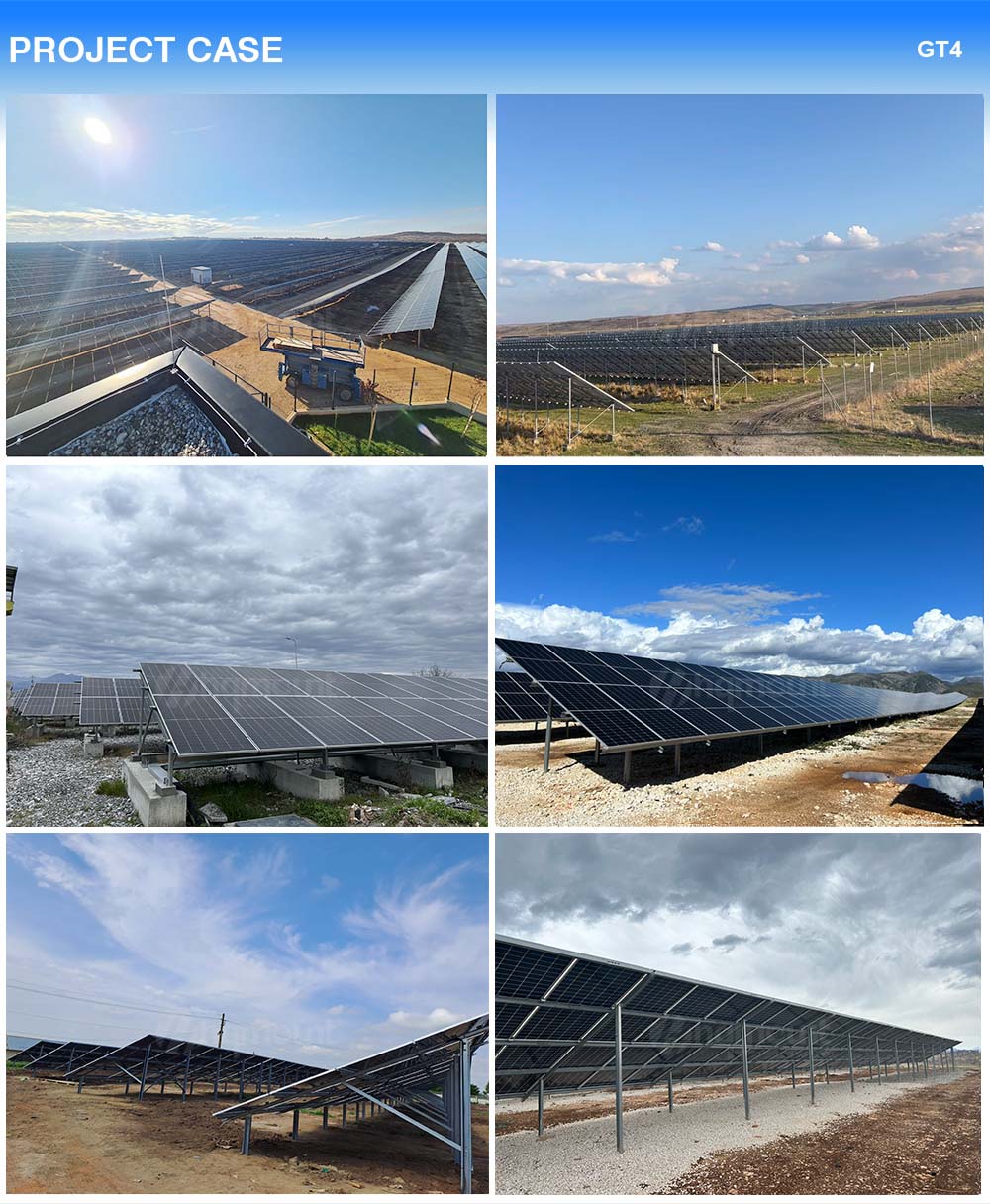

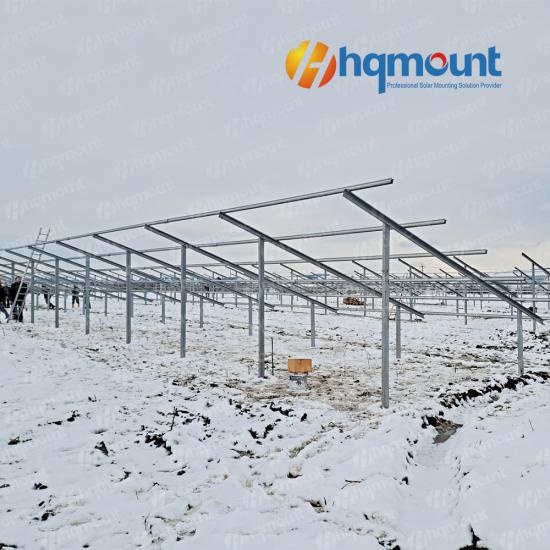

Project Case:

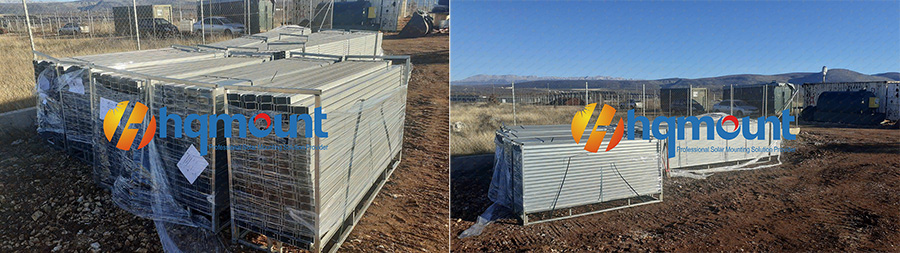

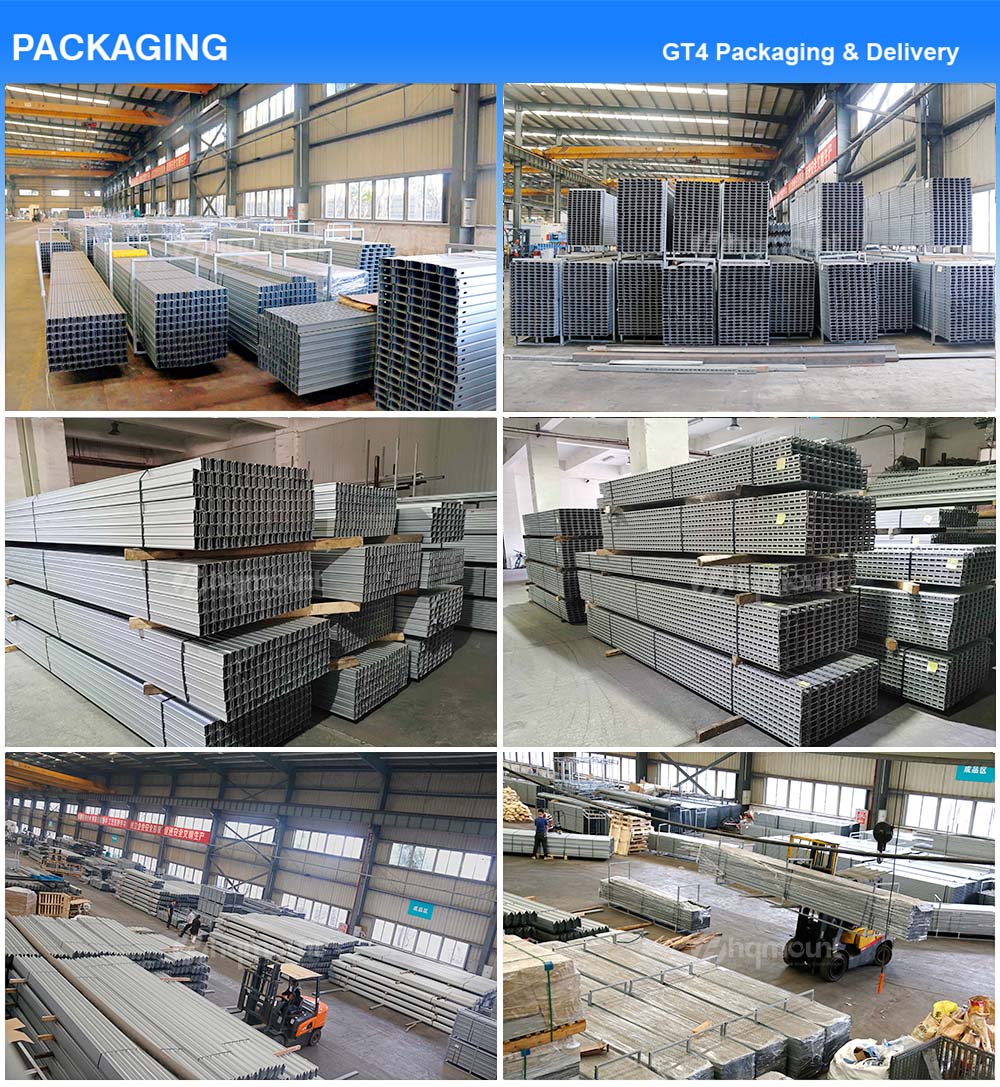

Packaging：
| Item | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
| Description | C120 Pole-2697mm |
C120 Pole-3902mm |
C100 Beam-3200mm | I82 Rail-4100mm | Splice for I82 Rail | Rail Clamp Assembly | End Clamp Kit 40mm | Inter Clamp Kit 40mm | Bolts M12*30 |
| Qty.(PCS) | 3 | 3 | 3 | 8 | 4 | 24 | 8 | 28 | 6 |
Notice: Above dimension for reference only.
