Direct Manufacturer Since 2008/ 15,000m² Factory/ 18+ Years Solar Mounting Experience/ 50GW+ Global Supply/Fast 15‑Day Delivery |

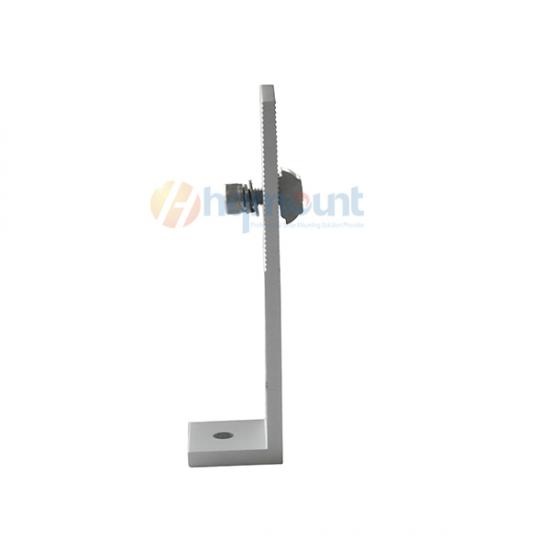

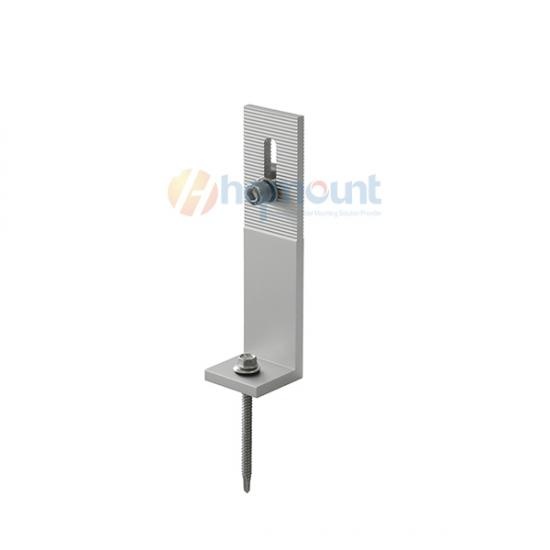

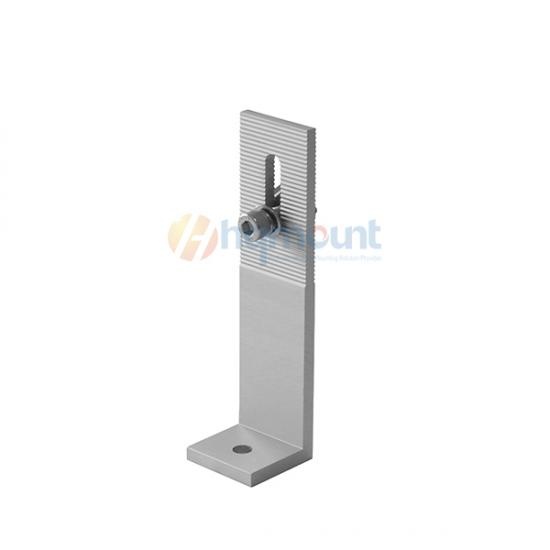

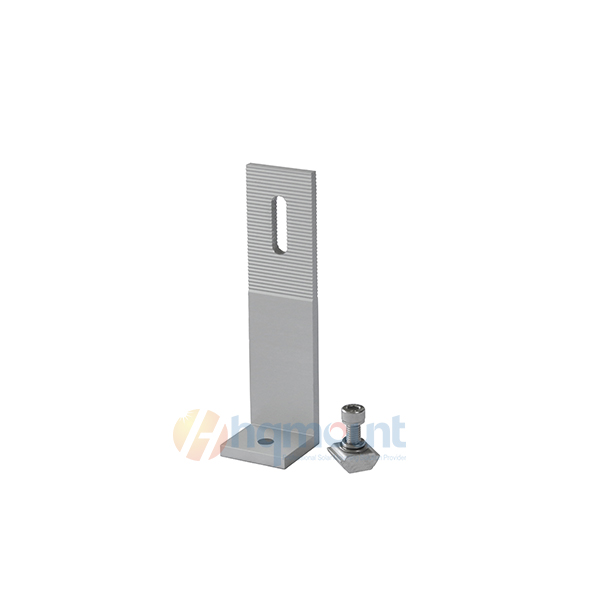

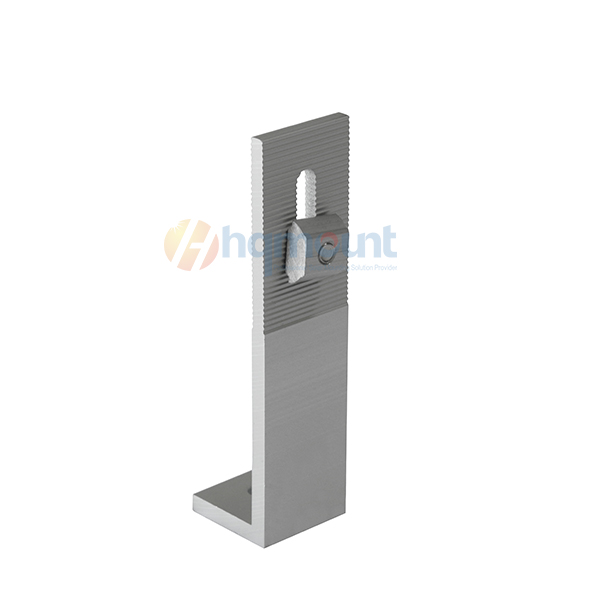

Aluminum Heavy Duty Solar L Feet – 155mm Height for Metal Roofs
Higher Cooling Efficiency • EPDM Anti‑Leak • M6.3×80 Screw • Complete Kit Available
Key Features
|
155mm Height |
EPDM Anti‑Leak Pad |
|
M6.3×80 Screw (410 Stainless Steel) |
Heavy Duty Aluminum Alloy |
|
Complete Metal Roof Kit |
Fast Installation |
 |
 |
 |
 |
|

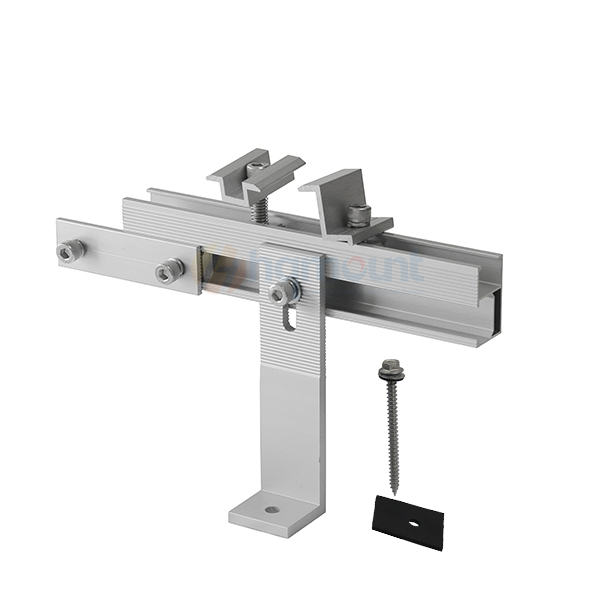

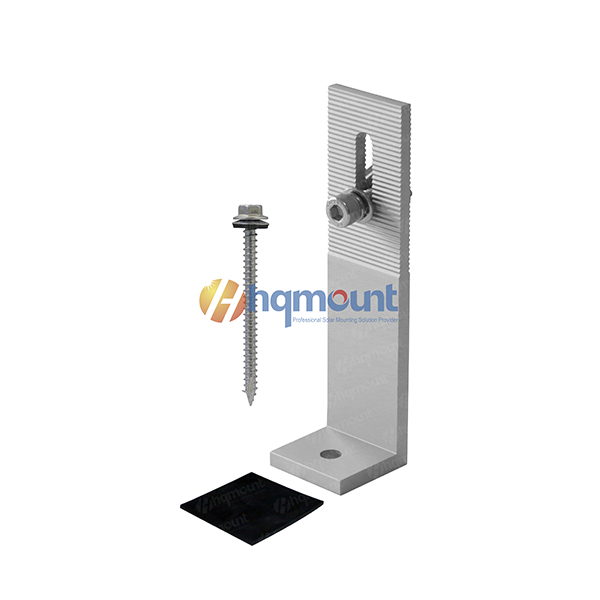

Complete Kit Components Heavy duty aluminum L feet (with EPDM & screws) Aluminum solar rails (custom lengths)
Rail splices (standard or double‑click)
Mid clamps & end clamps (silver or black)
Optional grounding clips & end caps Walkway, Cable Ties, Etc Everything arrives together, ready to install on your metal roof. |
|
Technical Specifications
Parameter
Value
Material
AL6005‑T5 Aluminum (anodized, silver/black)
Height
155 mm (clearance under module)
Base Plate
40×40 mm (customizable)
EPDM Pad
2mm thick, pre‑attached, UV resistant
Screw
M6.3×80, 410 stainless steel, self‑tapping
Solar L feet Thickness
7mm thickness heavy duty L feet
Certifications
ISO 9001, TUV, CE
Why 155mm Height? Better Cooling = Higher Power
Solar panels lose efficiency as temperature rises. Our 155mm L foot creates an air gap that allows natural convection, reducing module temperature by up to 10°C compared to low‑profile mounts. This translates to 5‑8% higher annual energy output – a significant ROI advantage. For the regulations about solar panel distance to metal rooftop, Poland renewable energy regulation request at leasy 70mm, while Longi panel suggested 100mm.
“The 155mm height made a real difference – our client reported lower inverter losses on hot days. The EPDM seal saved us from callbacks. A well‑engineered product.”
— Commercial Solar Installer, Singapore
Manufacturing Excellence – Direct from Solar Mounting Factory HQ Mount
Stage
Description
Raw Material
(SGS Salt Spay Testing)
Verify AL6005‑T5 composition and anodized coating thickness
In‑Process QC
（Anodizing Layer Testing）
HQ Mount testing including raw material testing, proccessing QC check out, assembly and final packing QC Steps)
Component Testing
(Pull up Testing）
Mechanical strength verification for all load‑bearing parts in-house testing
Pre‑Shipment Test
(Full mock‑up assembly before shipment)
HQ Mount Engineers and QC teams are ensuring a perfect fit on site
Ready to Upgrade Your Metal Roof Solar System?
Contact our engineering team for a quote – tell us your roof type, rail preference, and quantity.
