How to choose a solution for standing seam Pitched metal roof bracket?
With the solar energy developing, more and more solutions have been designed, which make people who are new in solar industry overwhelmed with all the solar mounting solutions.
So how to choose the solution for commercial tin roof mounting?
We will discuss with how to make the solar system more efficient, how to save solar bracket cost, and what pv mounting solution is easier for solar mounting installation.
Before we start, the first rule of mounting solar panels on roof is try not to penetrate the roof.
So if your have a standing seam roof to mount solar panels, the solution will be very friendly to your roof solar system.
A.Standing Seam clamp---No damage to roof panel seam

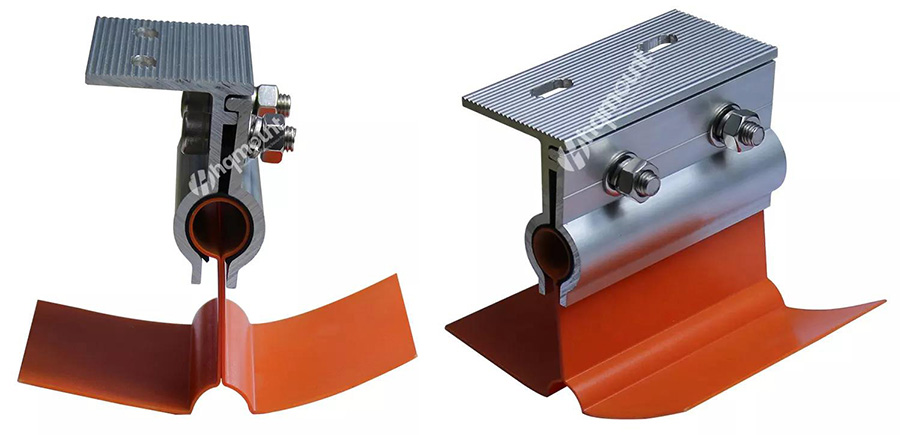

There a dozens of solar seam roof types, in South east Asia, the popular types are :1, Kalzip roof sheet clamp
FIGURE 1 SOLUTION FOR KALZIP SOLAR ROOF SYSTEM

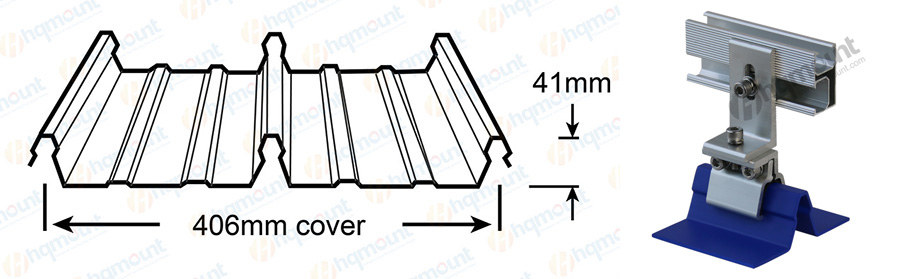

2, Klip lok 406 mounting roofing sheet
FIGURE 2 LYSAGHT KLIP LOK 406 SOLAR ROOF SHEET DATA

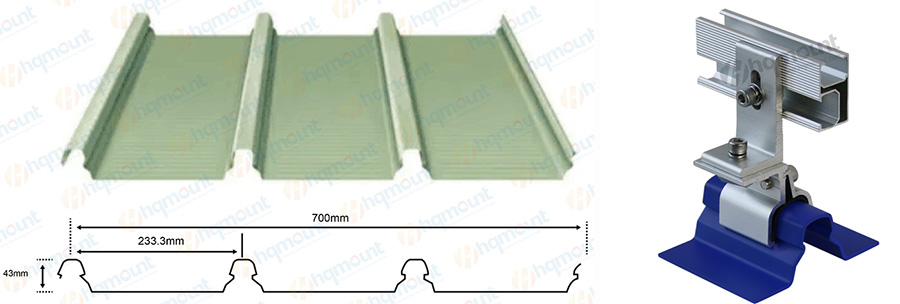

3, Klip Lok 700 solar metal roof
FIGURE 3 LYSAGHT KLIP LOK 700 SOLAR ROOF SHEET DATA
4, Klip lok 855 metal deck solar mounting
FIGUTE 4 metdek 855 solar roofing sheet data

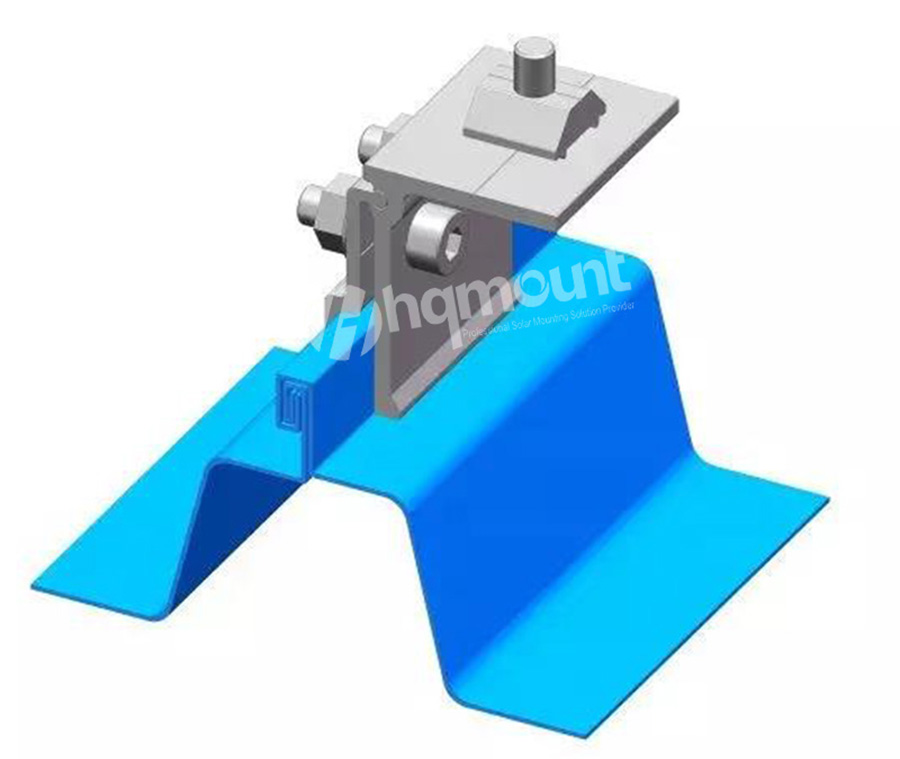

5, Snap locked roof sheet solar solution
FIGUTE 5 Snaplock solar clamp roofing sheet for pv modules

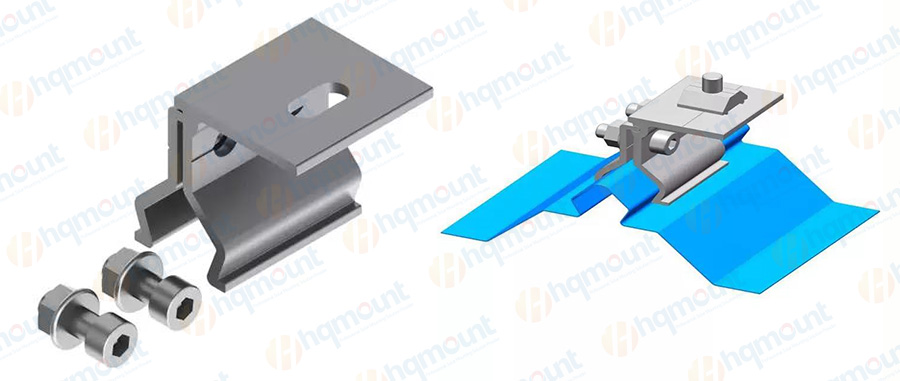

6, Diamond metal deck solar clamp
FIGUTE 6 HQ MOUNT diamond standing seam clamp

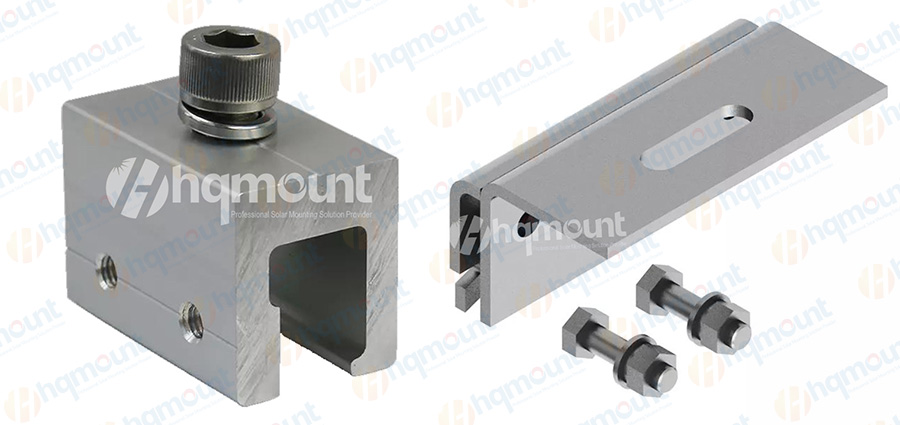

7, HQ Mount double locked metal deck solar clamp,overlap metal roof solar clamp
8,Single locked solar roof clamp
The above, we have covered popular Asia commercial standing seam solar roof types, but to save money, the solar profile usually cost 30-40% of the solar roof project, we can use solar short rail roof clamp such as:
FIGUTE 9 HQ MOUNT Klip lok 700 clamp

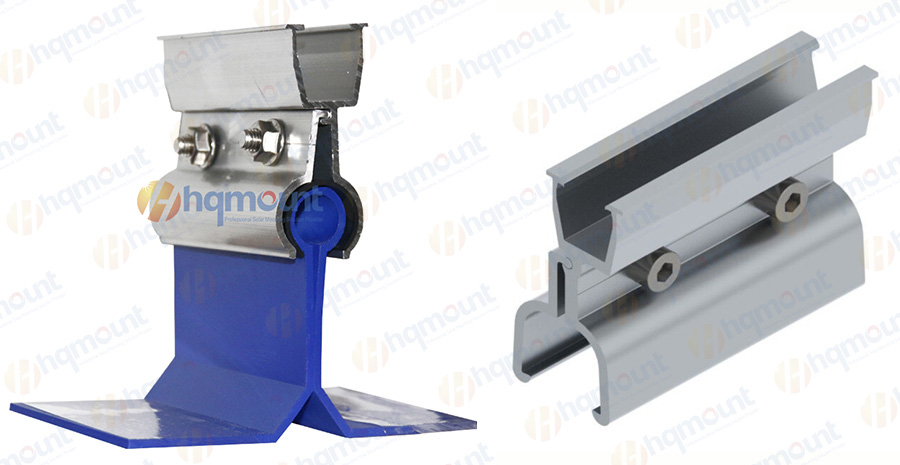

HQ Mount can design pv mounting roof clamps as needed not just the above solar roof clamps.Solar seam clamps in America has a different solution:
FIGUTE 10 HQ MOUNT locked roof standing seam power clamp
All the above solar clamps are made from aluminum while in Europe the roof seam holder are A2 stainless steel seam clamp.
FIGUTE 11 HQ MOUNT stainless steel solar clamp
