Tin roof mounting system

/Flat tin roof mount for solar adjustable roof mounting

Flat tin roof mount for solar adjustable roof mounting

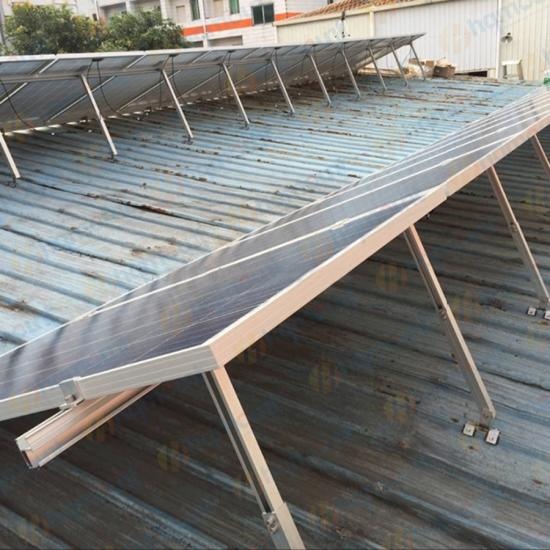

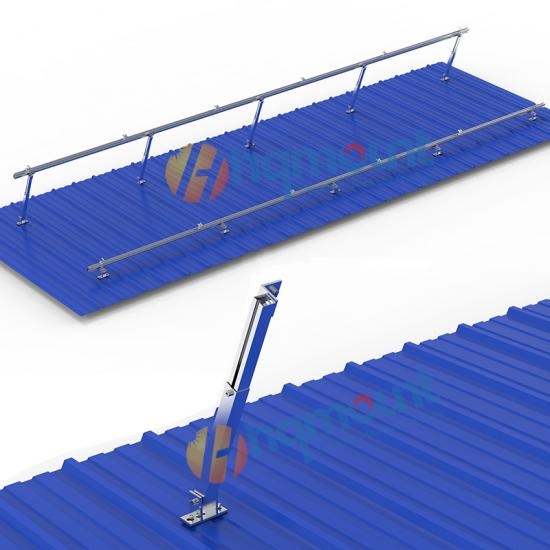

Flat Tin Roof Adjustable Tilt Solar Mounting Brackets System

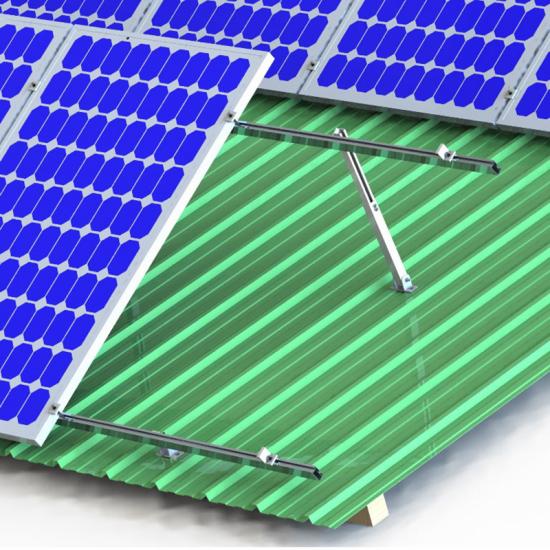

Adjustable tile solar mounting bracket system suitable for the flat tin roof with great flexibility both for commercial and residential roof solar system. Patented and innovative rail design, AS/NZS1170.2 certified mounting solution. Extra tilt angle maximizes the solar panel output.
  • Item No.:

    FLAT TIN ROOF MOUNT
  • Payment:

    TT
  • Product origin:

    Xiamen,China
  • Shipping port:

    Xiamen
  • Brand:

    HQ Mount
  • Model No.:

    Flat Tin Roof Mount
  • Certification:

    HQ Mount
  • Material:

    Aluminium 6005-T6
Inquiry now
Product Details

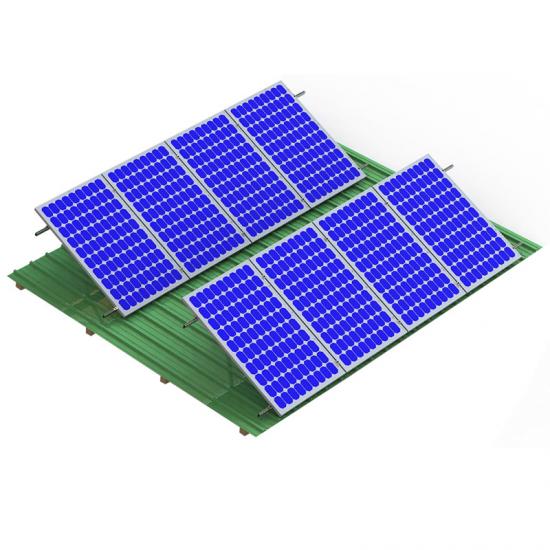

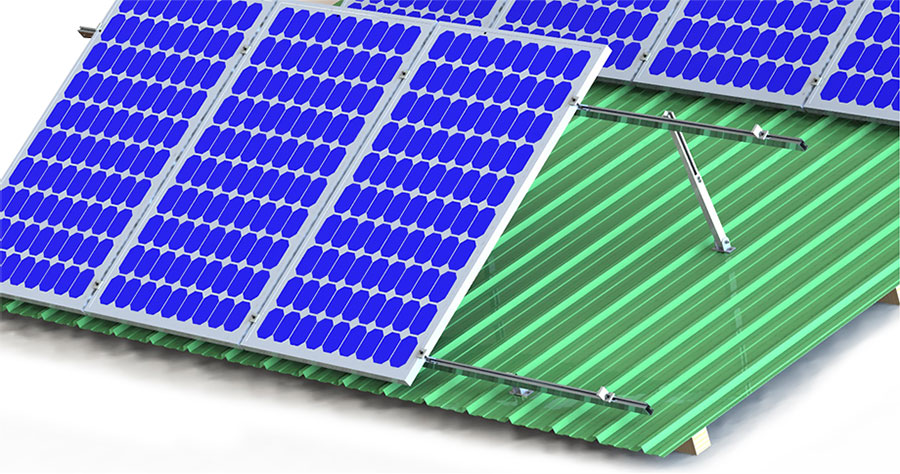

Solar Flat Roof Mounting

HQ Mount Flat roof Mounting was designed to meet the adjustable tilt angles's need.

Adjustable tilt angles available make the system to get the best efficiency.


Features of solar flat tin roof mount:

1.Flexible rooftop mount system

2.Significant savings.

3.High Module compatibility

4.Lower and competitive price.

5.High Strength and rust-resistance.


Products Details


Application
Flat Roof
PV Moudle
Framed
Layout
Landscape&Portrait
Building height
Up to 20m
Tile angle
Fixed, 10-60°
Wind Speed
Up to 88m/s (316.8kmh/196.9mph)
Material
Anodized aluminum 6005T6, Stainless steel 304,410
Standard
AS/NZS1170.2:2011,
JIS C 8955:2011

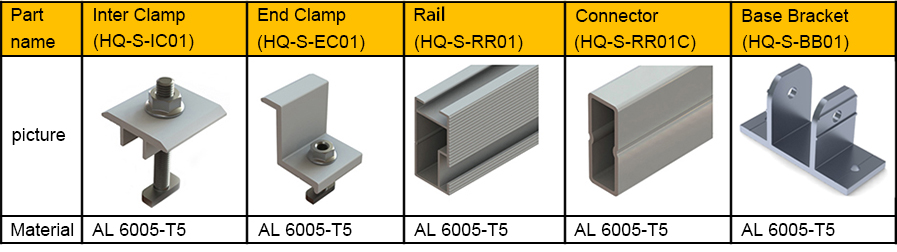

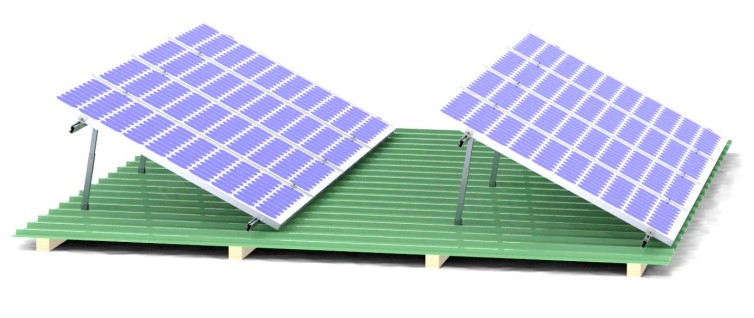

HQ Mount Flat roof Mounting

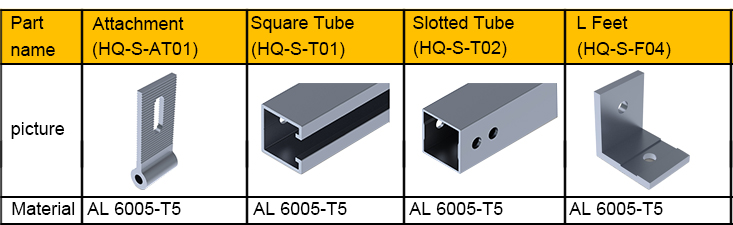

HQ Mount Flat roof MountingHQ Mount Flat roof Mounting



Tools

HQ Mount Flat roof Mounting


Installation instruction



Adjustable angle a range:10~15°,15~30°,30~60°
HQ Mount Flat roof Mounting

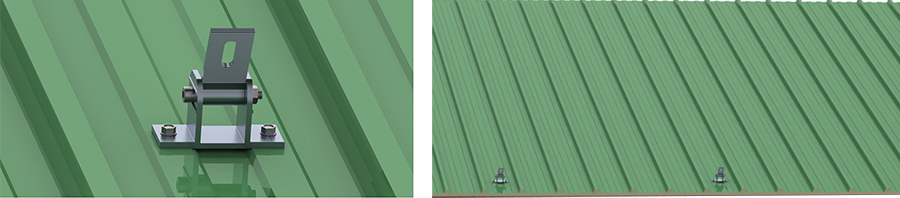

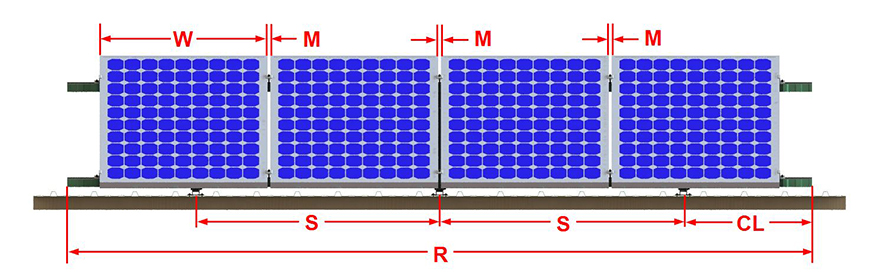

 According to the practical installation angel, determine the location of each base bracket, dimension S.

HQ Mount Flat roof Mounting

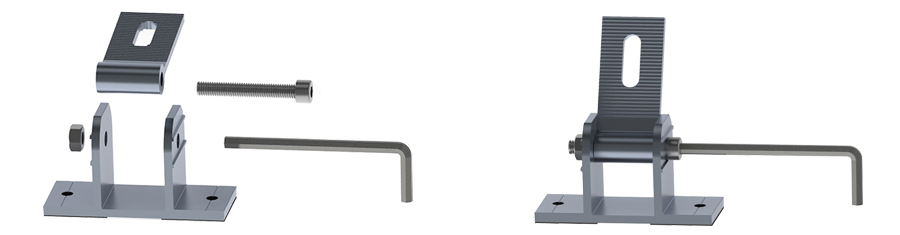

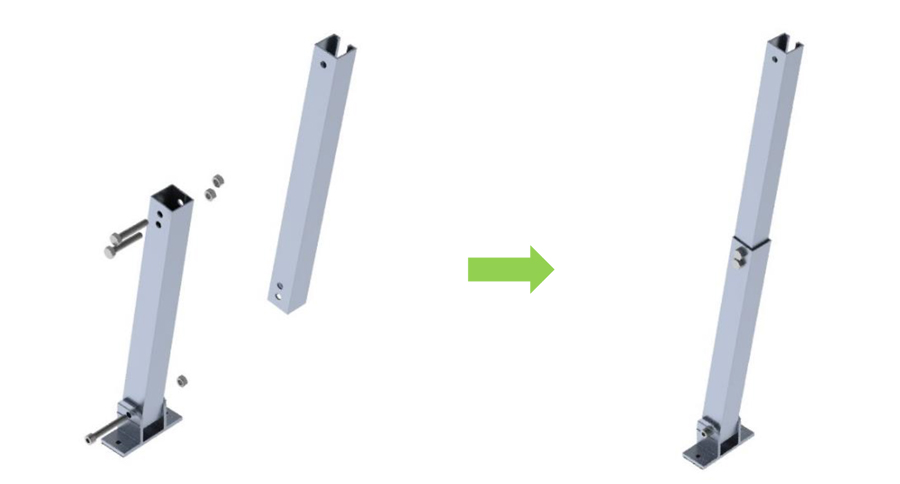

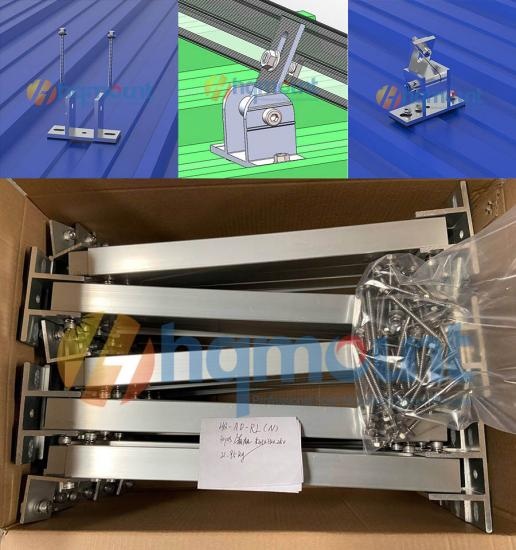

The front base brackets are pre-assembled.



 Install front base bracket on the roof, fix it with screws.

HQ Mount Flat roof Mounting

Front rail installation

HQ Mount Flat roof Mounting

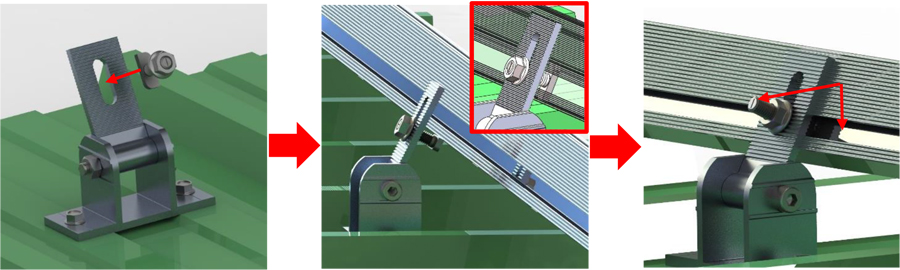

1.Plug the bolt through the groove of attachment.
2.Attach the bolt into the groove of rail, rotate the bolt to engage the groove.
3.Fasten the bolt to fix the rail, make sure the mark at the bottom of the bolt is vertical to the groove.

The rear support is pre-assembled.


HQ Mount Flat roof Mounting

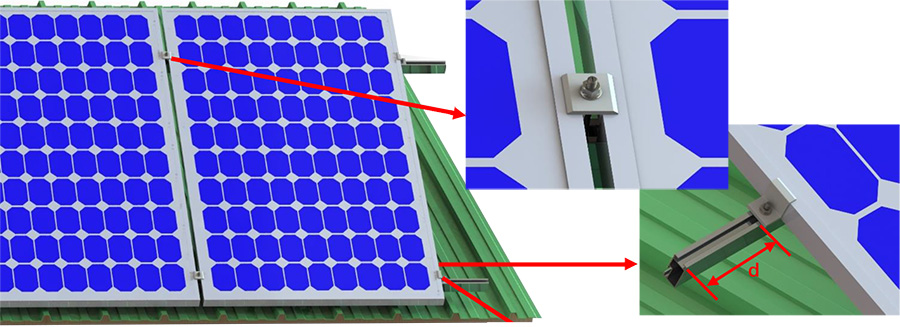

Fix the solar panel to the rail with inter clamp and end clamp.


1.Slide the panel against the installed panel, then fasten the inter clamp.

2.Slide the end clamp tightly against the panel and fasten it. There should be a margin of d = 25mm –30mm.

Inter clamp installation details.


1.Put the bolt into the groove of rail.

2.Slide the bolt to the position close to the solar panel. Engage the bolt head with groove.

3.Fasten the inter, make sure the mark at the bottom of the bolt is parallel to the edge to solar panel.

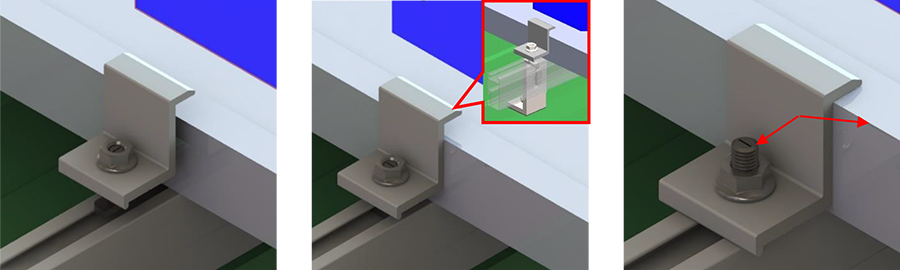

 End clamp installation details.



1.Put the bolt into the groove of rail.

2.Slide the bolt to the position close to the solar panel. Engage the bolt head with groove.
3.Fasten the end clamp, make sure the mark at the bottom of the bolt is parallel to the edge to solar panel.


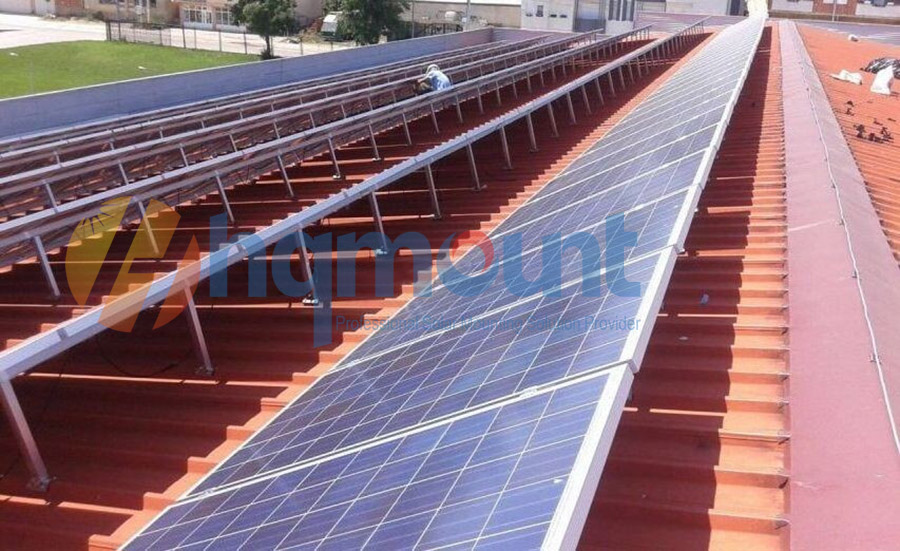

HQ Mount Flat roof Mounting
Related Product

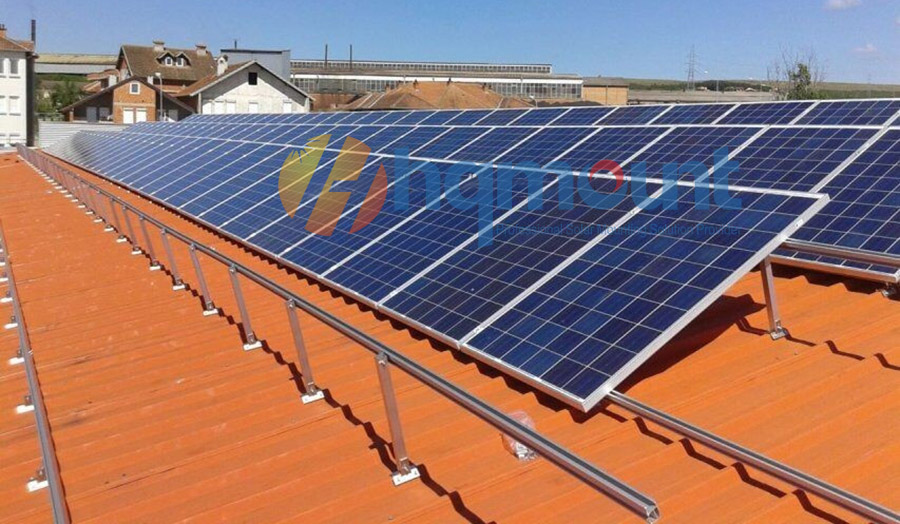

Solar tin roof mounting system
Solar panel tin roof mount for mounting system
Trapezoidal roofing system is designed with great flexibility for both commercial and residential roof solar systems. Patented and innovative rail design, standard components, highly pre-assembled clamp, all the above make the installation simple. Save your time and installation cost. Advantages: 1. Lower cost, incomparable value; 2. Faster installation, flexible attachment; 3. Better service, complete technical support.

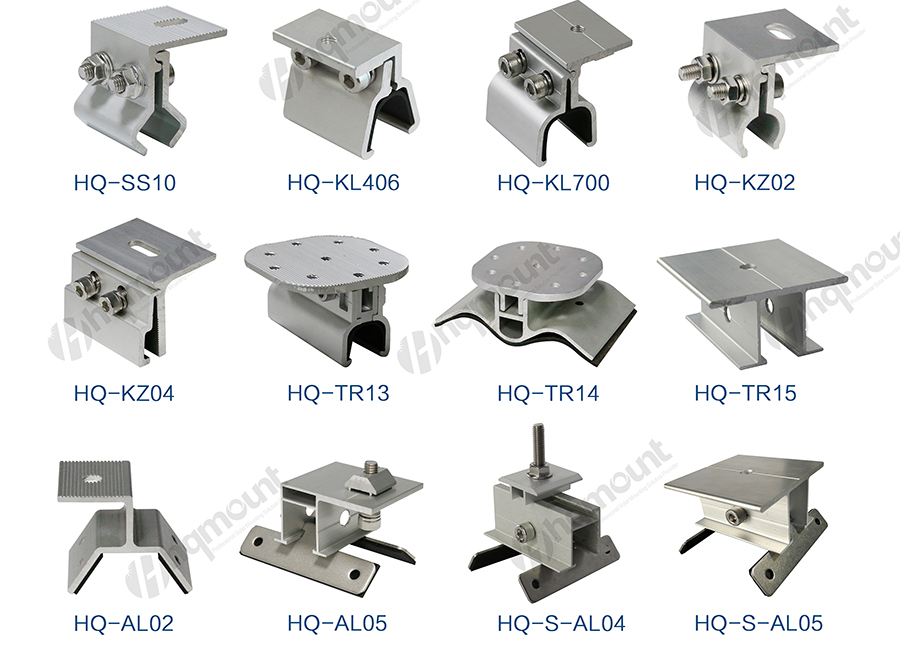

HQ-R-TIN
Trapezoidal solar roofing system
Trapezoidal roofing system is designed with great flexibility for both commercial and residential roof solar system. Patented and innovative rail design, standard components, highly pre-assembled clamp, all the above make the installation simple. Save your time and installation cost.
