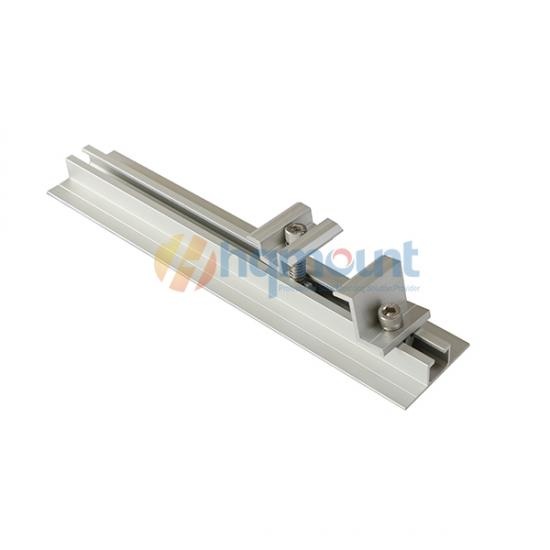

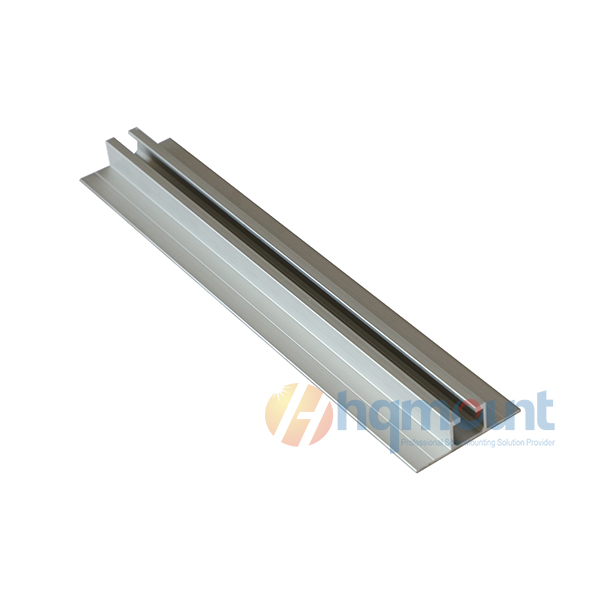

HQ Mount Mini Rail HQ-U18 – Save 40% on Solar Mounting Costs
AL6005-T5 Aluminum • AA10 Anodized • EPDM Waterproof • Complete Kit • 12-Year Warranty
Key Features
- Premium Material
AL6005-T5 aluminum with AA10 anodized finish – excellent corrosion resistance and long-term durability.
- Easy Installation
Lightweight design with suitable module/flat nut for fast, simple mounting.
- EPDM Waterproof
Integrated EPDM sealing ensures weather-tight protection against moisture.
- Complete Kit
Includes solar panel mid clamps and end clamps – everything in one package.
- Full Mounting Solution
HQ Mount provides the complete system – rails, clamps, and accessories.
- Save 40% Material Cost
Shorter, lighter rails significantly reduce material expenses.
- Save Packing & Labor
Less solar mounting components reduce shipping weight and on-site labor time.
- Flexible Lengths
Standard: 300mm, 350mm, 400mm – custom lengths available upon request.
- 12-Year Warranty
Backed by HQ Mount's quality guarantee for peace of mind.
Technical Specifications
|
Parameter |
Specification |
|
Model |
HQ-U18 Mini Rail |
|
Material |
AL6005-T5 Aluminum |
|
Surface Finish |
AA10 Anodized |
|
Waterproof |
EPDM Integrated |
|
Kit Includes |
Mini Rail + Mid Clamps + End Clamps |
|
Standard Lengths |
300mm, 350mm, 400mm |
|
Custom Lengths |
Available on request |
|
Warranty |
12 Years |
|
Applications |
Metal sheet roofs |
|
Panel Layout |
Portrait |
Cost Savings Breakdown
|
Cost Factor |
Traditional Long Rail |
HQ-U18 Mini Rail |
Saving |
|
Material Cost |
100% |
~60% |
40% saved |
|
Packing Volume |
High |
Low |
Reduced shipping cost |
|
Installation Time |
Baseline |
Faster |
Labor saved |

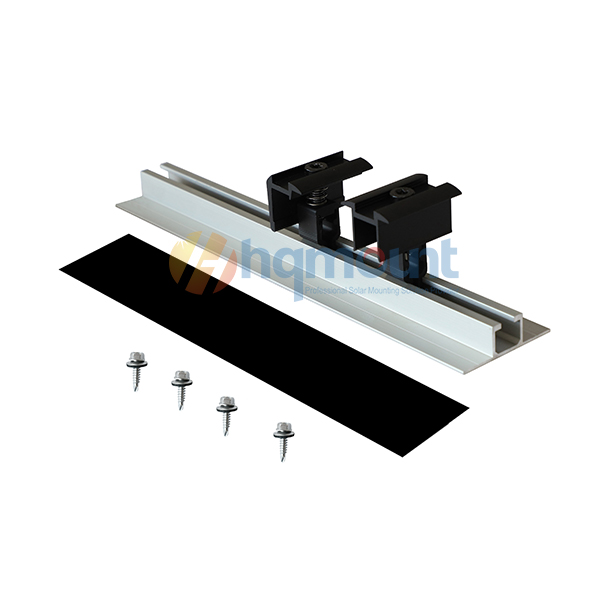

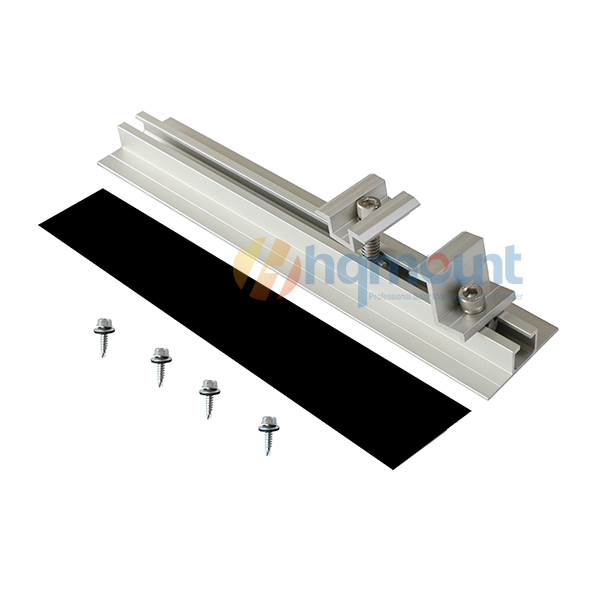

Complete Kit Contents

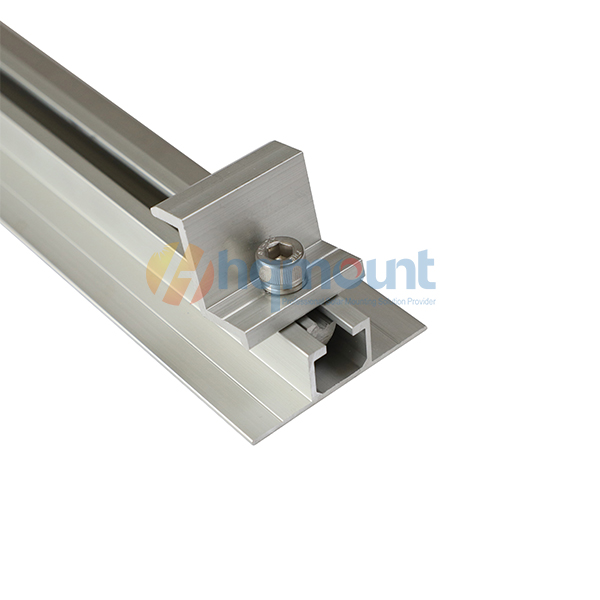

HQ-U18 Mini Rails (selected length)

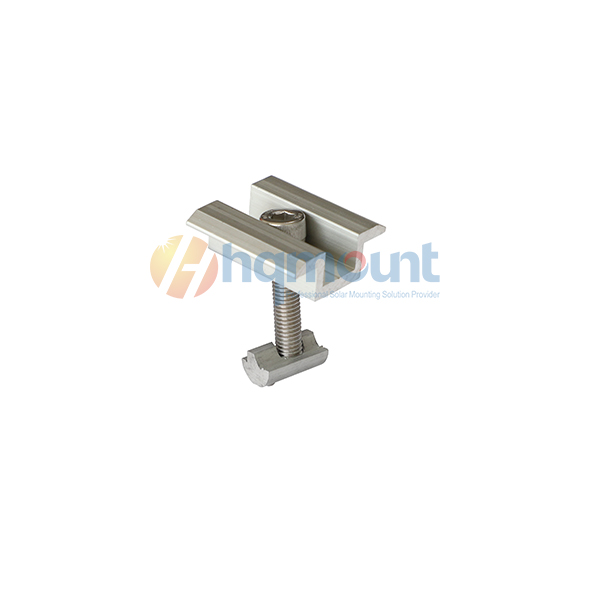

Solar Panel Mid Clamps

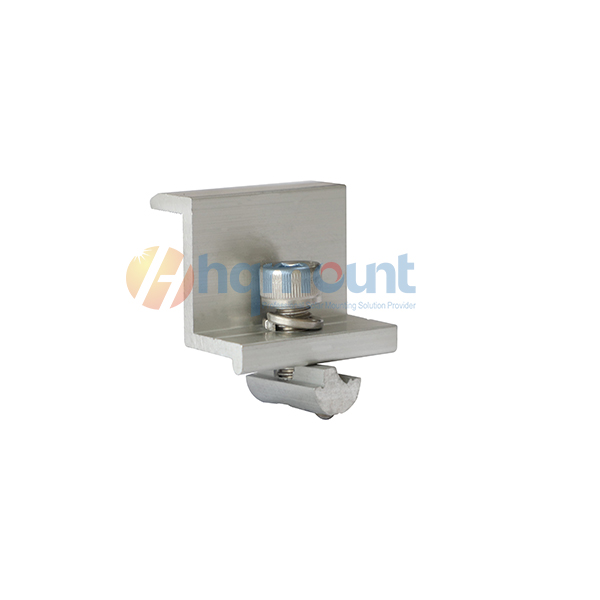

Solar Panel End Clamps
EPDM waterproof sealing
Everything you need – one order, one shipment.

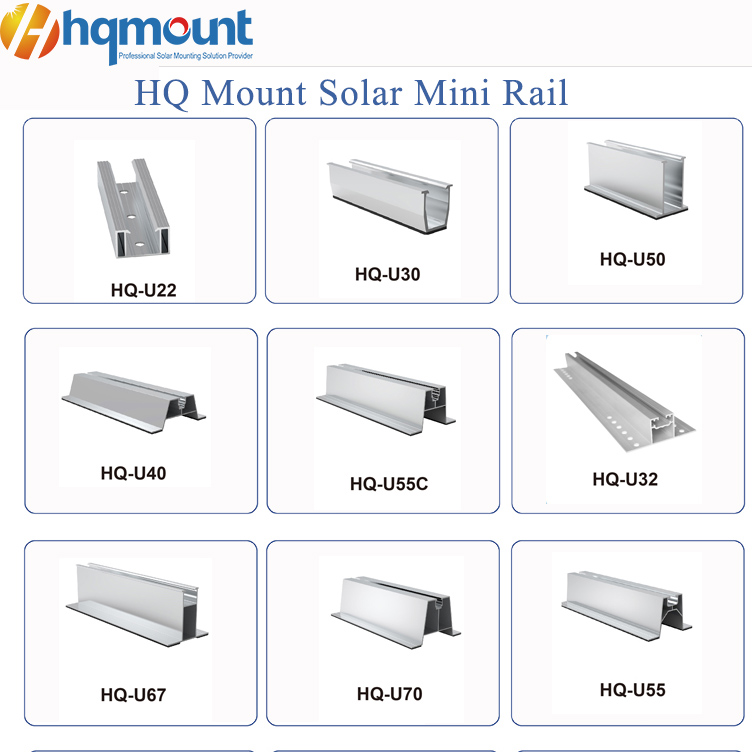

Other Mini Rail Options

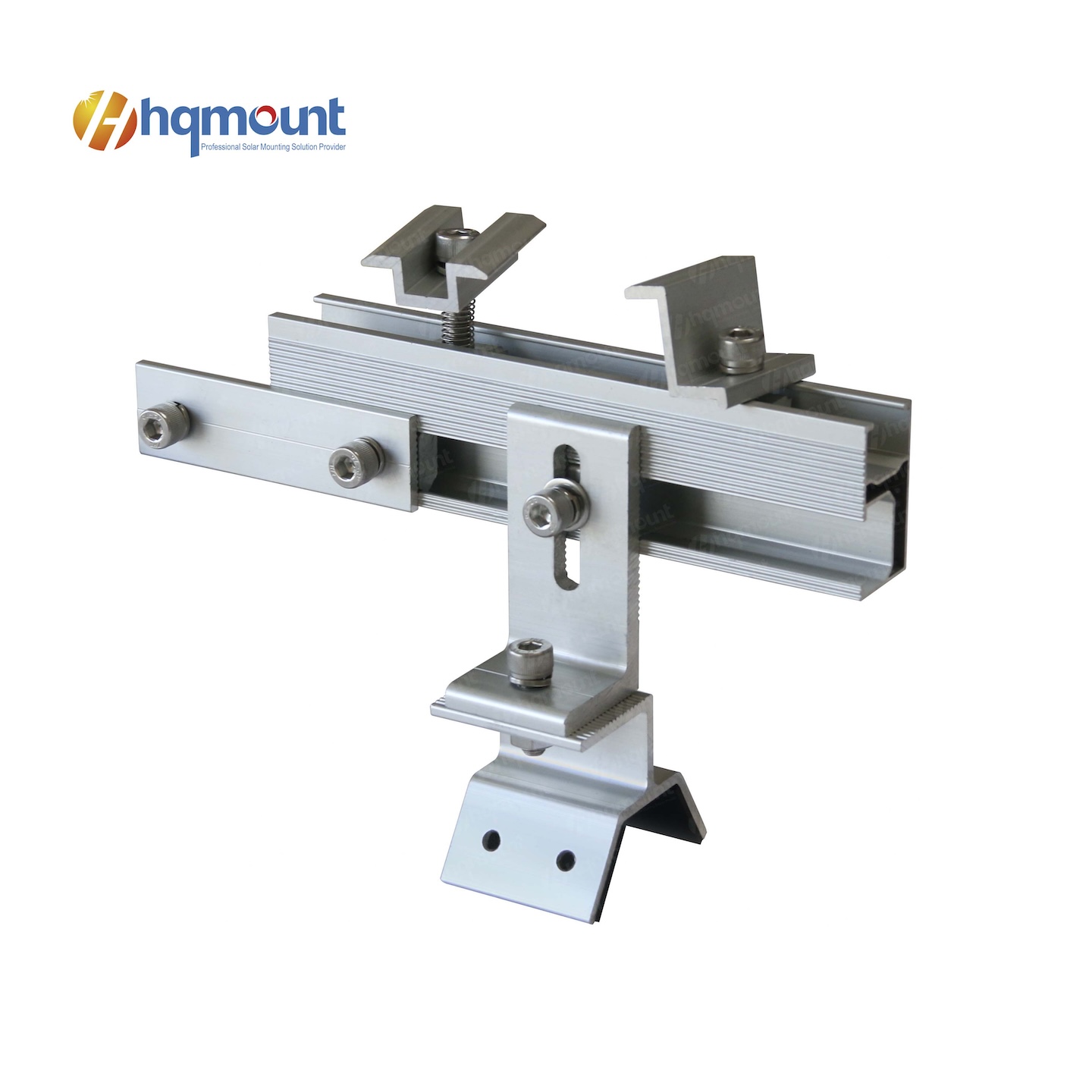

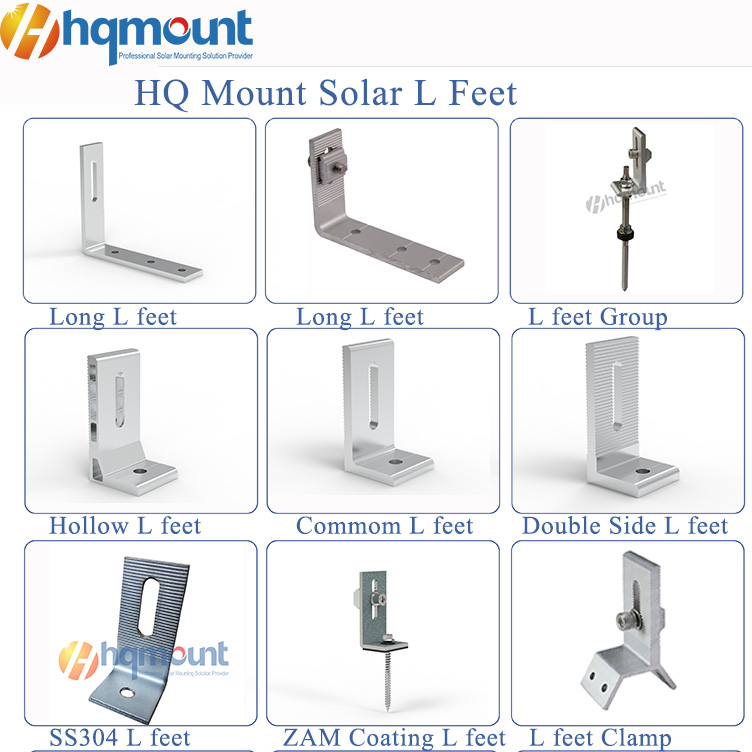

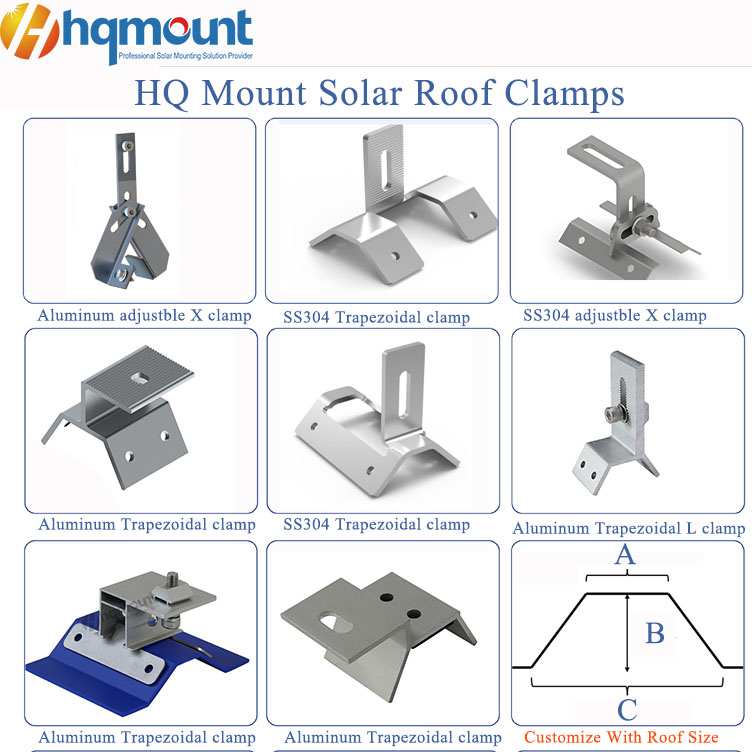

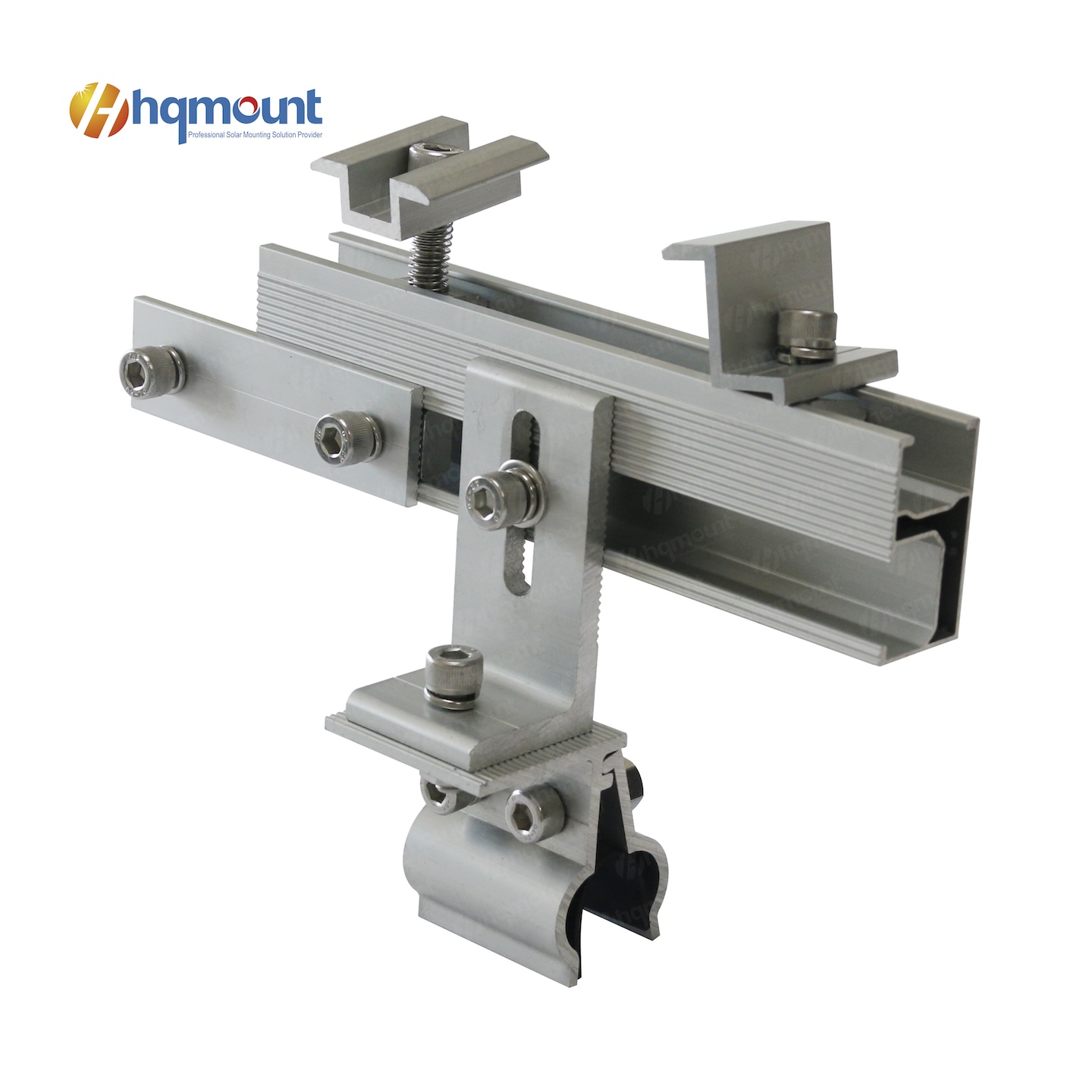

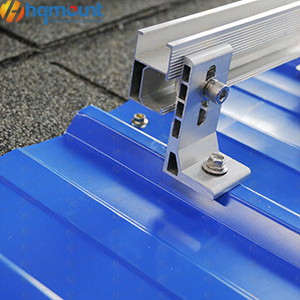

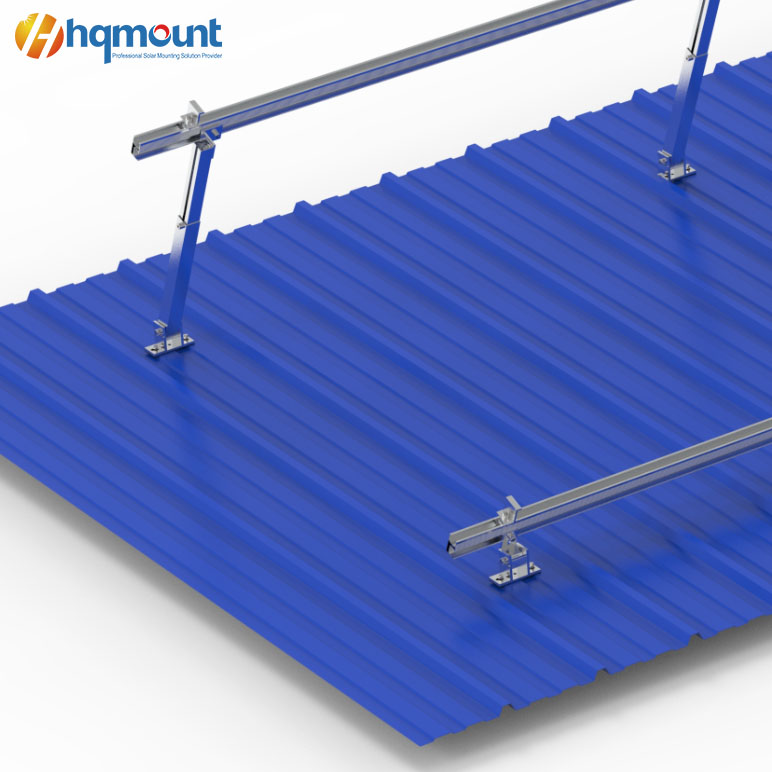

Other Options for Metal Roof Mounting Systems
Applications
- Commercial Solar Metal Sheet Roofs: Ideal for corrugated and trapezoidal profiles
- Residential Rooftop: Lightweight and easy to handle
- Solar Carports: Durable and cost-effective （Need a metal sheet above carport)
Manufacturing Excellence – Direct from HQ Mount
- Raw material: Certified aluminum and ZAM steel – chemical composition verified
- Extrusion, cutting, punching, and assembly – all in-house
- Anodizing for aluminum (AA10, ≥10μm) / ZAM coating for steel
- 100% dimensional inspection before packing
- Pre-shipment sample testing for large orders
- Custom packaging available
|
Contact our team for a quote – specify your required length and quantity.
