Ground mounting structure with C-piling foundation

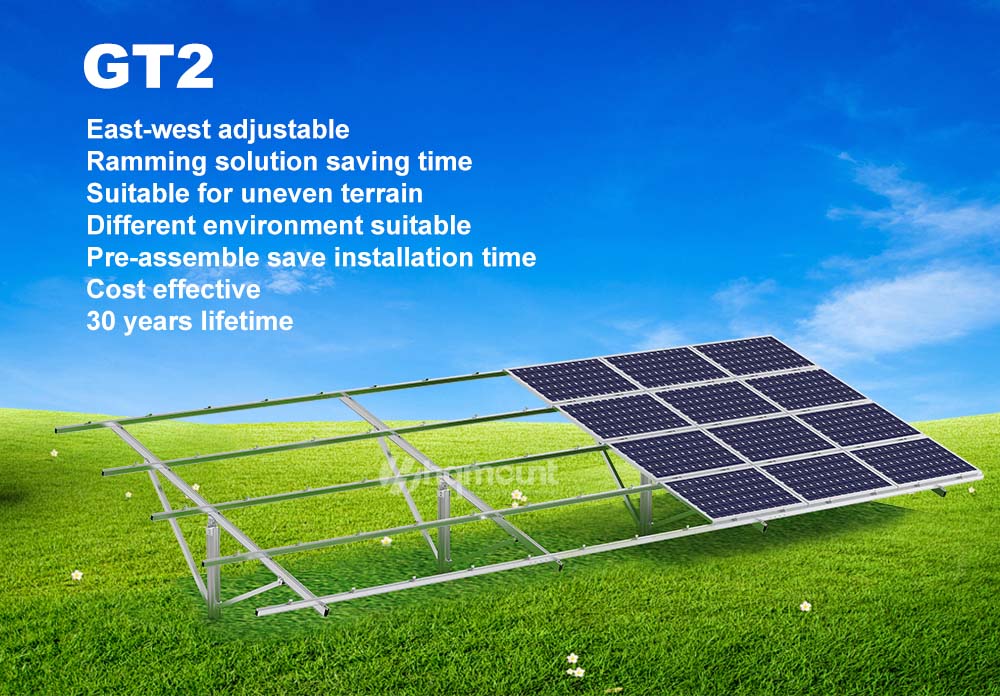

HQ-GT2 is designed for commercial and utility scale installations. Unique post profile,tolerance absorption,and highly pre-assemble ensure the simple installation and save labor cost
  • Item No.:

    HQ-GM-GT2
  • Payment:

    TT
  • Product origin:

    Xiamen,China
  • Color:

    Natural
  • Shipping port:

    Xiamen
  • Lead Time:

    8-15
Inquiry now
Product Details

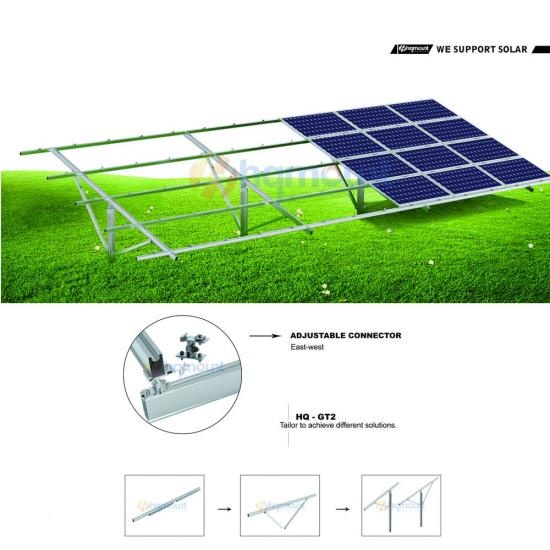

HQ Mount PV ground mounting system 2 (also called the “GT2”) is a ground system with pre-assembled screw pile foundation or cement base. Which is suitable for large-scale commercial installation and multi-purpose installation.As a mounting system for various photovoltaic modules GT2 ’s unique I-shape rail makes the installation simpler and better precision. GT2’s pre-assembled rack is designed to save time and manpower.

HQ Mount PV ground mounting system


Installation site: open filed.

Tilt angle:0-60 Degree.

Max wind speed:0-80m/s.

Max snow load:0-150cm.

Application:All kinds of panel.

Installtion direction:Landscape /Vertical

Material:Alumiunm&hot dipped galvanized.

Design Criteria:AS/NZS1170,JIS C8955:2011/2017,DIN1055.



HQ Mount PV ground mounting systemHQ Mount PV ground mounting systemHQ Mount PV ground mounting system


Our Advantages

1.Unique post profile, saving material cost.

2.Simple installation, saving labour lost.

3.Horizontal and vertical rotation available.

4.Tilt IN/OFF design, easy for installation.

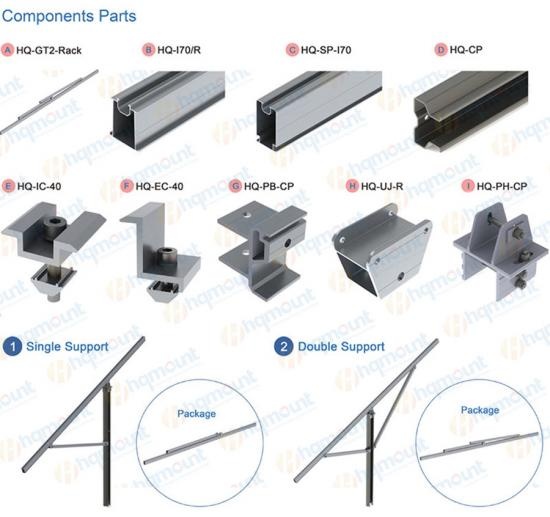

HQ Mount PV ground mounting system

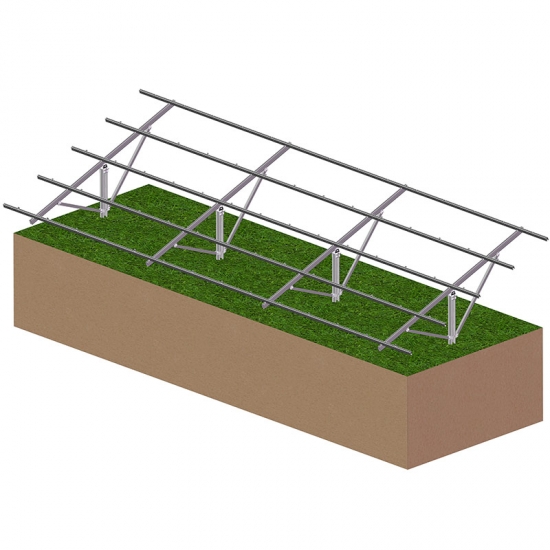

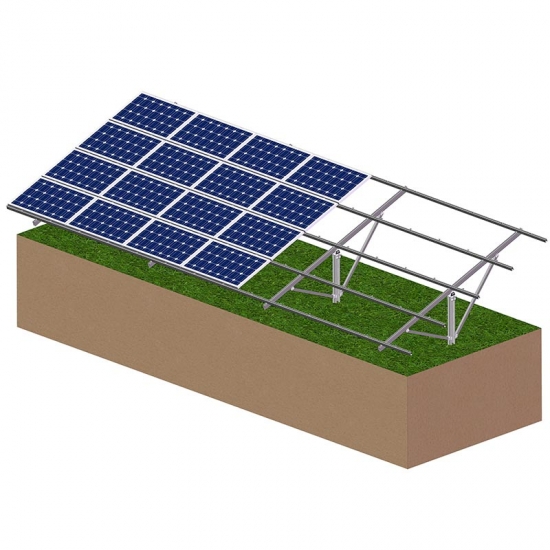

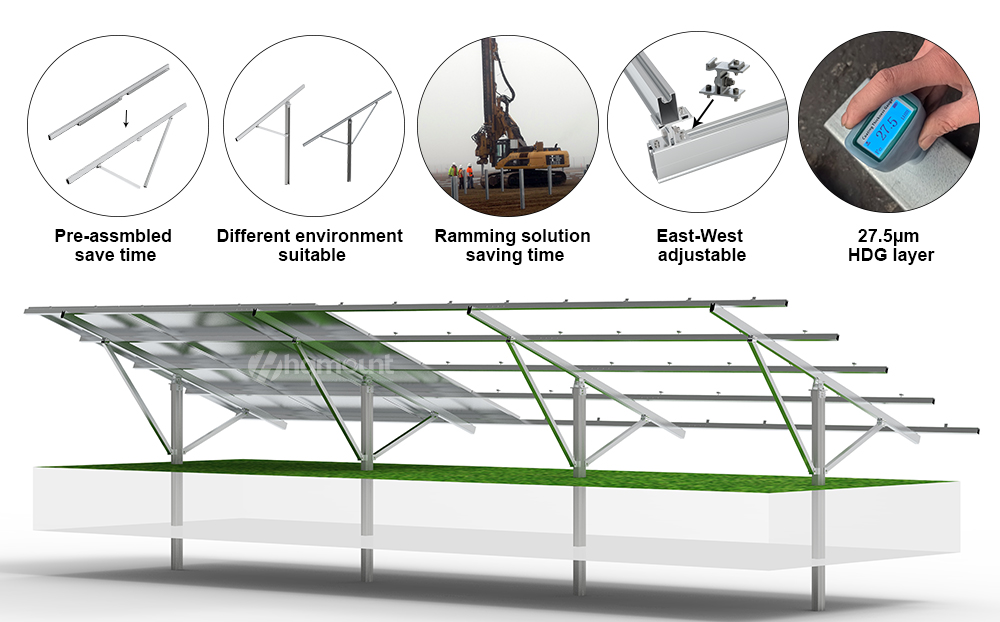

HQ-GM-GT2 with C Pole

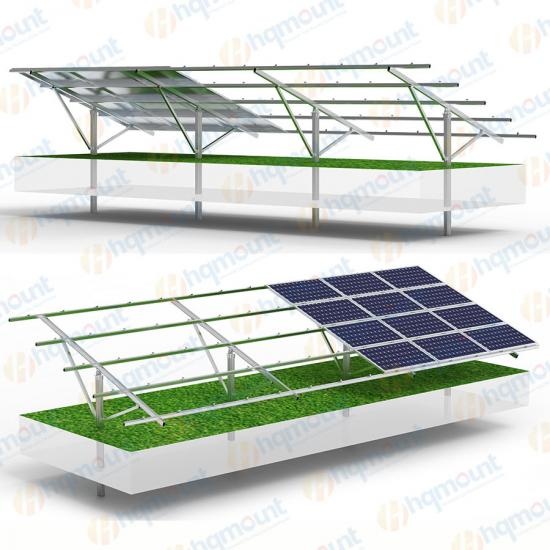

GT2 C pole system suitable for large ground solar plants with steel pile as a fixed base.
C pole is treated with hot galvanizing and has strong corrosion resistance.

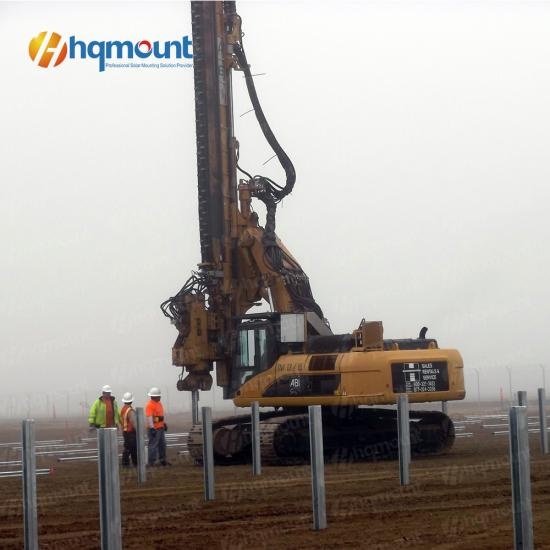

C pole is driven 1-3 meter into the ground by piling machine and then assemble aluminum supports structures.

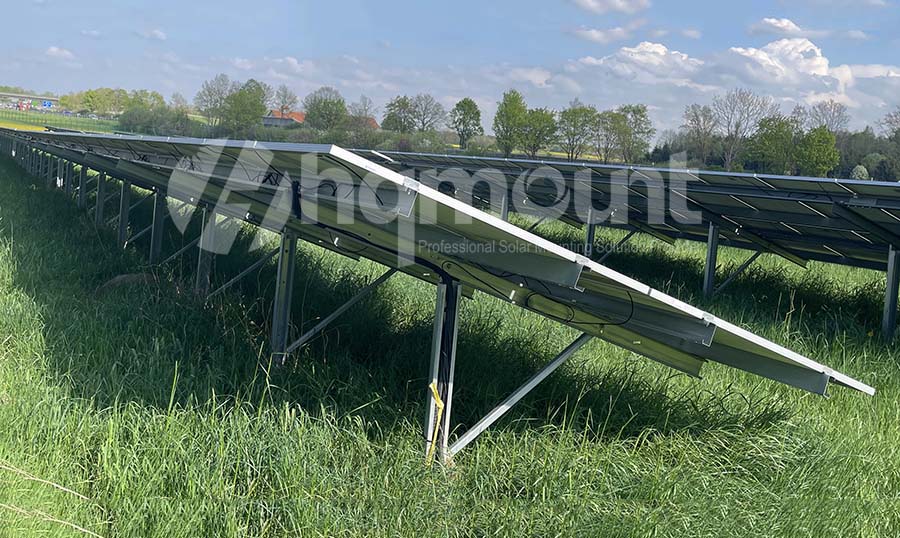

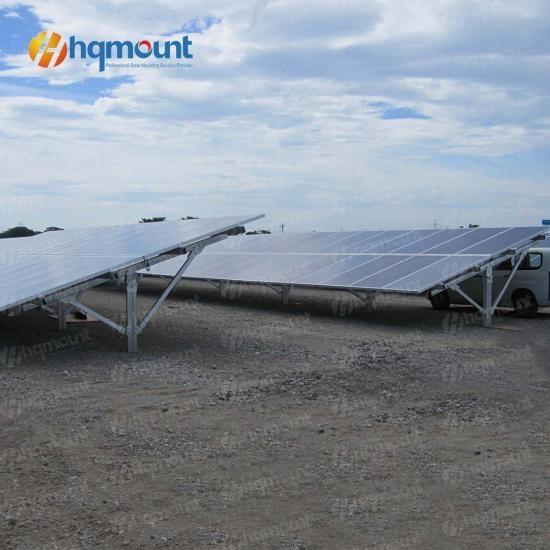

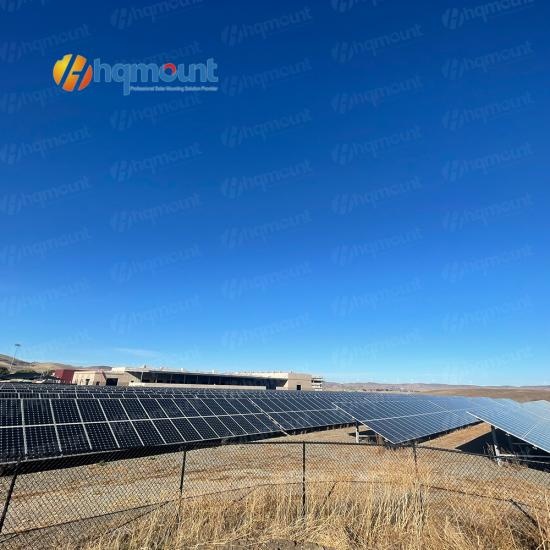

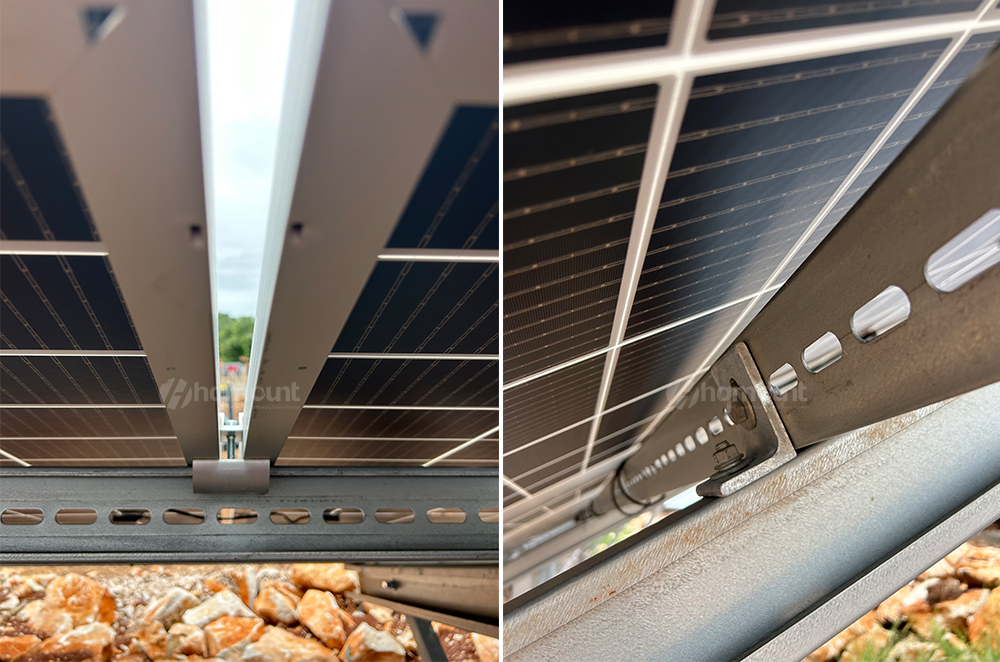

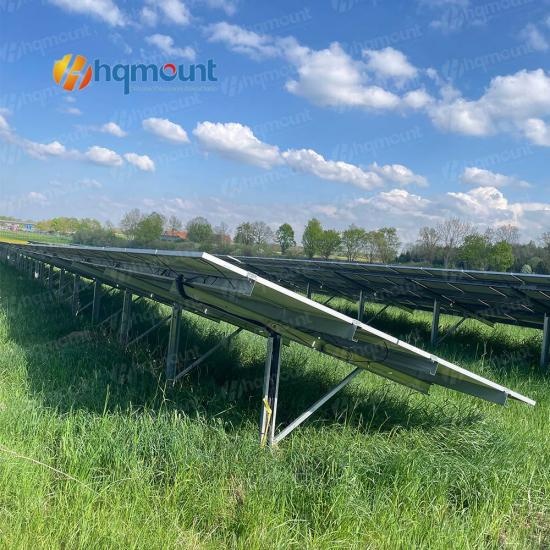

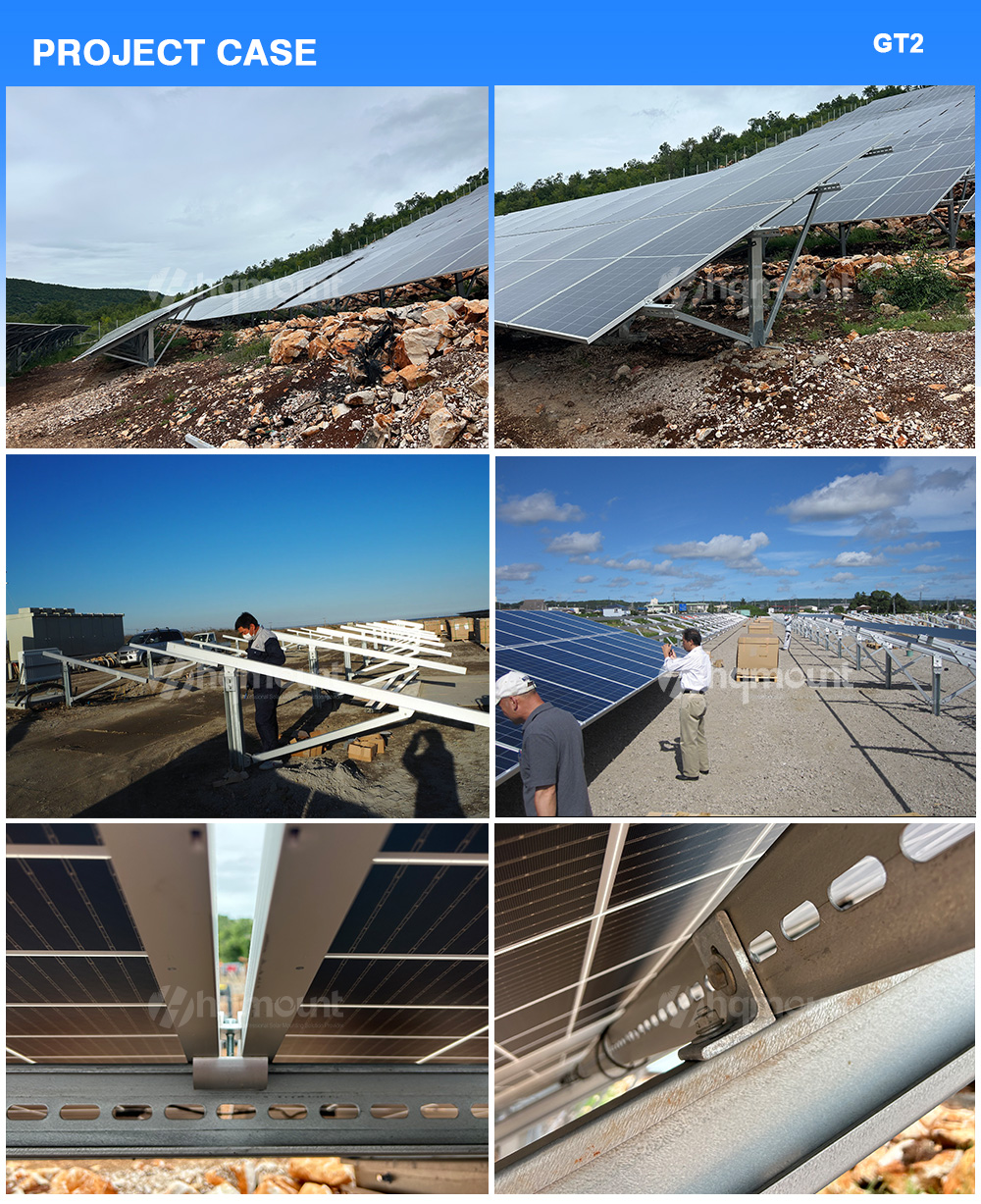

Project case
