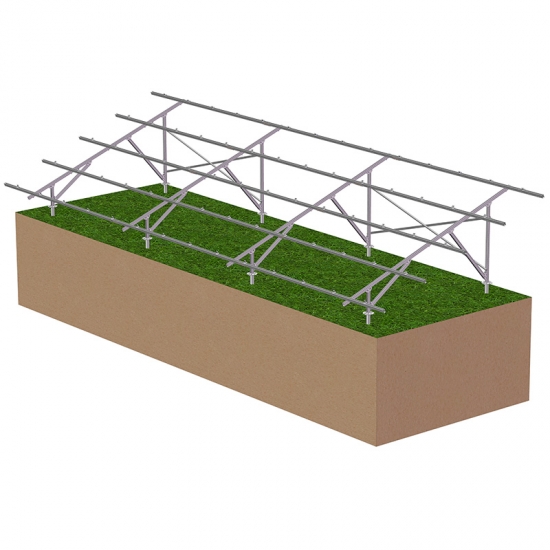

Hot-dipped galvanized C steel ground mounting racking

Standard and simple ground mount structure. Hot dipped galvanized surface for anti-corrosion. Strong but with lower price. It is undoubtedly the brightest spot.
  • Item No.:

    HQ-GM-GT3
  • Payment:

    LC,TT,Western Union,Money Gram
  • Product origin:

    Xiamen, Fujian, China
  • Color:

    Natural or Black
  • Shipping port:

    Xiamen
  • Lead Time:

    15 working days
Inquiry now
Product Details

HQ-GM-GT3



Hot-dipped Galvanized C Steel Ground Mounting Racking

C-Steel Ground Mounting System is applicable for PV array system on the open fields.

For different foundation solutions, such as concrete with the pre-buried bolt, direct buried and ground screw, the system can be modified to install. The material used includes galvanized steel and anodized aluminium components, with great anti-corrosive suitable for outdoor using.

Mount Type
Ground Mounted Solar Panel Systems
Applicable site
Open field
Applicable Module
Framed or frameless panel
Module Orientation
Landscape or portrait
Wind load
Up to130mph(60m/s)
Snow load
Up to 1.4KN/m2
Material
Q235B and stainless steel 304
Tile angle
0-60 degrees
Warranty
12 years

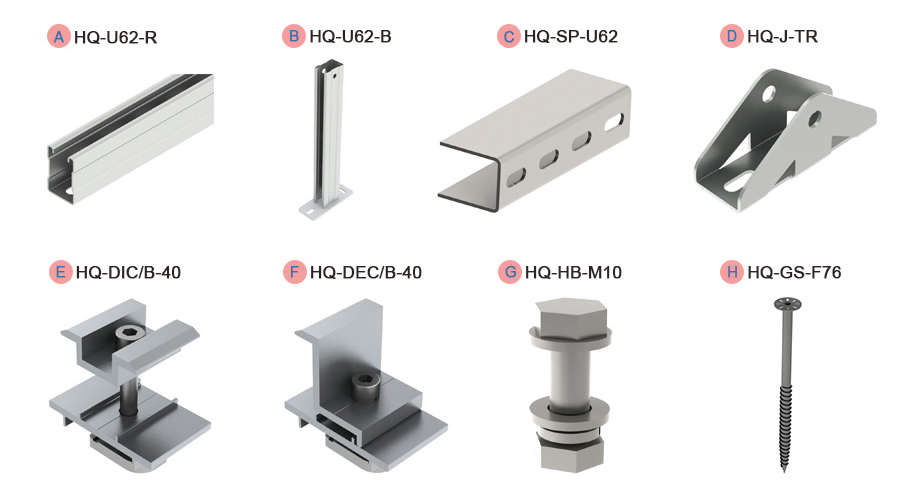

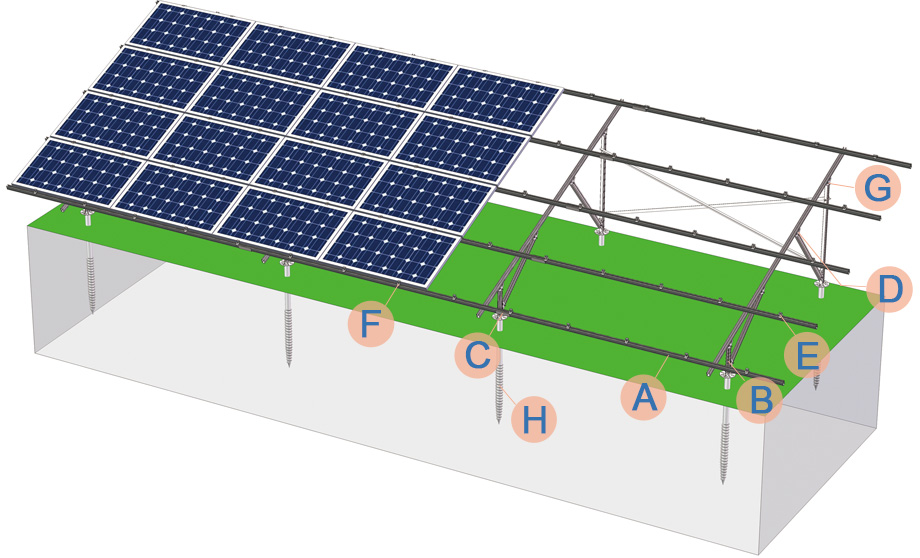

Components Parts

Hot-dipped Galvanized C Steel Ground Mounting Racking



C-Steel Ground Mounting System is applicable for PV array system on the open fields.
For different foundation solutions, such as concrete with the pre-buried boltdirect buried and ground screw, the system can be modified to install. The material used includes galvanized steel and anodized aluminium components, with great anti-corrosive suitable for outdoor using.

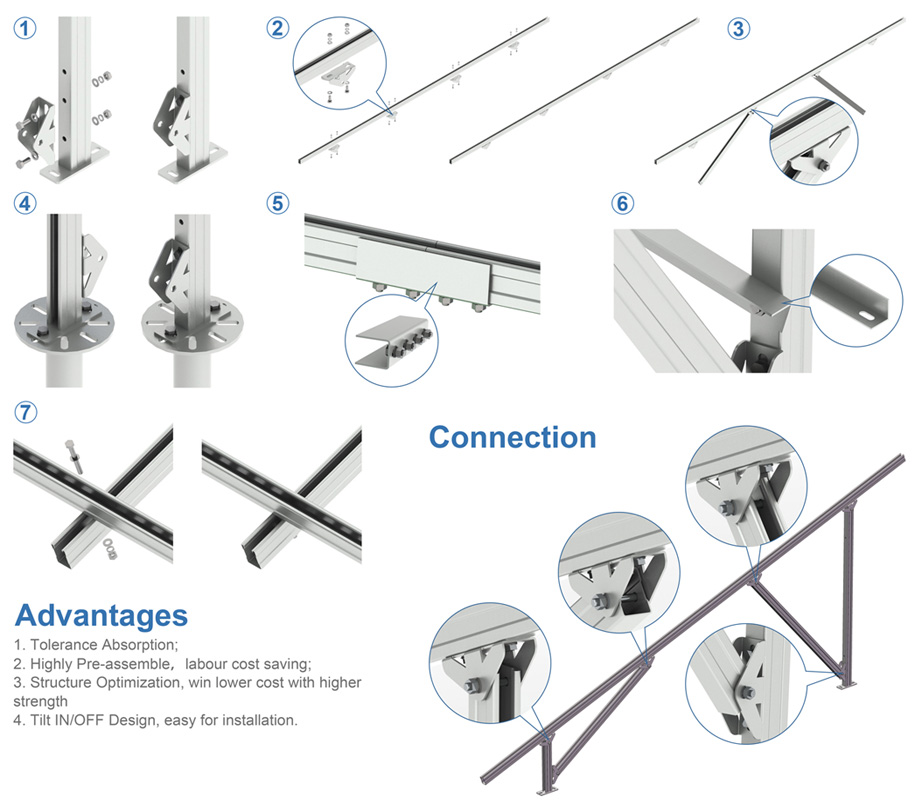

Highly Pre-assemble


C-Steel Ground Mounting System
