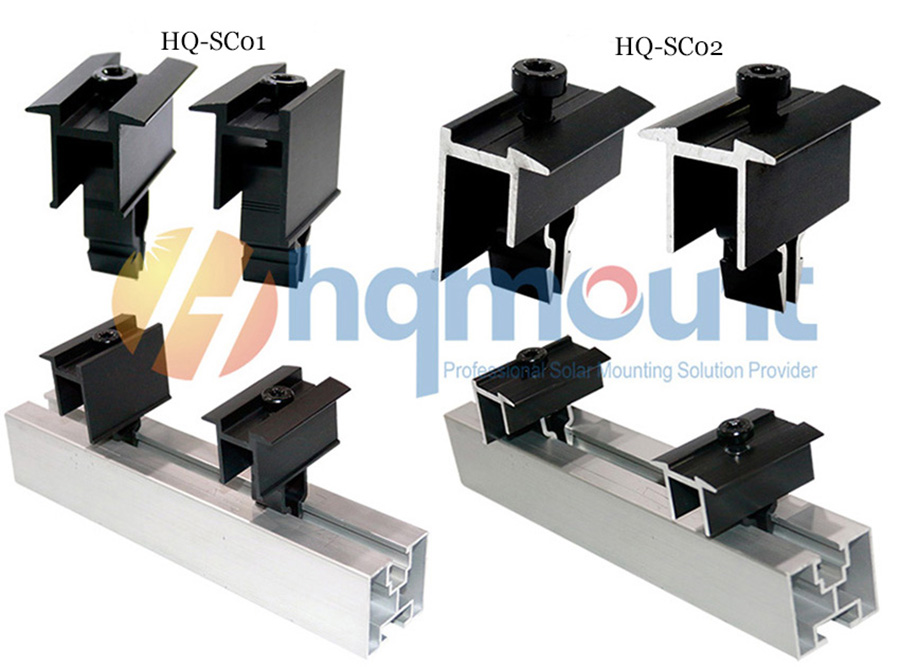

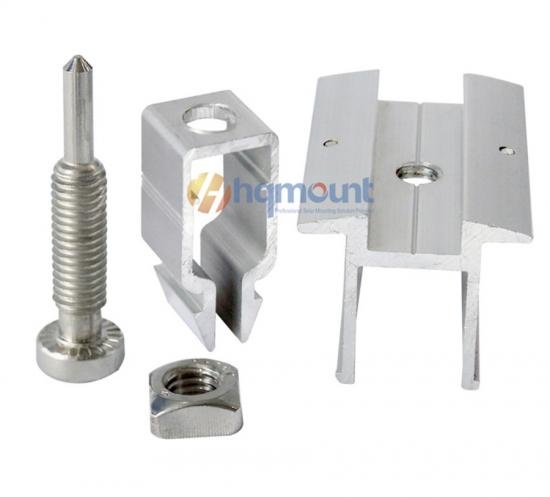

HQ MOUNT factory supplies mid clamps and end clamps for solar mount racking structure, which are made of extruded anodized aluminium, with universal and adjustable clamp to realize 30-40mm framed and 5~8mm thin-film solar panel installation.
Product Name
Mid clamp / inner clamp / end clamp / side clamp / solar clamp
Material
Aluminum 6005-T5 + SS304 bolt
Surface Finish
Anodized
Application
30mm-40mm solar panels
Installation Site
Solar mounting rail, roof rail, ground rail
Color
Silver or customized
Packing
140pcs solar clamp per carton or sustomized
--Rails are pre-cut customized length, mid /end clamps and L foot,standing seam clamps,roof hook are pre-assembled.
-- it can stand high wind load and snow load, and can be easilly installed.
--High grade L foot,N hook and standing seams clamp.
-- Designed to comply with AS/NZS 1170.2 and other international machinery load standards
-- Good compatibility: Designed as a universal mounting system.
We can produce silver clamps and black coating clamps.

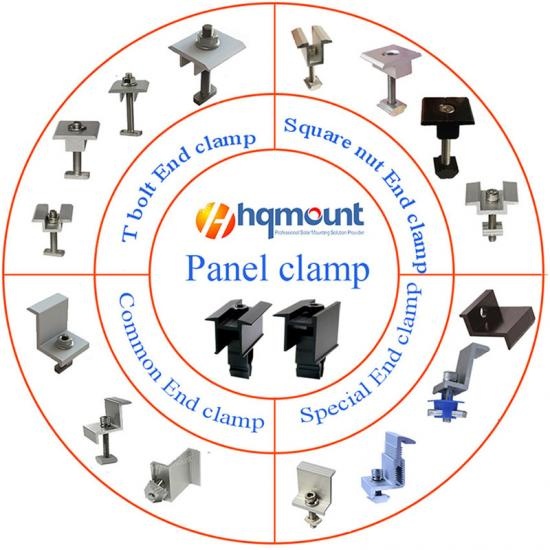

Customized clamps and cuting length can be do as your requirment, 40mm, 50mm, 60mm, 80mm etc.different clamps equip with different nut, T bolt , D nut, and C steel profile.
We also have adjustable clamps 30~50mm for your choice.
