Solar Quick Mounting Clamp

/HQ Mount customized pv rapid middle clamp solar rail fast installation clamp

HQ Mount customized pv rapid middle clamp solar rail fast installation clamp

various of solar clamp can be choose,and we supply OEM/ODM service,we strict selection of raw materials only to provide the highest quality products.

  • Item No.:

    HQ-RIC02
  • Payment:

    T/T, PAYPAL, Western Union, L/C
  • Product origin:

    China
  • Color:

    Natural/Black
  • Shipping port:

    Xiamen port, Guangzhou port, Shenzhen port, can be negotiated
  • Lead Time:

    7-15 days
  • Brand:

    HQ MOUNT
  • Certification:

    SGS, ISO,CE,TUV
  • Material:

    Aluminum
Inquiry now
Product Details

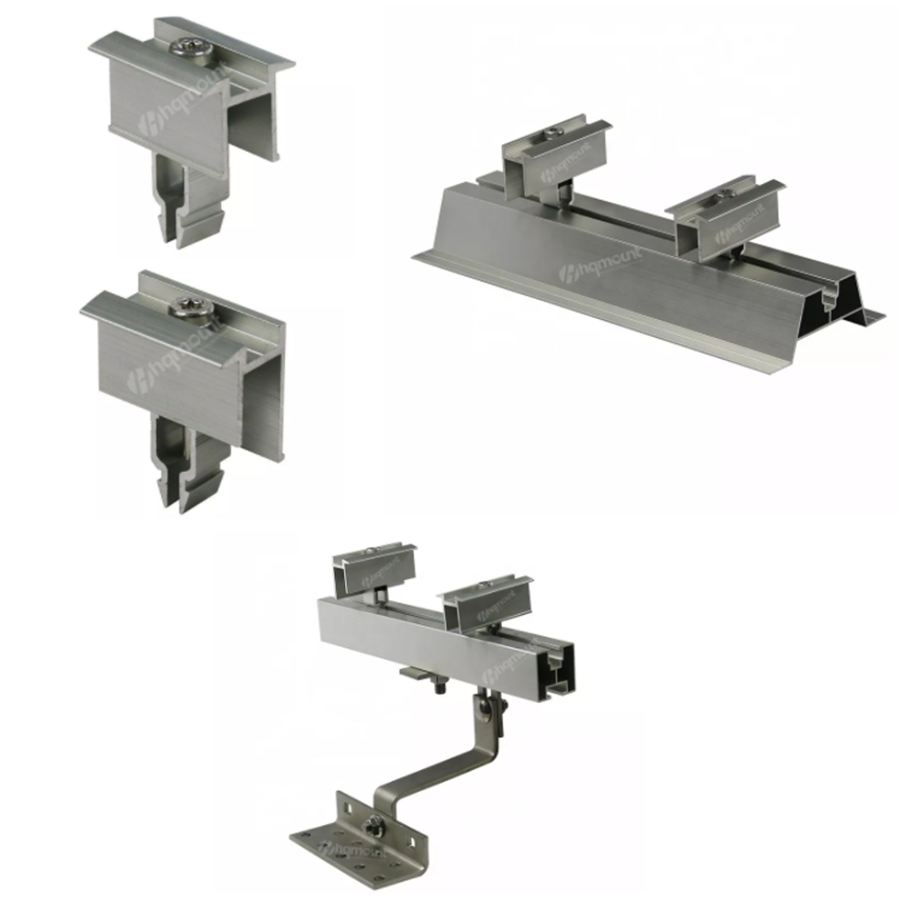

HQ MOUNT factory supplies mid clamps and end clamps for solar mount racking structure, which are made of extruded anodized aluminium, with universal and adjustable clamp to realize 30-40mm framed and 5~8mm thin-film solar panel installation.

Product Name

Mid clamp / inner clamp / end clamp / side clamp / solar clamp

Material

Aluminum 6005-T5 + SS304 bolt

Surface Finish

Anodized

Application

30mm-40mm solar panels

Installation Site

Solar mounting rail, roof rail, ground rail

Color

Silver or customized

Packing

140pcs solar clamp per carton or sustomized

-HQ MOUNT design: faster installation which saves your labor cost.
--Rails are pre-cut customized length, mid /end clamps and L foot,standing seam clamps,roof hook are pre-assembled.
-- it can stand high wind load and snow load, and can be easilly installed.
--High grade L foot,N hook and standing seams clamp.
-- Designed to comply with AS/NZS 1170.2 and other international machinery load standards

 -- Good compatibility: Designed as a universal mounting system.

We can produce silver clamps and black coating clamps.

Customized clamps and cuting length can be do as your requirment, 40mm, 50mm, 60mm, 80mm etc.
different clamps equip with different nut, T bolt , D nut, and C steel profile.
We also have adjustable clamps 30~50mm for your choice.
