Solar Tin roof mounting structure L feet is designed for residential and commercial applications.We make sure enables surprisingly quick and easy installation for every roof.Outstanding quality of stainless steel and aluminum ensure the most durable component.
Features:
• Quick installation
• Professional design
• Safety Guarantee
• Preservative Treatment
Product Name

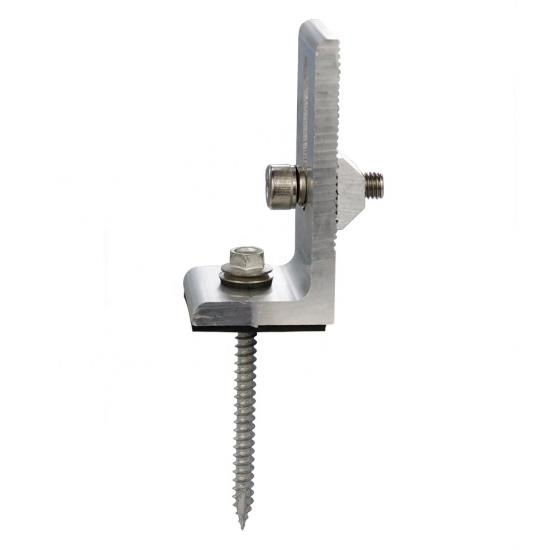

Solar L feet.
Material
Aluminum 6005-T5.
Color
Sliver or black.
JIS C8955:2011 and AS/NZS 1170
Specification
40mm,customized.
Wind speed
60m/s
Snow load
1.4KN/m2
Warranty
12 years warranty,25 years life time
Standard

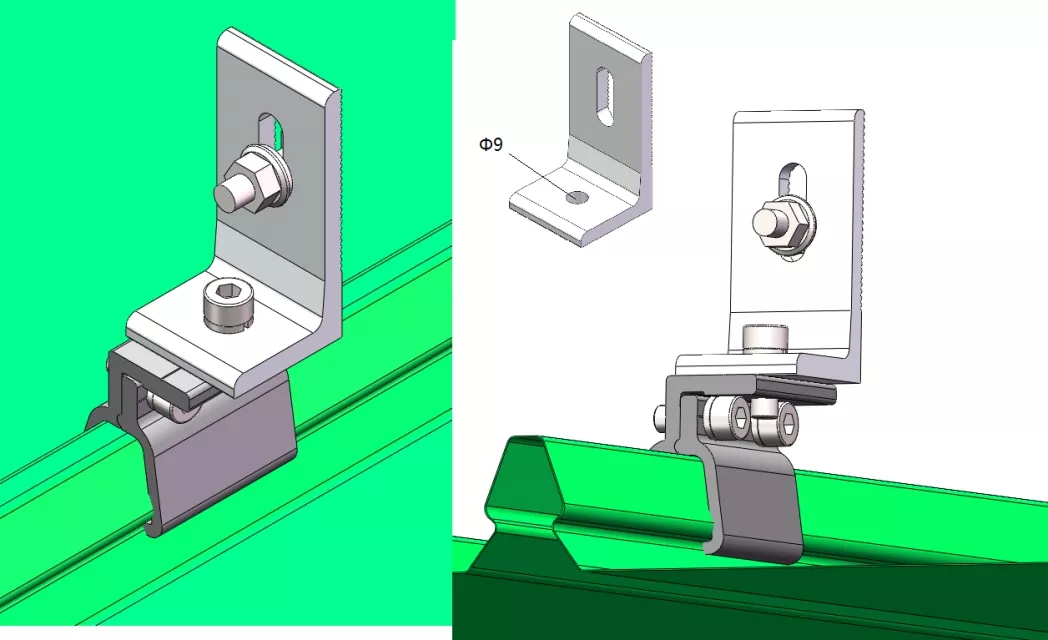

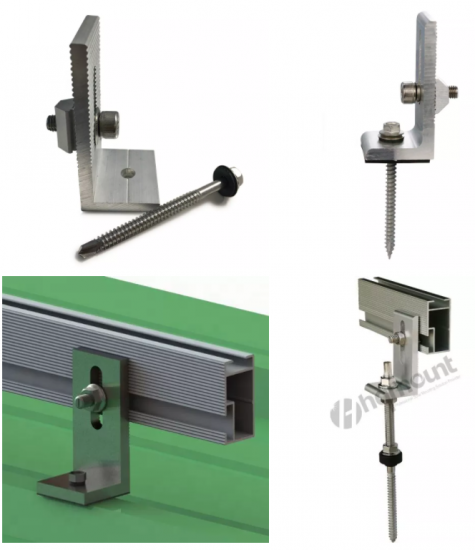

Installation of Solar L Feet Mounting Structure
Step 1 It is recommended to mark a chalk line so
that L feet could fixed in line.
Step 2 Fasten the L feet onto the roof with self-tapping screw, and align the L feetaccording to mark line.
Step 3 Repeat step 1 and 2, fasten the rest of L feet. Please be noted that the space between adjacent rows should be half length of solar panel.
2)Attach the bolt into the groove of rail, rotate
the bolt to engage the groove.
3)Fasten the bolt to fix the rail, make sure the mark at the bottom of the bolt is vertical to the groove
Packaging:
Packing Details : Packing, Solar L feet,
84pcs/carton
Delivery Details
: 5-7 days for samples.others depends on the actual quantities
