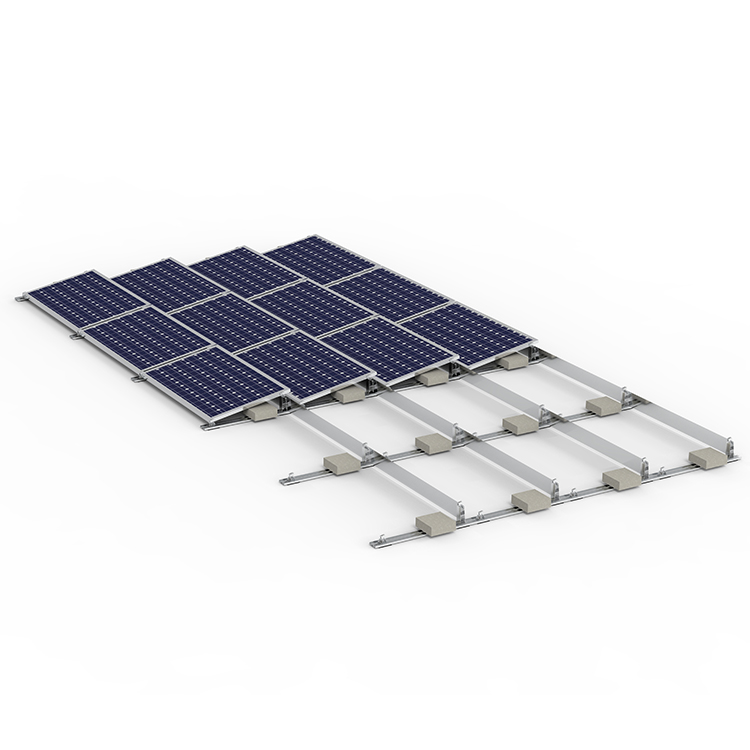

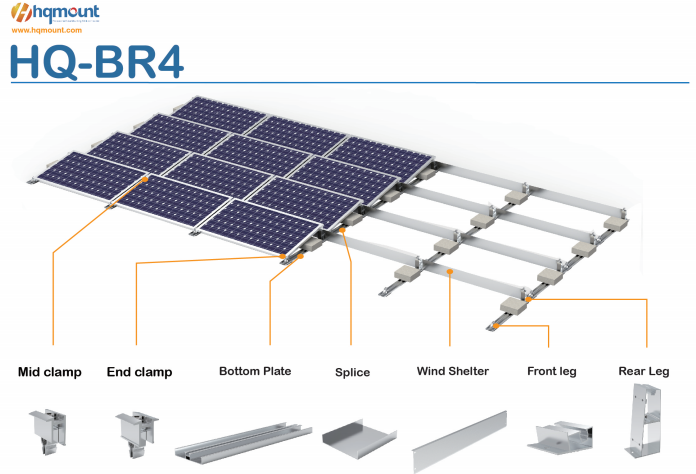

HQ Mount BR4 is made of aluminum and by that a very lightweight product. It is built under high-quality standards and designed for maximum durability and corrosion resistance in all ballasted flat roof. Easy to installation with the rapid clamp.
Features as below:
1. Flexible and simple installation
2. Light, sturdy material for a cost-efficient system
3. High pre-assembly
4. Maximum service life
|
Material |
AL 6005-T5,(AL6061-T6,6063 available) |
|
Surface |
Anodized |
|
Panel Type |
Framed & Frameless |
|
Wind Load |
≤40m/s |
|
Snow Load |
1.4KN/m2 |
|
Panel Orientation |
Landscape/Portrait |
|
Color |
Natural or according your requirements |
|
Standards |
JIS C 8955 : 2017, AS/NZS 1170 |
|
Warranty |
12 years quality warranty, 25 years life span |
1. New design, lightweight and strong aluminum structure.

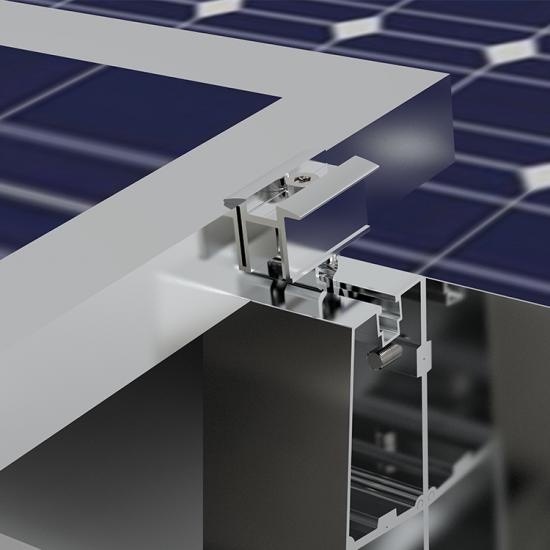

2. It is easier to install with only rapid clamp.
3.Secures the array without damaging the flat roof
