Photovoltaic slate tile hook bracket

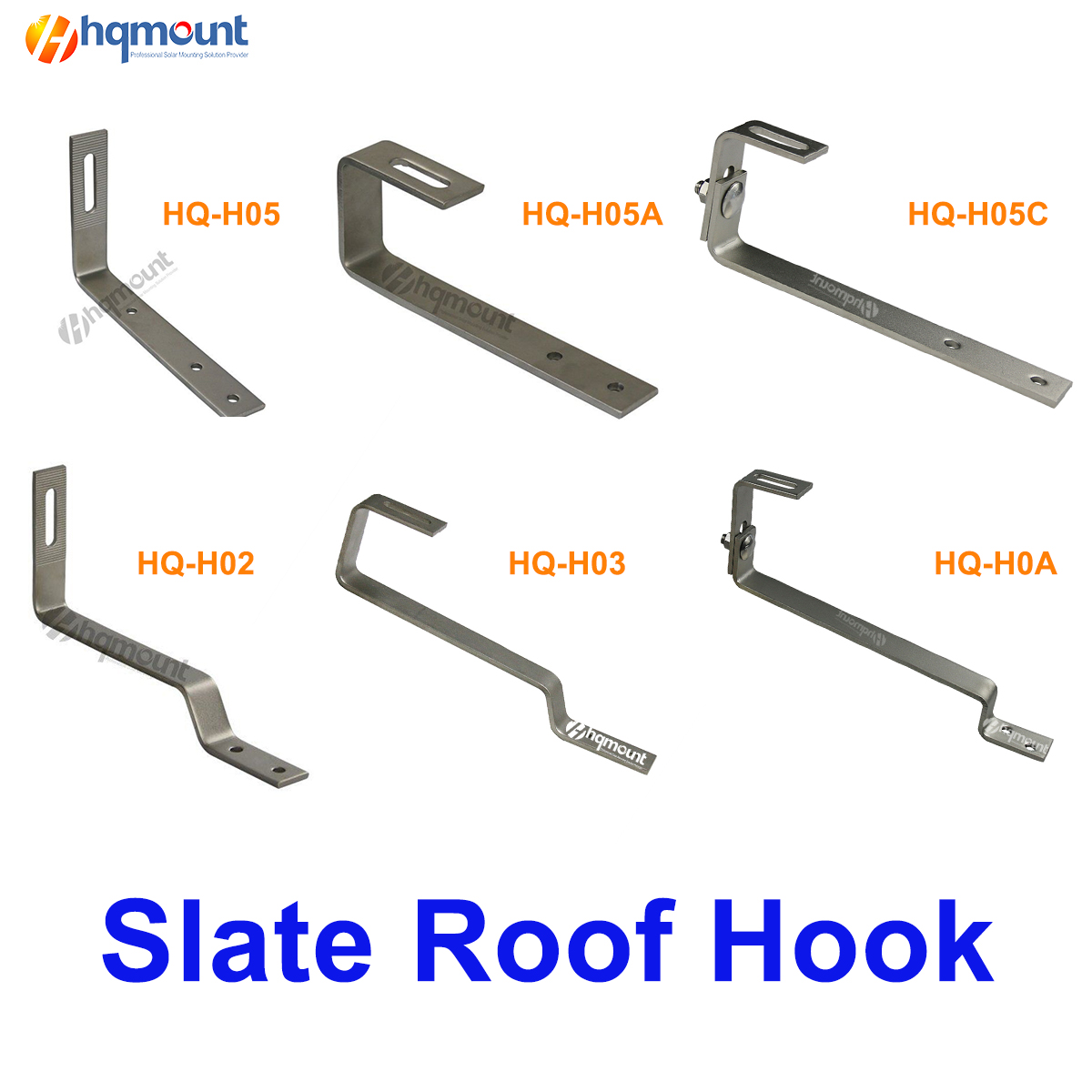

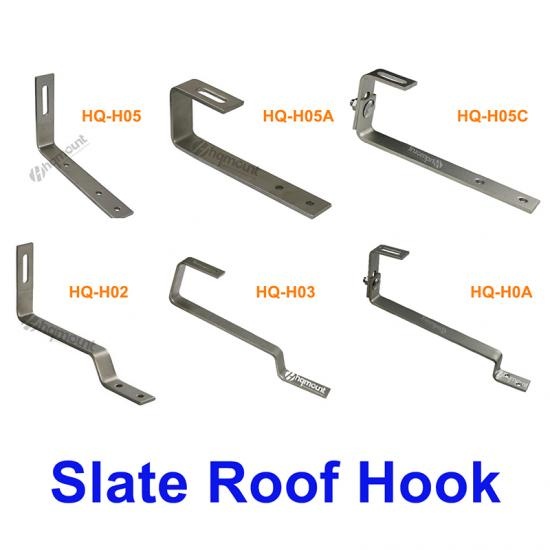

HQMOUNT Photovoltaic Slate Tile Rook Bracket is designed for a slate tile roof. The system has the different size available for different tile roofs.

  • Item No.:

    HQ-S-CH10
  • Product origin:

    CHINA
  • Color:

    NATURE
  • Shipping port:

    XIAMEN
  • Lead Time:

    7-25 DAYS
  • Brand:

    HQMOUNT
  • Model No.:

    HQ-S-CH10
  • Certification:

    ISO,SGS
  • Material:

    SUS304&AL6005-T5
  • Lead time:

    7-25 DAYS
Inquiry now
Product Details

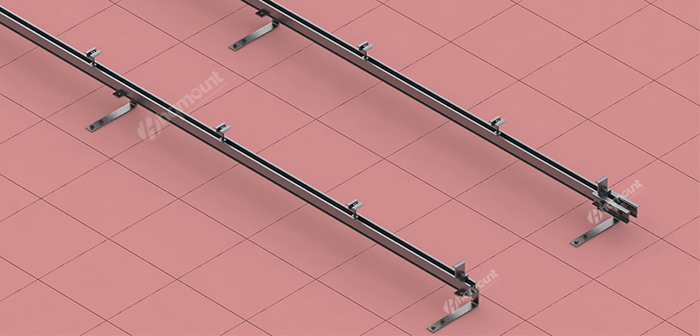

Photovoltaic Slate Tile hook Bracket

This bracket including:

Item No picture
Description
HQ-S-CH10

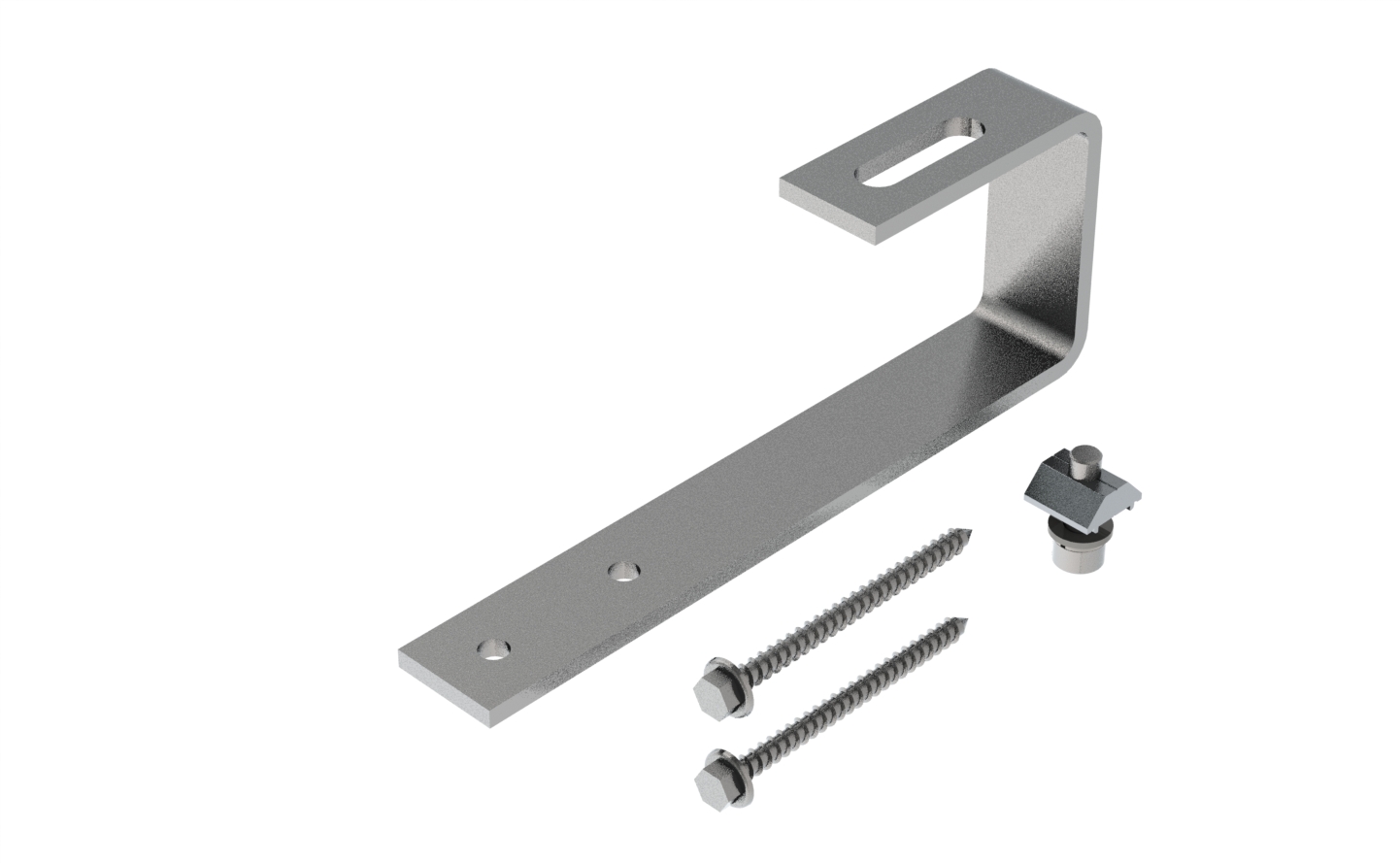

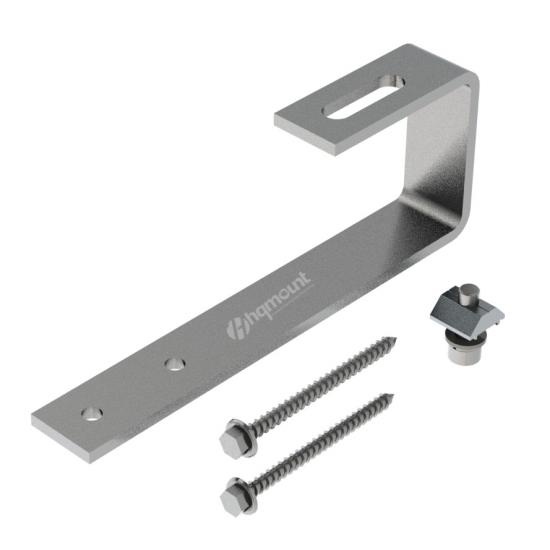

Stainless Steel 304  flat Carp Tile roof Hook with  2pcs sUS 410 wooden screws and Square nut.

The length and height of hook H10 are customized for the specific roof tile.

HQ-S-H42

Aluminum AL6005-T5 h42 Solar panel Profile with length 1000mm, 1250mm, 2000mm, 3000mm, 5000mm available. (Other types of aluminum rails are customized.)

solar Beam with H shape are easy to install with Hooks and solar panels.


HQ-S-SP42

Aluminum AL6005-T5 & SUS304 profile Splice with length 150mm.

Easy to fasten two solar aluminum profiles together with strong strength.

HQ-S-IC02
Aluminum AL6005-T5 & SUS304 solar Panel Mid Clamp for framed panels from 30mm-60mm.
HQ-S-EC03
Aluminum AL6005-T5 & SUS304 Solar Panel End Clamp For Framed Panels From 30mm-60mm.

HQMOUNT SGS Approved V2A Stainless Steel Metal Solar Mounting Long Roofing Hooks bracket are:

* Factory ready product, quick lead time

* manufacturer direct price without extra trading costs

* SGS, ISO, Patent approved to ensure quality issue

* 12 years warranty
