solar residential carport with galvanized steel

HQ Mount can provide design both commercial and residential solar carport system.Aluminium structure and steel are available. The carport capacity can be customized as each client’s requirements.

  • Item No.:

    Solar galvanized ste
  • Payment:

    T/T
  • Product origin:

    Fujian
  • Color:

    Natural or customized painted
  • Shipping port:

    Xiamen Port
  • Lead Time:

    10- 15 days
  • Brand:

    HQ MOUNT
  • Model No.:

    HQ-SC
  • Certification:

    Iso, SGS
  • Material:

    Steel &AL6005
Inquiry now
Product Details

HQ MOUNT designs residential and commercial Solar Carport Mounting Structure. Our clients can have different options for both single row and double rows of parking. Hot-dipped galvanized or power coating surface treatment are available. . Our engineer with IWE Certification (International Welding Engineer) can satisfied with any of your needs.

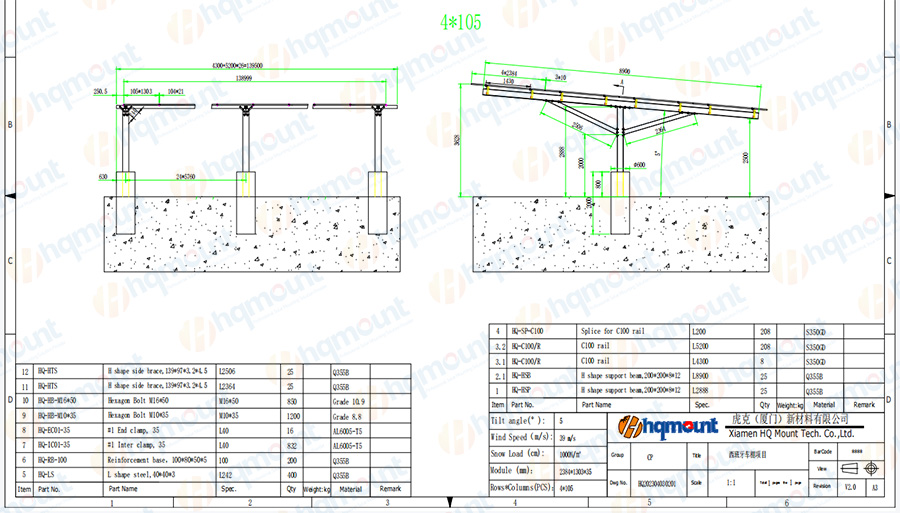

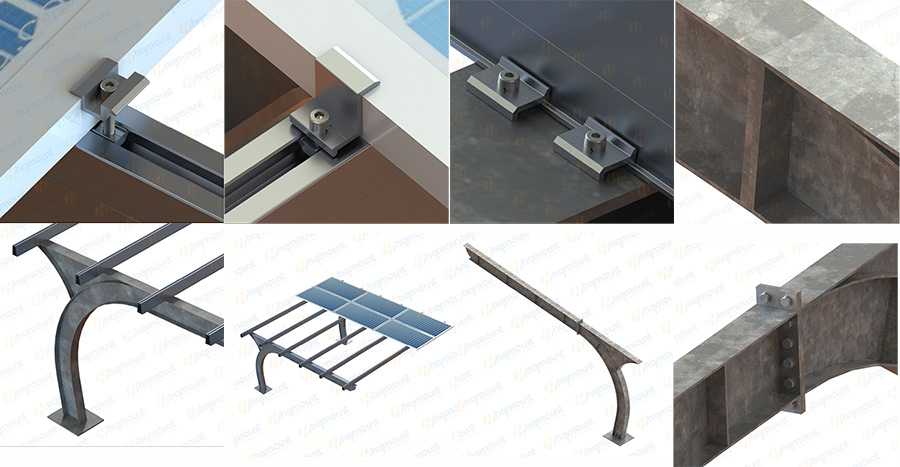

The whole structure is mainly fixed by the foundation bolt assembly in cement block, then reinforced by cement irrigation.  The design looks simple, generous and beautiful. Not only can meet the parking demand, and produce grid power, but also recover costs and make a profit.The frame is composed of foundation bolt, post, beam, rail, rail splice kit, high strength bolt. Main materials used: national standard Q235B high strength H structural steel(column, beam), AL 6005-T5 aluminum alloy(rail), SUS 304 stainless steel(bolts) and so on. The surface of steel is treated by hot galvanizing and aluminum alloy by anodic oxidation. All components and accessories are rust proof.


Features as below:

1.Hot galvanized steel material protect the structure anti-corrosion.

2.Highly pre-assembled before shipping, save time ans labour cost.

3.Technical support.

4.12 years warranty,25 years life time.

Material

AL 6005-T5/SUS304/Q235B

Surface Treatment

Average Anodizing Coating Thickness≥ 10μm Average

Hot-galvanized Coating Thickness≥ 80μm

Power Coating Thickness ≥ 250μm

Panel Type

Framed & Frameless

Wind Load

≤60m/s

Snow Load

1.4KN/m2

Panel Orientation

Landscape/Portrait

Tilt Angle

5-10 Degree

Standards

JIS C 8955 : 2017, AS/NZS 1170

Warranty

12 years quality warranty, 25 years life span

commercial Solar Carport Mounting Structure


Related Product

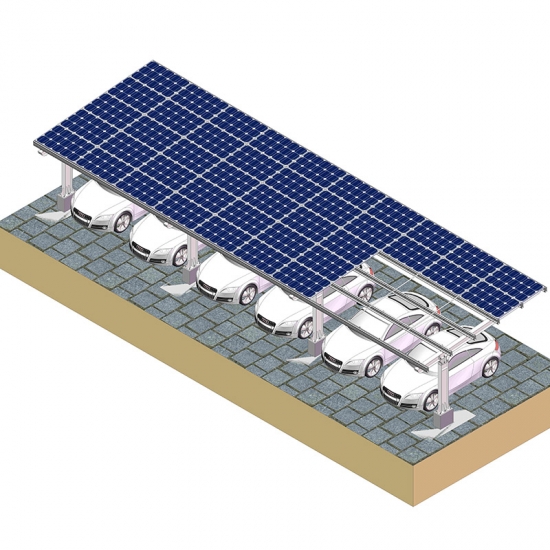

Carport Mounting System

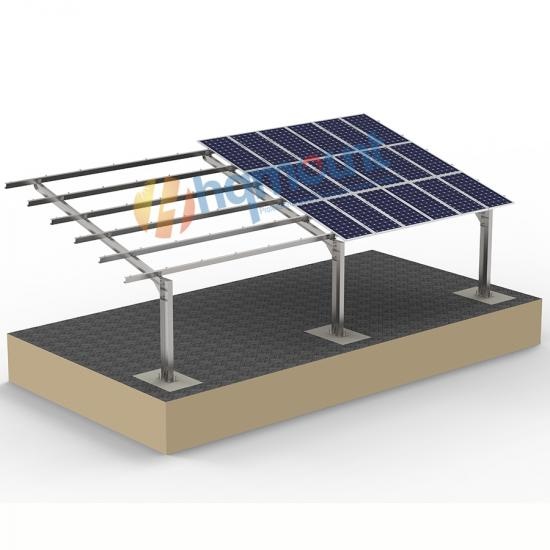

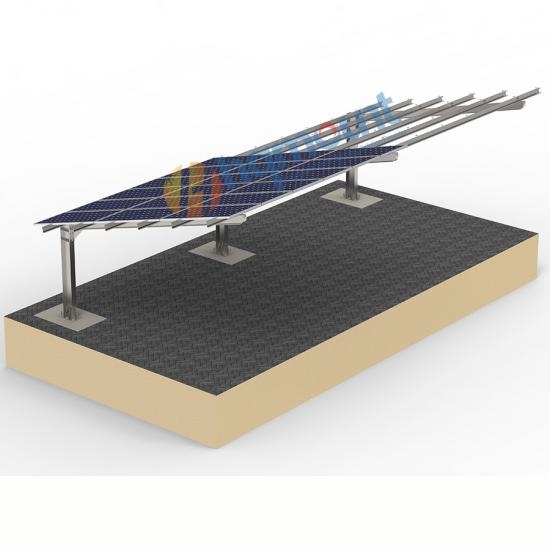

Solar carport mounting structure
HQ MOUNT solar carport mounting structure can be designed as single row and double rows of parking, which is suitable for most of solar modules. The simple and beautiful structure can be installed very quickly and without any welding at site.
Aluminum Frameless Panel Clamp
Thin film end clamps for frameless solar module
Thin film solar panel clamps can be used for kinds of specification of thin-film solar module or glass unframed solar modules. Rubber in middle will protect thin-film solar panels well.The material is anodized extruded aluminum 6005-T5, Bolt, EPDM rubber and stainless steel fastener. High quality material and accurate design can fix the thin film stable.
 MC4 connector
Solar MC4 DC Connector
This solar MC4 connector is specifically designed for connecting photovoltaic solar systems with high mechanical requirements and extreme weather conditions. Solar panel connectors types is compatible with multi contact 4 connector, suitable to solar cable, 2.5 mm2, 4mm2 and 6mm2 in solar connection project. Quickly and reliable connection of the solar cables to the photovoltaic system(solar panels, converters).

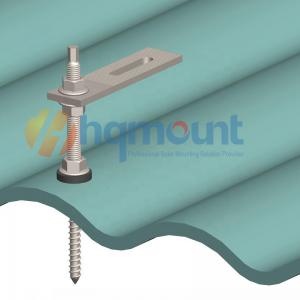

Solar Hanger Bolts
