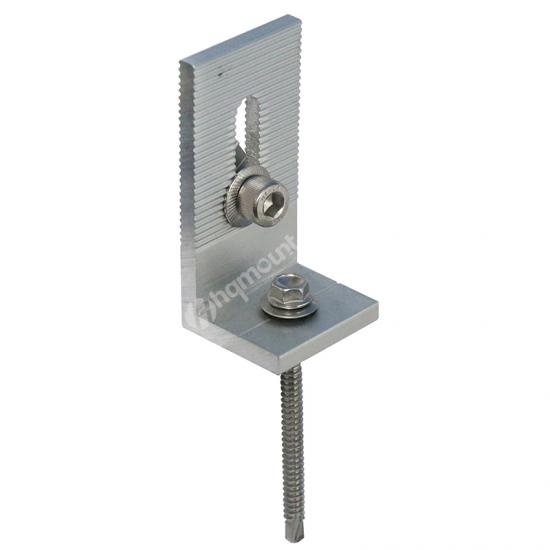

Solar tin roof system with aluminum L feet bracket

The L-feet kit for solar mounting is used widely in solar mounting. Mostly its function is fixing the rail to the beam of a metal roof.

  • Item No.:

    HQ-TR01
  • Payment:

    T/T,L/C,Western Union,Paypal
  • Product origin:

    Xiamen
  • Color:

    Natural or Black
  • Shipping port:

    Xiamen Port
  • Lead Time:

    8-15 days
  • Brand:

    HQ Mount
  • Certification:

    SGS, ISO9001,CE,TUV
Inquiry now
Product Details

Solar Tin roof mounting structure L feet is designed for residential and commercial applications.We make sure enables surprisingly quick and easy installation for every roof.Outstanding quality of stainless steel and aluminum ensure the most durable component.

Features:
• Quick installation
• Professional design
• Safety Guarantee
• Preservative Treatment


Product Name

Solar L feet.

Material

Aluminum 6005-T5.

Color

Sliver or black.

Specification 40mm,customized.
Wind speed 60m/s
Snow load 1.4KN/m2
Warranty 12 years warranty,25 years life time
Standard

JIS C8955:2011 and AS/NZS 1170




Solar Tin roof mounting structure L feet


Installation of Solar L Feet Mounting Structure

Solar Tin roof mounting structure L feet

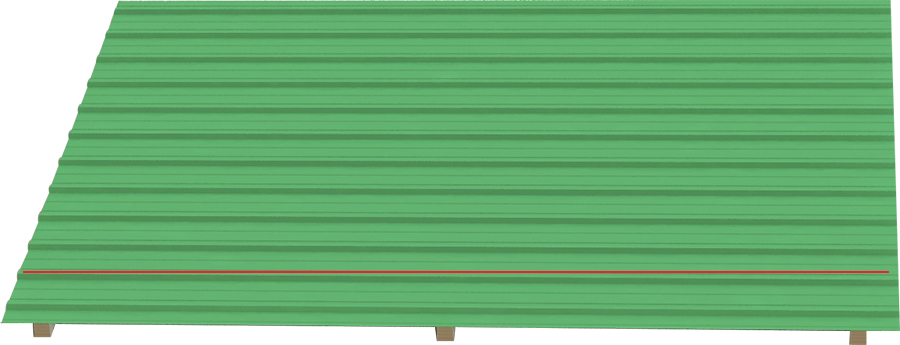

Step 1 It is recommended to mark a chalk line so that L feet could fixed in line.

Solar Tin roof mounting structure L feet

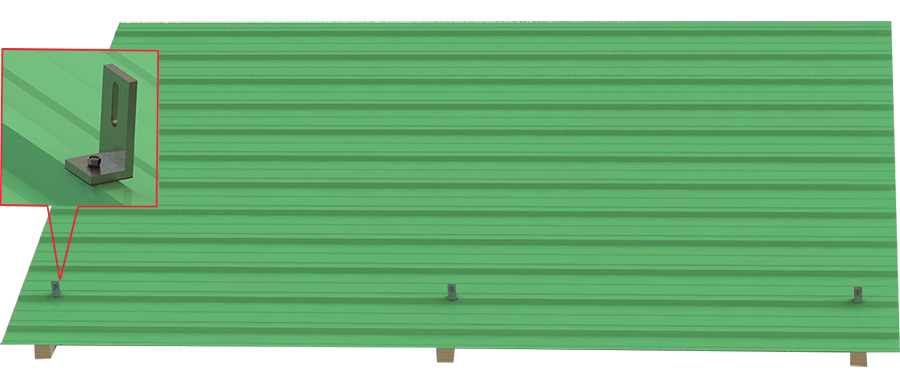

Step 2 Fasten the L feet onto the roof with self-tapping screw, and align the L feetaccording to mark line.

Solar Tin roof mounting structure L feet

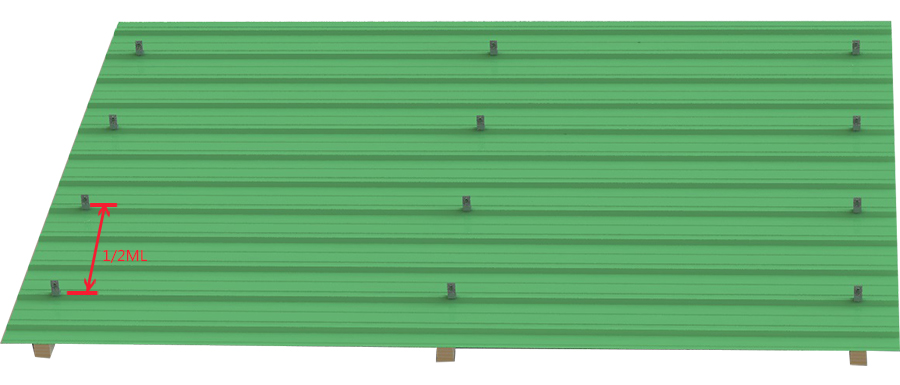

Step 3 Repeat step 1 and 2, fasten the rest of L feet. Please be noted that the space between adjacent rows should be half length of solar panel.

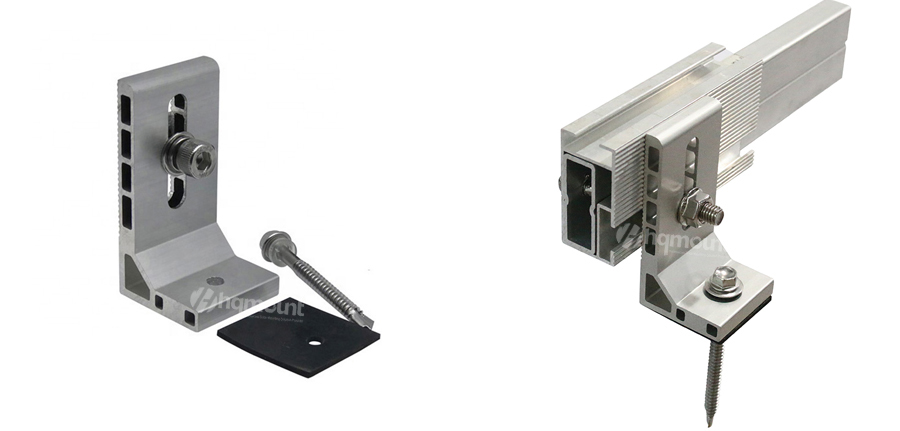

Solar Tin roof mounting structure L feet

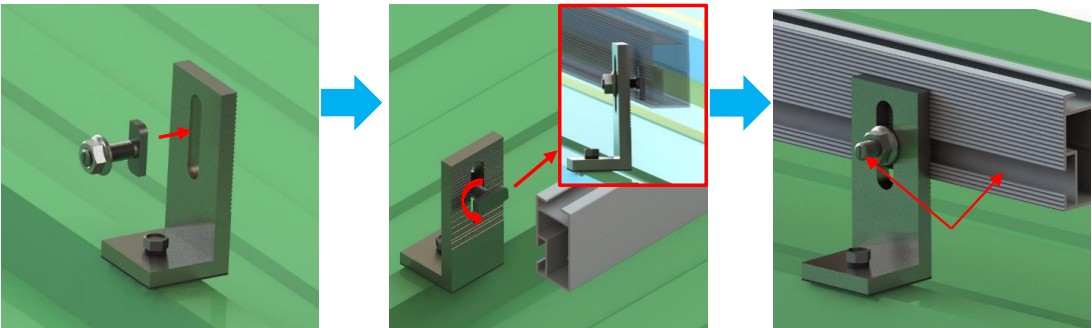

1)Plug the bolt through the groove of L feet.

2)Attach the bolt into the groove of rail, rotate the bolt to engage the groove.

3)Fasten the bolt to fix the rail, make sure the mark at the bottom of the bolt is vertical to the groove

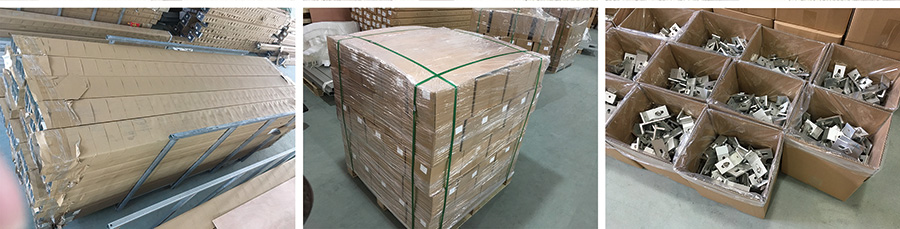

Package:

Packing Details  : Packing, Solar L feet, 84pcs/carton

Delivery Details : 5-7 days for samples.others depends on the actual quantities

Solar Tin roof mounting structure L feetSolar Tin roof mounting structure L feet

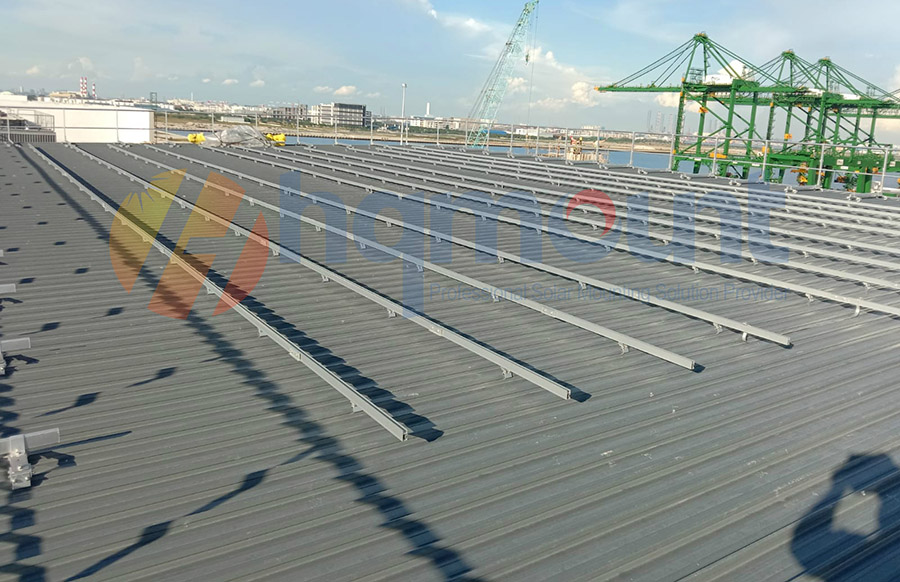

Project Case:
