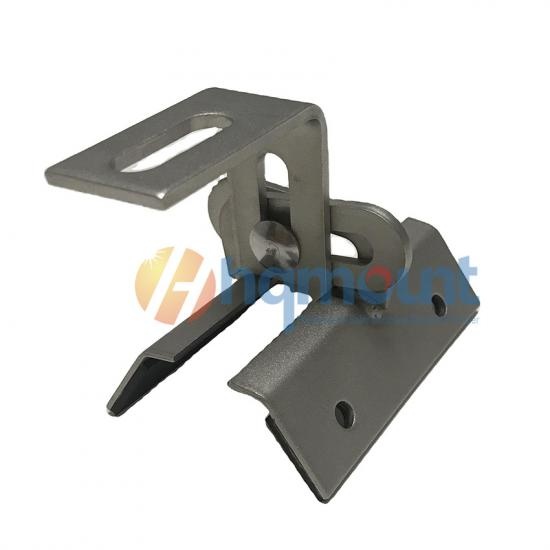

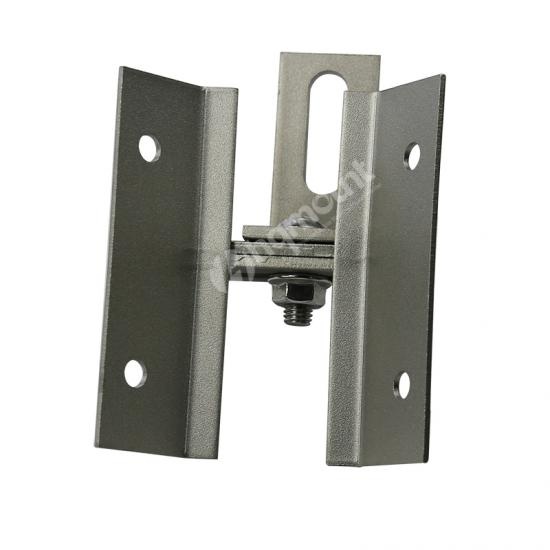

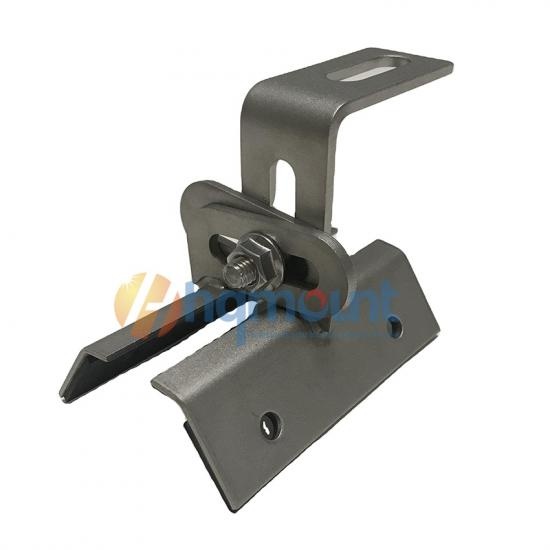

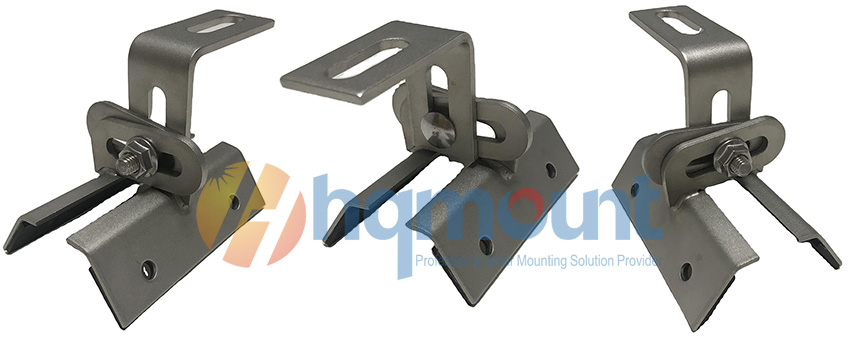

HQ MOUNT adjustable clamp for trapezoidal metal roof, penetrated with 4 sets bolts and EPDM washer, fits almost all common trapezoidal metal roof profiles. It is adjustable to the width of the specific roof profile’s crown, and offers variability in height for attaching all kinds of different mounting and rail systems, either top rail mount or side rail mount.
HQ Solar metal universal roof clamp when combined with solar panel mounting rails or the HQ MOUNT PV Kit, is a versatile PV mounting solution for exposed-fastened metal roofs. It fits most trapezoidal sheet metal roof profiles with and without intermediate insulation. It features an adjustable attachment base to accommodate varying widths and heights. It is a solar panel mounting solution that is both economical, easy to use and spares you the hassle of cold-bridging.
Installation site: |
solar pitched metal roof mounting |
Tilt angle: |
roof(5-60degrees) |
Maximum wind speed: |
60 m / s |
Snow load: |
within 1.4KN/m2 |
Applicable module: |
framed or frameless |
Solar panel direction: |
horizontal or portrait |
Material: |
stainless steel 304 |
Warranty: |
12 years |
Service years: |
around 25 years |
Color: |
natural color or customized |
Surface preparation: |
sandblasted |
Advantages as follow:
1. Adjustable clamp plate could meet various trapezoidal metal roof sheet.
2. High Durability – Best Stainless steel 304 Ensure 12 years warranty and 25 years service time.
3.Waterproofed EPDM Rubber.
4.High Pre-assembly-save labor cost at the installation site.
