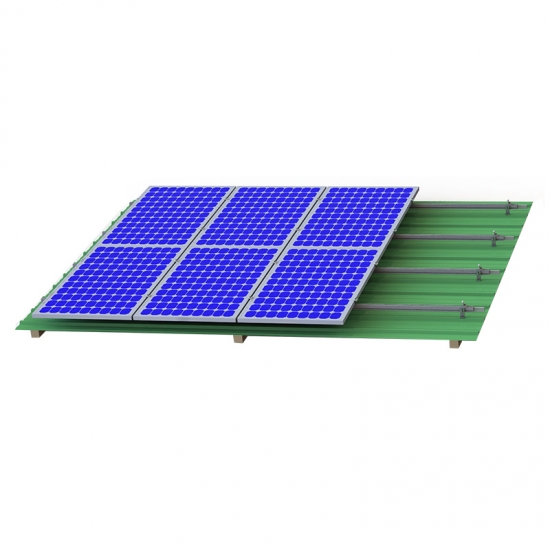

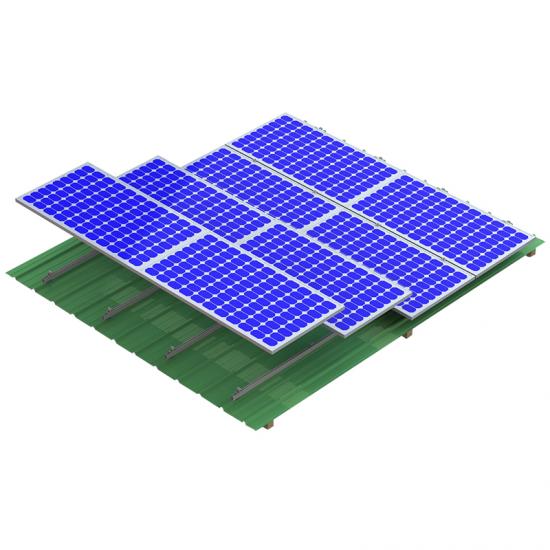

Trapezoidal solar roofing system

Trapezoidal roofing system is designed with great flexibility for both commercial and residential roof solar system. Patented and innovative rail design, standard components, highly pre-assembled clamp, all the above make the installation simple. Save your time and installation cost.
  • Item No.:

    Solar Tin Roof Mount
  • Payment:

    T/T
  • Product origin:

    Xiamen,China
  • Shipping port:

    Xiamen
  • Lead Time:

    7-10 days
  • Brand:

    HQ Mount
  • Model No.:

    HQ-R-TIN
  • Certification:

    ISO,SGS
  • Material:

    AL6005-T5
Inquiry now
Product Details

Installation SitePitched metal roof

Building HeightUp to 20m

Max Wind Speed60 m/s

Snow LoadUp to1.4KN/m2

standardsJIS C8955:2011 and AS/NZS 1170

MaterialSUS304 & AL 6005-T5

ColorNatural

Anti-corrosiveAnodized

Warranty12 years warranty

DuratiomMore than 20 years

Components List


Trapezoidal solar Roofing System

Overview of system components

1. Inter Clamp
2. End Clamp
3. Rail
4. Connector
5. Hook
Trapezoidal solar Roofing System




L Feet installation


− The top edge of trapezoidal roof should be 20mm minimum in length.
− It is suggested to fix solar panel with ¼ of total panel length between the end edge
and rail.
− The gap between two solar panels is ideally 17mm in width direction.
Trapezoidal solar Roofing System


Fix the rail to L feet

Trapezoidal solar Roofing System

a.Plug the bolt through the groove of L feet.

b.Attach the bolt into the groove of rail, rotate the bolt to engage the groove.

c.Fasten the bolt to fix the rail, make sure the mark at the bottom of the bolt is vertical to the groove.



Installation of two rails with connector                                                                   Trapezoidal solar Roofing System


Connect two rails together, slide the connector on the rear side of the pre-assembled rails halfway to the side, then fasten with four pieces of self tapping screw firmly.

leave a message

Related Product
Solar tin roof mounting system
Solar panel tin roof mount for mounting system
Trapezoidal roofing system is designed with great flexibility for both commercial and residential roof solar systems. Patented and innovative rail design, standard components, highly pre-assembled clamp, all the above make the installation simple. Save your time and installation cost. Advantages: 1. Lower cost, incomparable value; 2. Faster installation, flexible attachment; 3. Better service, complete technical support.
