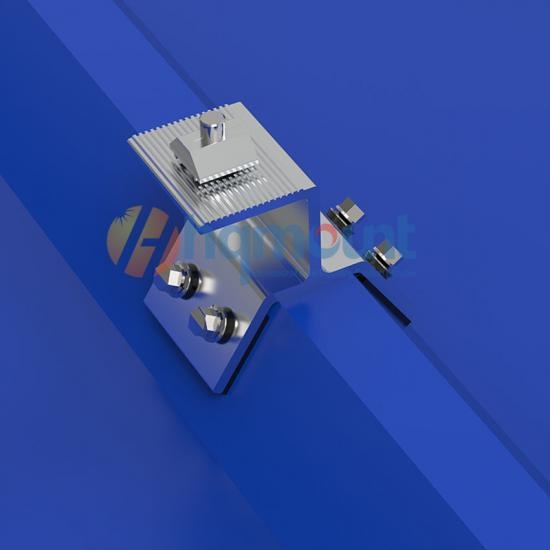

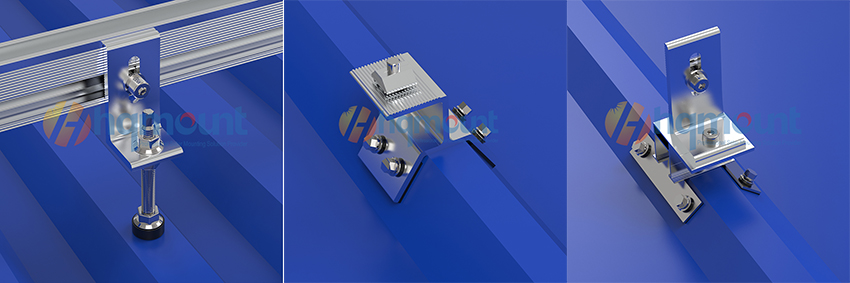

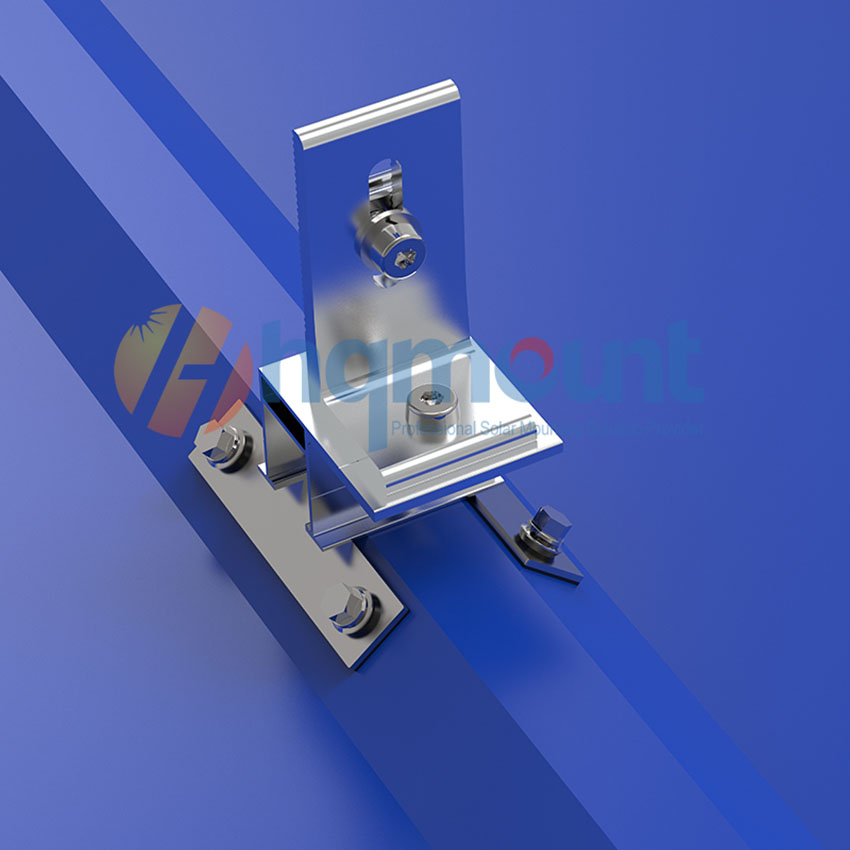

HQ Mount Solar Clamp for trapezoidal metal roof, penetrated with 4 sets bolts and EPDM washer, fits almost all common trapezoidal metal roof profiles. It is adjustable to the width of the specific roof profile’s crown, and offers variability in height for attaching all kinds of different mounting and rail systems, either top rail mount or side rail mount.
Installation site: |
pitched metal roof |
Tilt angle: |
roof(5-60degrees) |
Maximum wind speed: |
60 m / s |
Snow load: |
within 1.4KN/m2 |
Applicable module: |
framed or frameless |
Solar panel direction: |
horizontal or portrait |
Material: |
stainless steel 304 |
Warranty: |
12 years |
Service years: |
around 25 years |
Color: |
natural color or customized |
Surface preparation: |
sandblasted |
Advantages as follow:
1. Adjustable clamp plate could meet various trapezoidal metal roof sheet.
2. High Durability – Best Stainless steel 304 Ensure 12 years warranty and 25 years service time.
3. Waterproofed EPDM Rubber
4. High Pre-assembly – Save labor cost at the installation site
