Solar Ground Screw

/Ground Screws Steel Ground Screw Anchor pile

Ground Screws Steel Ground Screw Anchor pile

HQ MOUNT solar Ground Screws perform perfect in anti-corrosion & wear-proof and can be freely designed and processed as customized lengths and other requirements. They can be easily installed at the exact points within few minutes. We just need to use ground screw piling machines to drive the ground screws directly into ground, which can largely reduce the project installation time.

  • Item No.:

    HQ-GS-F76
  • Payment:

    T/T, PAYPAL, Western Union, L/C
  • Product origin:

    China
  • Color:

    Nature
  • Shipping port:

    Xiamen port, Guangzhou port, Shenzhen port, can be negotiated
  • Lead Time:

    7-20 days
  • Brand:

    HQ MOUNT
  • Model No.:

    HQ-GS-F76
  • Certification:

    SGS, ISO9001
  • Material:

    Q235B
Inquiry now
Product Details


Ground Screws Steel Ground Screw Anchor pile

HQ MOUNT solar Ground Screws perform perfect in anti-corrosion & wear-proof and can be freely designed and processed as customized lengths and other requirements. They can be easily installed at the exact points within few minutes. We just need to use ground screw piling machines to drive the ground screws directly into ground, which can largely reduce the project installation time.



Name

Good Quality Factory Price Galvanized Ground Screw Pile for Construction Foundation

Type

Pole anchor

Material

Q235 Steel

Diameter

48/76/89/102/144/219mm. Accept customization.

Length

550-3000mm. Accept customization.

Thickness

 2-4mm. Accept customization.

Flange

160-310mm. Accept customization.

Blade

Continuous welded helix

Blade thickness

2-8mm. Accept customization.

Finished

Hot-dipped galvanized according to DIN EN ISO 1461

Thickness of galvanized

65-140μm

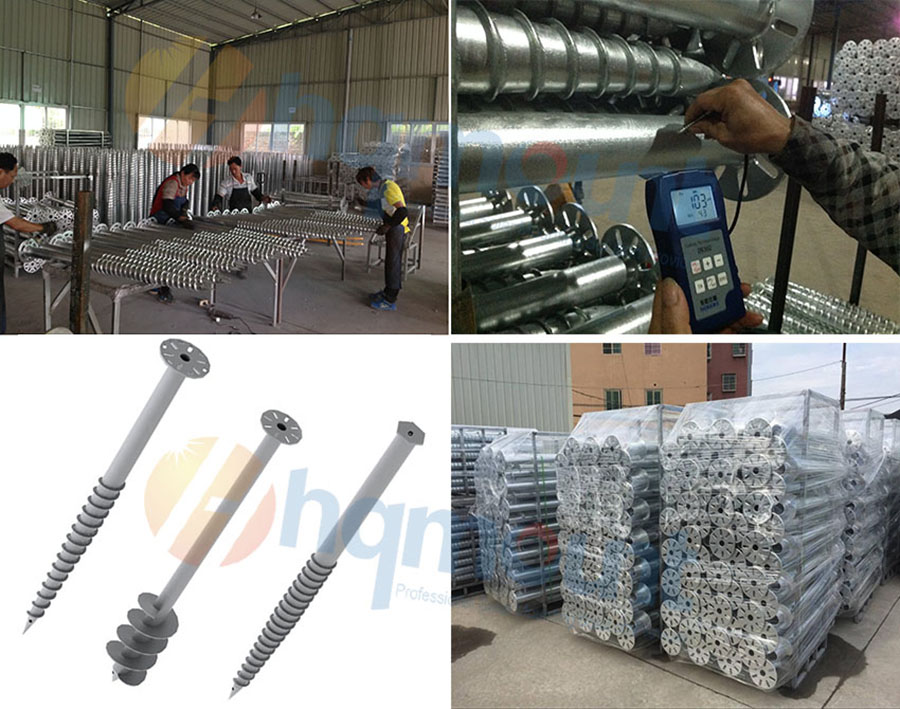

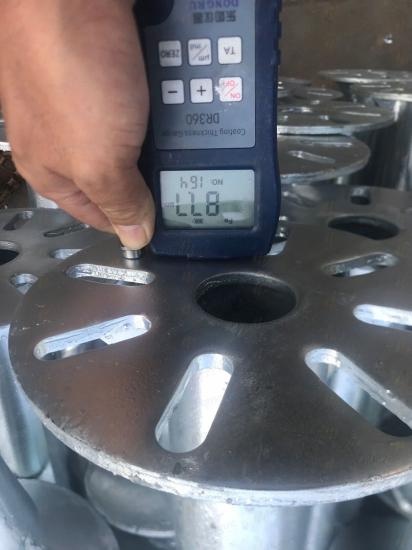

Inspection:

HQ MOUNT solar Ground Screws HQ MOUNT solar Ground Screws

Production:

Cutting-Surrounding-Self-Welding-Punching-HDG are the standard process.

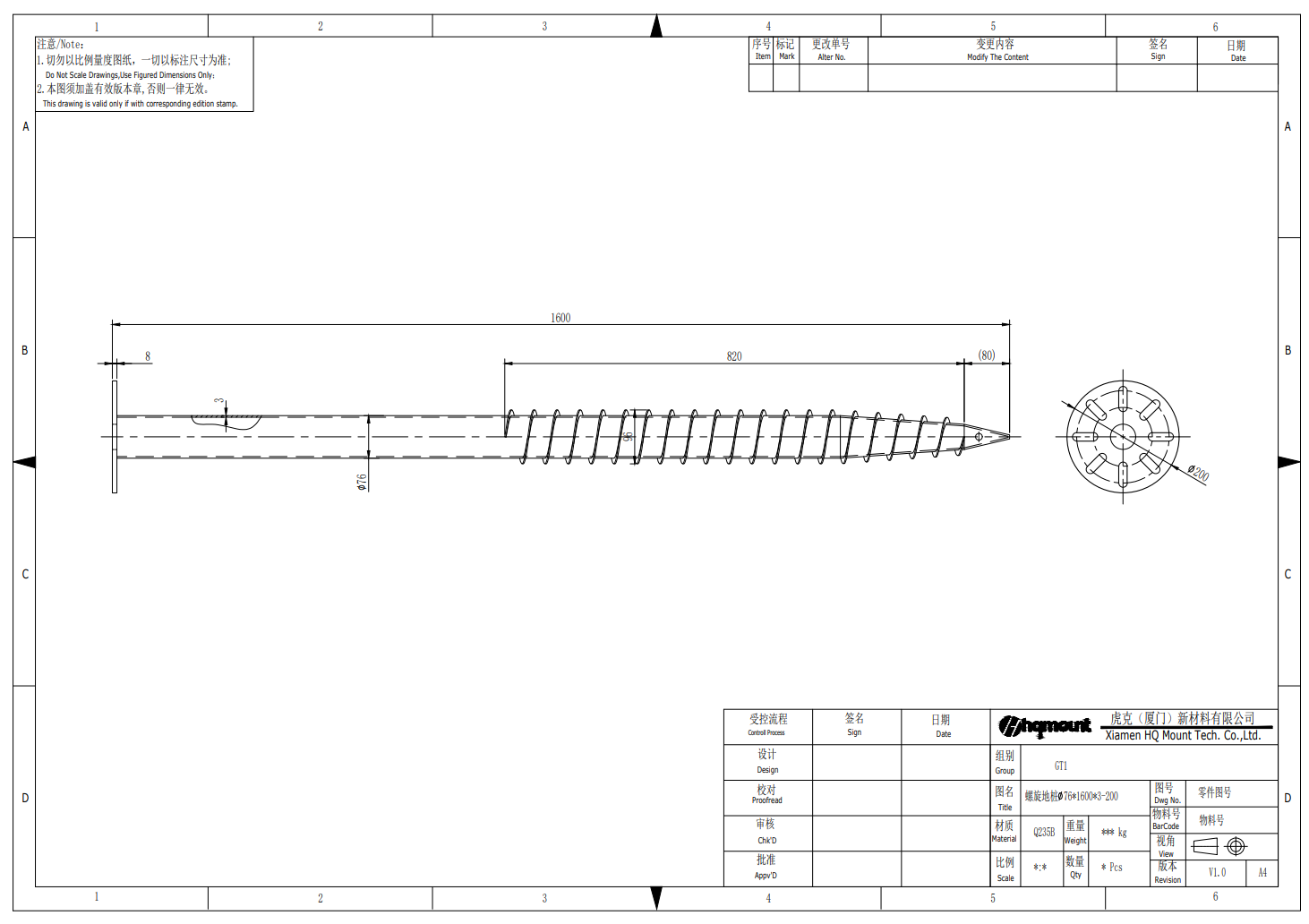

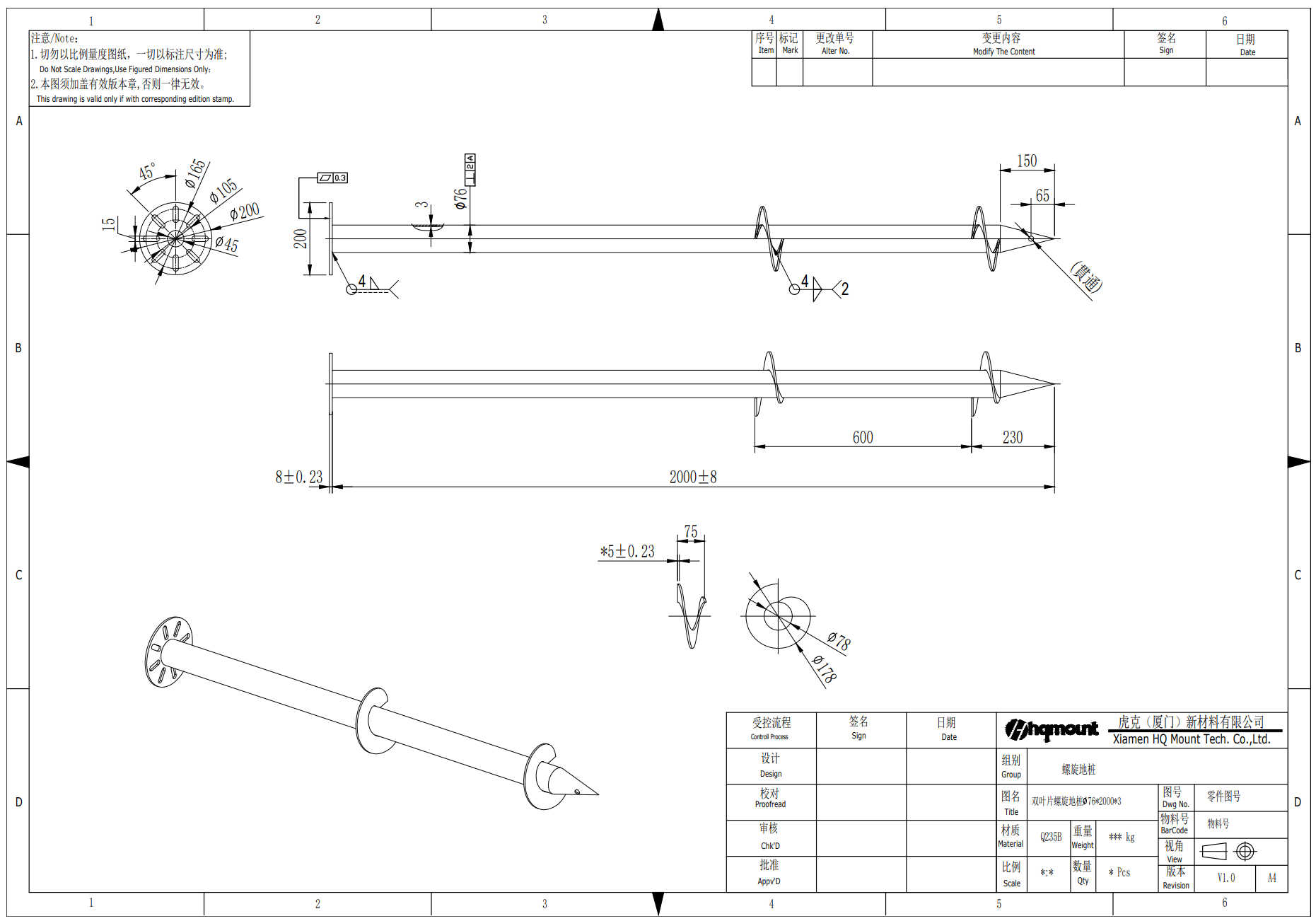

Drawing:

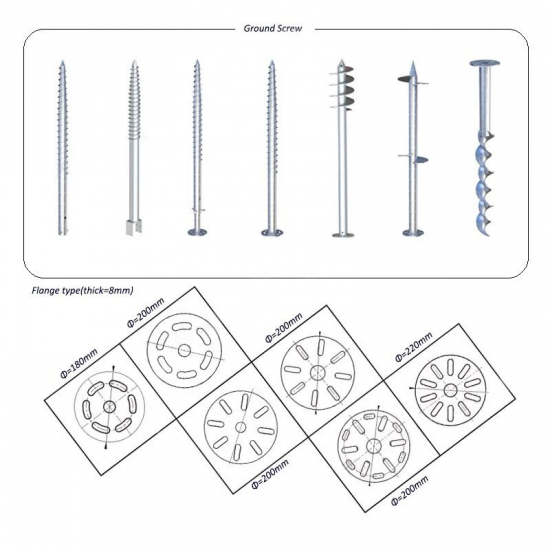

Following are the most popular type and sized for your reference.

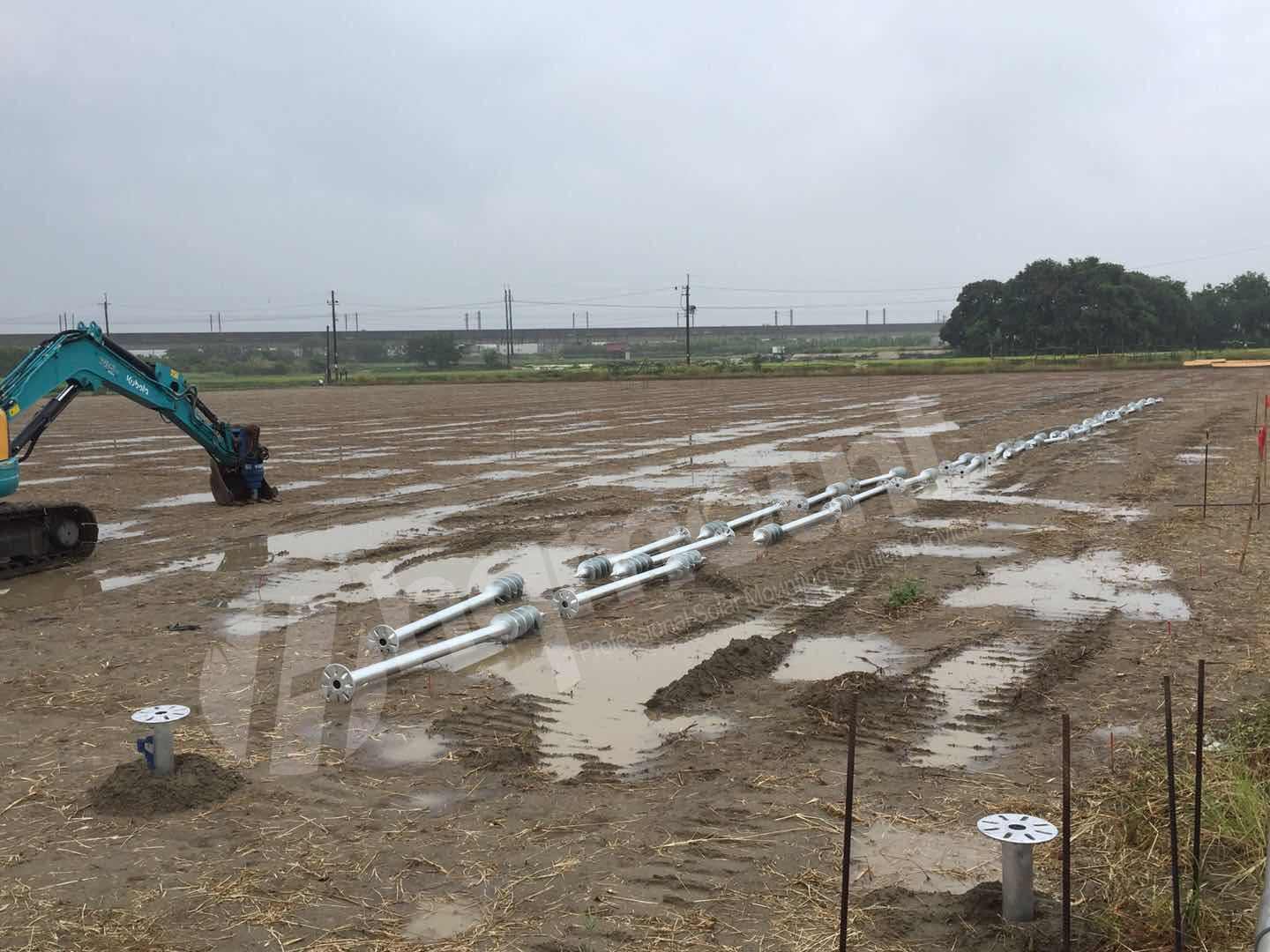

Project Case:
