/High Quality Solar Panel Sludge Discharge Clamp Dust Water Drain Clip for Solar System

High Quality Solar Panel Sludge Discharge Clamp Dust Water Drain Clip for Solar System

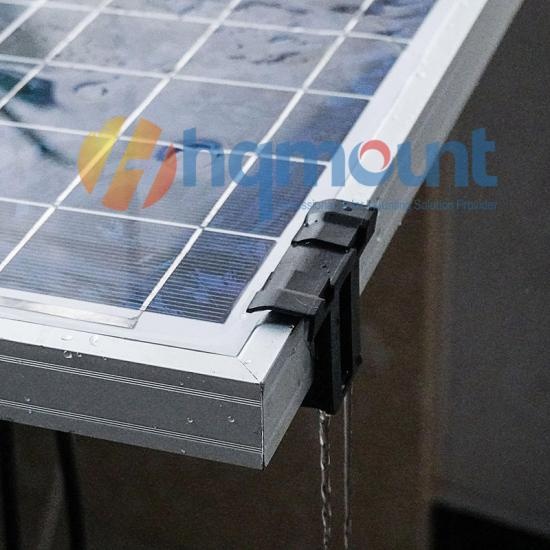

When it rains, the drainage clip of the solar panel can maximize the diversion, export the soil and water, and keep the panel clean.

  • Item No.:

    PV water guide clip
  • Product origin:

    China,Fujian
  • Color:

    Black or Customized
  • Shipping port:

    Xiamen Port
  • Lead Time:

    7-15 DAYS, NORMALLY
  • Brand:

    HQ MOUNT
  • Certification:

    CE,SGS
  • Material:

    ABS
Inquiry now
Product Details

What is the water guide and sludge discharge clip of photovoltaic module?

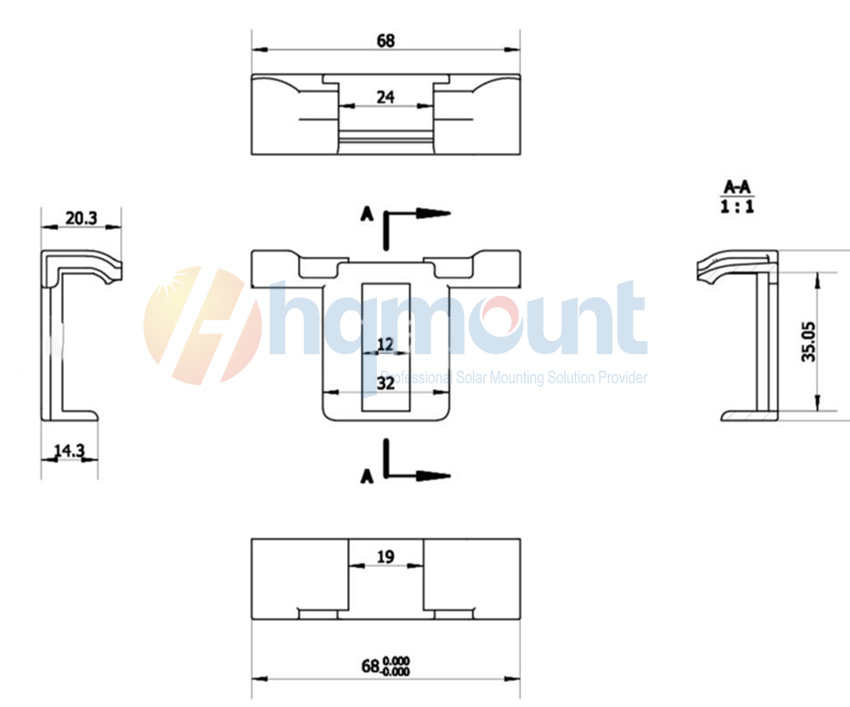

The PV module water diversion and sludge discharge clip is a rectangular self fastening glue buckle made of polymer, with a length of about 68mm and a width of four models according to the thickness of the module frame: 40mm, 35mm, 30mm and 25mm.When it rains, the drainage clip of the solar panel can maximize the diversion, export the soil and water, and keep the panel clean.




How to install?

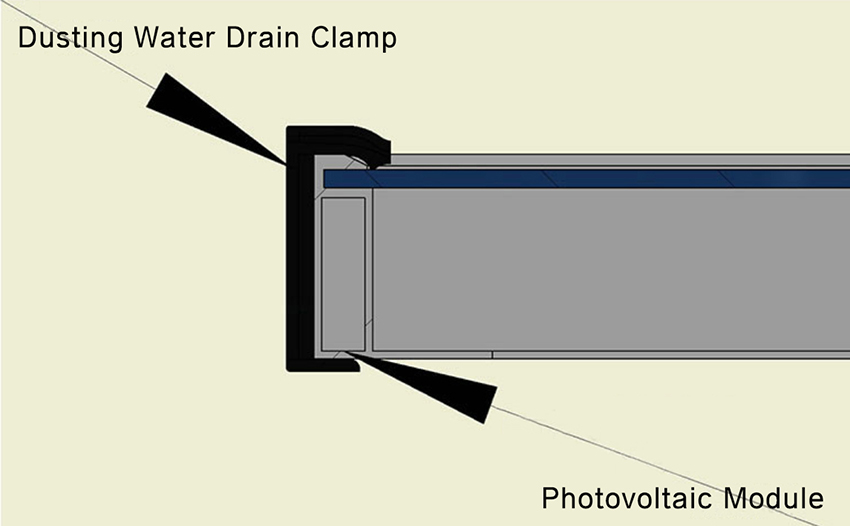

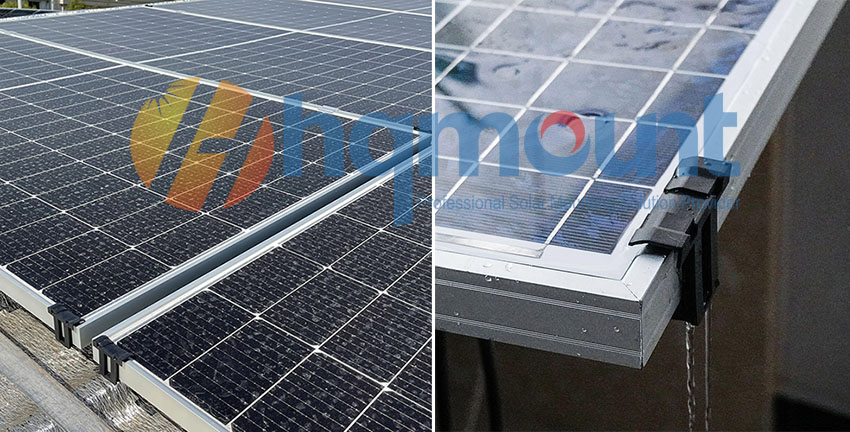

The water guide clip is buckled on the component frame and
can be buckled in place.



Special attention: when installing two or three pieces, leave a gap of 10cm from the corners!

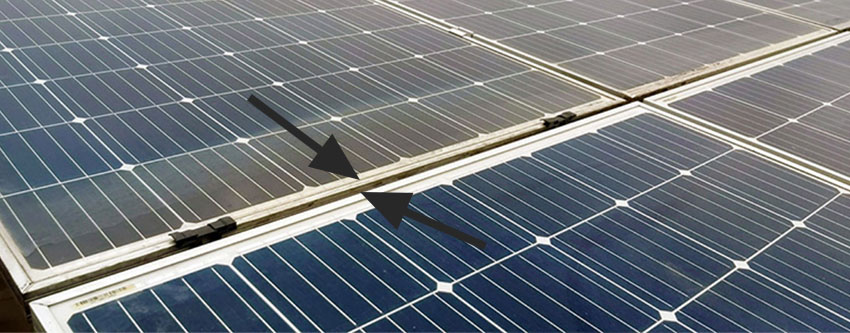

Note: the water guide clip is used to prevent the generation of new mud belt.
If there is old dust and mud belt in the PV module, it cannot be removed. It must be cleaned first, and then install the water guide clamp.After buckling the water guide clip,
it is not easy to form a new plaster belt when it rains again.
