Product Overview: Integrated Innovation for Breakthrough Value
The KZ01S eliminates the complexity and high cost of traditional two-part systems (separate standing seam clamp + solar rails). This single, robust solar component streamlines procurement and installation from the ground up, enabling faster, more economical deployment of commercial rooftop arrays.
Parameter
Specification
Product Model

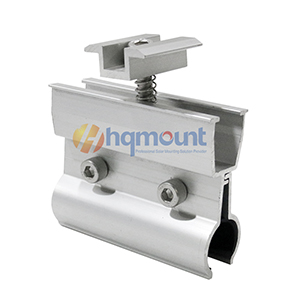

HQ Mount KZ01S (Integrated Rail-Clamp System)
Core Design
Integrated solar clamp and mounting rail, eliminating separate rails.
Compatible Roof

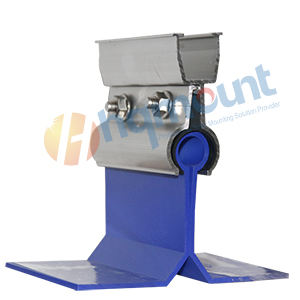

Kalzip Standing Seam Metal Roofs
Clamp Material
High-Strength Aluminum Alloy 6005-T5
Standard Lengths
70mm or 100mm (Custom lengths available)
Corrosion Protection
Integrated EPDM Rubber Isolation Pad prevents galvanic corrosion.
Fasteners
Stainless Steel Allen Bolts & Nuts (Grade 304)
Surface Finish
Anodized, mill surface

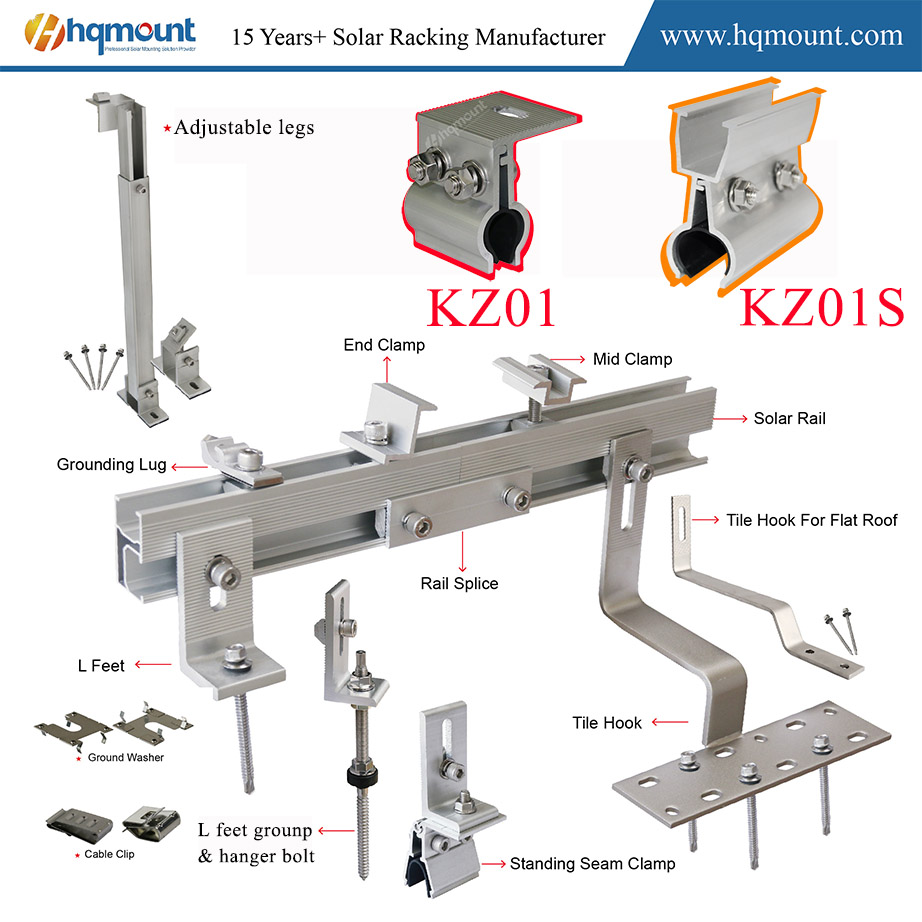

How the KZ01S Compares:
|
Feature |
Traditional Two-Part System |
HQ Mount KZ01S Integrated System |
Benefit |
|
Main Components |
Separate roof clamp + Aluminum rails + Rail connectors |
A single, unified KZ01S clamp-rail component |
Drastic cost savings on material and logistics |
|
Installation Steps |
1. Mount clamps to roof. 2. Align and connect rails to clamps. 3. Secure rails with connectors. |
1. Mount KZ01s units directly to roof seam. 2. Modules mount directly onto the integrated rail section. |
Up to 50% faster installation, fewer parts, reduced labor time and risk. |
|
Material Cost Impact |
High (Clamps + Rails + Hardware) |
Significantly Lower (One integrated part replaces three) |
Direct reduction in Bill of Materials (BOM), improving project ROI. |
|
System Profile |
Higher, with more components |
Lower, more streamlined |
Cleaner aesthetics, potentially reduced wind profile. |
Why Choose HQ Mount KZ01S?
Real Cost Savings:Our integrated design directly targets the largest cost center in solar racking system.
Verifiable Installation Speed: The two-step process dramatically accelerates PV project commissioning.
Expert, Responsible Guidance: We provide clear, wind zone-based selection advice to ensure project safety and compliance.
Direct Manufacturer Support: With over 15 years of expertise, we HQ Mount as one of the leading solar mounting manufacturer
Performance Testing

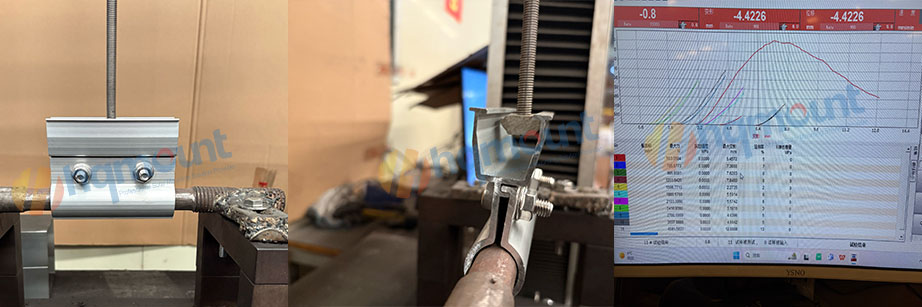

In an extreme overload test (4590N uplift), the solar roof clamp slipped from the Kalzip seam, defining its ultimate mechanical limit.
HQ Mount inhouse load testing for KZ01S
Based on the principle of safety first:
• For regions with design wind speeds ≤ 35m/s, the KZ01S is the optimal, cost-effective solution.
• For regions with design wind speeds > 35m/s, coastal areas, or solar mounting projects with ultra-high safety requirements, we strongly recommend our higher-performance KZ01 Two-Part System. Its independent clamp and rail design offers greater wind uplift resistance and safety redundancy.
Within its applicable wind zone, the KZ01s provides reliable, code-compliant performance at a highly competitive cost, maximizing your project's ROI.

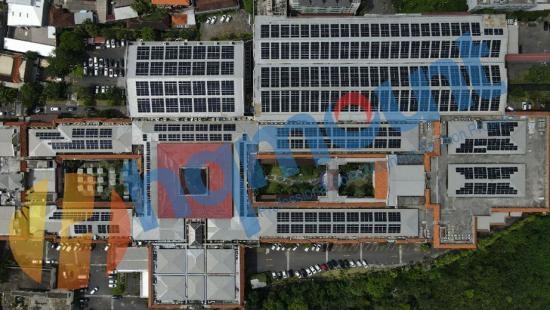

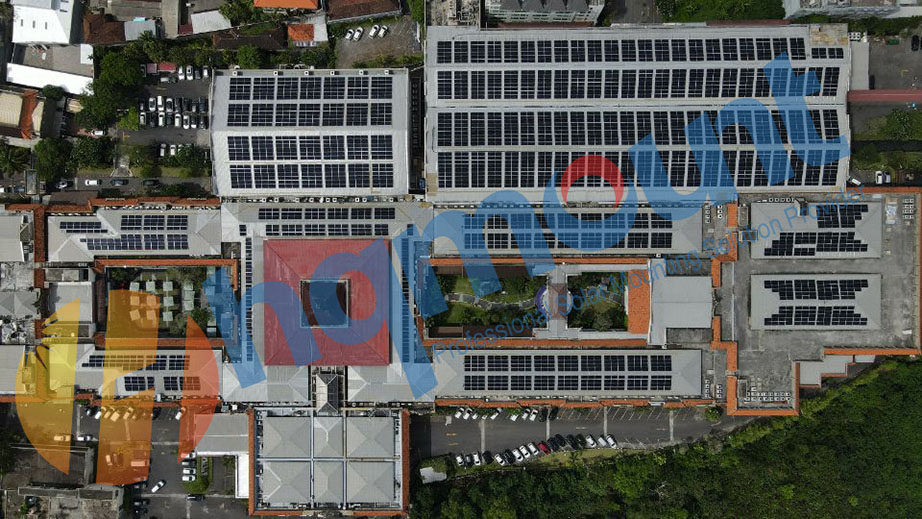

HQ Mount 1.5MW commercial solar roof system, Indonesia, mounting installation finished in 2 days.
offer full lifecycle support from technical engineering and load calculations to reliable logistics.

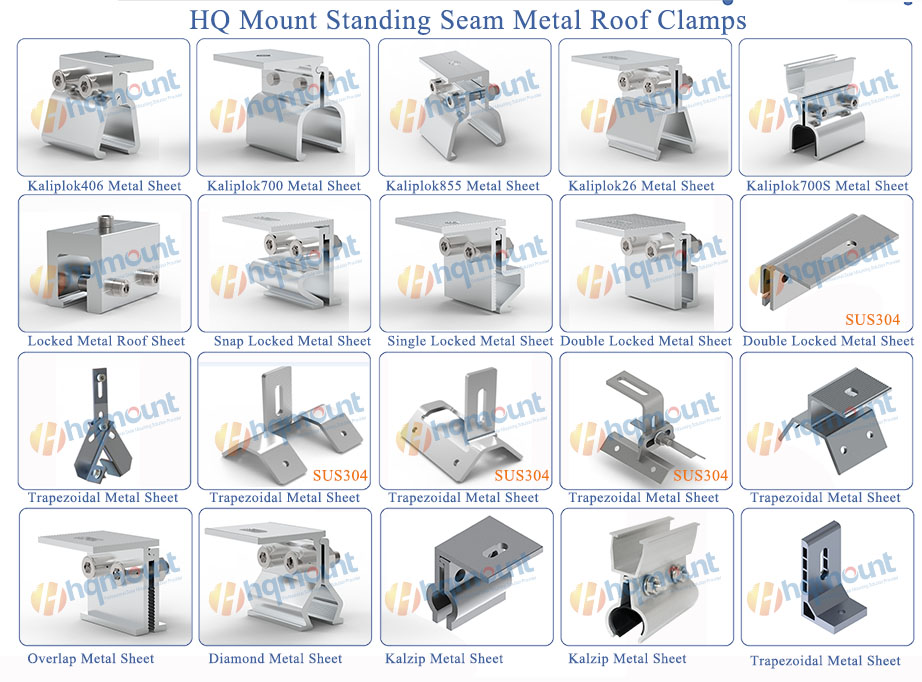

More commercial solar roof sheet to be installed? We can customized the solar roof clamps as needed.
Get Your Project-Specific Solution Today
Ready to optimize your next Kalzip rooftop project? Our engineering team is here to assist.
Contact us the 15 years solar mounting manufacturer for:
Detailed technical datasheets & drawings,Competitive quotation and samples.
