HQ Mount SUS 304 Solar Metal Roof Hanger Bolt Double Thread Screw Anchor

HQ mount's stainless steel hanger bolts apply to install on both wooden rafter and steel purlin. Both types can be applied with L feet and plate.

  • Item No.:

    HQ-HB01
  • Payment:

    T/T, PAYPAL, Western Union, L/C
  • Product origin:

    CHINA
  • Color:

    Natural
  • Shipping port:

    Xiamen port, Guangzhou port, Shenzhen port, can be negotiated
  • Lead Time:

    7-20 days
  • Brand:

    HQ MOUNT
  • Model No.:

    HQ-S-HB01
  • Certification:

    SGS, ISO9001,CE
  • Material:

    stainless steel
Inquiry now
Product Details

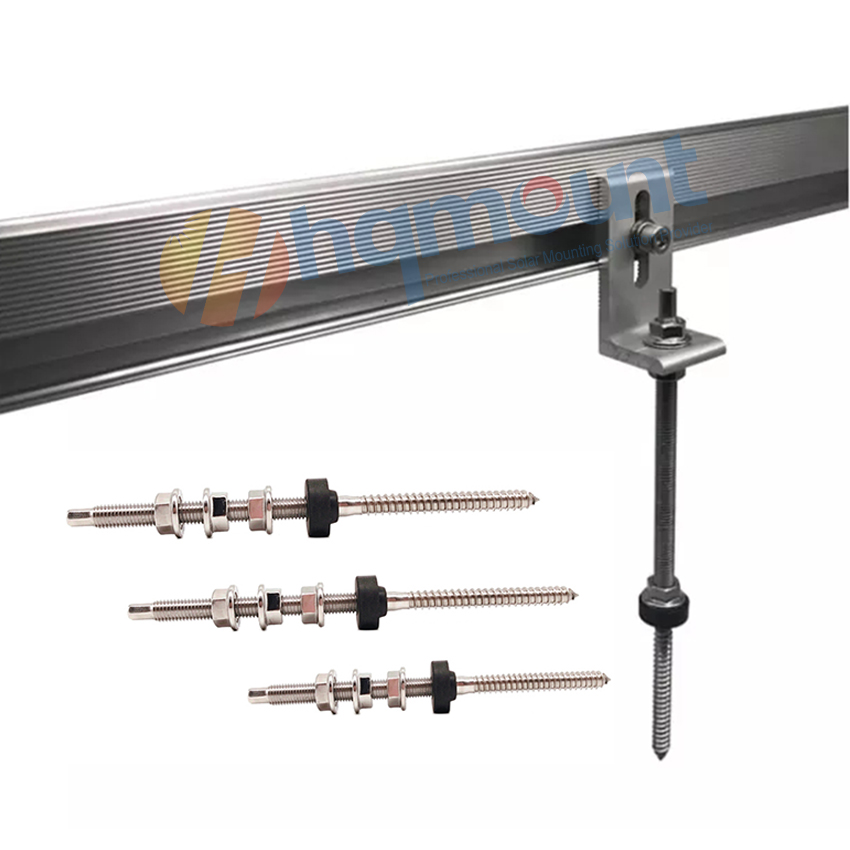

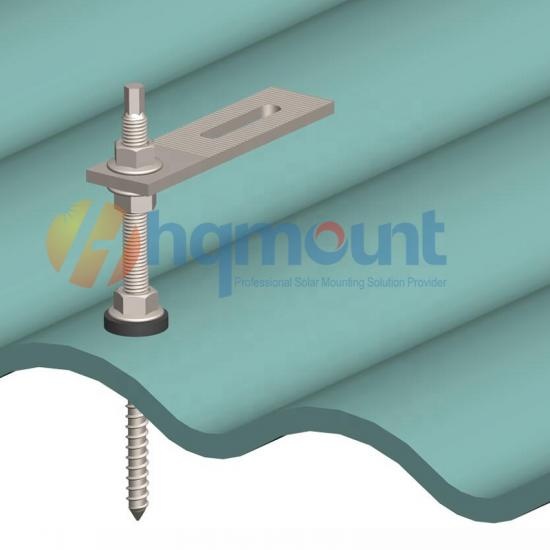

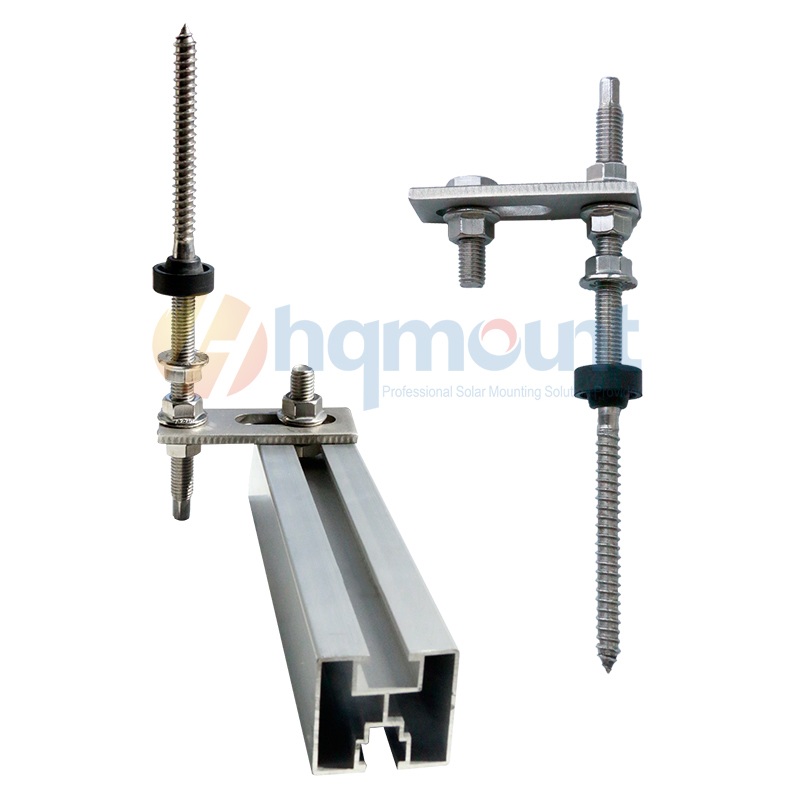

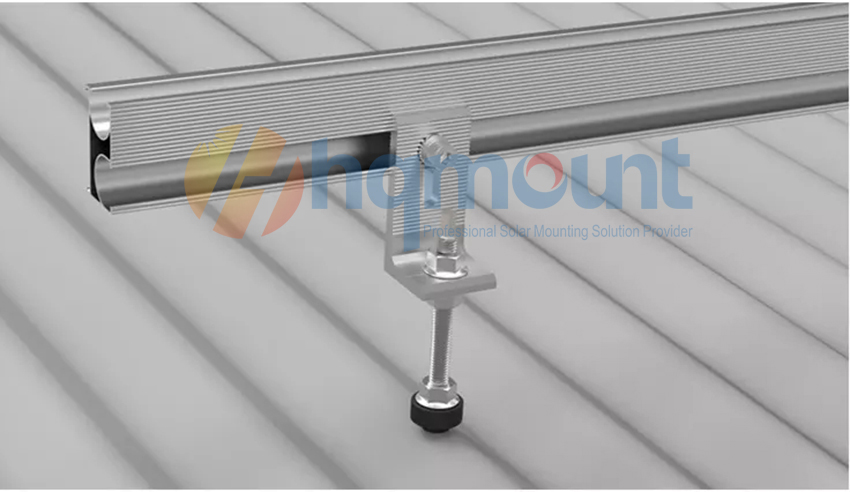

Hanger bolt applies to install on both wooden rafter and steel purlin. Both types can be applied with L feet and plate.It can support the rail on the roof.

Advantages as follows:

1. Easy and fast to install.

2. SUS 304 Material

3. Highly corrosion resistant surface treatment

4. EPDM rubber can be effective waterproofing.

5. Wooden beam and steel beam both are available.

Material

Carbon steel, Stainless steel

SurfaceFinish

Plain, zinc plated

Grade

SS304,SS316, 4.8, 6.8, 8.8

Size

M8*200, M10*150, M10*200, M10*250, M10*300, M10*350, M12*350 and cutomized sizes.

Color

Silver or customized

Accessories

3pcs flange nut and rubber pad


More Metal Roof Solar Mounting Solutions

Our engineers design and plan to provide the maximum flexibility possible for various metal roof solar mounting systems installation.

It can be applied to install the usual module to flush with the pitched roof.

High pre-assembled components make the installation easy & quick to save your labor cost and time.

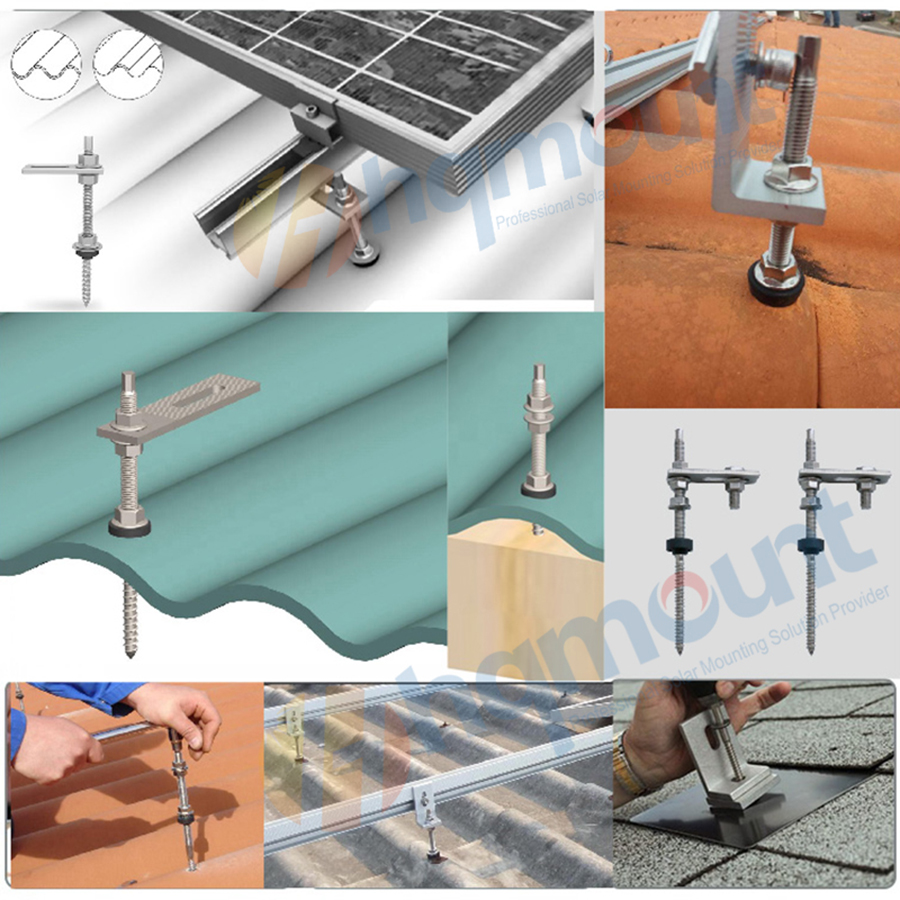

This mounting system are suitable for Corrugated roof sheet, Trapezoidal metal roof and Standing seam roofs




Packaging:
