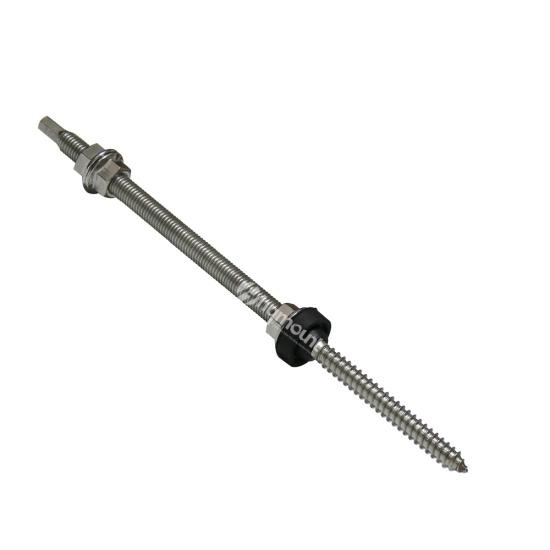

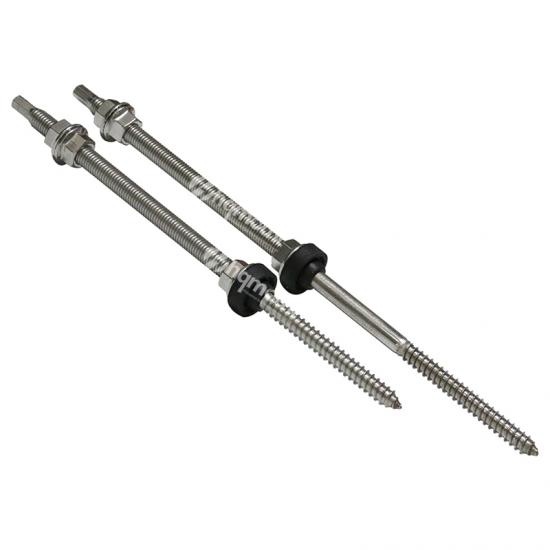

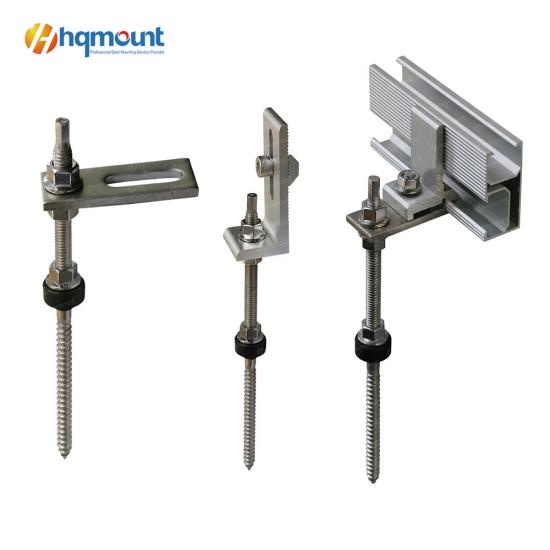

Solar Mounting System Wood Thread Hanger Bolt M10
Hanger bolt applies to install on both wooden rafter and steel purlin. Both types can be applied with L feet and plate.

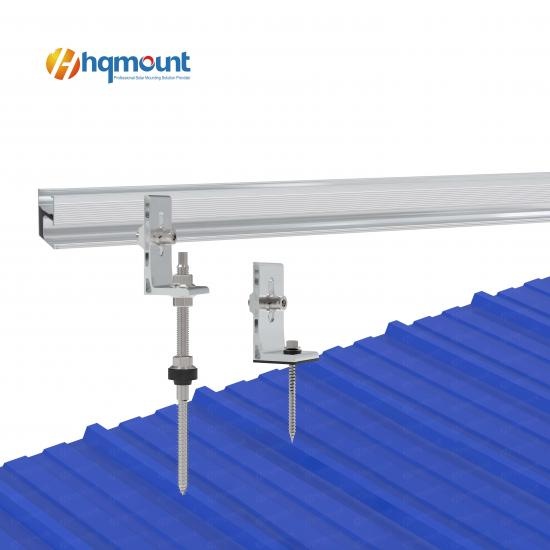

It can support the rail on the roof.
Advantages as follows:
1. Easy and fast to install.
2. SUS 304 Material
3. Highly corrosion resistant surface treatment
4. EPDM rubber can be effective waterproofing.

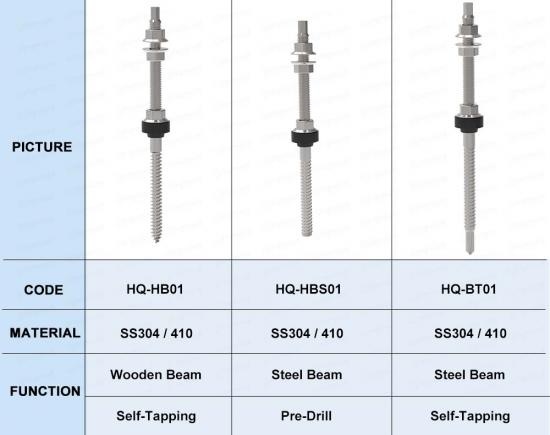

5. Wooden beam and steel beam both are available.
Material
Carbon steel, Stainless steel
Surface Finish
Plain, zinc plated
Grade
SS304,SS316, 4.8, 6.8, 8.8

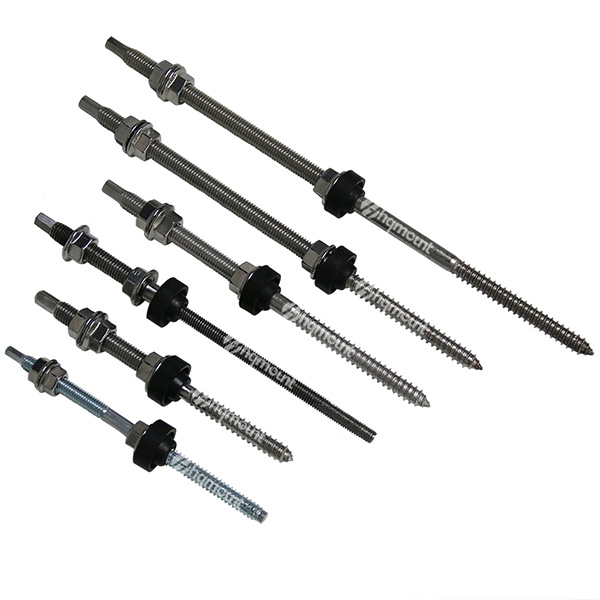

Size
M8*200, M10*150， M10*200， M10*250， M10*300， M10*350， M12*350 and cutomized sizes.
Color
Silver or customized
Accessories
3pcs flange nut and rubber pad
More Metal Roof Solar Mounting Solutions
Our engineers design and plan to provide the maximum flexibility possible for various metal roof solar mounting systems installation.
It can be applied to install the usual module to flush with the pitched roof.
High pre-assembled components make the installation easy & quick to save your labor cost and time.

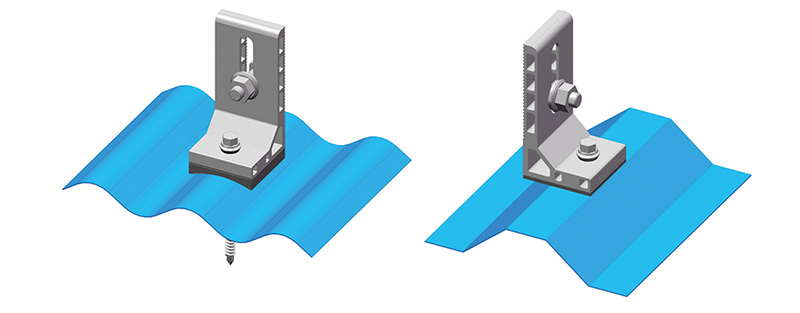

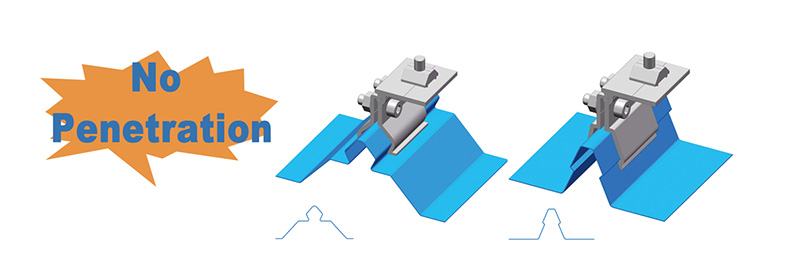

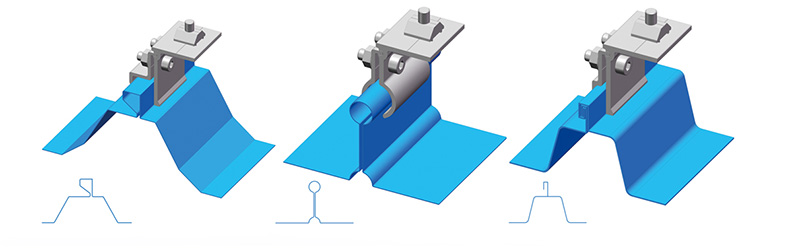

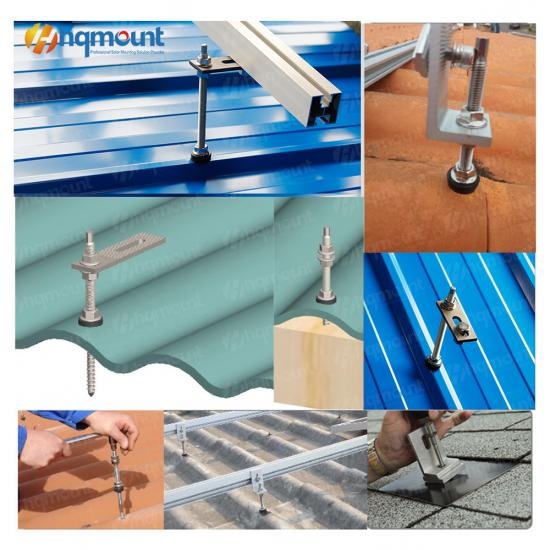

This mounting system are suitable for Corrugated roof sheet, Trapezoidal metal roof and Standing seam roofs
Package:
