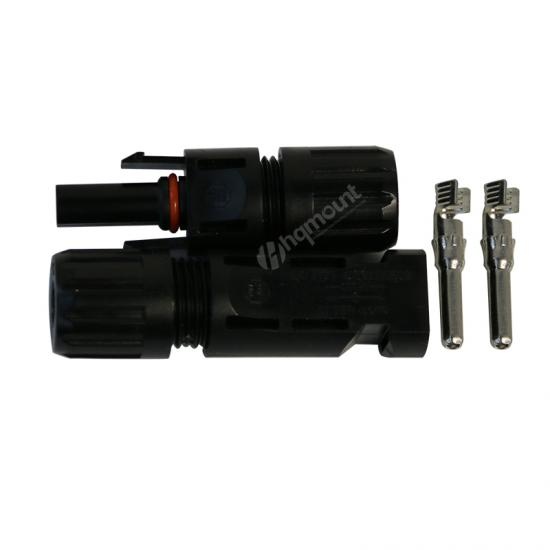

Solar MC4 DC Connector

This solar MC4 connector is specifically designed for connecting photovoltaic solar systems with high mechanical requirements and extreme weather conditions.

Solar panel connectors types is compatible with multi contact 4 connector, suitable to solar cable, 2.5 mm2, 4mm2 and 6mm2 in solar connection project. Quickly and reliable connection of the solar cables to the photovoltaic system(solar panels, converters).

  • Item No.:

    HQ-MC4 connector
  • Payment:

    T/T, PAYPAL, Western Union, L/C
  • Product origin:

    China
  • Color:

    black
  • Shipping port:

    Xiamen port, Guangzhou port, Shenzhen port, can be negotiated
  • Lead Time:

    7-15 days
  • Brand:

    HQ MOUNT
  • Model No.:

    HQ-MC4 CONNECTOR
  • Certification:

    SGS, ISO9001
  • Material:

    male and female
  • Lead time:

    7days
Inquiry now
Product Details

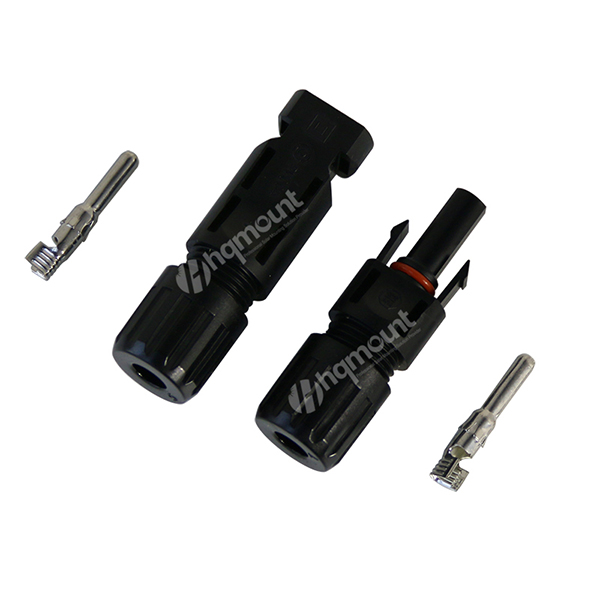

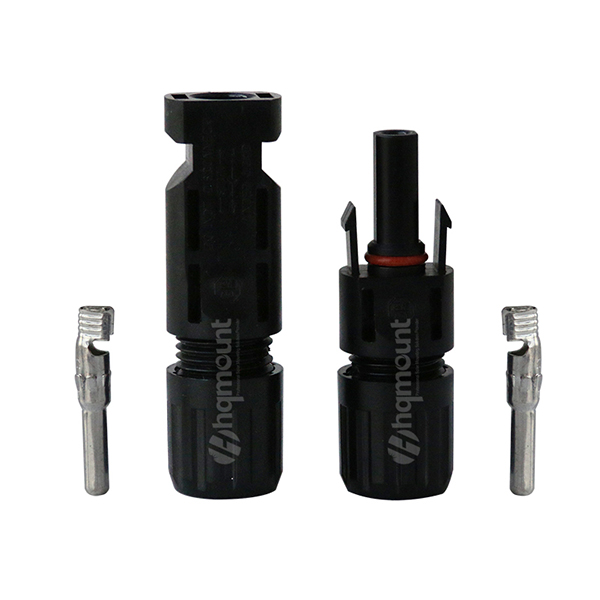

Solar MC4 DC Connector

This solar MC4 connector is specifically designed for connecting photovoltaic solar systems with high mechanical requirements and extreme weather conditions.



Solar panel connectors types is compatible with multi contact 4 connector, suitable to solar cable, 2.5 mm2, 4mm2 and 6mm2 in solar connection project.Quickly and reliable connection of the solar cables to the photovoltaic system(solar panels, converters).



Detail Information and Advantages of MC4 Connector

1. Compatible MC4 with highest quality material

2. Simple on-site processing

3. Mating safety provided by keyed housings

4. Multiple plugging and unplugging cycles

5. Accommodate PV cables with different insulation diameters

6. High current carrying capacity

7. Waterproof and resist dust


Technicale Data:

 Insulation Material:

 PPO

 Contact material:

 Copper,Tin plated

 Rated current:

 30A(2.5mm2), 50A(4mm2,6mm2)

 Insertion force:

Max. 50N

 Rated Voltage:

 1000V/1500V DC

 Withdrawal force:

 Min. 50N

 Test voltage:

 8kV(50Hz,1min)

 Ambient temperature range:

 -40℃~+85℃

 Contact resistance:

 <5mΩ

 Flame class:

UL94-V0

 Waterproof protection:

 IP68

 Connecting system:

 Crimping connection

 Overvoltage degree:

CATIII/2

 Suitable cable cross section:

2.5/4/6mm2,14/12/10AWG

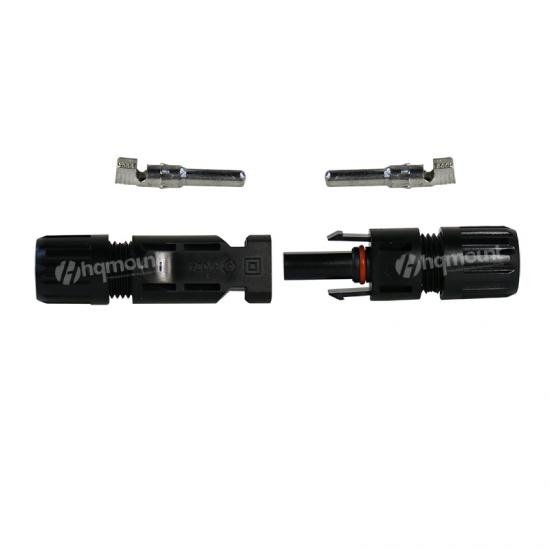

Solar MC4 DC ConnectorWaterproof PV Cable Connector
