Solar Connector
Solar Connector Solar Connector Solar Connector Solar Connector Solar Connector

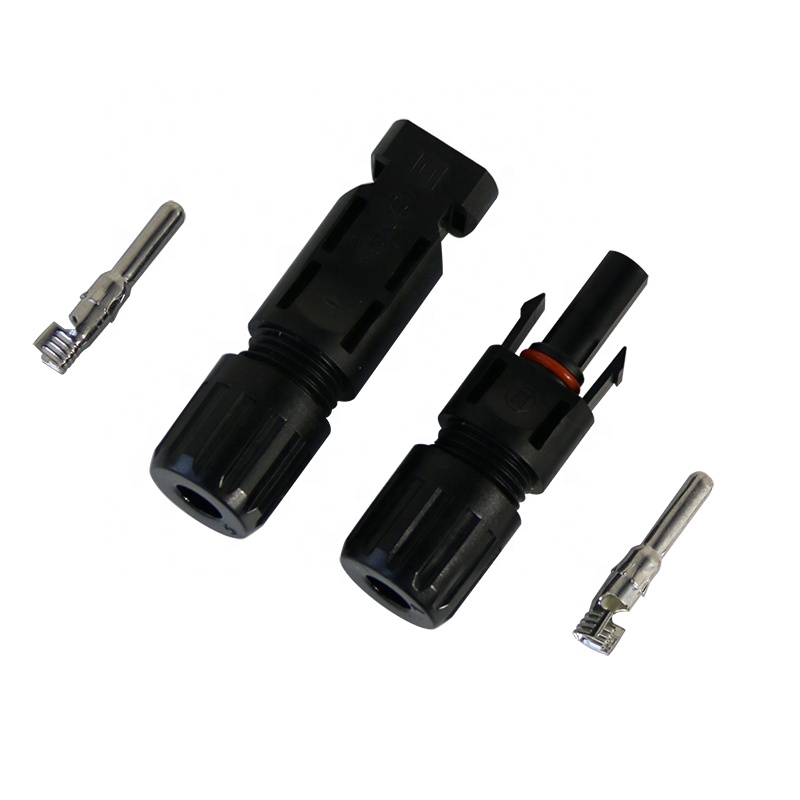

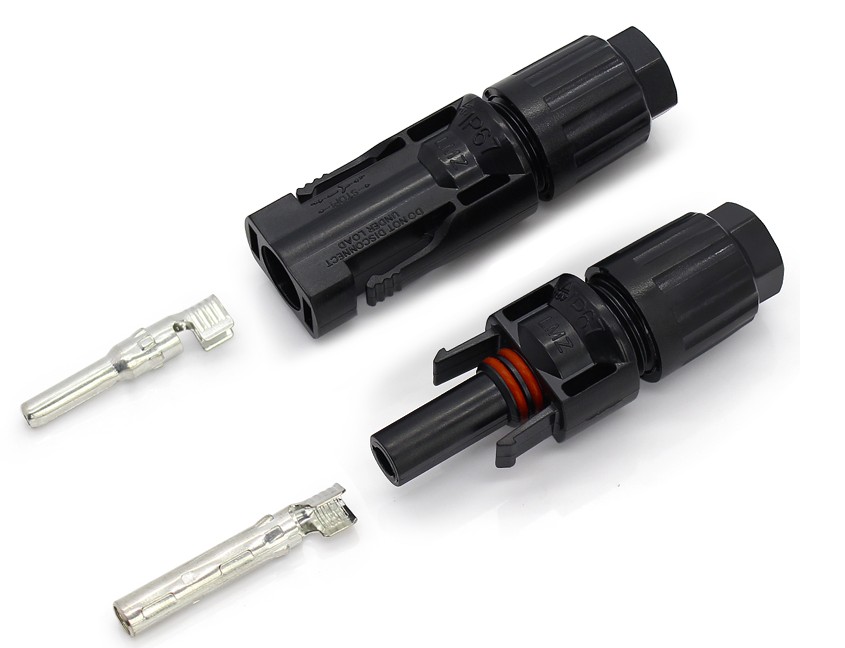

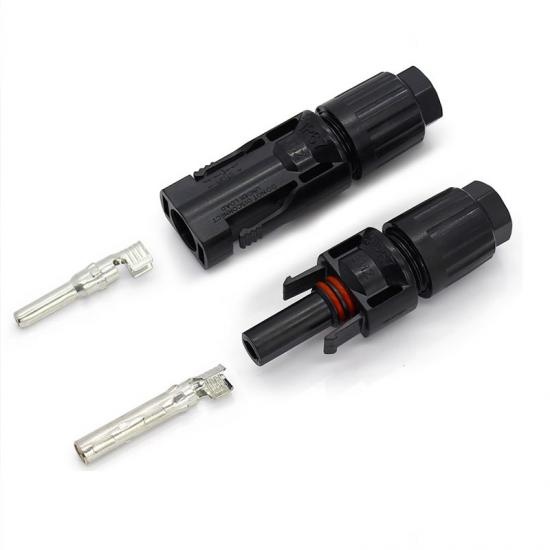

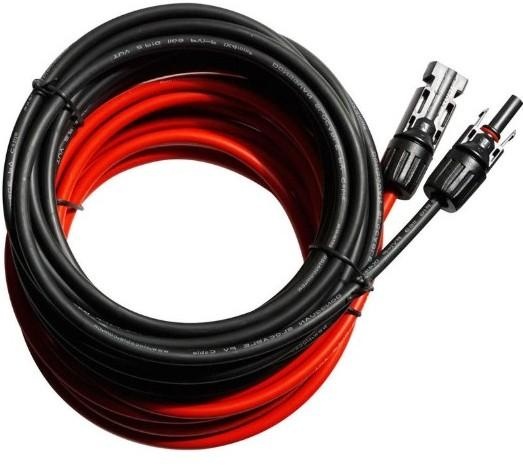

Waterproof IP67 30A High Current approved Solar PV DC Connector for PV Energy System

HQMOUNT Solar Connector are made with highest quality materials. They are both heavier and sturdier than many other brands, ensuring long term reliability and performance. These connectors are designed to complete a solar panel (PV) array, typically in parallel applications. These connectors are also waterproof and resist dust build up.

  • Item No.:

    HQ-Solar Connector

  • Payment:

    T/T, PAYPAL, Western Union, L/C

  • Product origin:

    CHINA

  • Shipping port:

    XIAMEN

  • Lead Time:

    15 DAYS, NORMALLY

  • Brand:

    HQ MOUNT

  • Model No.:

    HQ-Solar Connector

  • Certification:

    CE

  • Material:

    PPO

  • Lead time:

    15 days
Inquiry now
Product Details
Waterproof IP67 30A High Current approved Solar PV DC Connector for PV Energy System


 Insulation Material:  PPO  Contact material:  Copper,Tin plated

 Rated current:

 30A, 40A

 50A

 Insertion force:  Max. 50N
 Rated Voltage:  1000V/1500V DC  Withdrawal force:  Min. 50N
 Test voltage:    8kV(50Hz,1min)   Ambient temperature  range:  -40℃~+85℃
 Contact resistance:  <5mΩ  Flame class:  UL94-V0
 Waterproof protection:   IP67  Connecting system:  Crimping connection
 Overvoltage degree:

 CATIII/2

 Suitable cable cross  section:

 2.5/4/6mm2,  14/12/10AWG

Advantages

·Simple on-site processing

·Mating safety provided by keyed housings

·Mutiple plugging and unplugging cycles

·Accomodates PV cable with deferent insulation diamaters

·High Voltage and Current carrying capacity

·TUV and CE approved

·Competitive price


Overview

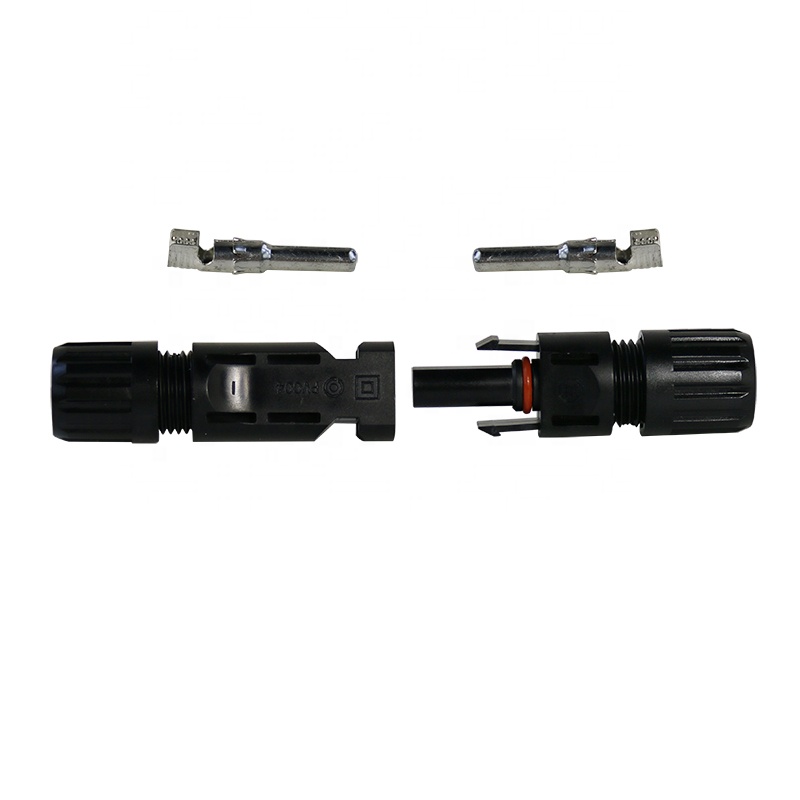

Male And Female Solar Panel Connector Double Seal Ring PV Connector for Better Waterproof
Waterproof IP67 30A High Current approved Solar PV DC Connector

Waterproof IP67 30A High Current approved Solar PV DC Connector

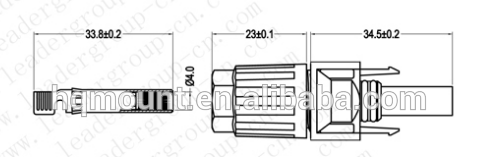

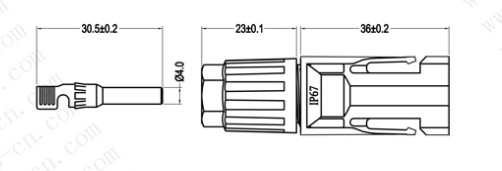

Notice: Above dimension for reference only.
