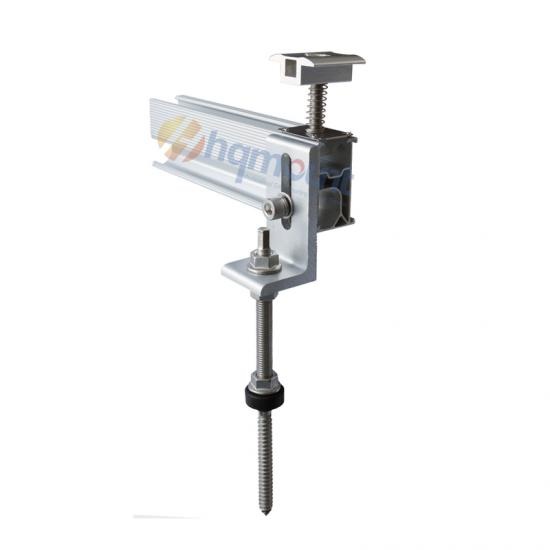

Solar Roof Hanger Bolt M10*200 For Solar Mounting System
HQ Mount stainless steel hanger bolt apply to install on both wooden rafter and steel purlin. Both types can be applied with L feet and plate.Enable simple, fast and cost-effective installation.Highly corrosion resistant surface treatment.Waterproof EPDM rubber integrated.Wooden rafter and steel purlin options.
Name |
Solar hanger bolts for rooftop mounting |
Material |
Stainless steel |
Surface treatment |
Natural |
Type ofbolts |
Can be customized |
Application |
Roof mounting |
Wind Load |
Up to80 m/s |
Snow Load |
2 KN/m2 |
Modules Layout |
According to requirements |
Warranty: 12 Years
Service life: 25 Years
Samples available; OEM service

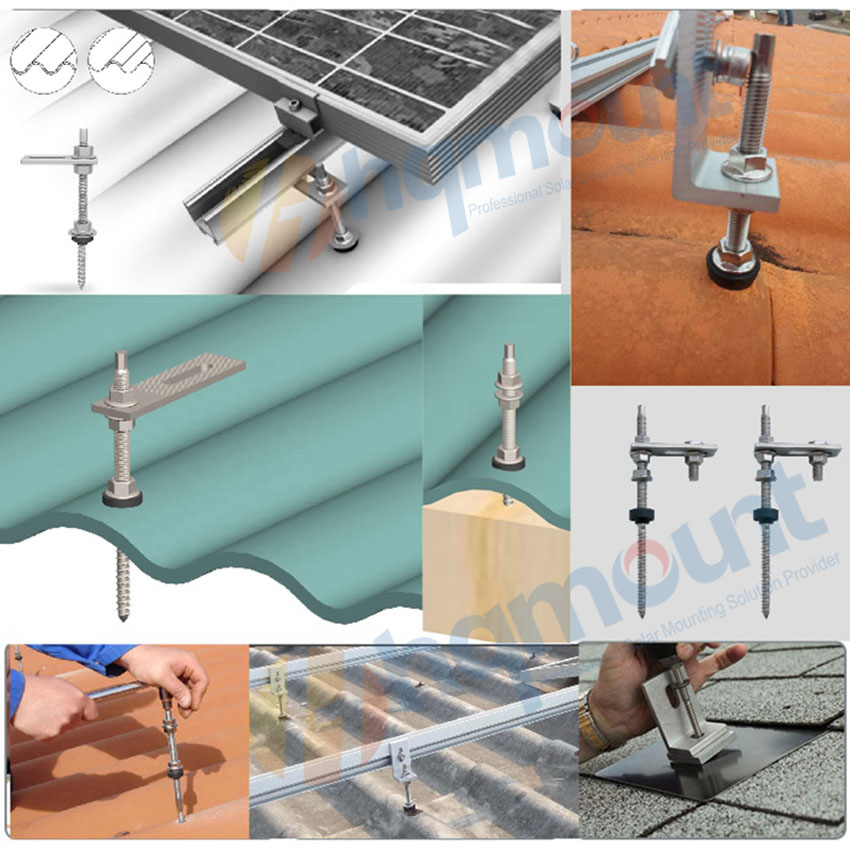

Application
Production
HQMOUNT have the capacity to produce around 300,000PCS each Month. Both Wooden and Metalic Application Available Here.
Inspection and Testing Report
Material-ROD: SUS 304
Material-EPDM: EPDM
All our goods have the material test and income inspection. If necessary, welcome to contact with us.
Drawing
Wooden and Metalic Hanger Bolt Drawing as follows. For exactly drawing, welcome contact with us.
