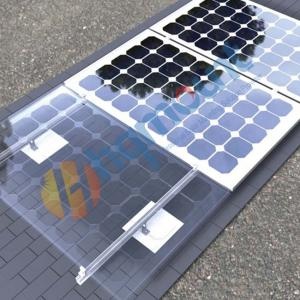

Solar tin roof mounting system
Solar tin roof mounting system

Solar panel tin roof mount for mounting system

Trapezoidal roofing system is designed with great flexibility for both commercial and residential roof
solar systems. Patented and innovative rail design, standard components, highly pre-assembled clamp,
all the above make the installation simple. Save your time and installation cost.
Advantages:
1. Lower cost, incomparable value;
2. Faster installation, flexible attachment;
3. Better service, complete technical support.

  • Item No.:

    Solar mounting struc

  • Payment:

    T/T

  • Color:

    Natural

  • Shipping port:

    Xiamen Port

  • Lead Time:

    8-15 days
Inquiry now
Product Details

HQ-R-TIN

Solar Panel Tin Roof Mount For Mounting System

Brief Introduction for Solar Tin roof mounting system

Installation site: Solar Tin roof system

Material: AL6005-T5& Staninless Steel 304

Wind speed:60m/s

Snow Load:1.4KN/m2

Warranty:12 years warranty,25 years life time

Specification:Customized

Standard:JIS C8955:2011 and AS/NZS 1170

Components Parts


Trapezoidal roofing system


Which tin roof you need?

1. Trapezoidal Roof sheet

Trapezoidal roofing system


2. Clamping roof sheet

Trapezoidal roofing system

3. bend (doom) roof sheet

It is suggested to discuss with us case by case.


4. Solar L feet solution

Solar L Feet designs with great flexibility both for commercial and residential tin roof solar system. Patented and Innovative rail design, standard components and highly pre-assembled clamp, all the above make the installation simple and save your time and cost.


Trapezoidal roofing system

Advantages:

1.High wind resistance
2.Reduce roof pressure
3.10mm groove, no need to separate the bolt and nut, save your installation time.
4. Triangle is the most stable structure

5.Project show


tin roof solar system


 tin roof solar system
