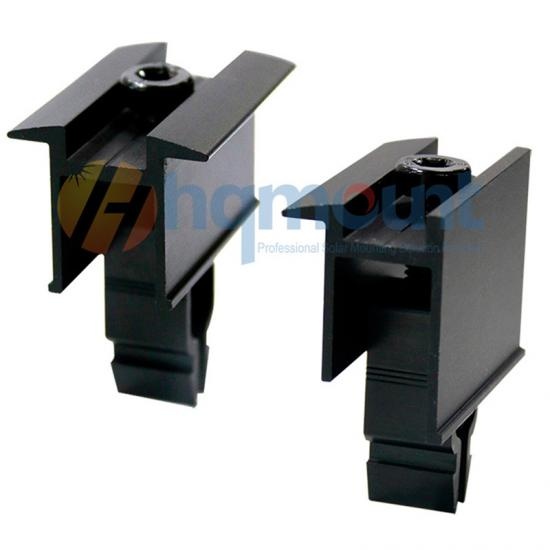

Top Quality High Cost-Effective Solar Mounting End Clamp Solar Structure Fixing End Clamps

HQ Mount’s framed solar panel end clamps have different size suitable for 30mm, 32mm, 35mm, 37mm, 40mm panels.

  • Item No.:

    HQ-EC02
  • Payment:

    T/T,L/C,Paypal
  • Product origin:

    Xiamen,China
  • Color:

    Natural or Black
  • Shipping port:

    Xiamen Port
  • Lead Time:

    7-15 working days
  • Brand:

    HQ MOUNT
  • Certification:

    CE,SGS
Inquiry now
Product Details

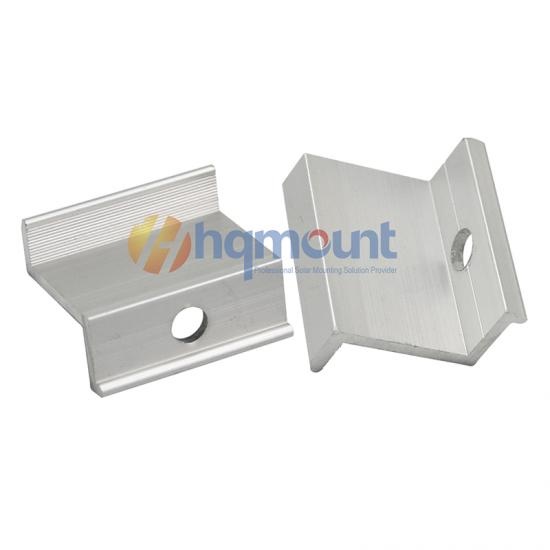

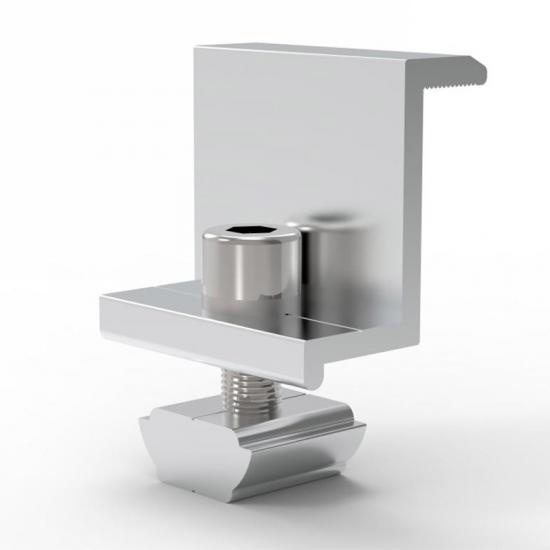

HQ Mount’s framed solar panel mounting end clamps have different size suitable for 30mm, 32mm, 35mm, 37mm, 40mm panels.


Material

Aluminum AL6005-T5/ AL6063-T6

Surface

Anodized/Mill surface

Panel

Framed panel 30mm, 32mm, 35mm, 37mm, 40mm

Delivery time

7-15 days

Length

40mm,50mm, 80mm, 100mm, customized

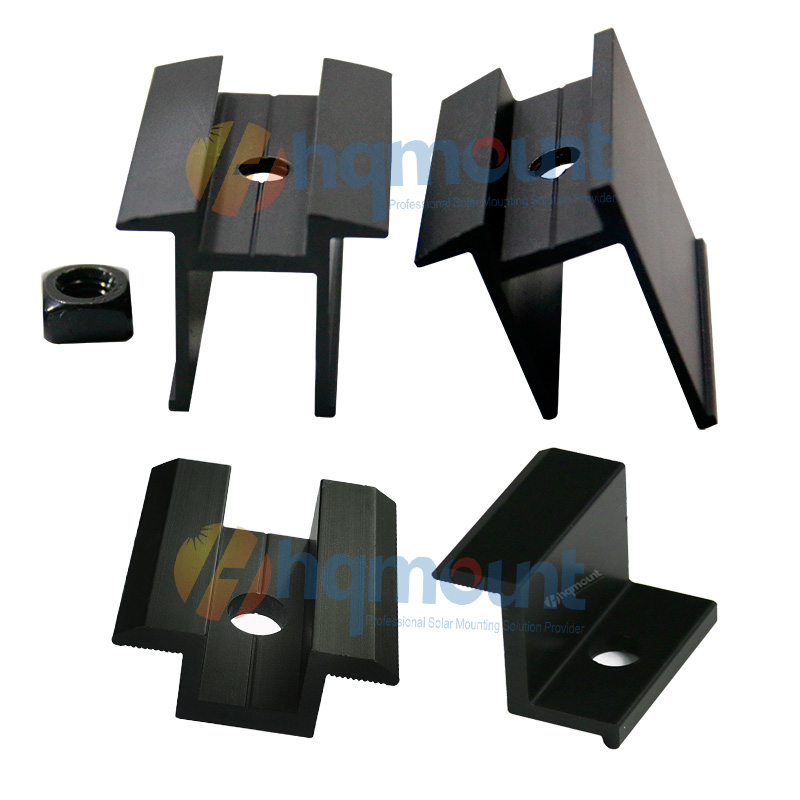

1. Back and silver available

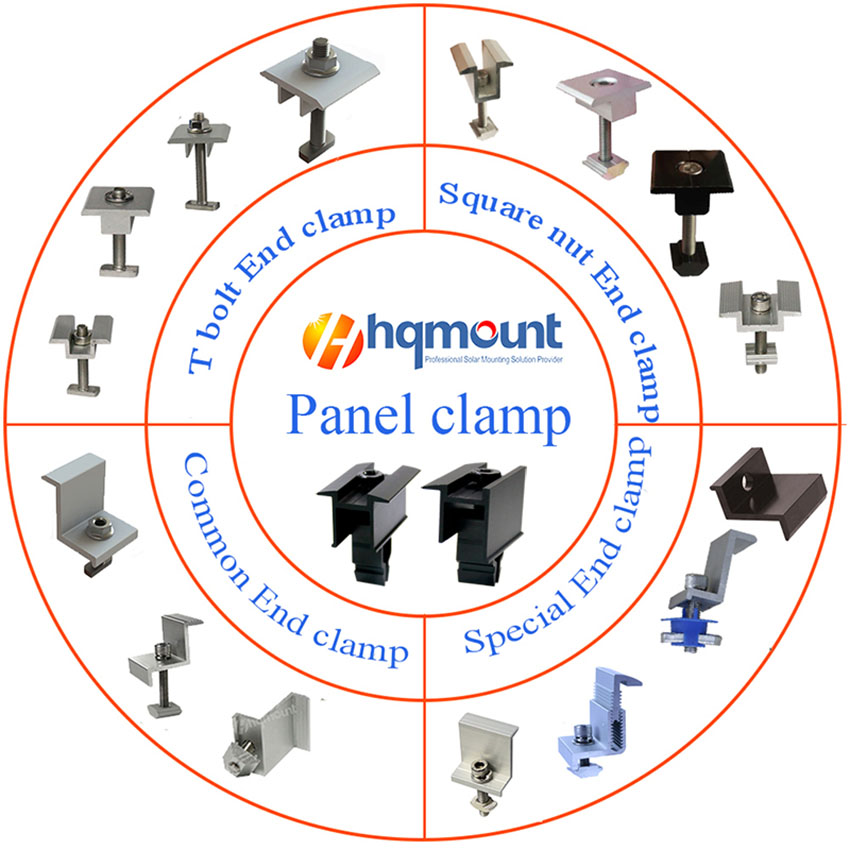

2. Different length and usage available.

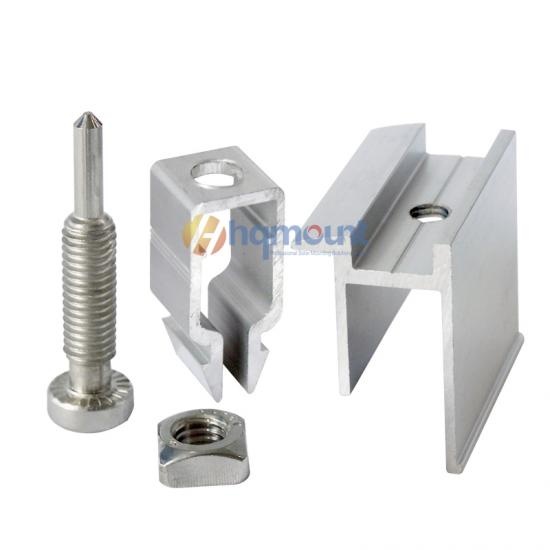

3. Different solar fasteners available



Suitable for Solar U channel strut steel mounting systems. (Vertical layout)



Suitable for Solar U channel strut steel mounting systems. (landscape layout)



Suitable for T slot rail.( Save time in installation)



Suitable for solar aluminum profile.



Suitable for steel C profile beam.
