Adjustable Solar Panel Triangle Tilt Mount System

Triangle Solar Mounting System – 3 Solutions for Every Solar Project

HQ-AR1 • HQ-AR2 • HQ-AR3 • Open Field or Rooftop • Standard or Custom

HQ-AR1 – Aluminum Angle Bar Solution (40×40mm Section)

• Best for: Projects requiring a standard, easy-to-source solution with low MOQ
• Material: 40×40mm aluminum angle section – standard profile, widely available
• Installation: Simple bolted assembly, no special tools required
• MOQ: Low – ideal for small to medium projects
• Configurations: Works with rail solution, rail-less solution, and extended 2‑panel layout
• Adjustable angle: Optimize tilt for seasonal sun changes
• Finish: AA10 anodized for corrosion resistance

HQ Mount AR1 Triangle Mounting Set Kit Without Rail

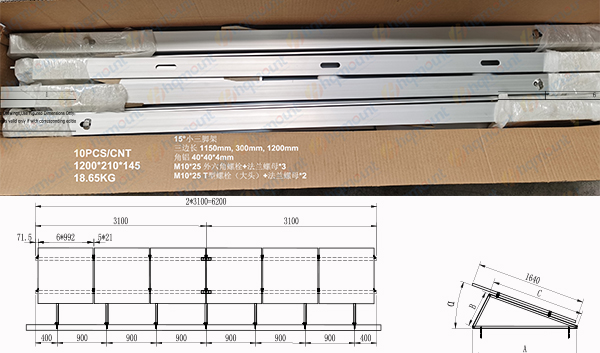

HQ Mount AR1 15 Degrees Triangle Mount for 1 Panel Landscape

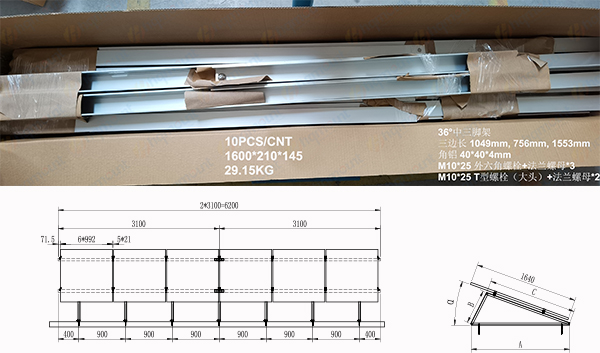

HQ Mount AR1 36 Degrees Triangle Mount for 1 Panel Portrait

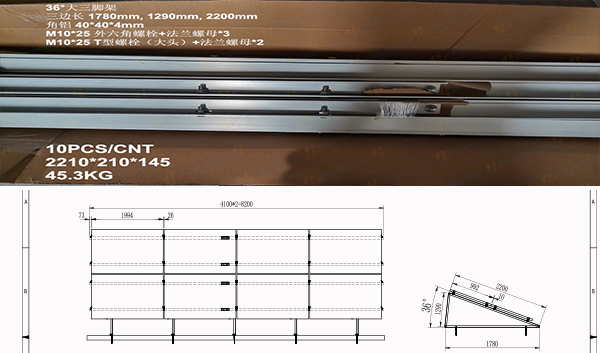

HQ Mount AR1 36 Degrees Triangle Mount for 2 Panel Landscape

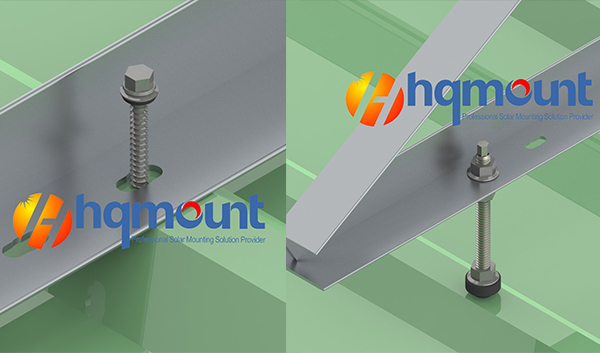

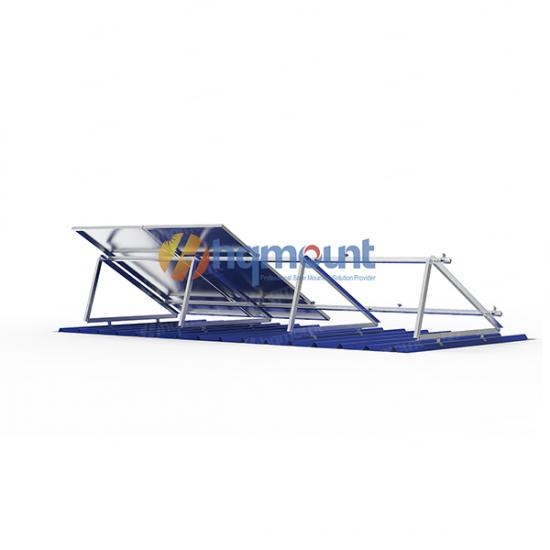

HQ Mount AR1 Tilt Angle Support for Metal Roof

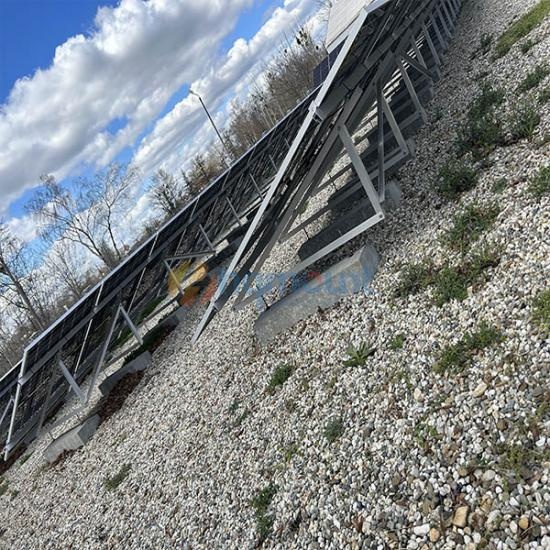

HQ Mount AR1 Triangle System for Open Field Ground Mount

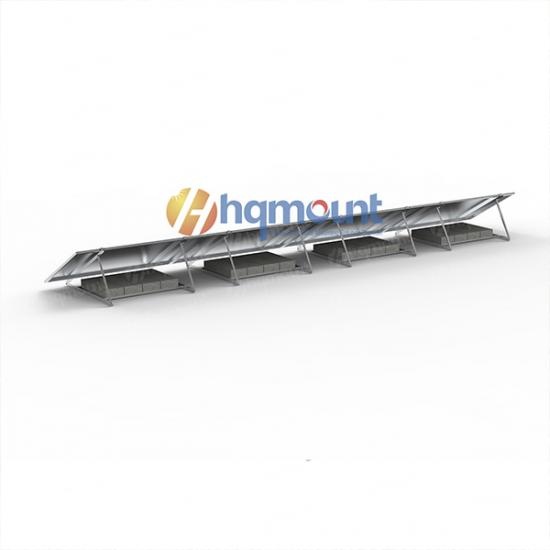

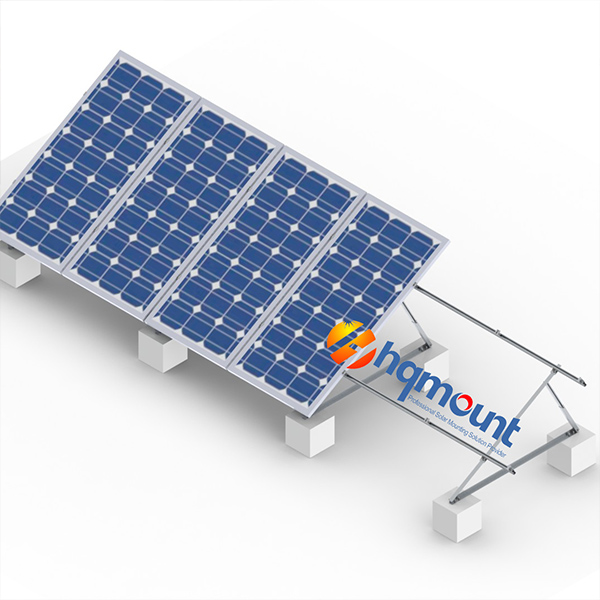

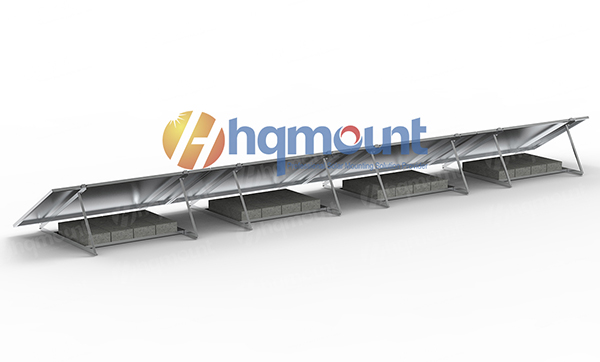

HQ Mount AR1 Triangle Mount Ballasted Solution

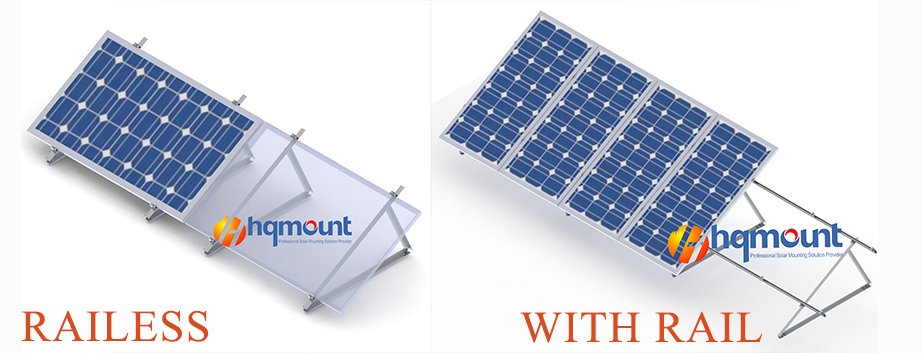

HQ Mount AR1 Triangle Mount Solution for Railess and with Rail Solution

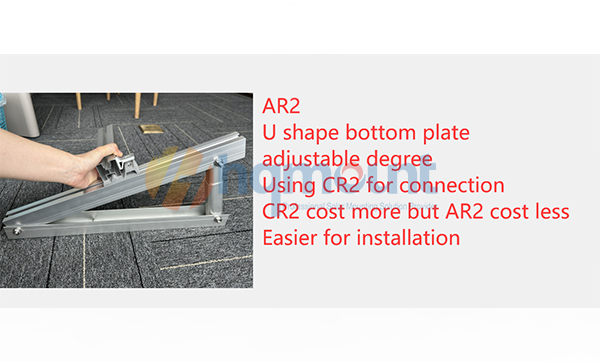

• Best for: Distributors, online sellers, and projects prioritizing fast installation
• Design: HQ Mount's own engineered profile – optimized for faster installation than AR1
• Pre-assembled: Comes partially assembled, reducing on-site labor time
• Cost-effective: Balances quality and affordability
• Adjustable angle: Flexible tilt settings for optimal solar exposure
• Packaging: Standard packing – ready for retail or bulk distribution
• Ideal for: Distributors and online sellers – easy to stock, ship, and sell
• Finish: AA10 anodized for durability
• Suitable for: Cross Rail projects in high snow load area

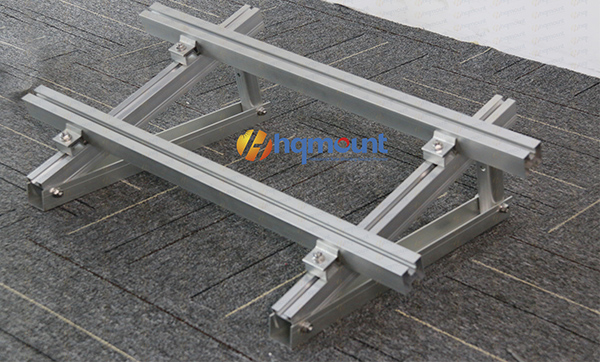

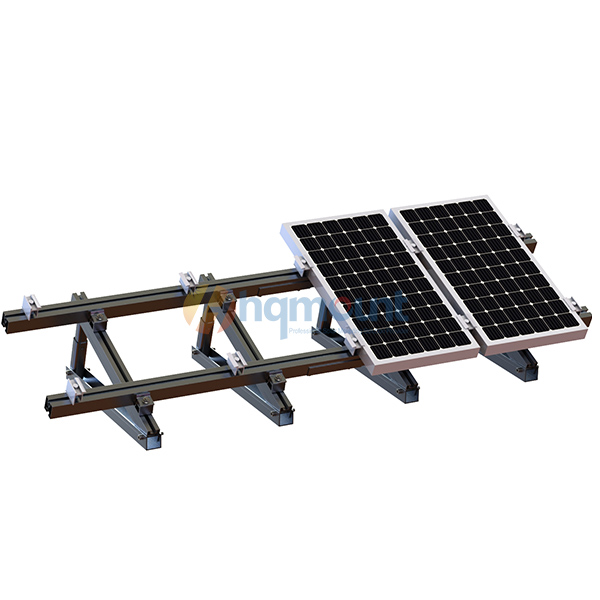

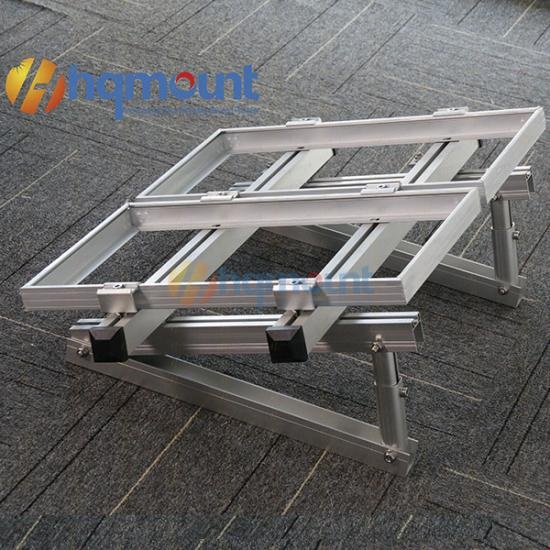

HQ Mount AR2 Solution with 40*40 Aluminum Profile and Rapid Clamp Kit

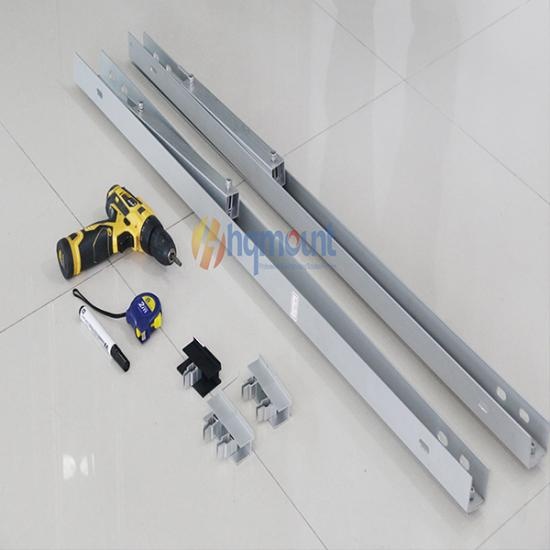

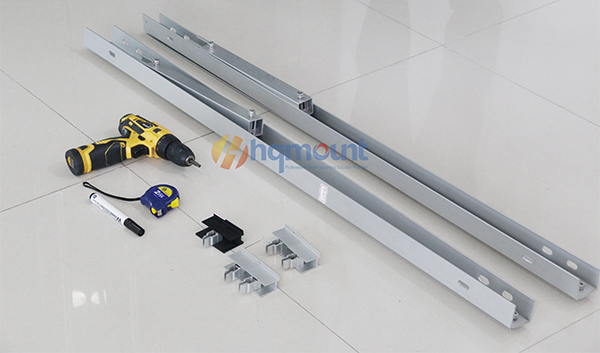

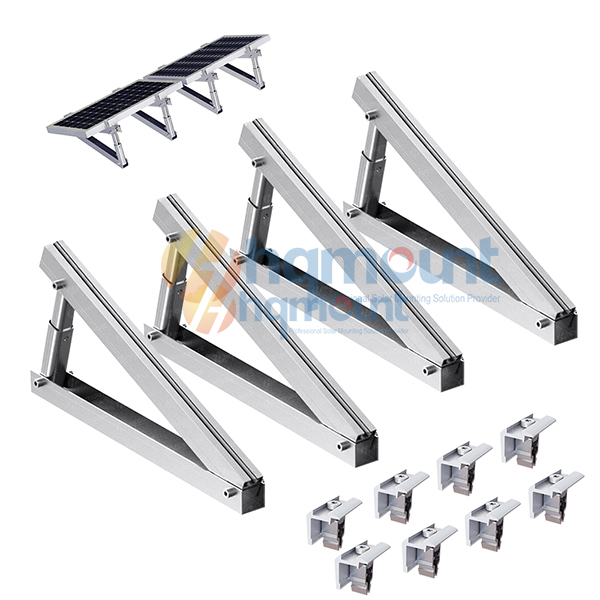

HQ Mount AR2 Railess Adjustable Triangle Solar Mount Kit

HQ Mount AR2 Full Triangle Mount Solar Support Package

HQ-AR3 – ZAM Coated Steel Solution (Most Cost-Effective)

• Best for: Large-scale complete system projects where budget is a priority
• Material: ZAM coated steel – 2‑6x better corrosion resistance than standard galvanization (SGS 4000H tested)
• Most affordable solution: Ideal for complete solar mounting system projects
• Robust and durable: Engineered for long-term outdoor performance
• Suitable for: Open field and rooftop installations
• Cost savings: Compounds with volume – perfect for large-scale projects

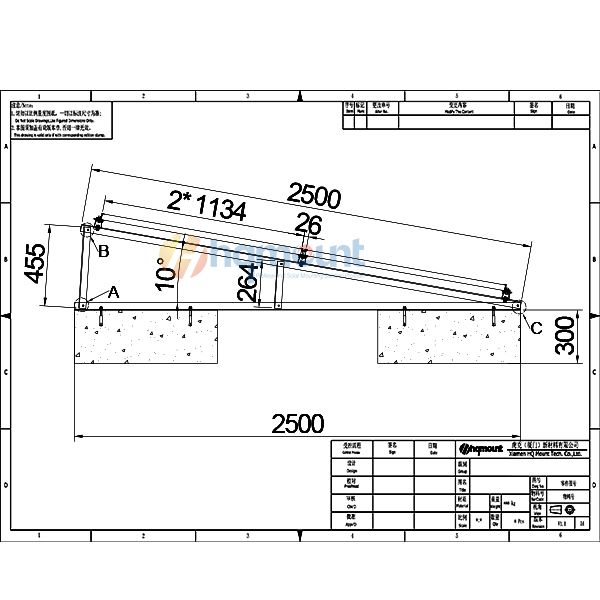

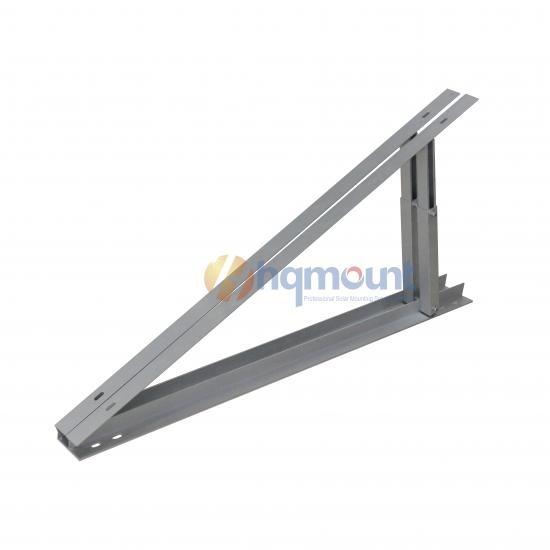

HQ Mount AR3 Steel Triangle Bracket Design

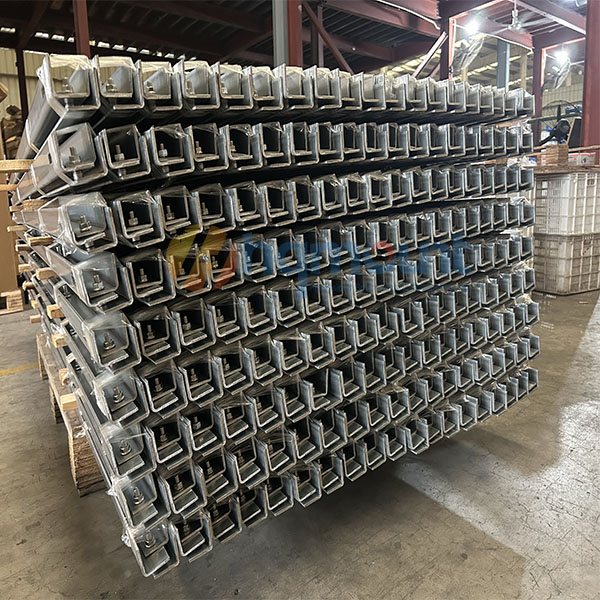

HQ Mount AR3 Steel Solar Triangle Support Pre-assembly

Solution Comparison

Customization & Manufacturing Capability

• Standard or Custom: Choose from our standard designs (AR1, AR2, AR3) or request customization for special project requirements
• Direct Manufacturer: We control production from raw material to finished product – no middleman
• Design Capability: Our engineering team can modify designs to meet specific project needs – angle range, load capacity, dimensions
• Application Flexibility: Suitable for open field ground mounts and rooftop installations
• Customized Solutions: We can develop custom triangle systems for unique project specifications

Manufacturing Excellence – Direct from HQ Mount

• Raw material: Certified aluminum and ZAM steel – chemical composition verified
• Extrusion, cutting, punching, and assembly – all in-house
• Anodizing for aluminum (AA10, ≥10μm) / ZAM coating for steel
• 100% dimensional inspection before packing
• Pre-shipment sample testing for large orders

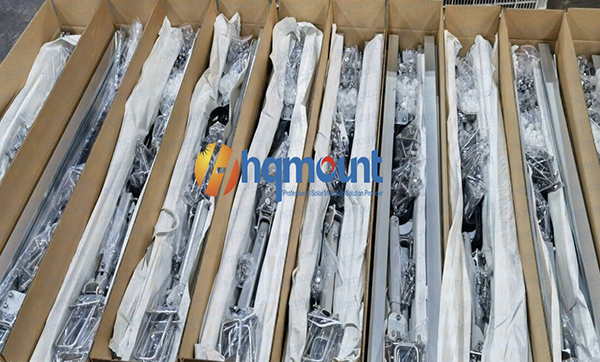

• Custom packaging available

Applications

• Open field ground mounts – tilt panels for optimal sun exposure
• Rooftop installations – flat or low-slope roofs
