Aluminum Solar Mounting Grounding Lug

Grounding Lug is a grounding component for solar modules and solar racking systems allowing easy termination to the ground wire.

  • Item No.:

    HQ-S-GL01
  • Payment:

    T/T,L/C, Western Union, Paypal
  • Product origin:

    Xiamen China
  • Color:

    Ntural
  • Shipping port:

    Xiamen
  • Lead Time:

    15 working days
  • Brand:

    HQ Mount
  • Model No.:

    HQ-S-GL01
  • Certification:

    SGS
  • Material:

    AL6005-T5&SUS304
  • Lead time:

    15 working days
Inquiry now
Product Details

Made of corrosion-resistant aluminum and SUS304.


Available:

1.With or without conductive plate.

2.Assembled and unassembled.

3.With or without installation hardware.

4.Meet standard of AS/NZS 1170.2 , JIS C 8955:2011

5.Custom designs available upon request.

solar mounting grounding lug

Material

Al 6005-T5 & SUS304

Size

Customized

Surface

Anodized, Black Electrophoresis.

Certification

ISO, SGS, Aluminum testing report.

Usage

Solar ground mounting system, solar carpot, solar rooftop mounting system


Grounding Lug ensures a quick and easy installation. Multiple equipment ground conductor allowance.

The low profile of the grounding lug allows it to be installed in a variety of positions with one solid or stranded

 copper wire (14AWG to 6 AWG), or two copper wires (12 AWG to 10 AWG).It is installed using stainless steel

mounting hardware. When the hardware is tightened, the conductive plate specialized teeth embed into anodized

aluminum or any electrically conductive metal to establish a gas tight electrical connection.

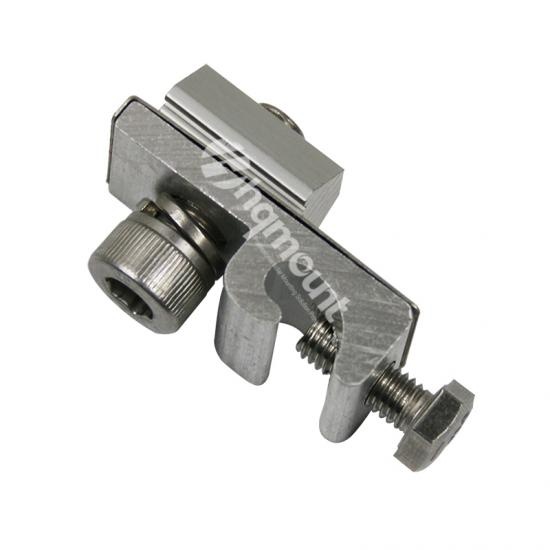

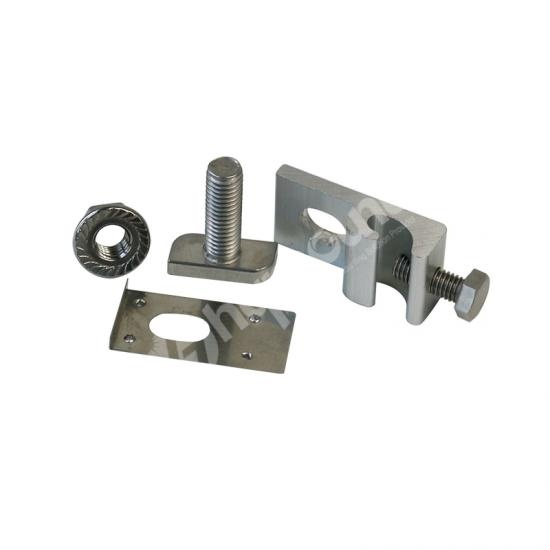

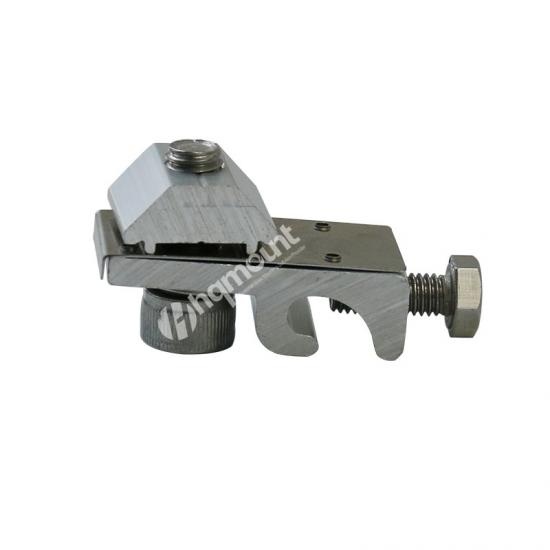

Grounding LugGrounding LugGrounding Lug
