China factory ground mounted portable solar panel mount ground screw solar system

HQ-GM-GT1

Solar Panel Ground Screw Anchor Mounting Brackets are made for photovoltaic ground systems which featured with light weight, high strength and recyclable material.  Customized tilt angles meet complex requirements of construction site and use effectively energy of sun. Pre-assembled beam saves labor time, reduces cost and makes installation quick.

Component

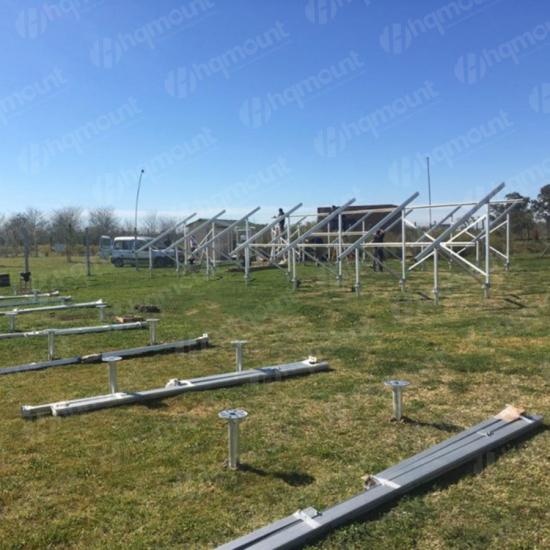

The application of this solution is widely. It can minimize the impact on the environment; and it is simple and fast on installation, which saves installation time greatly, saves installation costs. Ground screw foundation has a unique oblique spiral design,which can greatly ensure the stability and robustness when with standing staic load.

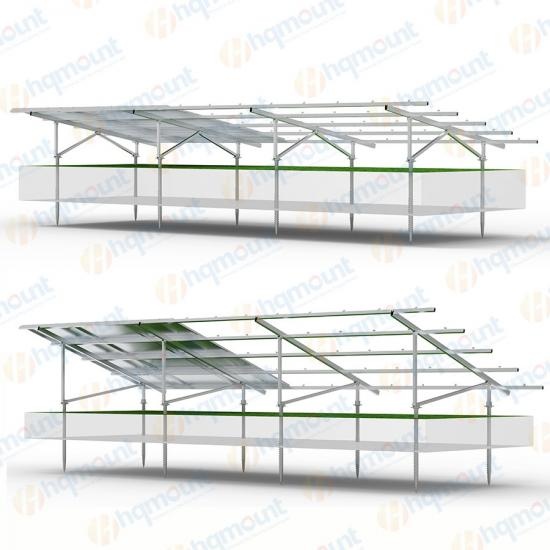

Highly Pre-assemble

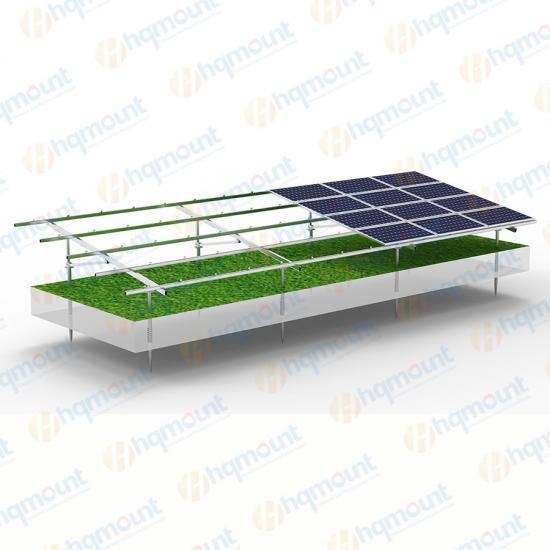

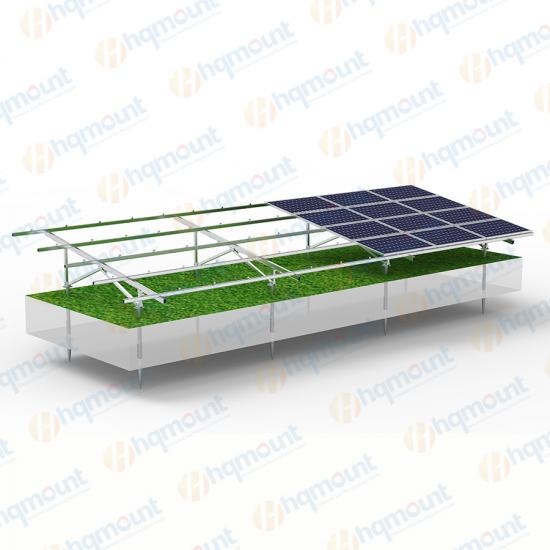

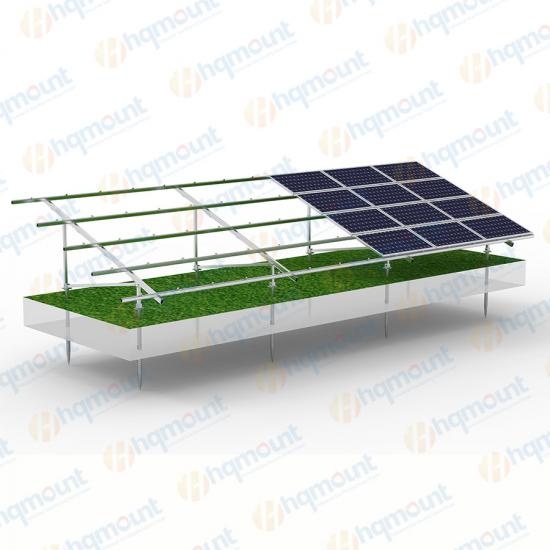

         N Type                                                   W Type                                                               A Type

Different structures are available with different strength requirements.

Advantages

1. Unique post profile,saving material cost

2. Simple installation,saving labor cost

3. Horizontal and vertical rotation available

4. Tilt IN/OFF Design, easy for installation
