HQ-GT1-Aluminum Solar Ground Mounting System
Reliable | Customizable | Built to Last
Product Overview: Ideal for Mid-Size Solar Projects
The GT1 Ground Mounting System from HQ Mount is a high-performance and cost-effective solution for mid-sized solar farms and commercial PV projects. Featuring lightweight anodized aluminum, pre-assembled beams, and multiple foundation options, GT1 ensures quick installation, low labor cost, and long-term structural stability.

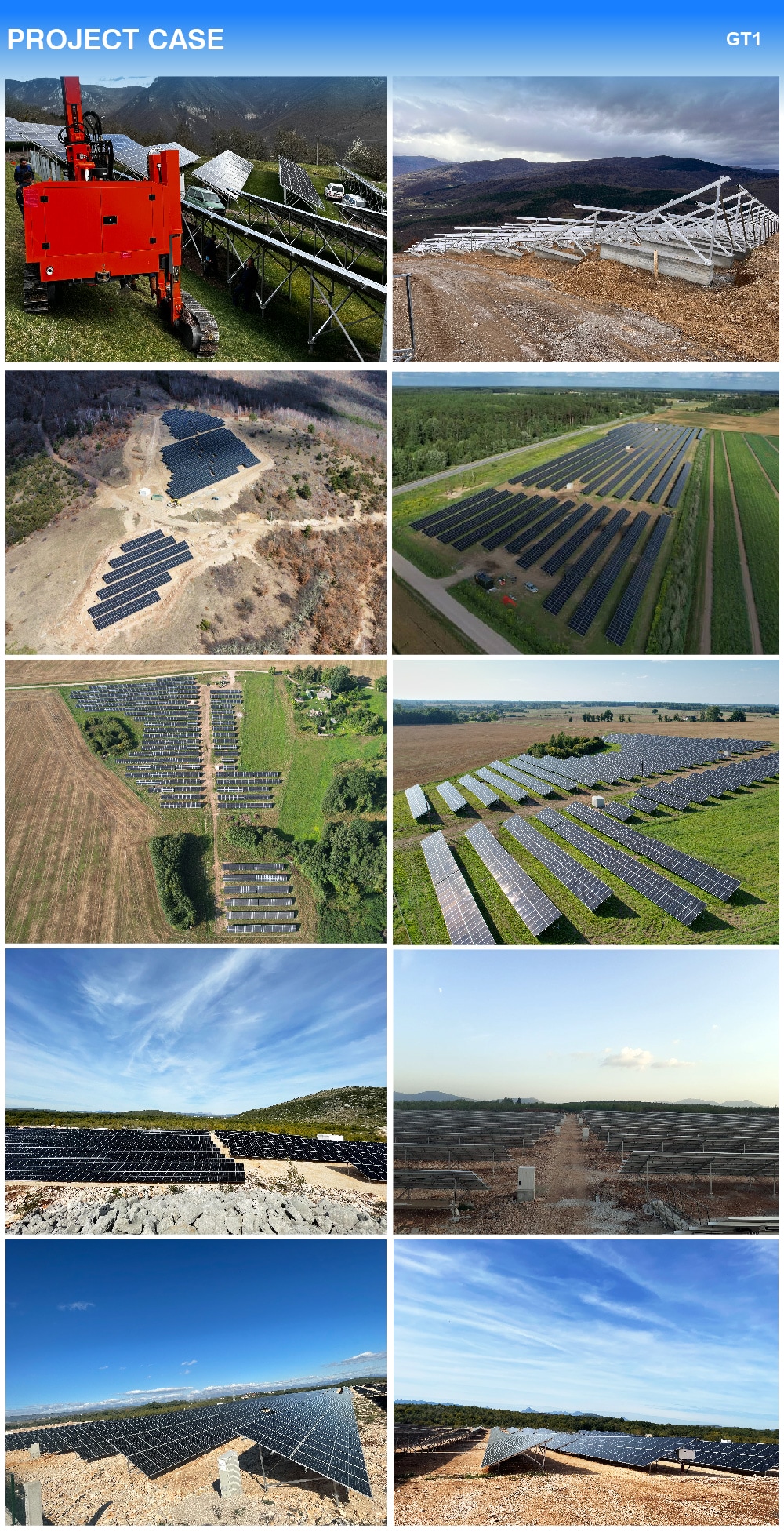

With over 2GW installed worldwide and full compliance with Japan and Eurocode standards, GT1 is trusted by EPCs, developers, and wholesalers around the globe.
| Installation Site | Flat & Open Field |
| Tilt Angle | 0-60 degree |
| Max Wind Speed | 0-80m/s |
| Max Snow Load | 0-150cm |
|
Material |
Aluminum & SUS304 |
| Installation Direction | Landscape/Vertical |
|
Design Criteria |
AS/NAZ S1170,JIS C 8955:2011/2017,DIN1055 |
|
Applications |
--Mid-size PV ground mounting systems --Commercial and industrial solar farms --Hybrid applications --Suitable for both permanent and temporary installations |

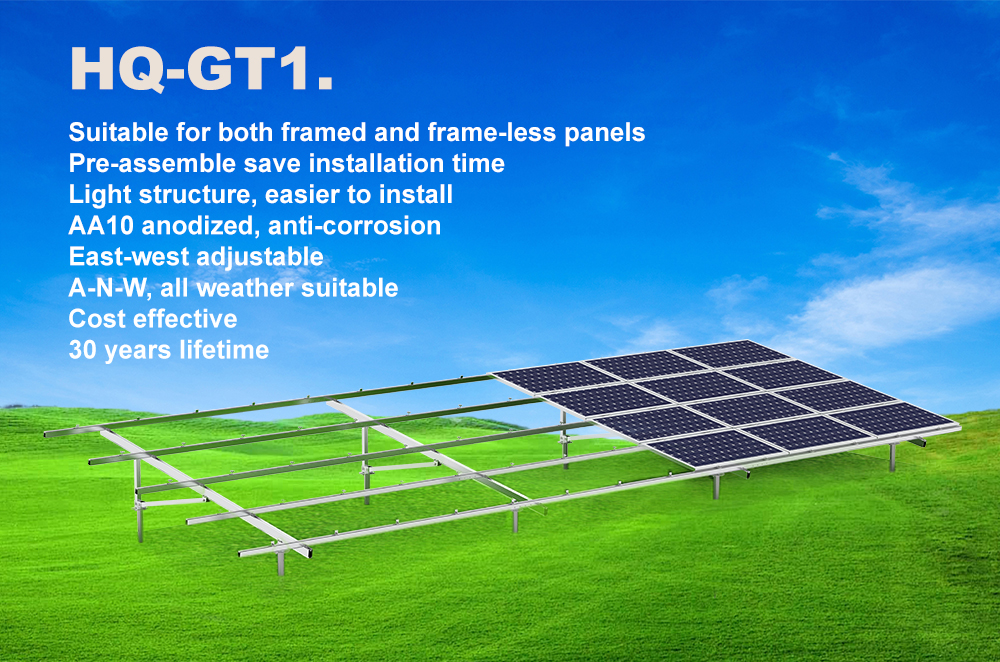

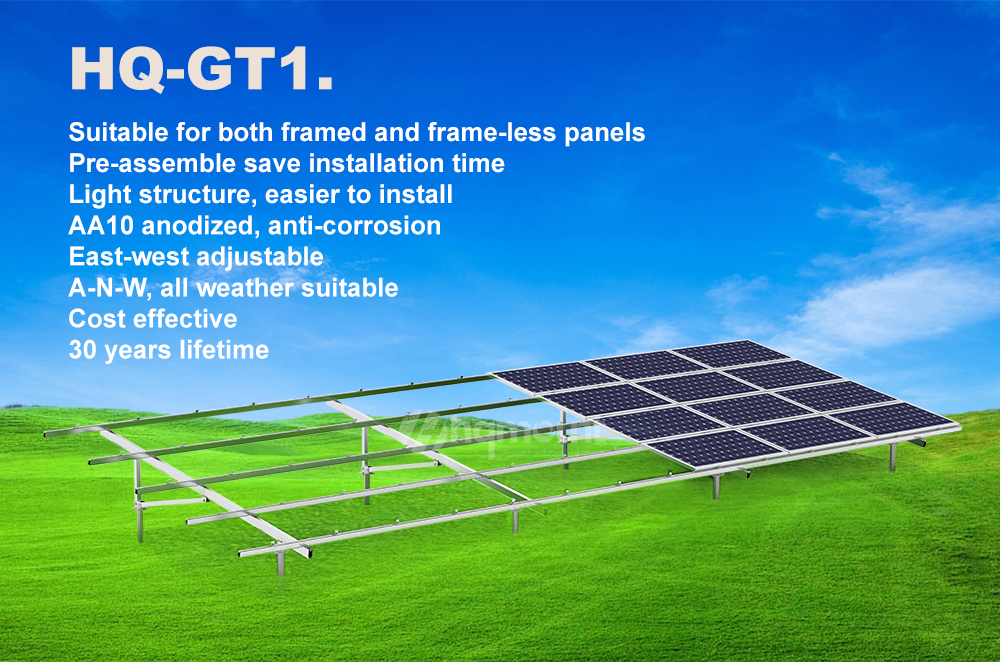

Key Features：
Durable and Sustainable：
Made of AA10 anodized aluminum: corrosion-resistant, lightweight, and recyclable
Designed to last over 30 years, even in coastal or high-humidity areas
Eco-friendly construction minimizes environmental disruption
Fast & Efficient Installation

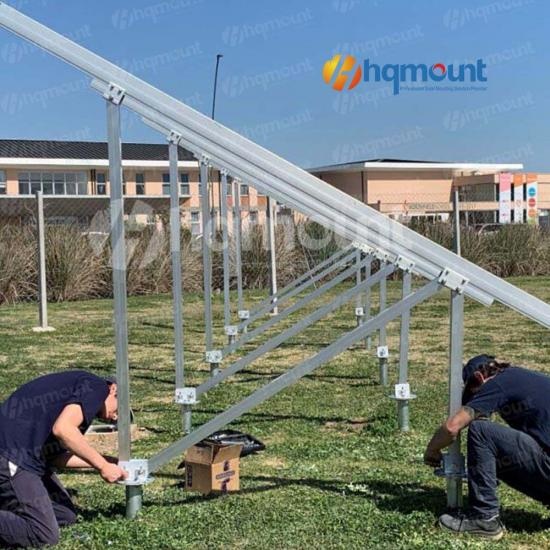

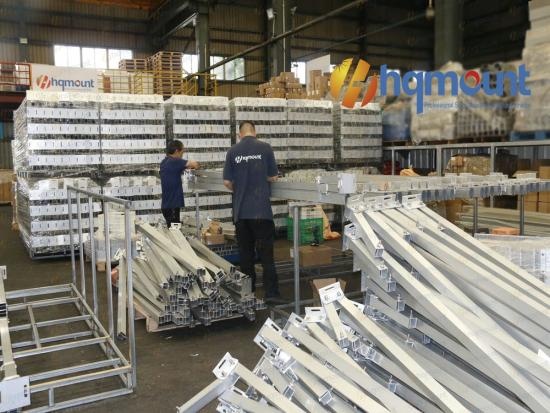

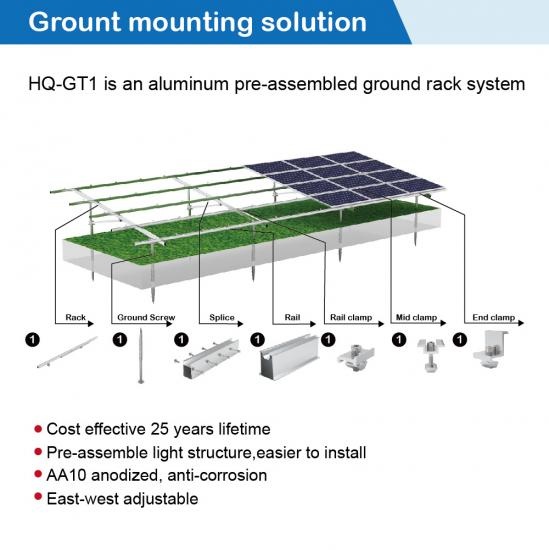

Comes with pre-assembled solar brackets to reduce on-site work
Speeds up installation, lowers labor costs, and minimizes the risk of missing parts
Modular design allows for easy re-shipping or redistribution for residential or scaled-down applications
All-Terrain Compatibility

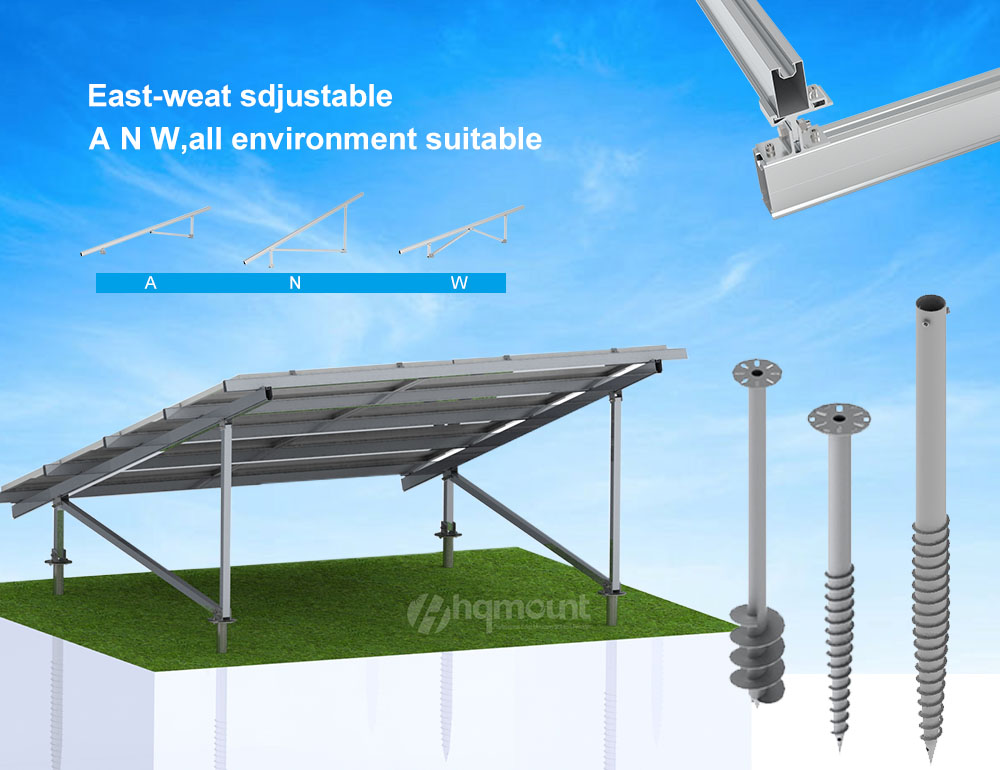

Optional East-West joint system adapts to project layouts with ease

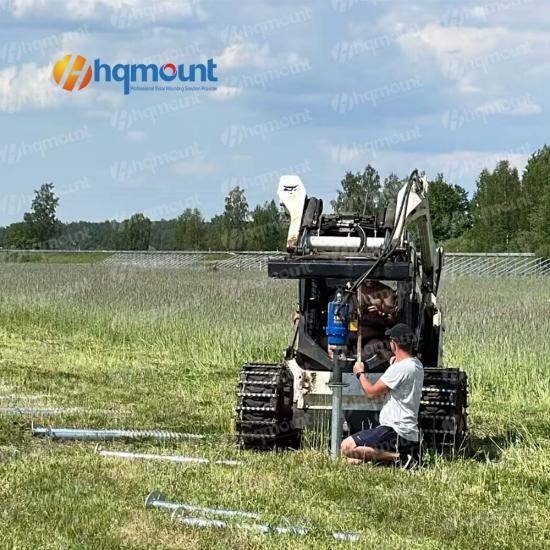

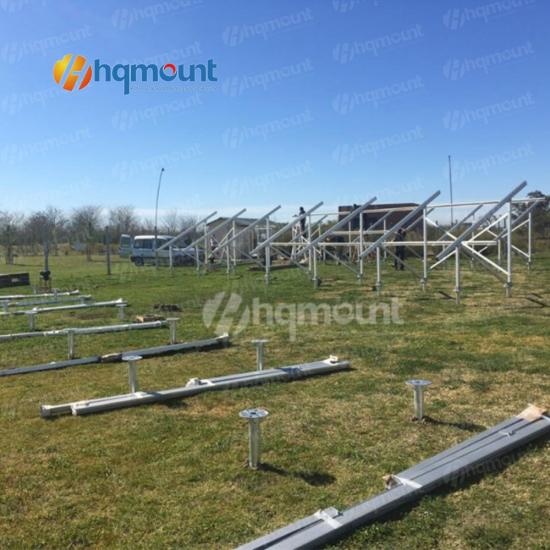

Adjustable ground screws make installation on uneven or sloped terrain simple and secure
Supports A-type, N-type, and W-type layouts: Fully customizable according to terrain, wind, and snow load requirements

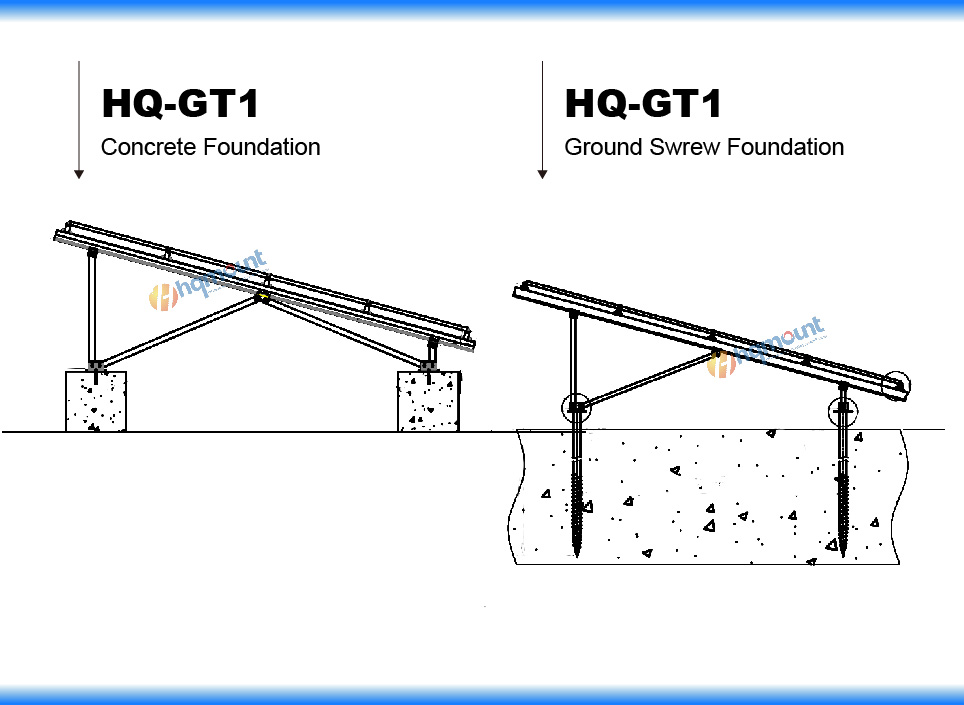

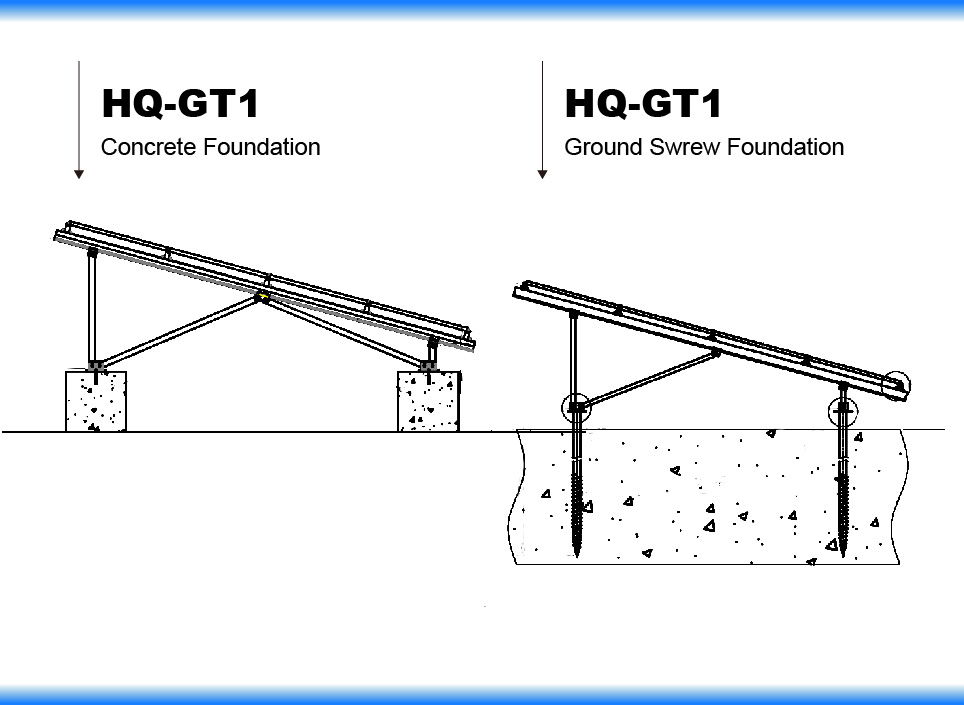

Foundation Options for Every Ground Type
HQ Mount provides a variety of solar ground screw foundations to match soil conditions:
1. Regular Leaf Screws – For standard soft soil
2.Big Leaf Screws – For loose or sandy soil
3.Adjustable Ground Screws – Perfect for uneven or challenging landscapes

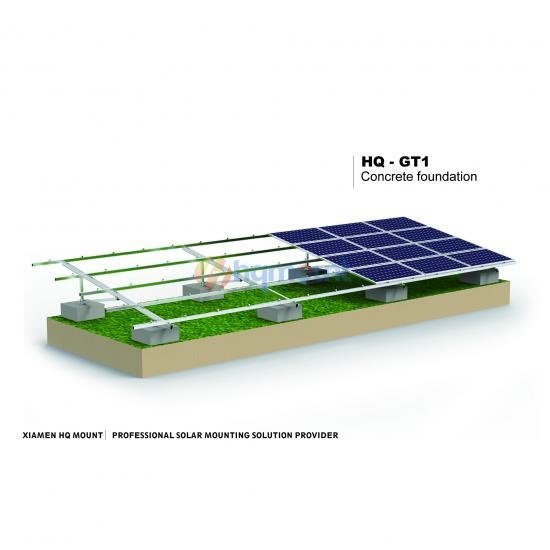

4.Concrete Foundation – For maximum long-term stability
All-in-One Supply Option
In addition to mounting systems, HQ Mount also offers: solar inverters, cables, and optimizers, and can ship them all together for your convenience.
If you need to customize your exclusive solar installation solution and have an all-in-one supply option, please feel free to contact us！
