HQ-GT1-Aluminum Solar Ground Mounting System
Reliable | Customizable | Built to Last
Product Overview: Ideal for Mid-Size Solar Projects
The GT1 ground mount solar racking system is a premium, aluminum solar ground bracket solution designed for mid-size solar farms and commercial PV installations. Built with anodized aluminum solar mount materials, this system is lightweight, corrosion-resistant, and recyclable — a smart choice for long-term performance and environmental sustainability. Thanks to its pre-assembled solar mounting structure, the GT1 is fast to install, reducing labor costs and minimizing errors.
With over 2GW installed worldwide and full compliance with Japan and Eurocode standards, GT1 is trusted by EPCs, developers, and wholesalers around the globe.
| Installation Site | Flat & Open Field |
| Tilt Angle | 0-60 degree |
| Max Wind Speed | 0-80m/s |
| Max Snow Load | 0-150cm |
| Applicable Panel | All kind of panels |
| Installation Direction | Landscape/Vertical |
| Material | Aluminum & SUS304 |
| Design Criteria | AS/NAZ S1170,JIS C 8955:2011/2017,DIN1055 |
Key Features：
Corrosion-Resistant Aluminum Structure
Constructed from AA10 anodized aluminum for long-lasting durability
Lightweight and high-strength, ideal for coastal or high-humidity areas
Fully recyclable, eco-friendly solar panel support structure
Pre-Assembled & Fast Installation

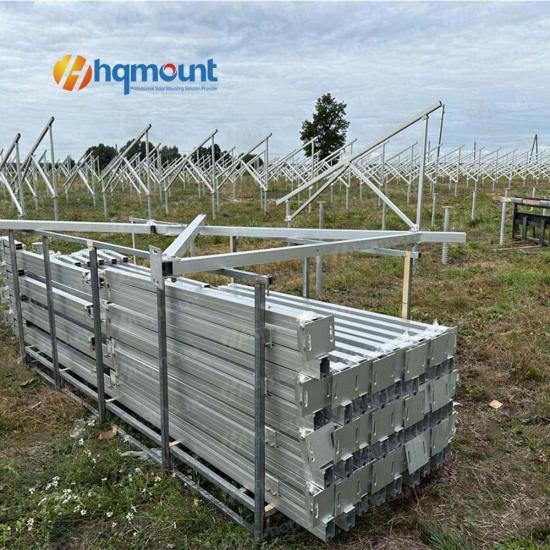

Delivered with pre-assembled beams to save on-site labor
Simplified structural layout helps avoid missing parts
Compact and modular—ideal for EPC contractors and local distributors
Flexible Configuration for Any Terrain

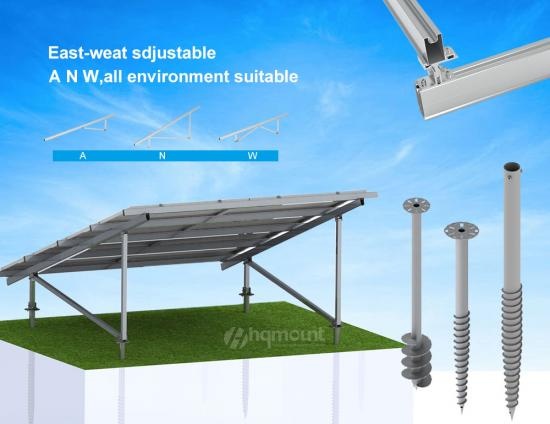

Supports A/N/W type solar mounting system layouts
Allows both horizontal and vertical rotation for flexible module positioning

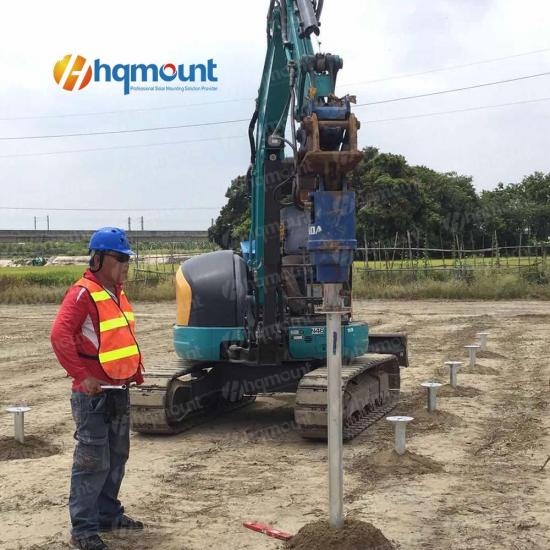

Works with sloped or uneven surfaces thanks to ground screw solar mounting system
Strong Foundation Options
Designed to withstand heavy static loads with our oblique spiral ground screw anchors
Compatible with:
Standard screws – for general soft soil
Big leaf screws – for sandy or loose ground
Adjustable screws – for sloped terrain

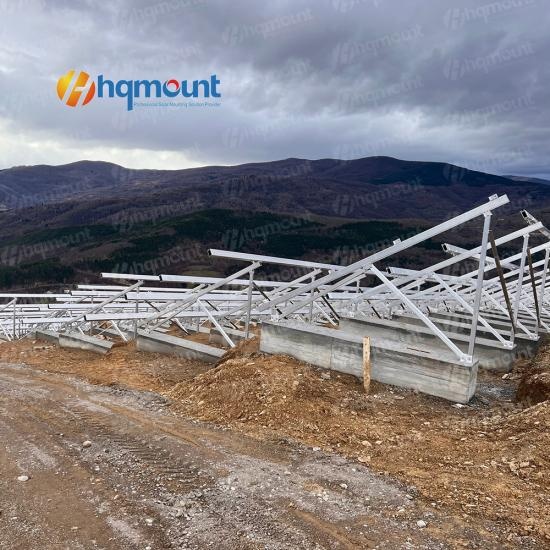

Concrete base solar mount – for permanent, heavy-duty applications

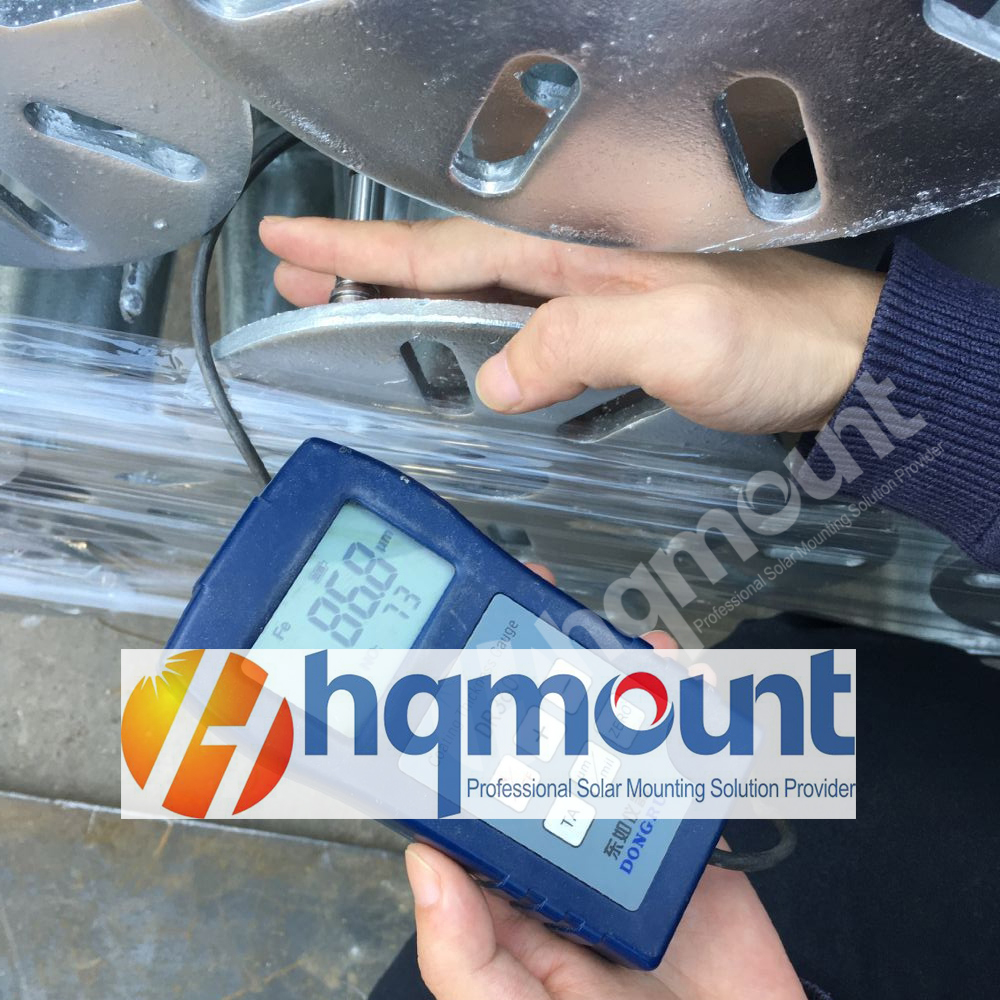

Strict Quality Control
HQ Mount ensures rigorous inspection from raw material to final shipment
Key parts like ground screws and panel clamps are fully tested
Compliant with Japan JIS and Eurocode standards
Additional Benefits
In addition to mounting systems, HQ Mount also offers: solar inverters, cables, and optimizers, and can ship them all together for your convenience.
If you need to customize your exclusive solar installation solution and have an all-in-one supply option, please feel free to contact us！
