Commercial Solar Roof Efficiency by Mounting Design

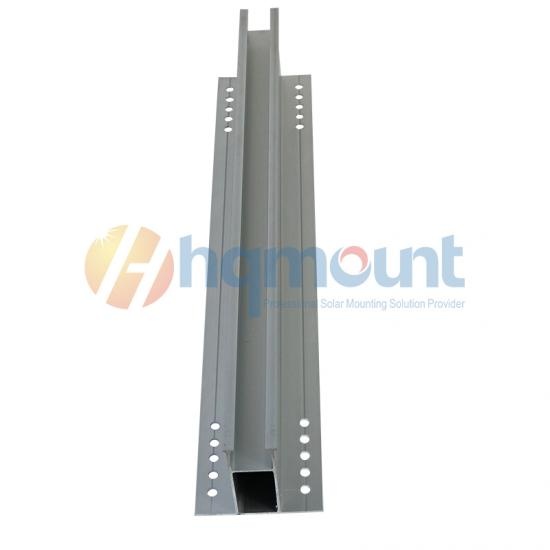

Tired of bulky, complex racking? Our Solar Mounting Mini Rail System rethinks solar roof mounting. This low-profile aluminum solar rail, integrated with a protective EPDM rubber pad, attaches directly to the pv roof sheet with just four screws per segment. It creates a secure, corrosion-free base that allows for rapid panel installation using standard solar panel mid and end clamps. It’s engineered to get your project from pallet to power generation faster than ever.
HQ Mount mini rail are suitable for both framed solar panel and frameless solar panel
Why Choose the Mini Rail for Commercial Solar Roof Projects?
Engineered for contractor efficiency and roof safety, our Mini Rail System delivers unparalleled advantages:
-
Ultra-Fast, Tool-Simple Installation: Secure each rail with just four screws; mount Solar panels directly with standard clamps. Dramatically reduce labor hours and complexity.
-
Lightweight & Logistics-Friendly: All-aluminum construction minimizes shipping costs and significantly reduces dead load on the roof structure, often eliminating the need for costly reinforcement.
-
Passive Corrosion Protection: The integrated EPDM rubber isolation pad is your guarantee against galvanic corrosion, preserving both the racking and the roof warranty for decades.
-
Direct Manufacturer Value: Get this optimized, high-performance solution at a competitive price, with quality assured from our 15,000+m² factory.
HQ Mount factory for aluminum bracket
Project Proof: 3MW in The Netherlands
The system's ease of pv installation isn't just a claim—it's proven. We successfully deployed this Solar Mini Rail System on a 3MW commercial rooftop project in the Netherlands.This project demonstrated a potential reduction of up to 30% in on-site labor time compared to conventional rail systems, allowing for faster project completion

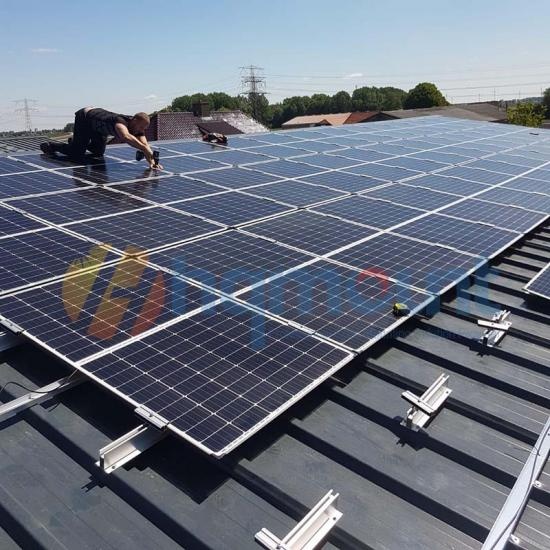

Real-world proof: Efficient one-man installation on a 3MW commercial roof
Technical Specifications
|
Parameter |
Specification |
|
Product Name |
HQ Mount Mini Rail System for Metal Sheet Roofs |
|
Primary Material |
Aluminum Alloy AL6005-T5 |
|
Key Feature |
Integrated EPDM Rubber Isolation Pad |
|
Standard Cutting Lengths |
300mm, 350mm, 400mm (Custom lengths available) |
|
Solar Commercial Roof Attachment |
4 Screws per rail segment(Self-tapping 410 screws) |
|
Panel Mounting |

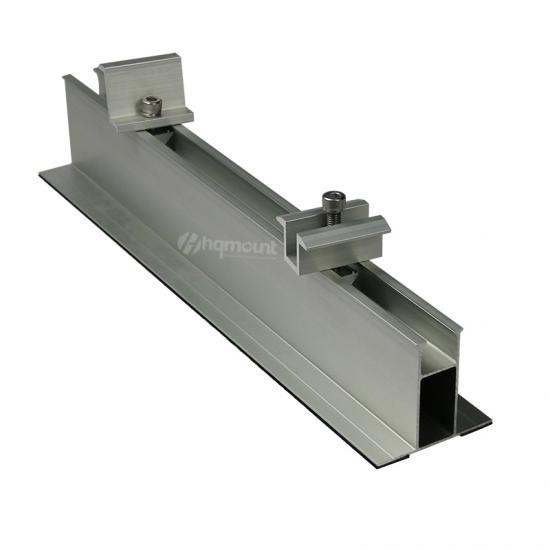

Compatible with standard solar mid and end clamps |
|
Primary Benefit |
Lightweight, fast installation, reduced shipping & labor cost |
In-house lab tests validate structural integrity and uplift resistance

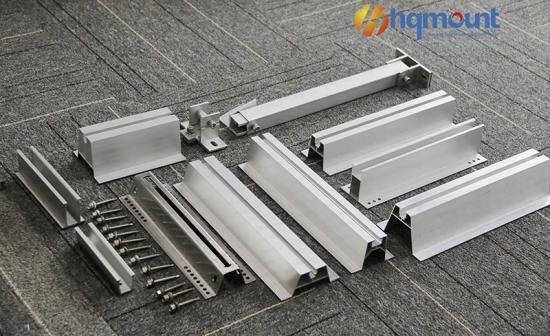

1, HQ-U30 cost effective solar mounting solution
2, For better air passing under the panel U70 allows the panel to cool down with the 70mm between the roof
3, High strength solution U40/U55
HQ Mount Solar Mounting Railess Solutions
Ready to Streamline Your Next Solar Power Project?
If you value time savings, lower logistics costs, and a simplified installation process for your commercial metal roof projects, the HQ Mount Mini Rail System is your ideal partner.
Calculate Your Loading & Savings – Send us your roof specs for a free load analysis and installation efficiency estimate.
