Solar Mounting Mini Rail System

 /Trapezoidal Metal Roof Mounting Solar Mini Rail With EPDM

Solar Mini Rail
Solar Mini Rail Solar Mini Rail Solar Mini Rail Solar Mini Rail Solar Mini Rail

Trapezoidal Metal Roof Mounting Solar Mini Rail With EPDM

Suitable for corrugated metal roofs with trapezoidal roof profile-solar panels arranged in portrait/ landscape mode.

  • Item No.:

    HQ-U67

  • Payment:

    T/T, PAYPAL, Western Union, L/C

  • Product origin:

    CHINA

  • Color:

    Natual

  • Shipping port:

    Xiamen port, Guangzhou port, Shenzhen port, can be negotiated

  • Lead Time:

    7-15 days

  • Brand:

    HQ MOUNT

  • Model No.:

    HQ-U67

  • Certification:

    SGS

  • Material:

    ALUMINUM ALLOY

  • Lead time:

    15-20DAYS
Inquiry now
Product Details

Trapezoidal Metal Roof Mounting Solar Mini Rail With EPDM

Suitable for corrugated metal roofs with trapezoidal roof profile-solar panels arranged in portrait/ landscape mode.

Mounting structure components include:

Slotted rails

End and mid clamp

Rubber gasket

Nut and bolts


Product name

Trapezoidal Metal Roof Mounting Solar Mini Rail With EPDM

Install Site

Trapezoidal Metal Roof /Corrugated Metal Roof

Applicable Module

Framed or Frameless

Max Wind Speed

up to 60m/s

Snow Load

Up to 1.4KN/m2

Material

Aluminum alloy

Module Orientation

Portrait or Landscape

Warranty

12 Years warranty

Duration

25 years

Trapezoidal Metal Roof Mounting Solar Mini Rail

Advantages:

1. Mini rail supports solar panel without aluminum rail.

2.Three parts only, save 40% installation time at least.

3.Easy to mount with screw.

4.Anti-corrosion and rust-resistance.

Trapezoidal Metal Roof Mounting Solar Mini Rail

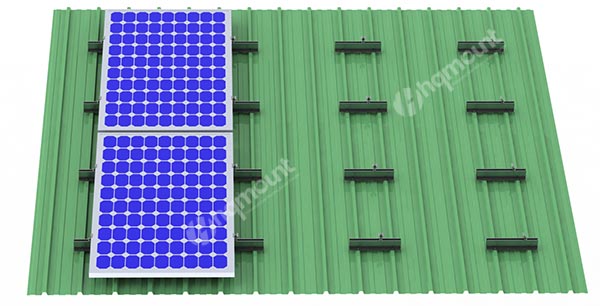

Project Case:


Packaging:

leave a message

Related Product
Solar Roof pitched Mounting; short profile; mini rail; short rail; trapezoidal metal roof

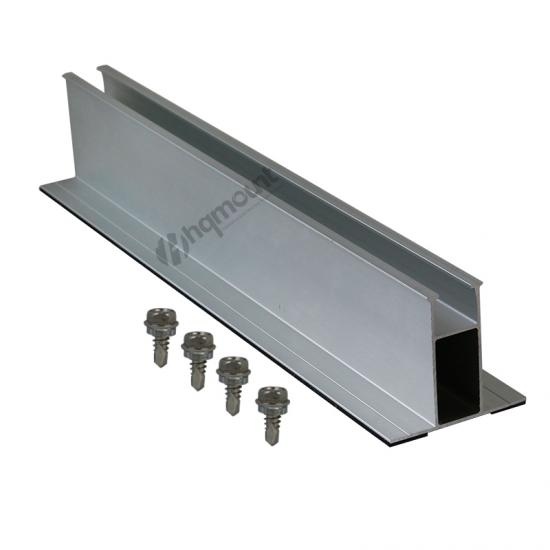

U50 short rail on trapezoidal metal roof
1. Easy and fast to install. 2. AL6005-T5 Material. Accept AL6005-T6 or other material 3. Highly corrosion resistant surface treatment- anodized 4. saving cost effectively 5. Accept customized length
Aluminum Short Rail/Short Rail
Solar Panel Mounting Aluminum Short Rail
Metal Roof Solar Panel Mounting Structure With Aluminum Short Rail
solar mounting rail
Metal Roof Mounting Solar Mini Rail - HQ-U40
Trapezoidal metal roof mini rail customized in the EU market, this is an exclusive product and not for sale.
Solar Roof pitched Mounting; short profile; mini rail; short rail; trapezoidal metal roof
HQ mount pv solar panel mounting system aluminum rail solar rooftop short rail solar mounting rail component
1. Easy and fast to install. 2. AL6005-T5 Material. Accept AL6005-T6 or other material 3. Highly corrosion resistant surface treatment- anodized 4. saving cost effectively 5. Accept customized length
Aluminum Short Rail
HQ Mount HQ-U30 Solar Panel Mounting Aluminum Short Mini Rail

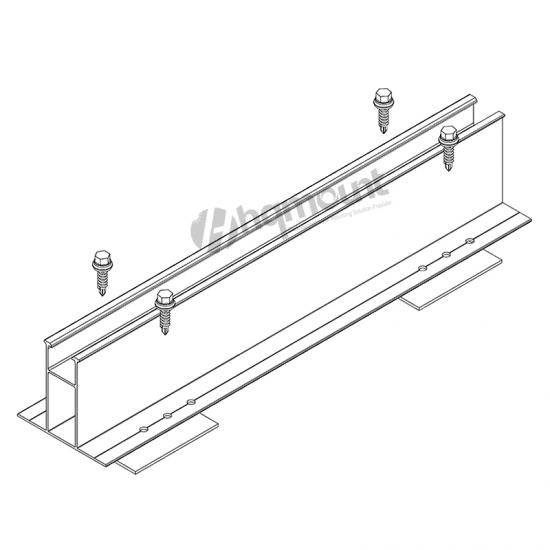

Metal Roof Solar Panel Mounting Structure With Aluminum Short Rail
