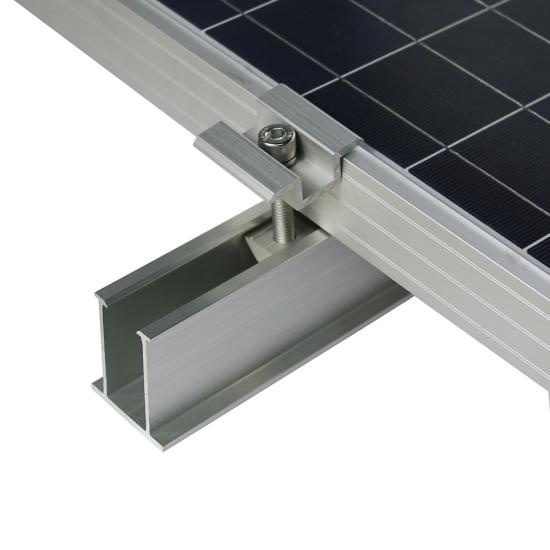

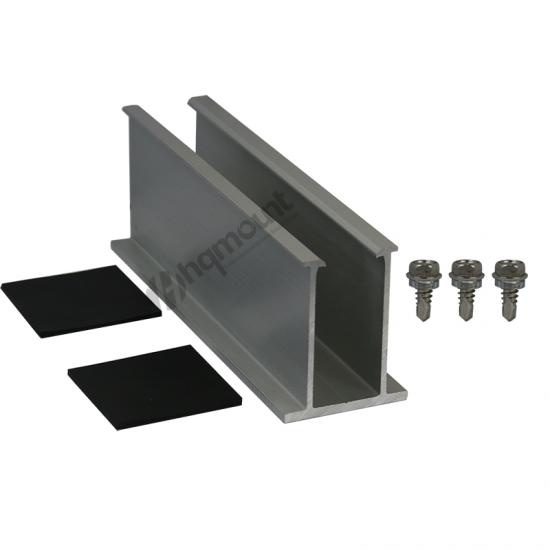

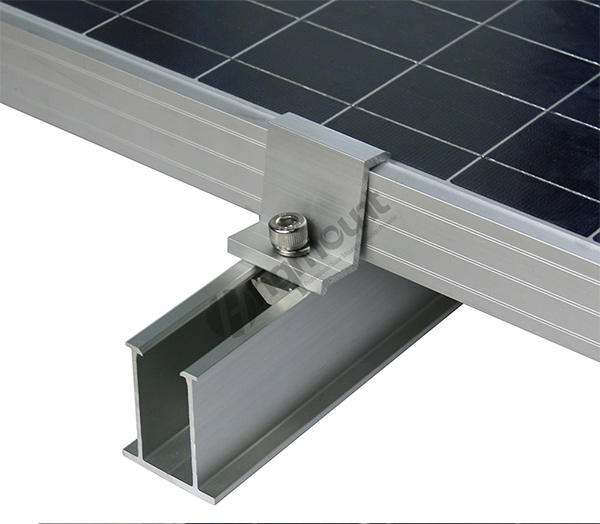

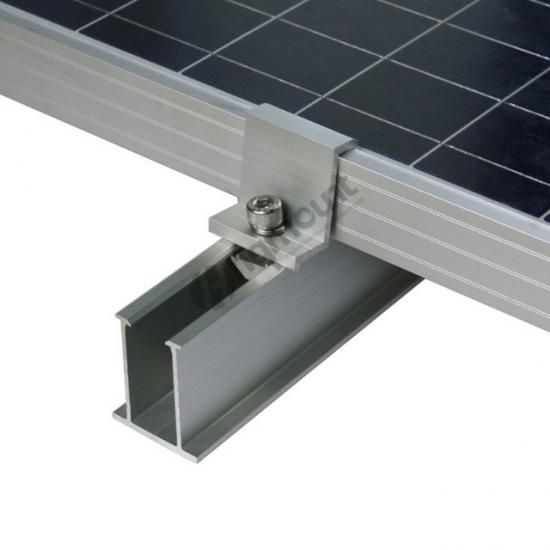

U50 short rail on trapezoidal metal roof

1. Easy and fast to install.

2. AL6005-T5 Material. Accept AL6005-T6 or other material

3. Highly corrosion resistant surface treatment- anodized

4. saving cost effectively

5. Accept customized length


  • Item No.:

    HQ-U50
  • Payment:

    T/T, PAYPAL, Western Union, L/C
  • Product origin:

    China
  • Color:

    Natural
  • Shipping port:

    Xiamen port, Guangzhou port, Shenzhen port, can be negotiated
  • Lead Time:

    7-20 days
  • Brand:

    HQ MOUNT
  • Model No.:

    HQ U50
  • Certification:

    SGS,ISO9001
  • Material:

    AL6005-T5
Inquiry now
Product Details

U50 short rail on trapezoidal metal roof



Name

U50 short rail

Material

 AL6005-T5

Surface treatment

anodized

Types

Can be customized

Application

Metal roof mounting

Wind Load

Up to 60 m/s

Snow Load

1.6 KN/m2

Modules Layout

According to requirements

Warranty: 12 Years

Service life:  25 Years

Samples available; OEM service
