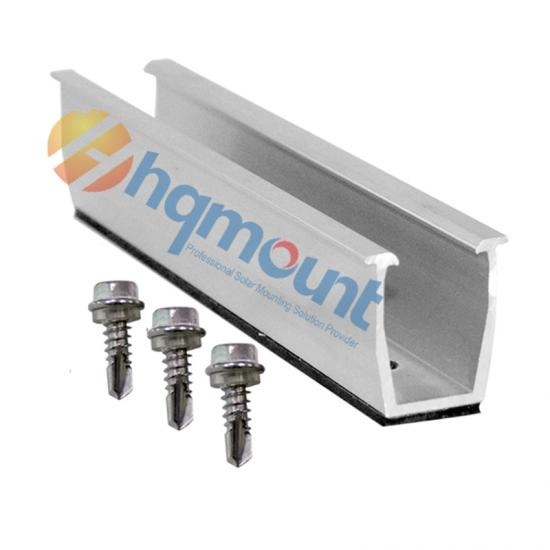

Metal Roof Mounting Solar Mini Rail - HQ-U40

Trapezoidal metal roof mini rail customized in the EU market, this is an exclusive product and not for sale.


  • Item No.:

    HQ-U40
  • Payment:

    T/T, PAYPAL, Western Union, L/C
  • Product origin:

    CHINA
  • Shipping port:

    Xiamen port, Guangzhou port, Shenzhen port, can be negotiated
  • Lead Time:

    7-15 days
  • Brand:

    HQ MOUNT
  • Model No.:

    HQ-U40
  • Certification:

    SGS
  • Material:

    ALUMINUM ALLOY
  • Lead time:

    15-20DAYS
Inquiry now
Product Details

Metal Roof Mounting Solar Mini Rail - HQ-U40

Suitable for corrugated metal roofs with trapezoidal roof profilecan be along the roof or across the roof profile

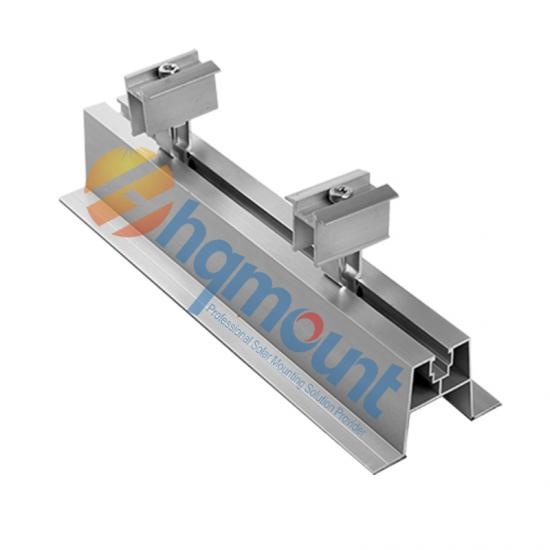

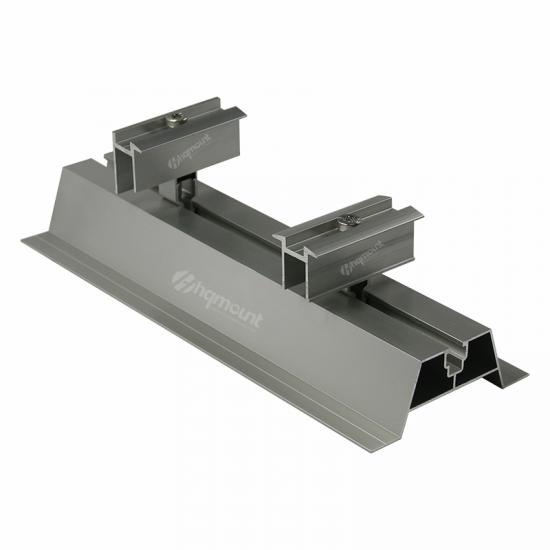

Mounting structure components include:

Slotted rails

Quick rapid end and mid clamp

Rubber gasket

Nut and bolts



Product name

Metal Roof Mounting Solar Mini Rail HQ-U40

Install Site

Trapezoidal Metal Roof /Corrugated Metal Roof

Applicable Module

Framed or Frameless

Max Wind Speed

up to 60m/s

Snow Load

Up to 1.4KN/m2

Material

Aluminum alloy

Module Orientation

Portrait or Landscape

Warranty

12 Years warranty

Duration

25 years



Advantages:

1. Mini rail supports solar panel without aluminum rail.

2.Three parts only, save 40% installation time at least.

3.Easy to mount with screw.

4.Anti-corrosion and rust-resistance

Related Product
Solar tin roof mounting system
Solar panel tin roof mount for mounting system
Trapezoidal roofing system is designed with great flexibility for both commercial and residential roof solar systems. Patented and innovative rail design, standard components, highly pre-assembled clamp, all the above make the installation simple. Save your time and installation cost. Advantages: 1. Lower cost, incomparable value; 2. Faster installation, flexible attachment; 3. Better service, complete technical support.
Flat Tin Roof Mount manufacturer
Flat tin roof mount for solar adjustable roof mounting
Flat Tin Roof Adjustable Tilt Solar Mounting Brackets System Adjustable tile solar mounting bracket system suitable for the flat tin roof with great flexibility both for commercial and residential roof solar system. Patented and innovative rail design, AS/NZS1170.2 certified mounting solution. Extra tilt angle maximizes the solar panel output.
HQ-R-TIN
Trapezoidal solar roofing system
Trapezoidal roofing system is designed with great flexibility for both commercial and residential roof solar system. Patented and innovative rail design, standard components, highly pre-assembled clamp, all the above make the installation simple. Save your time and installation cost.
Solar Roof pitched Mounting; short profile; mini rail; short rail; trapezoidal metal roof

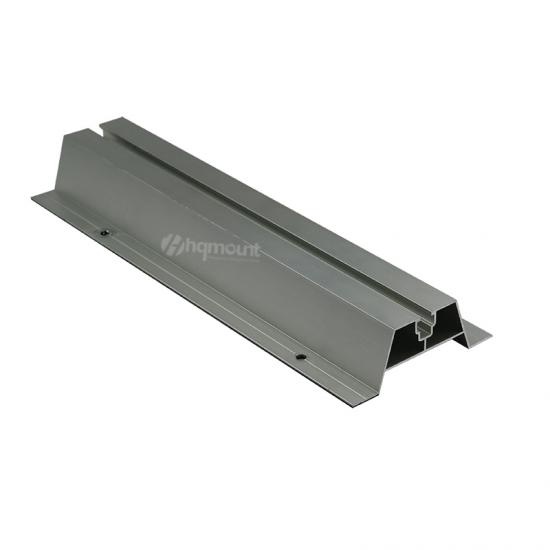

U50 short rail on trapezoidal metal roof
