Complete Grounding Earthing Solutions – 4 Options for Your Solar Power Bracket Installation

Complete Grounding Solutions – 4 Options for Your Solar Power Bracket Installation

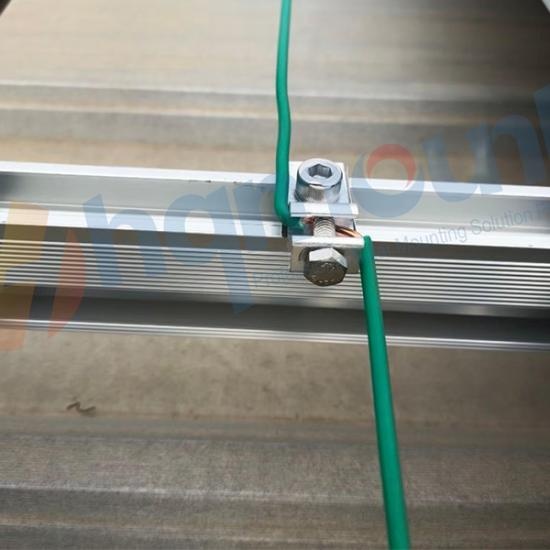

HQ Mount now offers a complete range of grounding lugs as part of our full solar mounting kit solution. Proper grounding is essential for PV system safety and performance. We provide four solutions to match your technical requirements and budget.

Our four grounding solutions:

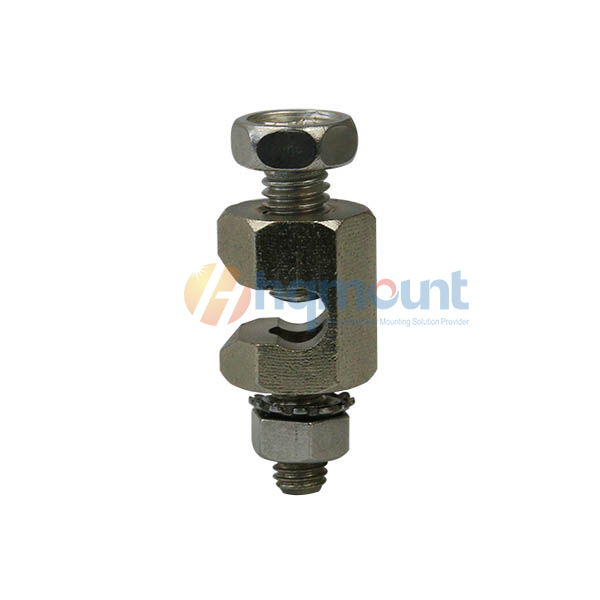

1. Pure Copper Grounding Lug – Best Conductivity

• Superior electrical conductivity – the industry benchmark
• Excellent corrosion resistance
• Ideal for critical installations where performance is paramount

 1-2. Copper Grounding Nut – For Solar Panel

2. Tin‑Plated Aluminum Grounding Lug – Cost‑Effective Alternative

• Aluminum body with electro‑tin plating – excellent conductivity and corrosion resistance
• Compatible with both copper and aluminum conductors
• Lay‑in design for quick installation without disconnecting existing conductors
• Significantly more cost‑effective than pure copper

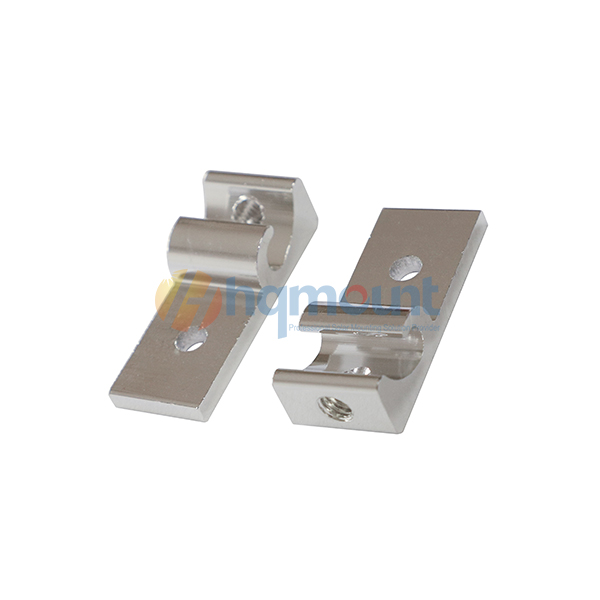

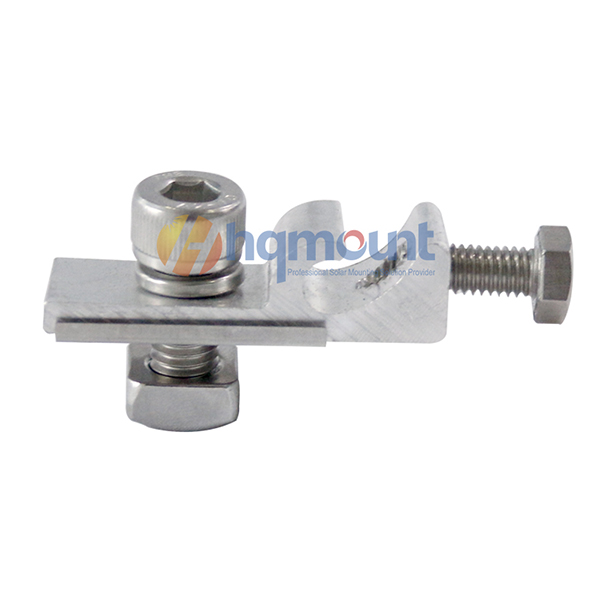

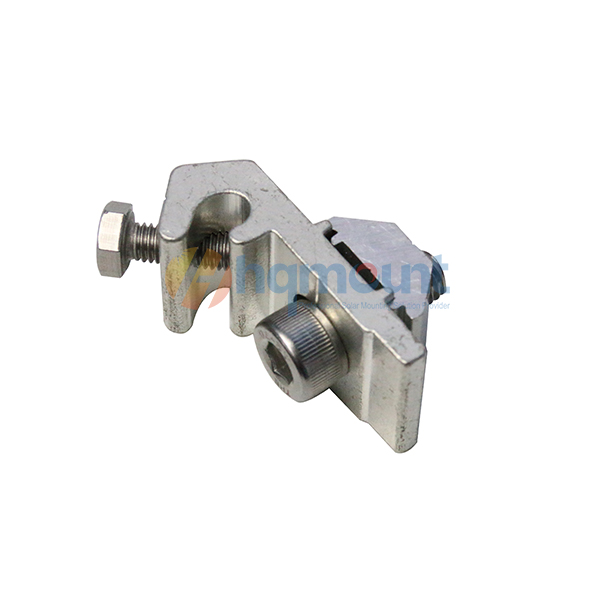

3. Mill‑Surface Aluminum Grounding Lug (Non‑Anodized)

• No anodized layer – anodization insulates and would affect electrical conductivity
• Bare aluminum surface ensures direct metal‑to‑metal contact
• Lightweight and corrosion‑resistant in its natural state
• Ideal for applications where coating is not required

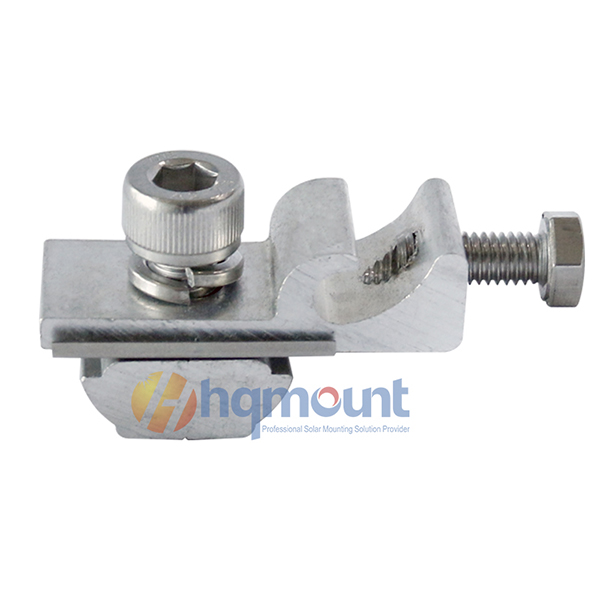

HQ Mount Universal Grounding Lug for Asia Market and European 40*40 Profile

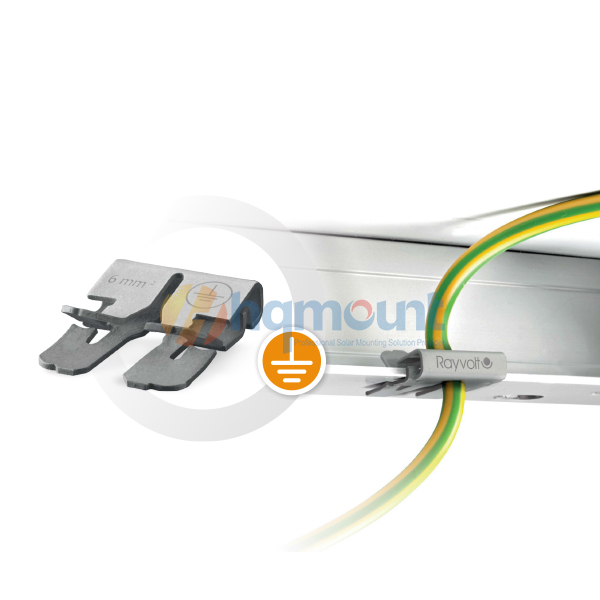

4. Araymond Grounding Clip – Tool‑Free, Click‑to‑Ground

• Simply clip the green/yellow grounding cable to the panel frame – no tools required
• Breaks through the anodizing layer when fitted, ensuring direct electrical contact with the aluminum frame
• Fast, screwless installation – eliminates the need for torque maintenance over time
• Designed by Araymond – a global leader in fastening solutions with over 160 years of engineering heritage
• Ideal for rapid deployment projects and large‑scale solar farms

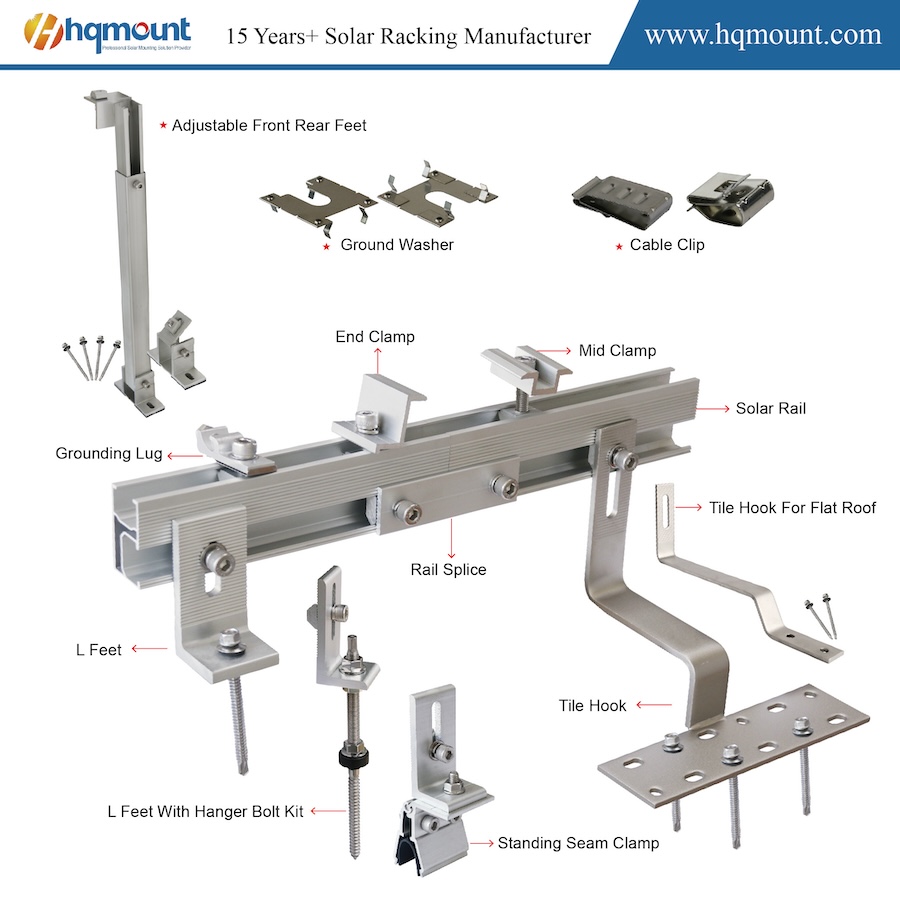

Complete Solar Mounting Kit

HQ Mount now includes grounding lugs as part of our full solar power bracket installation kits – everything you need in one shipment.

Additional Grounding Accessories

Complete your solar grounding system with these essential components:

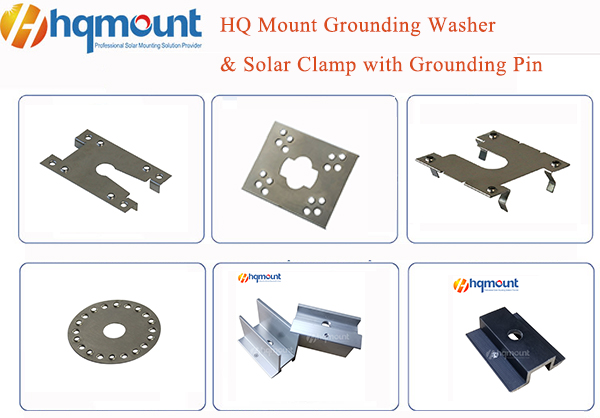

Grounding Washer / Grounding Clip

• Installed with solar panel mid clamps or end clamps
• Embedded grounding pin or teeth pierce through anodized coating
• Creates reliable electrical path from panel frame to mounting rail

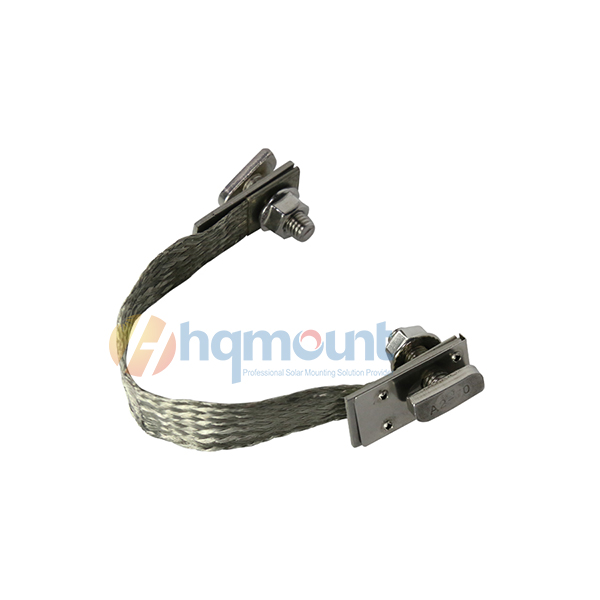

Bonding Jumper for Rail Connection

• Bridges electrical connection between spliced solar rails
• Ensures continuous grounding across the entire array

• Available in flexible copper wire
• Essential for long rail runs with multiple connecting points

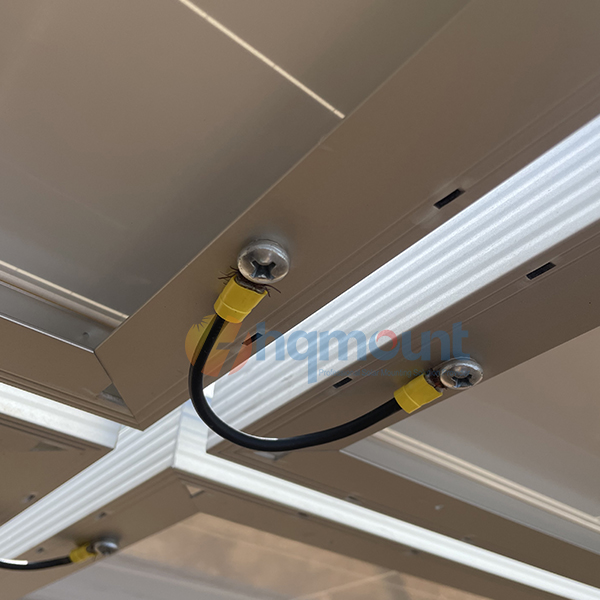

Solar Panel Grounding Cable

• Standard-coded cable for safety grounding applications
• Connects between solar panels, or from panels to mounting structure
• Available in 4mm², 6mm², 10mm², 16mm² sizes

Solar Farm Grounding Steel Plate

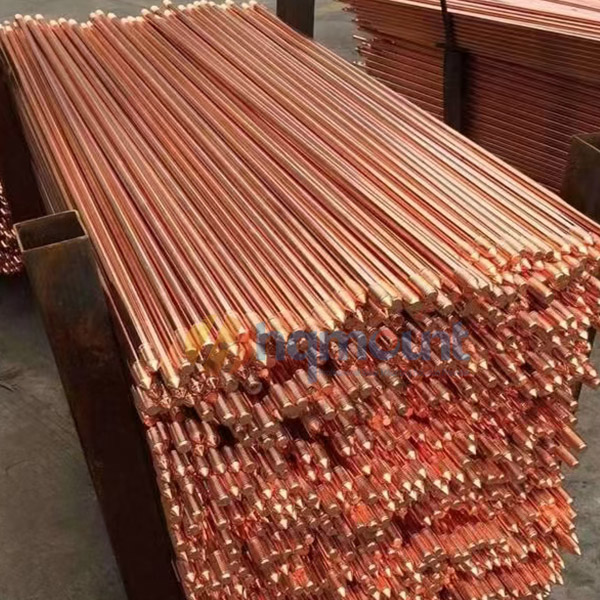

Copper-Clad Steel Earth Rod

• pure copper electroplated onto low-carbon steel core
• Combines copper conductivity with steel tensile strength
• Cost-effective alternative to pure copper rods
• Ideal for deep-driven installations in rocky or compacted soils
• Widely used in utility-scale solar farms for lightning protection

Need grounding lugs for your solar project? Contact us: info@hqmount.com
