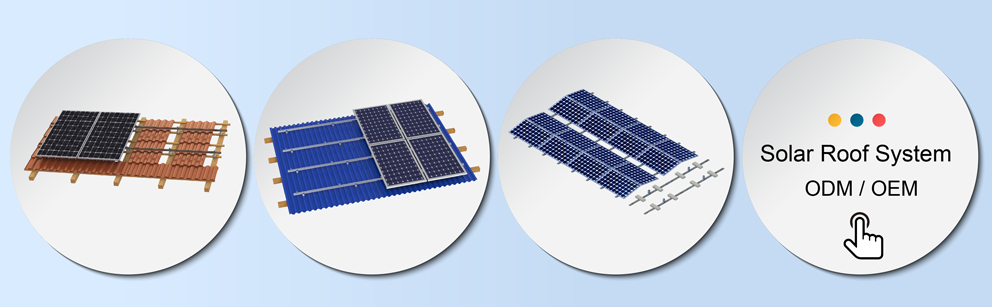

HQ Mount as a professional leading solar mounting solution provider offers a full list for solar roof mounting system including:
Residential solar tile roof, solar commercial metal roof sheet and commercial concrete solar flat roof.
1, HQ Mount solar tile roof mounting solutions
Secure and aesthetic mounting for all tile types without compromising roof integrity.
Solution Type

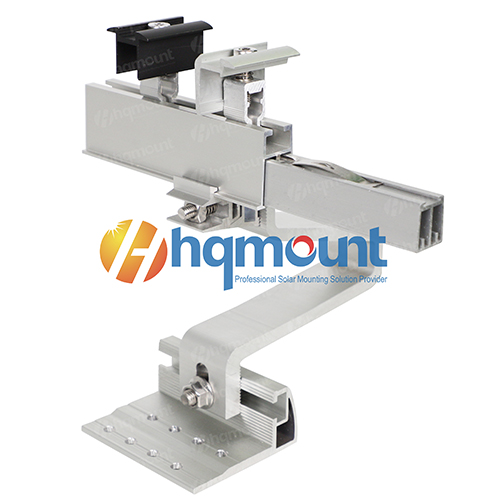

Aluminum Roof Hook with Clickholder

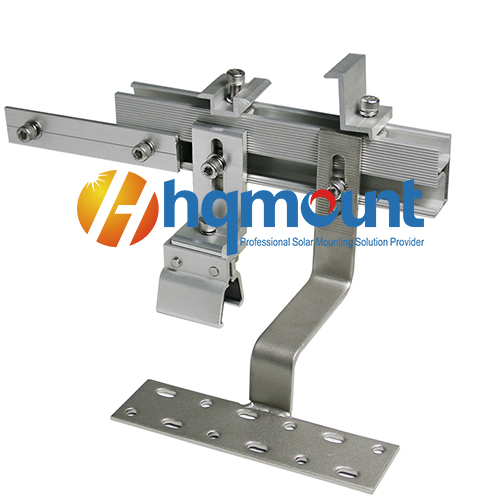

Stainless Steel Solar Roman Tile Hook

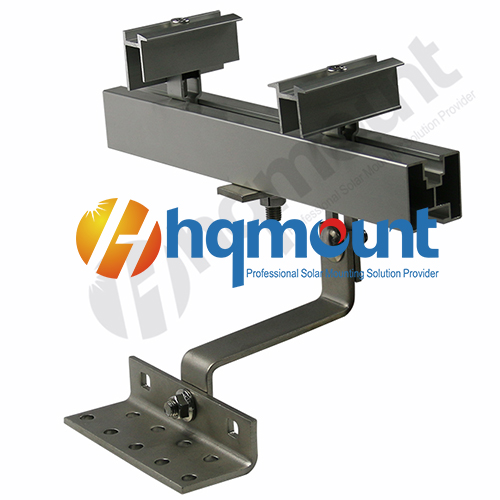

3-Way Adjustable Stainless Steel Tile Hook
Key Models & Features
8mm Solar Aluminum Hook Arm | Patented Clickholder for Fast, Tool-Light Installation, click for all installation steps
Classic, fixed tile roof solution made from stainless steel for long-term corrosion resistance.
Multi adjutable hook suitable for differnt solar tile roofs alignment with a 40x40mm aluminum rail-a reliable solar tile roof kit.
Best For
Solar installers prioritizing speed and efficiency on standard tile roofs.
Roman tile and other traditional tile profiles where proven reliability is key.
Complex tile roofs where precise leveling and alignment are required.
Detail Solar Components

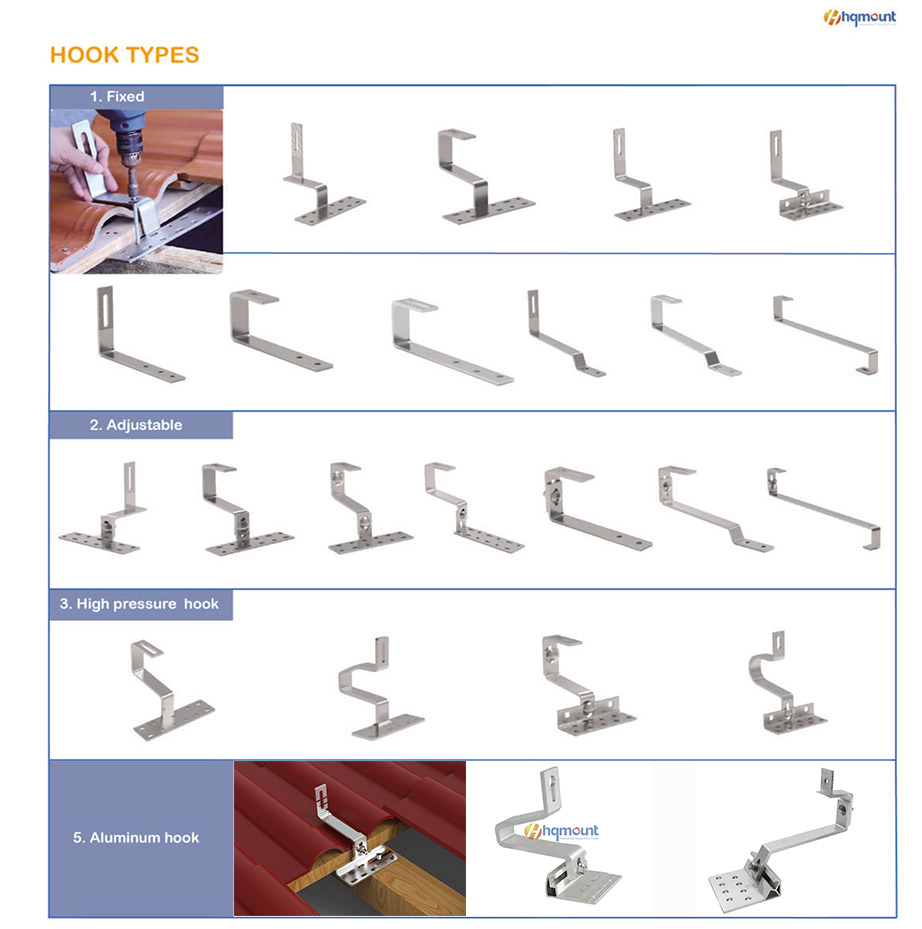

Besides the above common solutions we also have stainless steel flat tile hook, pantile solar roof hooks and high pressure solar hooks for high snow load environment, we have several options for fixed solar tile hook and adjustable solar roof hooks.
2，Solar commercial Metal Roof Mounting Solutions
Maximize your solar metal roof's potential with a range of solutions, from non-penetrating to high-performance.
|
Solution Type |

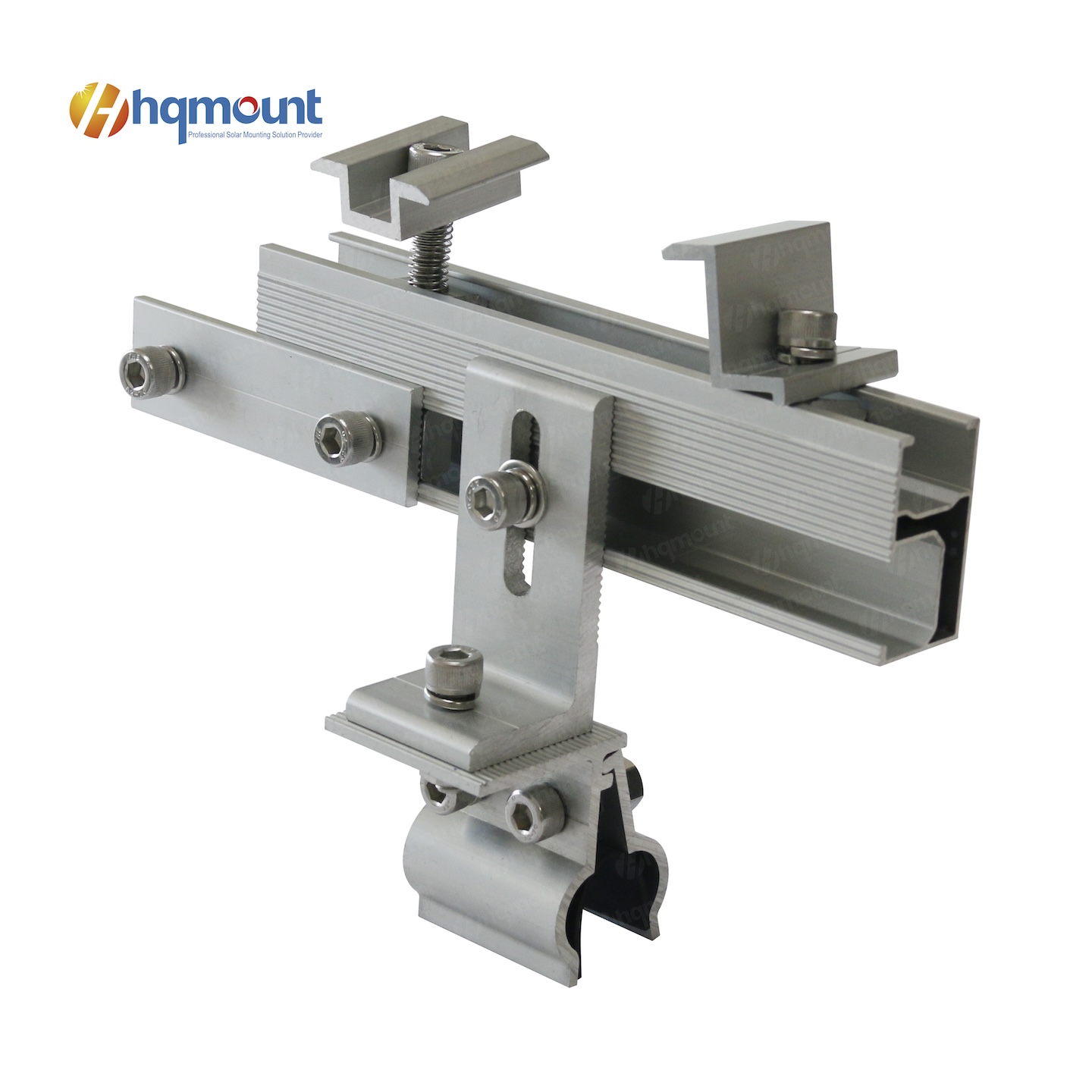

Standing Seam Clamp (Non-Penetrating) |
Solar Mini Rail System (Cost-Effective) |

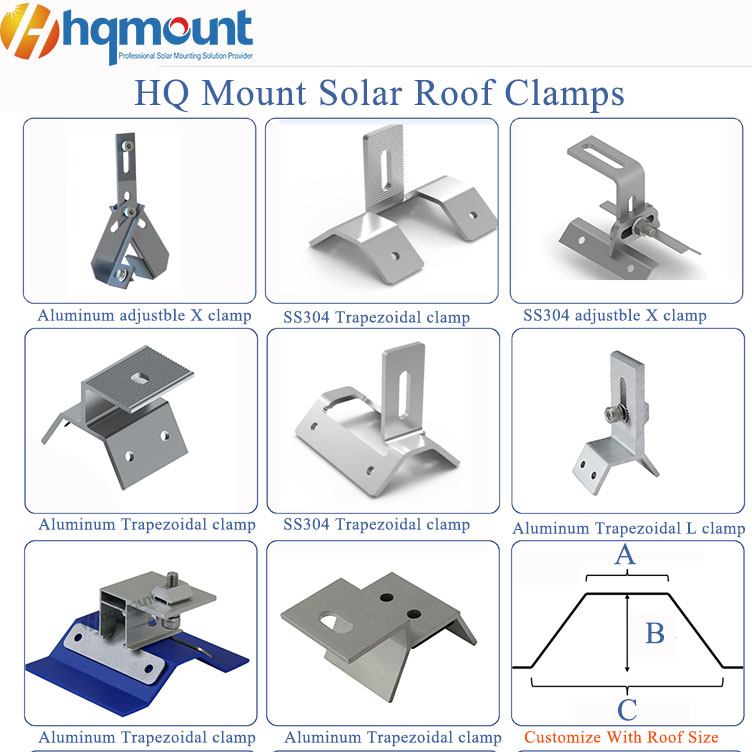

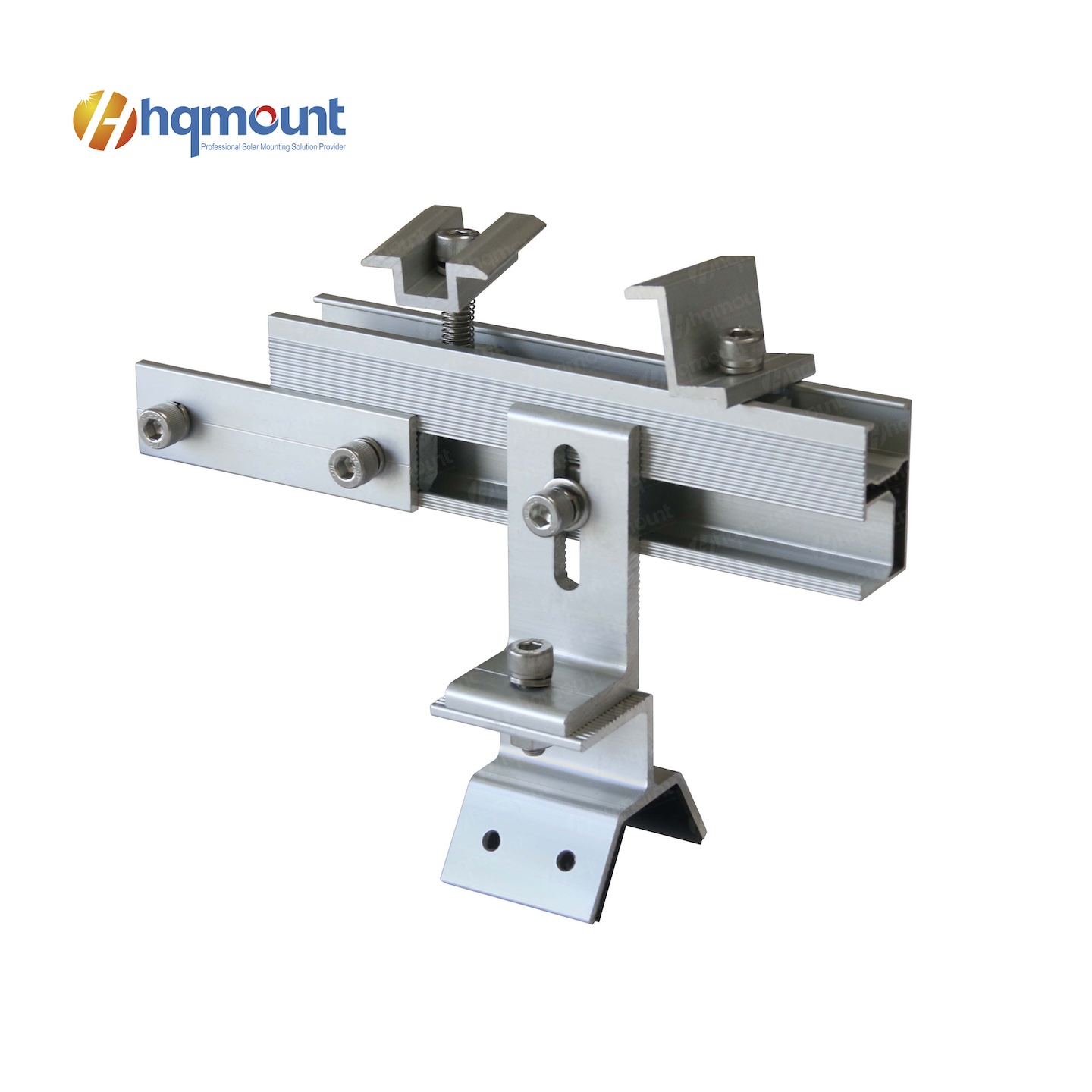

Trapezoidal Solar Roof Clamp |

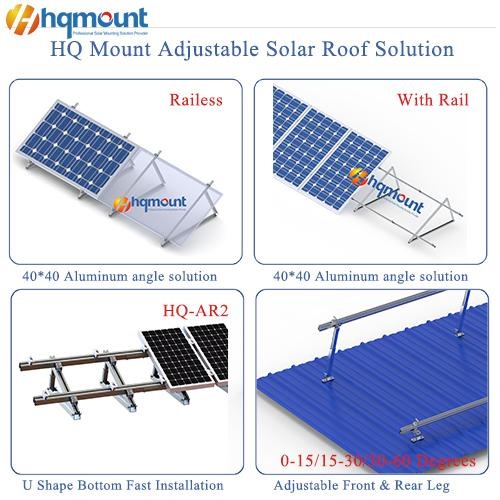

Adjustable Solar Panel System（ front & rear leg or triangle solution) |

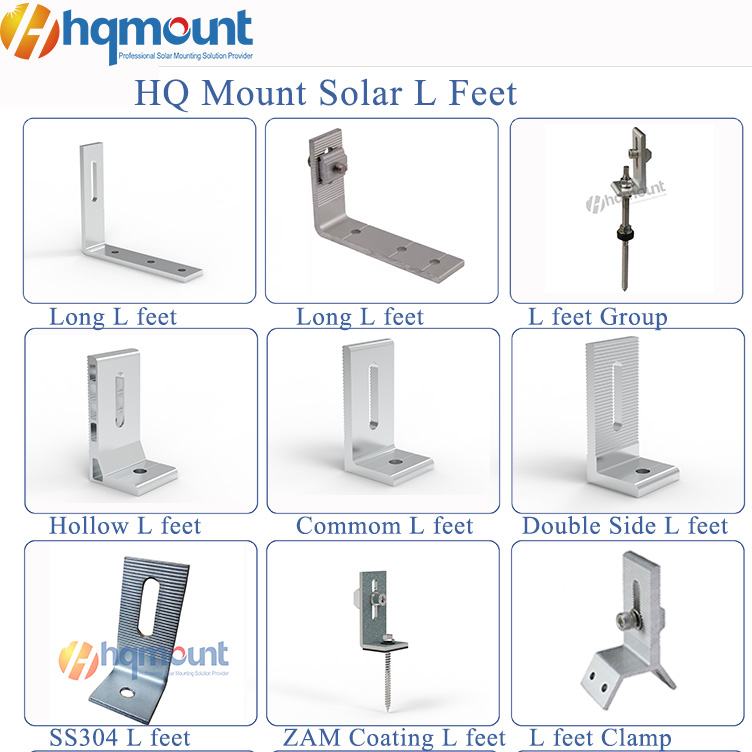

Solar L-Feet Solution (Standard) |
|
Key Models & Features |

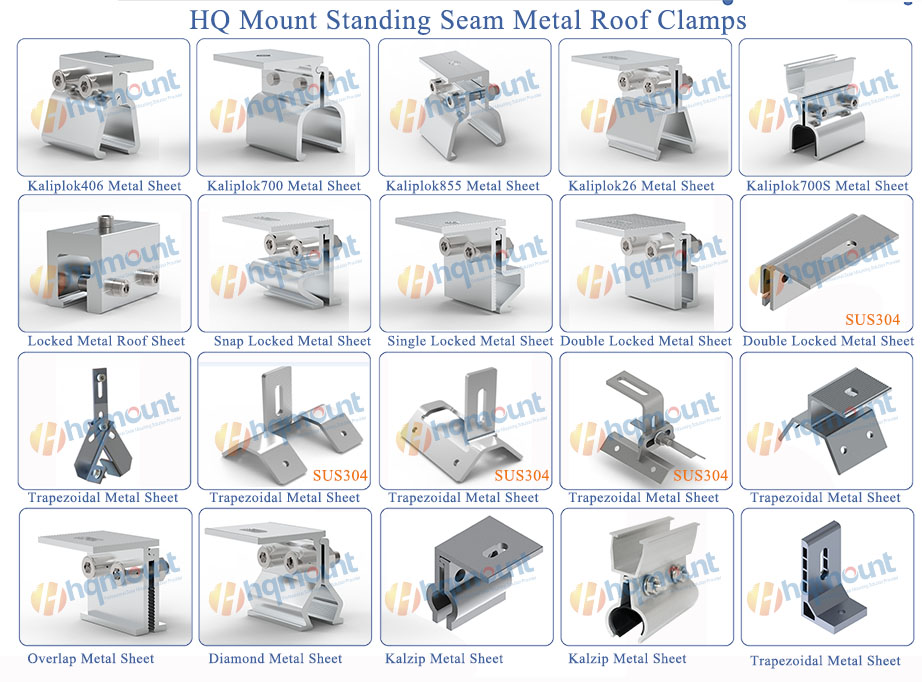

Our Standing seam clamps. Attaches directly to the seam without drilling, 100% preserving the roof warranty. EPDM isolation prevents corrosion. |

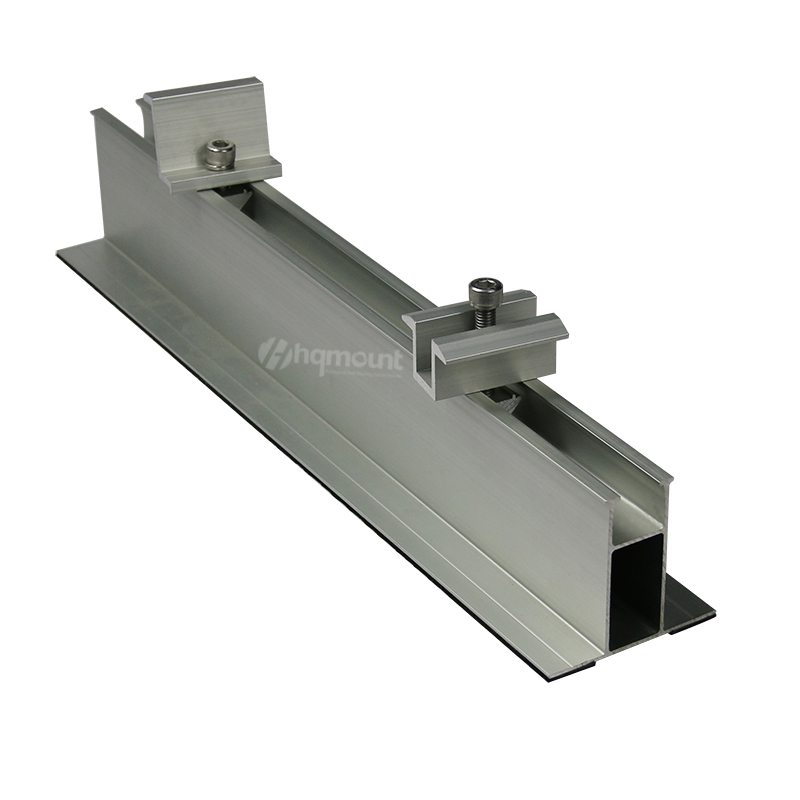

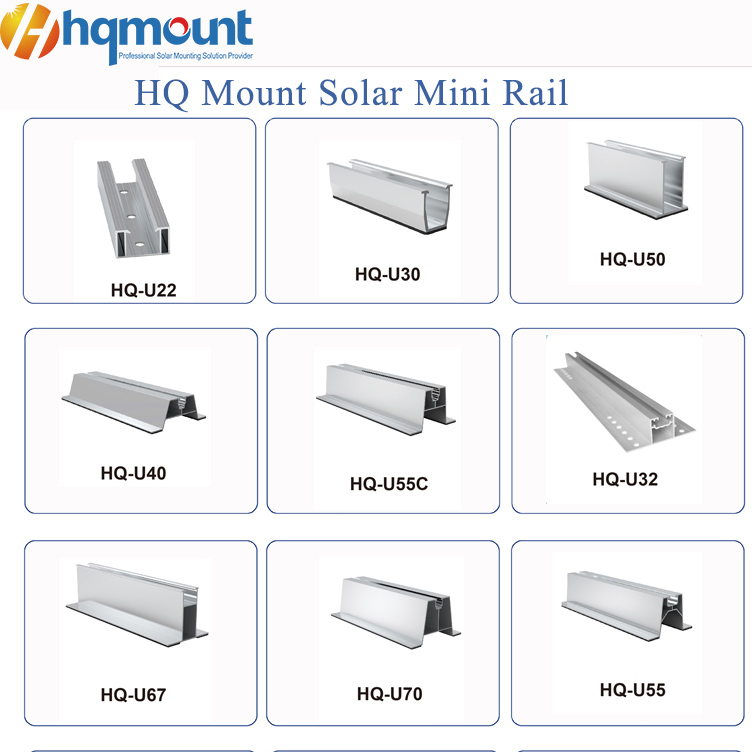

Our Solar mini rail series. A lightweight, low-profile aluminum rail that attaches with only 4 screws. Cuts shipping cost and roof load dramatically. |

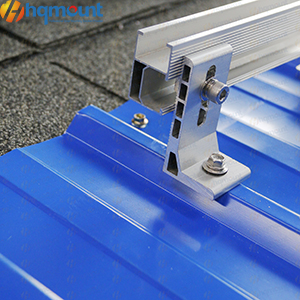

A specialized clamp designed to securely grip the ribs of trapezoidal metal sheets, providing a stable base for rails |

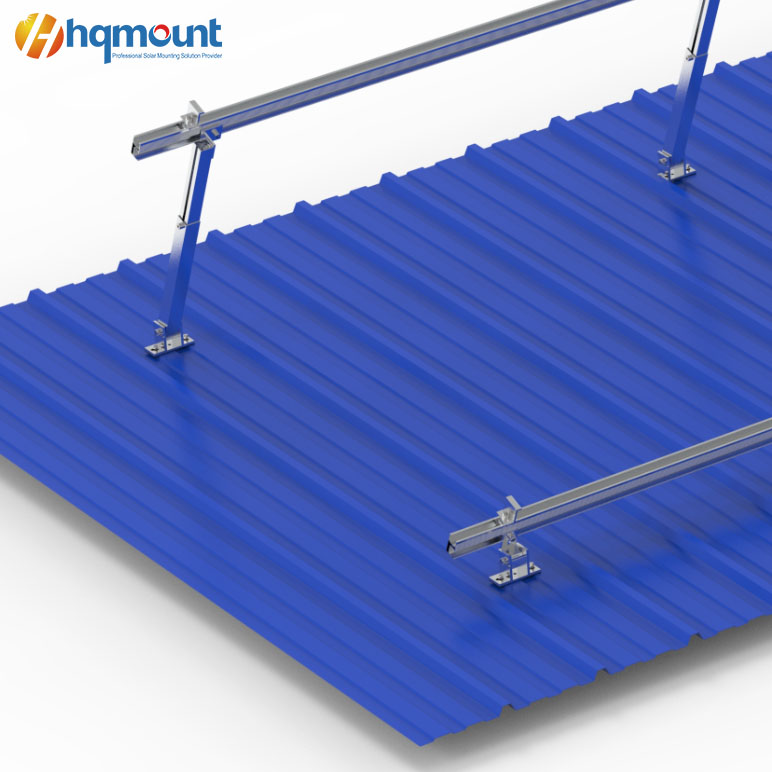

Features with solar adjustable legs to adjust height or tilt to optimize the panel angle for increased solar energy yield, even on flat metal roofs. |
The most common and universal Solar commercial roof mounting bracket. Connects rails directly to the metal roof substrate via a standard attachment point. |
|
Best For |
Solar Commercial Metal buildings with Kalzip or similar standing seam roofs where warranty protection is critical. |
Cost-sensitive pv projects on trapezoidal or corrugated solar metal sheet roofs. |
Standard trapezoidal metal sheet roofs. |
Projects aiming to maximize solar power generation rather than just meet minimum requirements. |
Simple, straightforward installations where a classic, reliable connection is needed. |
|
Detail Components |
 |
 |
 |
 |
 |
| Similar Solution Choice |
 |
 |
 |
 |
 |
3. Solar Concrete / Flat Roof Mounting Solutions
Engineered for ballasted, non-penetrating installations on large flat surfaces.

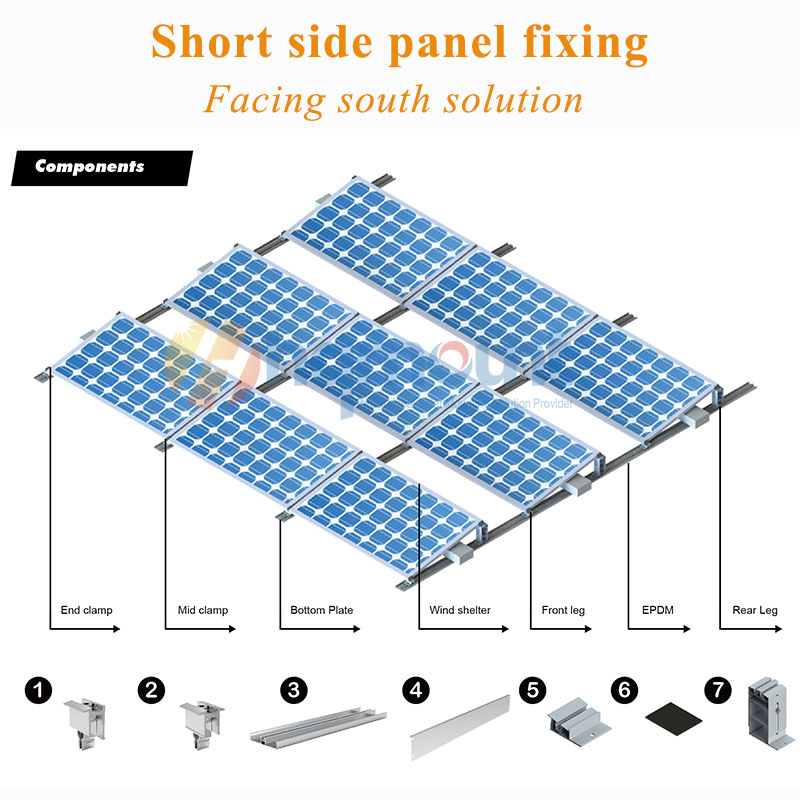

| Solution Type | BR6 PV Ballasted System (10° tilt fixed) | BR2 Customizable Aluminum Solar Ballast System | BR3 ZAM Coating Ballast System | Wind Zone Solution | |
|
Key Models & Features |

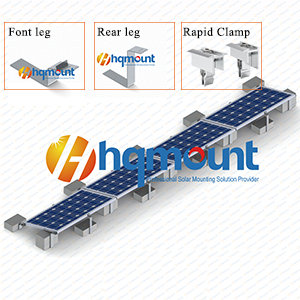

10° Fixed Tilt | Integrated Ballast Tray | Rapid Clamp Compatible |
Made from bent aluminum alloy, allowing for a customized tilt angle (typically >15°) to maximize solar exposure in specific latitudes. |

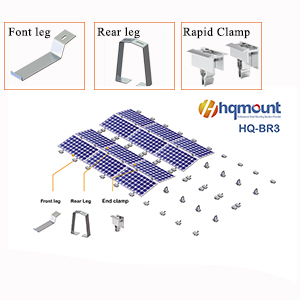

Constructed from ZAM-coated steel for high strength and corrosion resistance at a lower cost than aluminum. Offers customizable degrees of tilt. |
Large wind load zone that are not suitable for ballasted solution |
|
|
Best For |
Most commercial solar flat roofs where a standard, efficient 10-degree tilt is optimal. |
Projects requiring a steeper tilt angle for higher energy harvest or seasonal optimization. |
Large-scale utility projects on concrete roofs where cost-effectiveness and durability are paramount. |

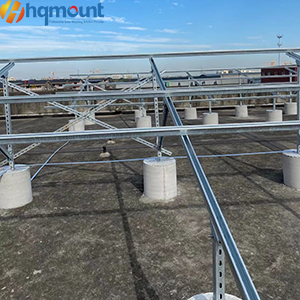

Increased ground clearance to reduce wind uplift pressure and a stronger solution needed for specific engineering design. |
|
| Detail components |
|
|
 |
 |
|
The HQ Mount Advantage: More Than Just Products
Every solution above is backed by our commitment to excellence:
Certified Quality: Our systems and processes are SGS, TUV, CE, and ISO certified, ensuring international compliance.
In-House Engineering & Testing: We perform rigorous in-house uplift and load testing on our components, so you build with confidence.
Direct Manufacturer Value: As the factory, we offer true cost savings, reliable lead times, and full support for OEM/ODM customization.
Complete System Supplier: From hooks and clamps to rails and ballast trays, we provide every component for a seamless project.
Find Your Perfect Roof-Mount Match
Your roof is unique, and so should be your mounting system. Let our technical team help you select the optimal, most cost-effective solution for your specific project.
Contact us today for:
A free system recommendation based on your roof type and location.
Technical datasheets and project case studies.
Competitive pricing and samples.
